OptiFlex
OptiFlex combines 250 × 250 mm modules with 500 mm-wide rental panels and a −10° to 15° curved splicing range for adaptable event layouts.
Product illustrations. Configurations shown may require optional components.
At a glance
- 250 × 250 mm modules
- 500 × 500 mm and 500 × 1000 mm panel options
- −10° to 15° curved splicing range
- Rear-maintenance configuration
Applications

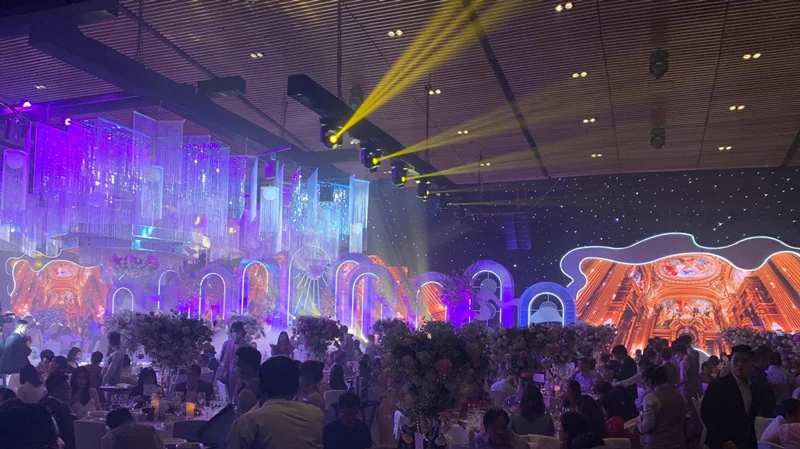

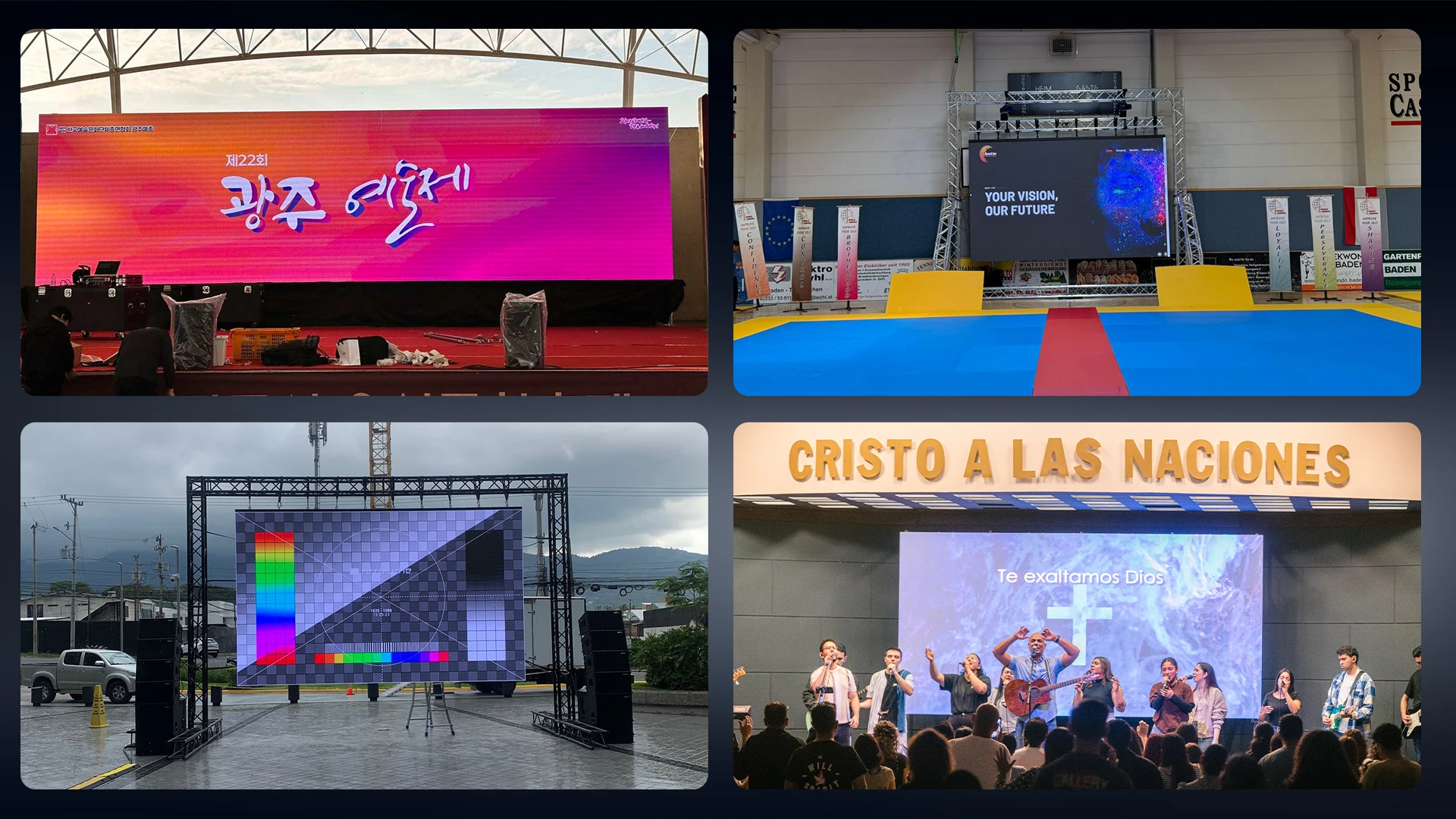

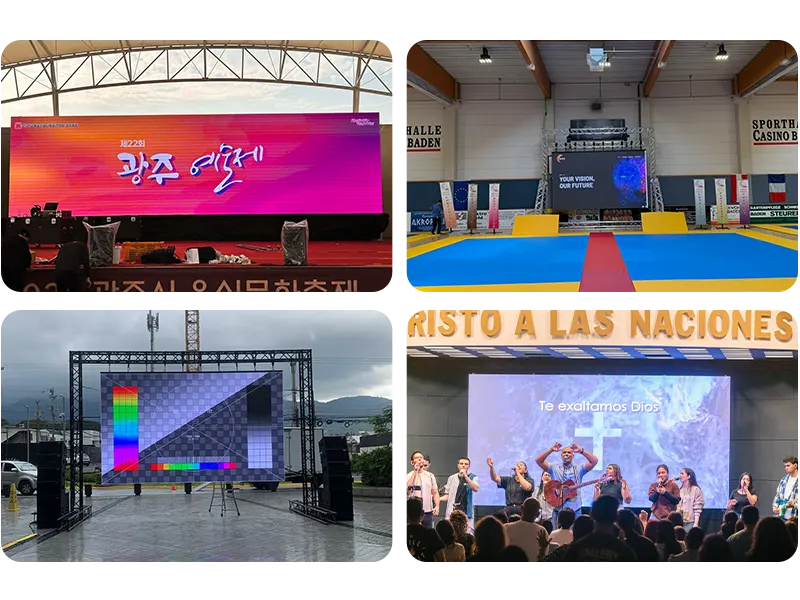

Stage and touring shows · Corporate events · Rental video walls

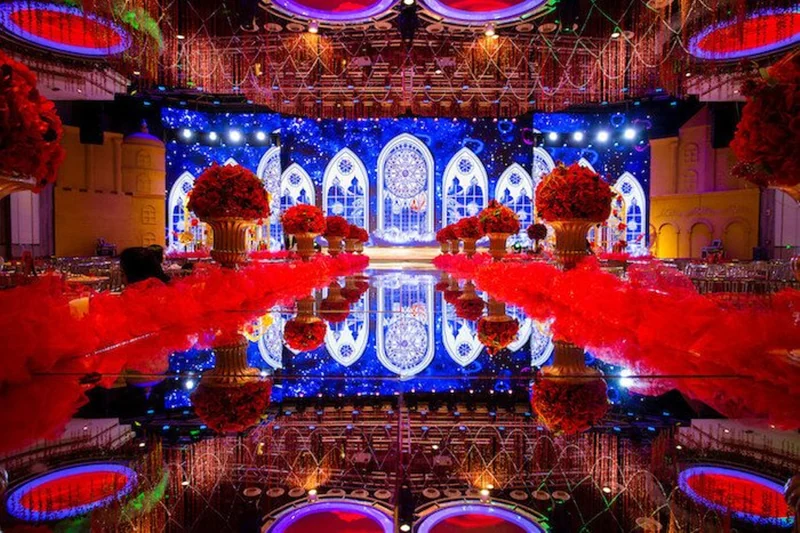

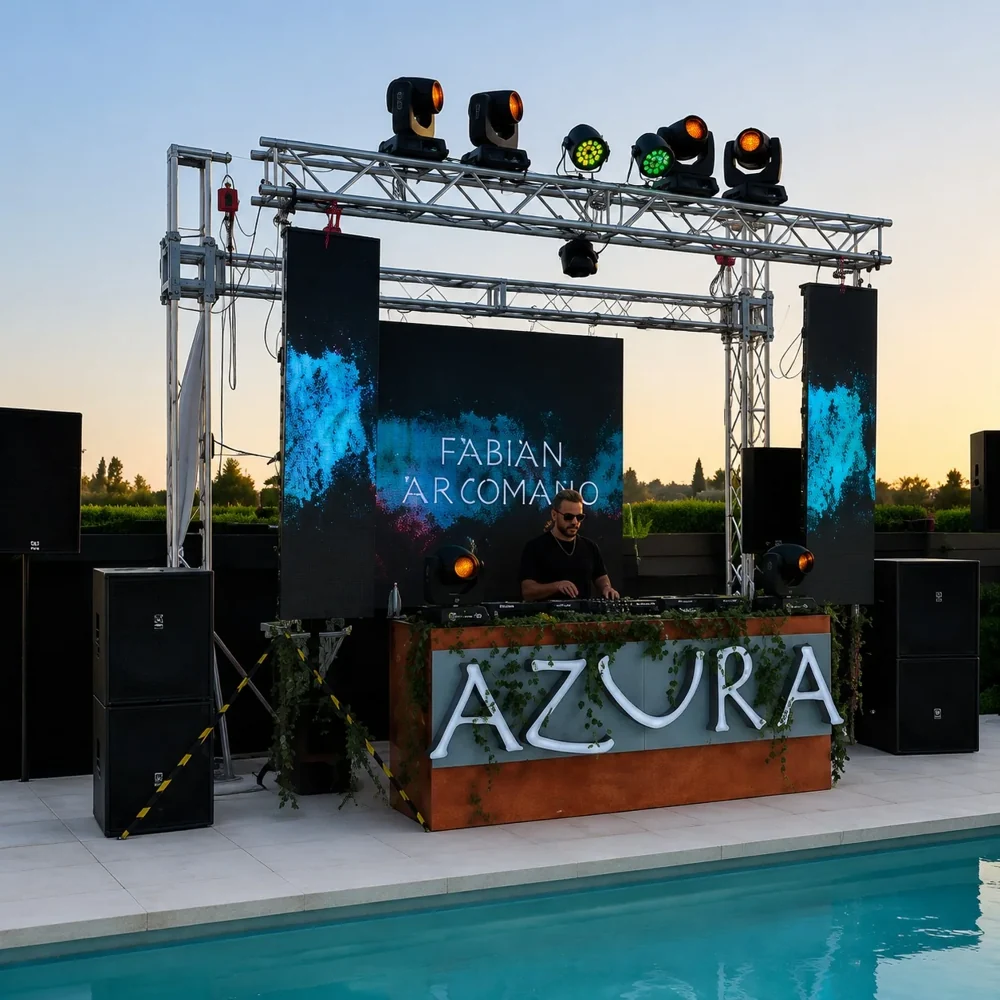

Wedding & party settings
Where this series fits
- Choose when rear maintenance is acceptable and a −10° to 15° curved splicing range fits the planned layout.
- Indoor and outdoor configurations use different brightness, power, and IP conditions; confirm the required environment before quoting.
- The 250 × 250 mm module format and 83 mm panel depth should be checked against the fleet's existing spares and transport system.
Configuration options
Identify the exact pixel pitch, cabinet format and operating environment when requesting a quotation. Listed options do not mean every combination is interchangeable.
Indoor · P1.953 / P2.604 / P2.97 / P3.91 mmView configuration
Pixel Pitch: P1.953 / P2.604 / P2.97 / P3.91
Cabinet Size: 500 × 500 × 83 mm or 500 × 1000 × 83 mm
Brightness: 600–800 cd/m²
Weight: 7.65 kg or 13.75 kg
Refresh Rate: P1.953/P2.604: 7680 Hz; P2.97/P3.91: 7680/15360 Hz options
Ip Rating: IP30
Outdoor · P2.604 / P2.97 / P3.91 mmView configuration
Pixel Pitch: P2.604 / P2.97 / P3.91
Cabinet Size: 500 × 500 × 83 mm or 500 × 1000 × 83 mm
Brightness: 4500–5000 cd/m²
Weight: 7.65 kg or 13.75 kg
Refresh Rate: P2.604: 7680 Hz; P2.97/P3.91: 7680/15360 Hz options
Ip Rating: IP65
Specifications
| Pixel pitch | Indoor: P1.953, P2.604, P2.97, P3.91; outdoor: P2.604, P2.97, P3.91 |
|---|---|

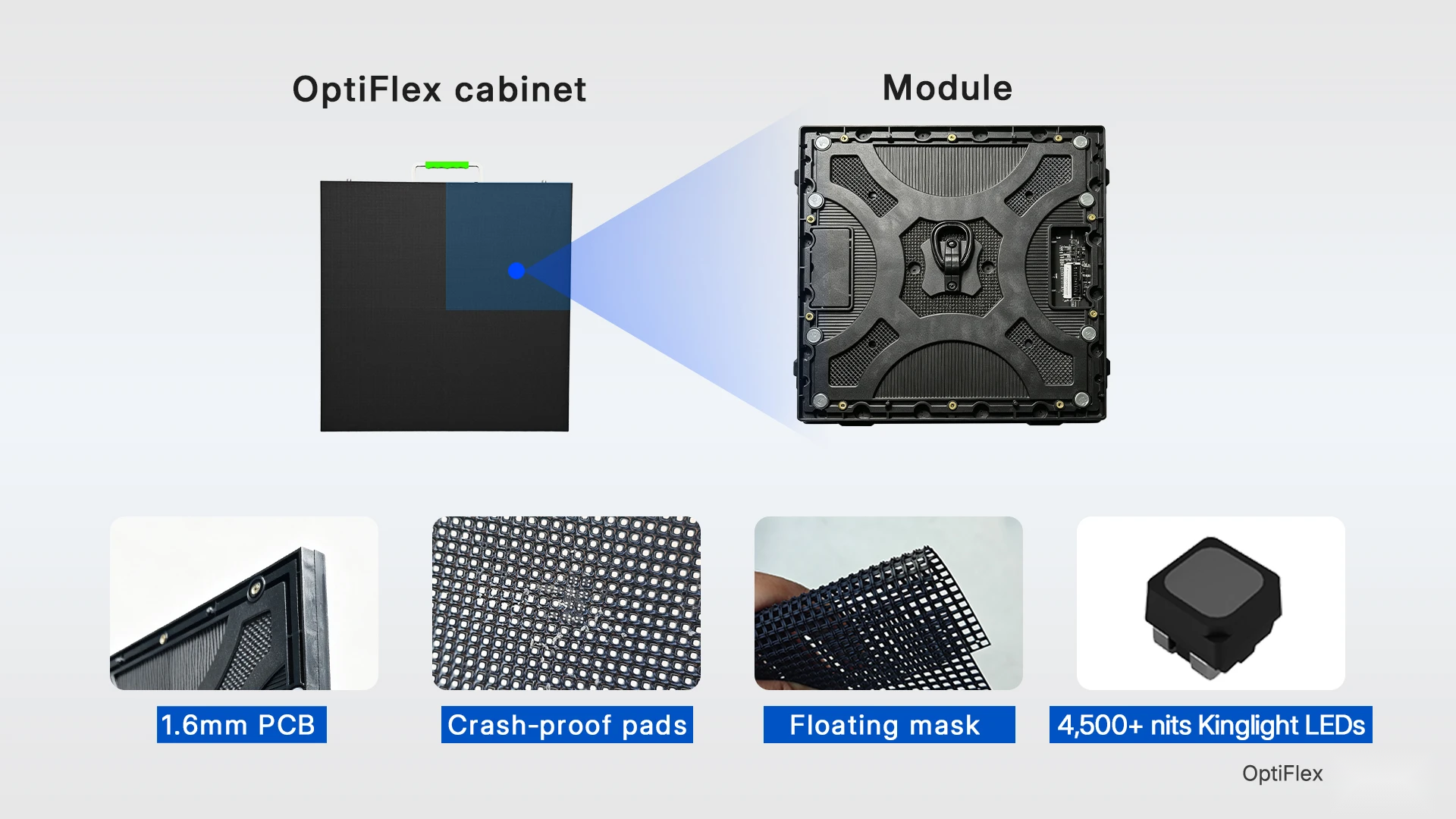

| Module dimensions | 250 × 250 mm |
| Panel dimensions | 500 × 500 × 83 mm or 500 × 1000 × 83 mm |
| Panel weight | 7.65 kg or 13.75 kg |
| Brightness | Indoor: 600–800 cd/m²; outdoor: 4500–5000 cd/m² |
| Refresh rate | Indoor P1.953/P2.604 and outdoor P2.604: 7680 Hz; indoor/outdoor P2.97/P3.91: 7680/15360 Hz options. Confirm the selected configuration. |
| Power consumption | Indoor average/maximum: 120/400 W/m²; outdoor: 180/600 W/m² |

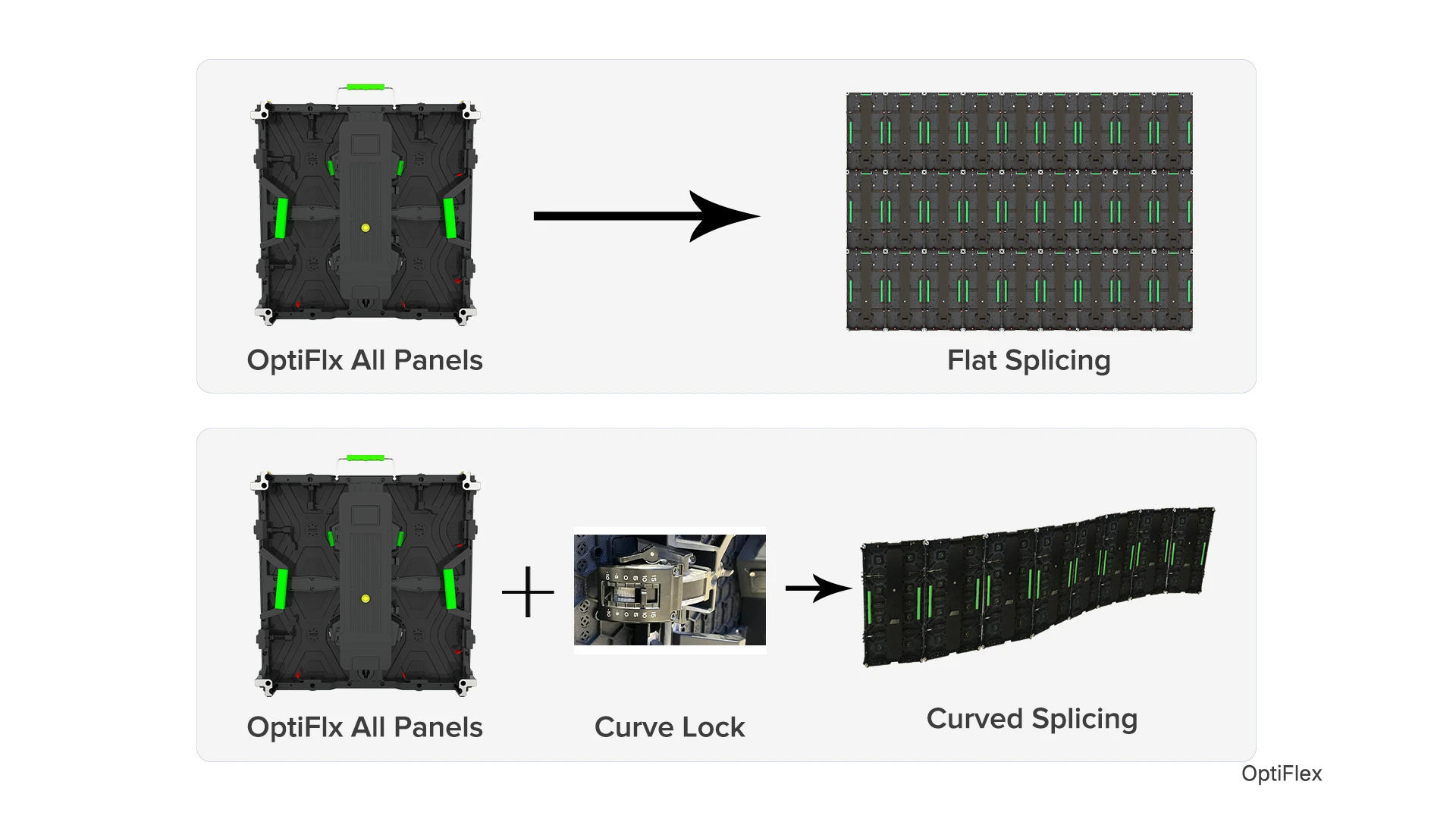

| Curved splicing range | −10° to 15° |

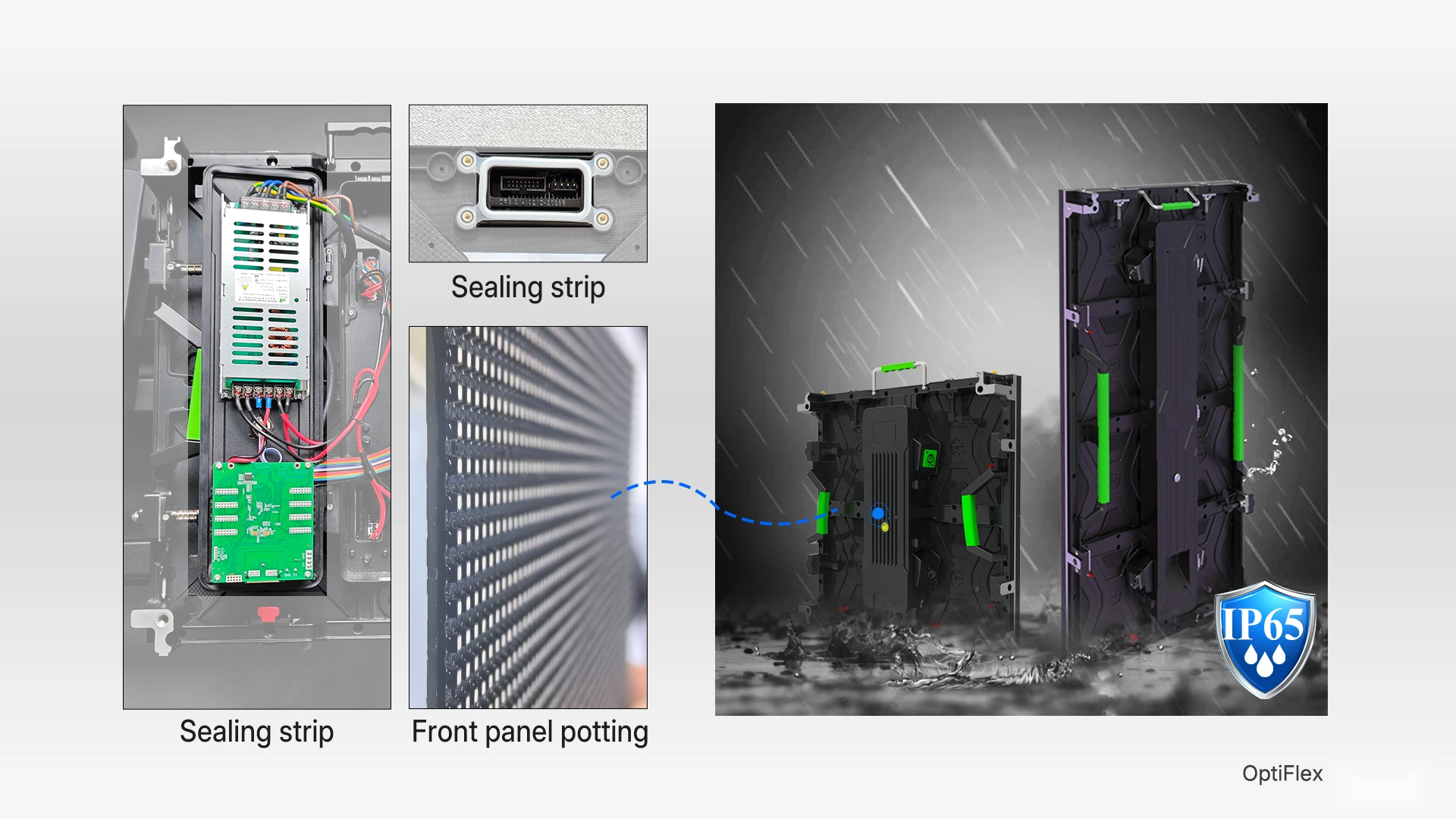

| IP rating | Indoor IP30; outdoor IP65 |
| Control | Novastar / Colorlight |

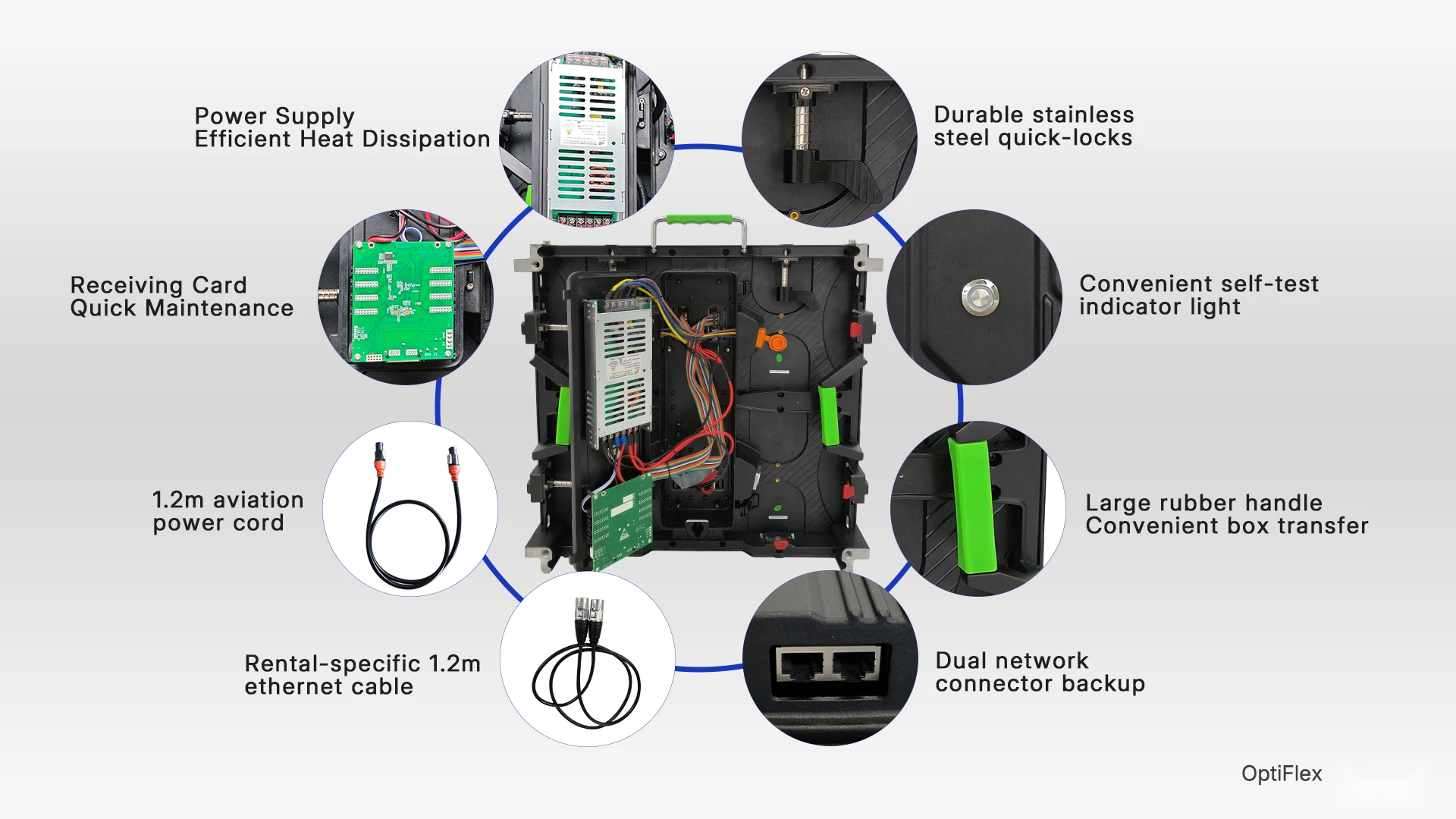

| Maintenance access | Indoor/outdoor: rear access |
| LED Type | Indoor: P1.953: SMD1515; P2.604: SMD1515; P2.97: SMD2121; P3.91: SMD2121 | Outdoor: P2.604: SMD1415; P2.97: SMD1415; P3.91: SMD1820 |
| Pixel Density (pixels/m²) | Indoor: P1.953: 262178; P2.604: 147456; P2.97: 112896; P3.91: 65536 | Outdoor: P2.604: 147456; P2.97: 112896; P3.91: 65536 |
| Scan Mode | Indoor: P1.953: 1/32; P2.604: 1/24; P2.97: 1/21; P3.91: 1/16 | Outdoor: P2.604: 1/24; P2.97: 1/21; P3.91: 1/16 |
| Grayscale | 16bit |

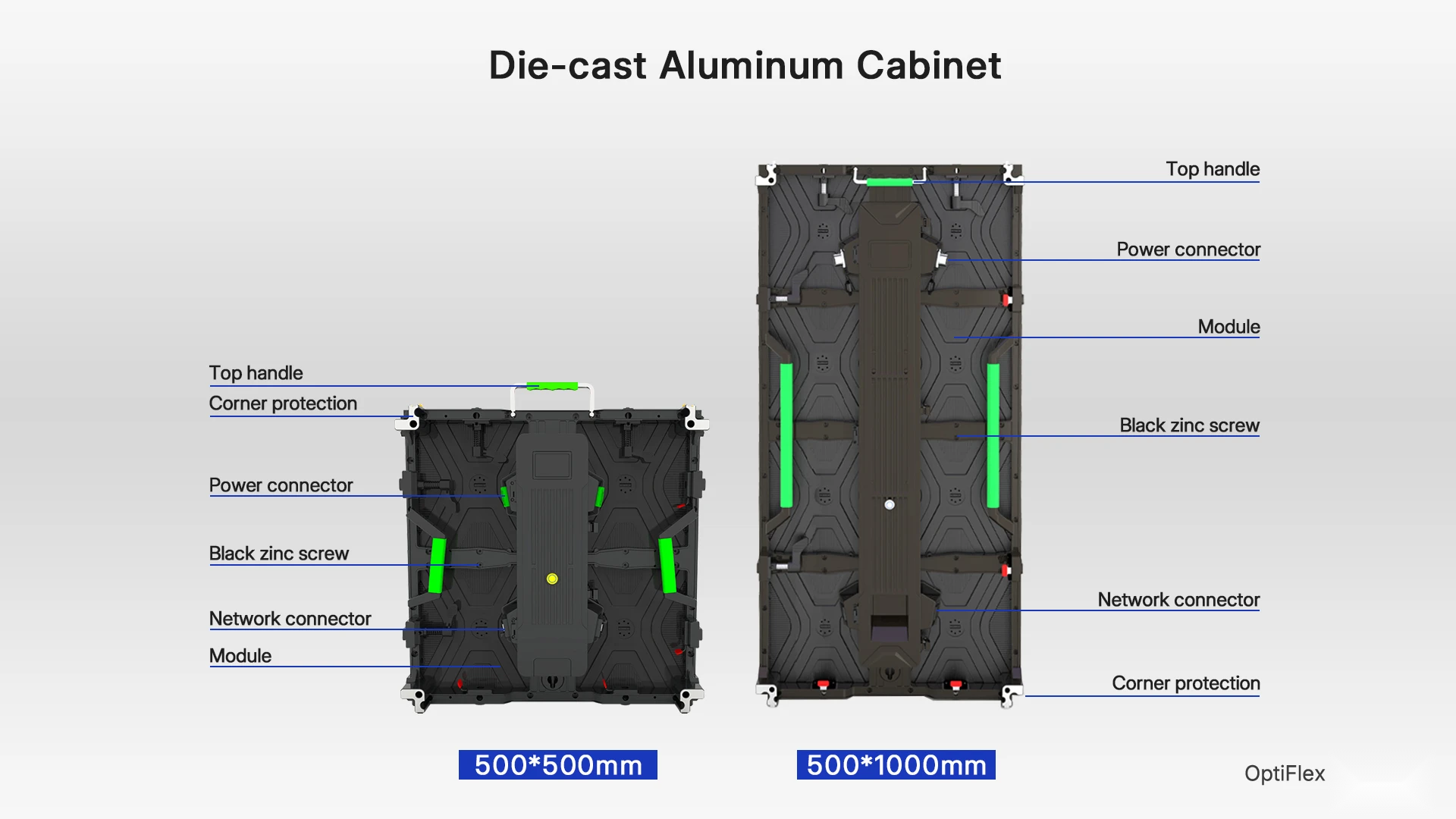

| Cabinet Material | Die Casting Aluminum |
| Contrast Ratio | 5000：1 |
| Viewing Angle (H/V) | 160°/140° |
| Operating Temperature | -40°C to 60°C |
| Input Power | AC100~240 50/60HZ |
Product details

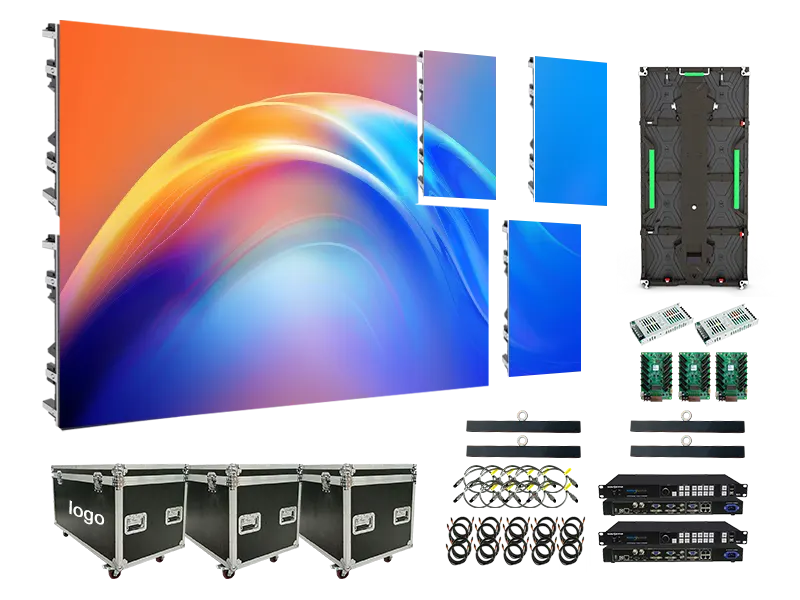

Supplier illustrations show product features and possible configurations. Brightness, protection ratings and optional assemblies depend on the selected version; use the specifications and confirmed quotation for your order.
