InnoVisual
InnoVisual pairs 250 × 250 mm modules with 500 mm-wide rental panels and a −22.5° to 22.5° curved splicing range for creative stage and event builds.
Product illustrations. Configurations shown may require optional components.
At a glance

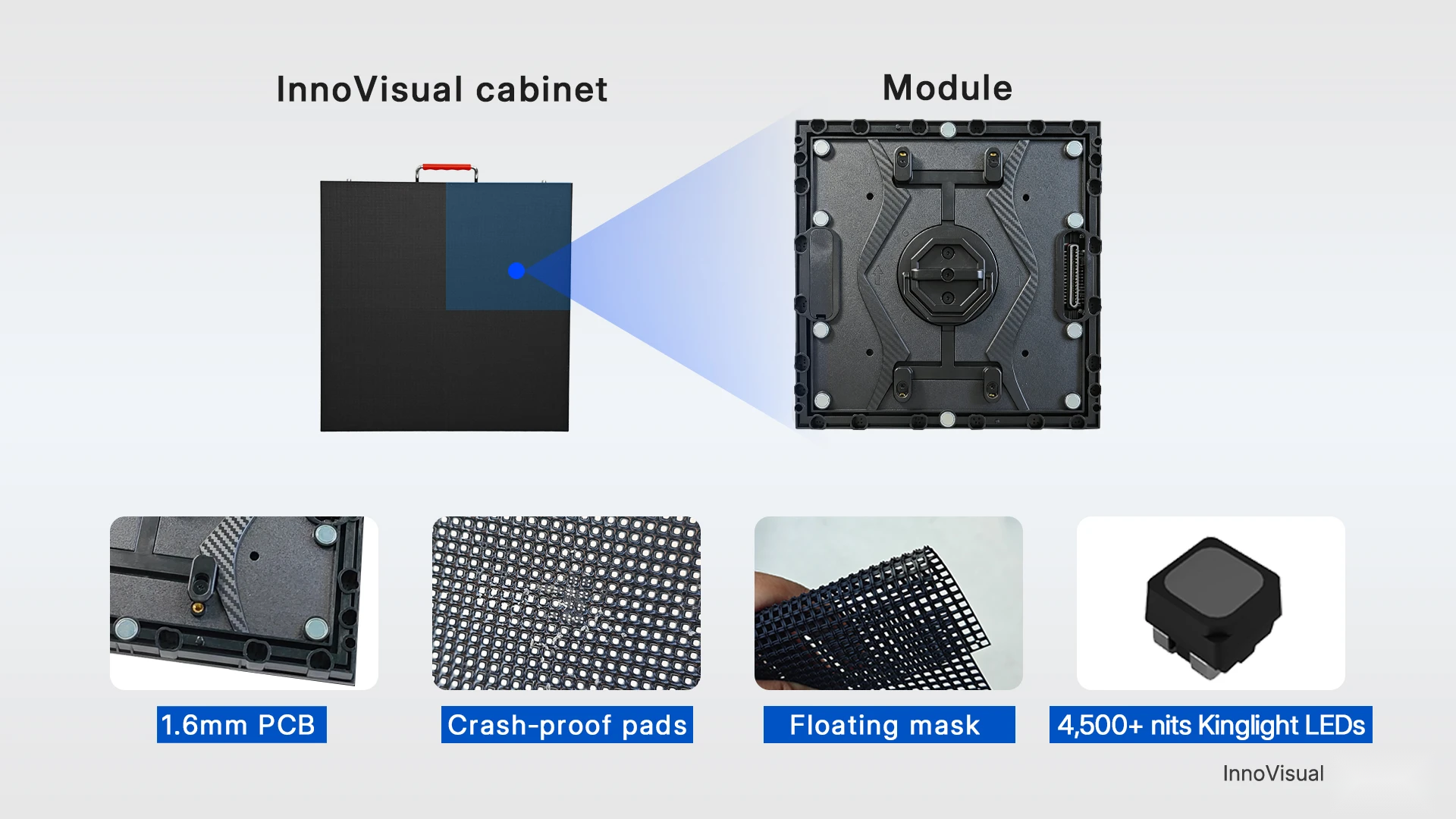

- 250 × 250 mm modules
- 500 × 500 mm and 500 × 1000 mm panel options
- −22.5° to 22.5° curved splicing range

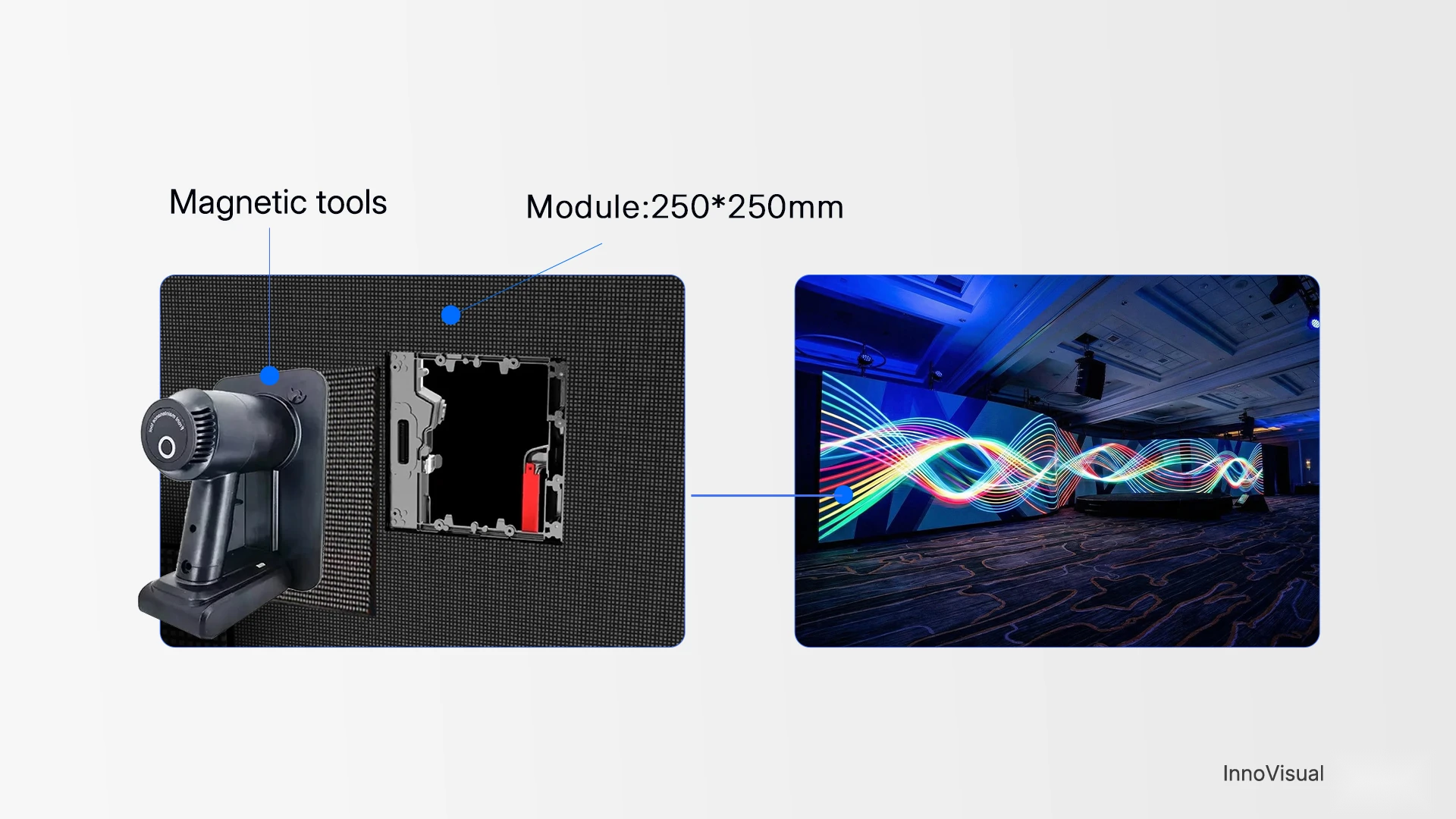

- Front/rear maintenance for indoor configuration and rear maintenance for outdoor configuration

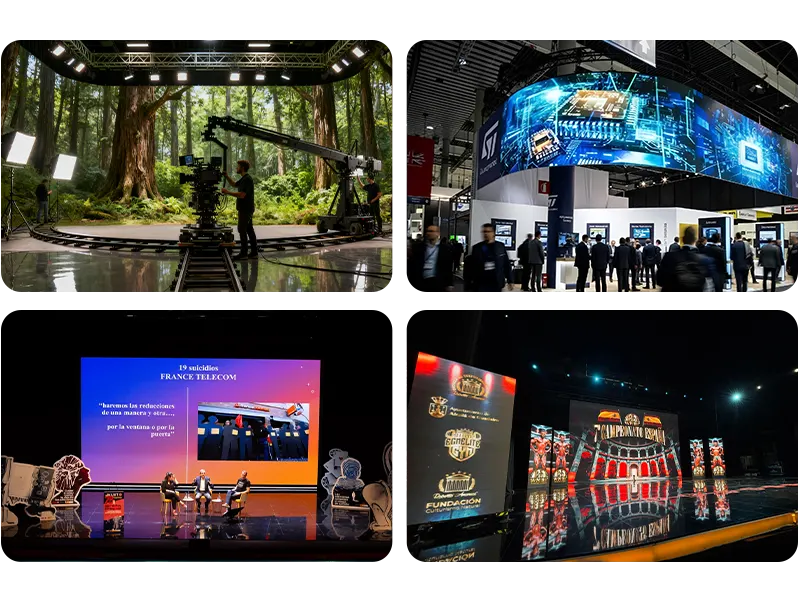

Applications

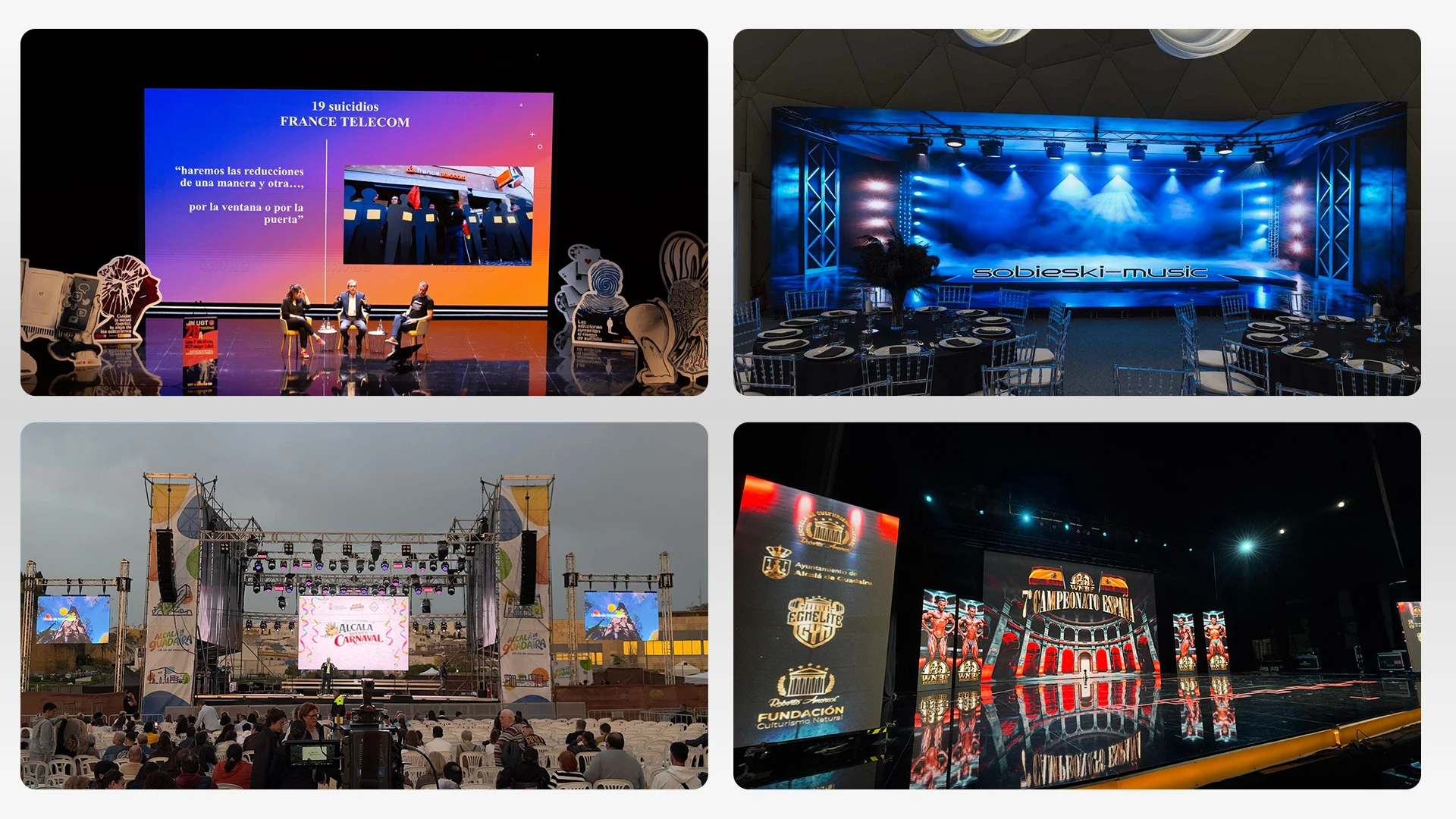

Creative stage backdrops · Events and touring · Corporate productions
Wedding & party settings
Where this series fits
- Choose when the widest documented curved splicing range among these four series is useful: −22.5° to 22.5°.
- The indoor and outdoor maintenance conditions differ by configuration; confirm access direction and required accessories for the selected configuration.
- Curved capability is configuration-dependent and the required corner or curved accessories still need confirmation.

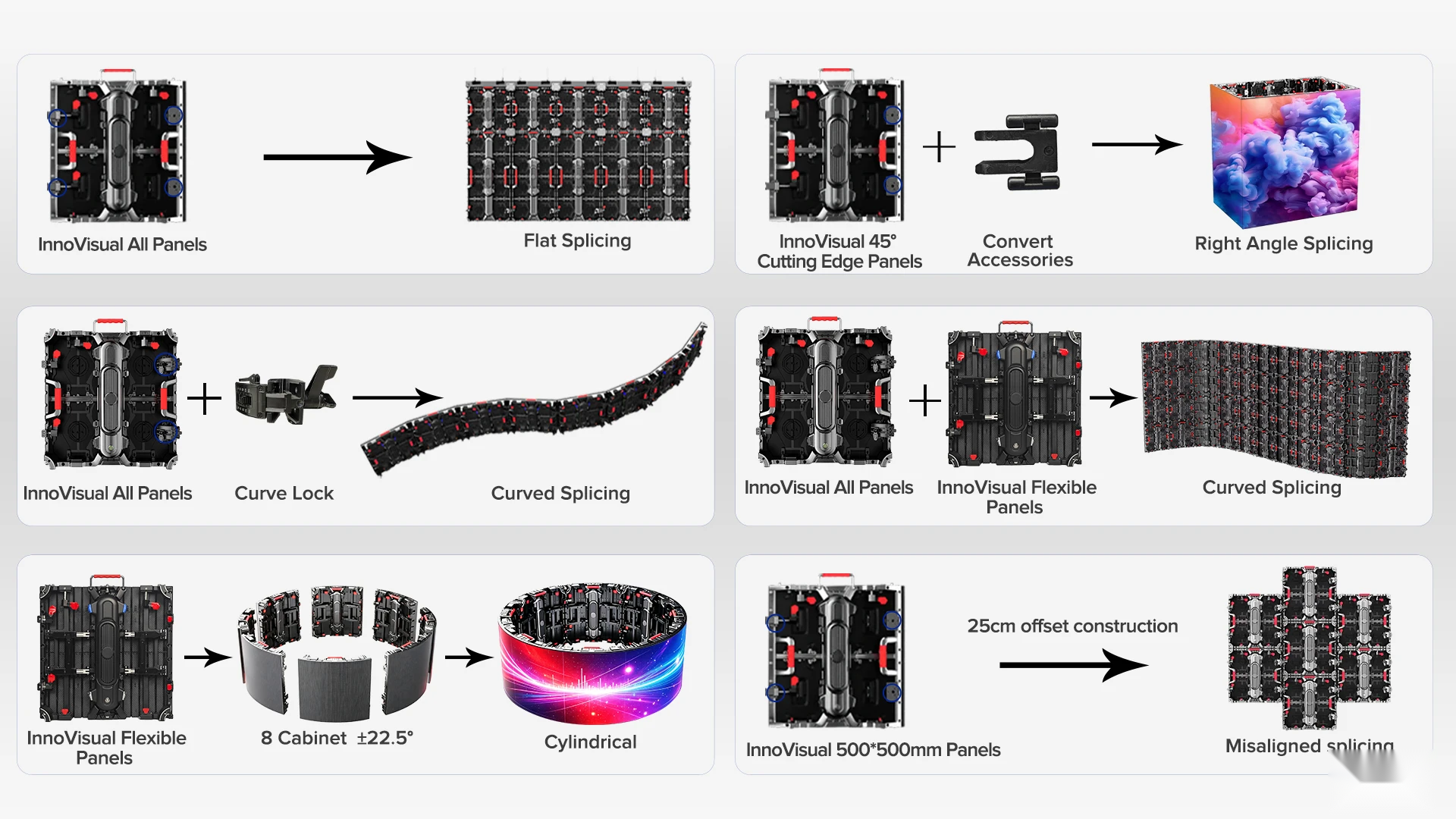

- For right-angle layouts, specify the 45° cut-edge cabinet option and conversion accessories; confirm compatibility with the selected pitch and cabinet size.
- For flexible or cylindrical layouts, confirm whether dedicated flexible panels are required; standard curved-lock and flexible-panel assemblies use different components.
Configuration options
Identify the exact pixel pitch, cabinet format and operating environment when requesting a quotation. Listed options do not mean every combination is interchangeable.
Indoor · P1.953 / P2.604 / P2.97 / P3.91 mmView configuration
Pixel Pitch: P1.953 / P2.604 / P2.97 / P3.91
Cabinet Size: 500 × 500 × 87 mm or 500 × 1000 × 87 mm
Brightness: 600–800 cd/m²
Weight: 7.2 kg or 12.5 kg
Refresh Rate: P1.953/P2.604: 7680 Hz; P2.97/P3.91: 7680/15360 Hz options
Ip Rating: IP30
Outdoor · P2.604 / P2.97 / P3.91 mmView configuration
Pixel Pitch: P2.604 / P2.97 / P3.91
Cabinet Size: 500 × 500 × 87 mm or 500 × 1000 × 87 mm
Brightness: 4500–5000 cd/m²
Weight: 7.2 kg or 12.5 kg
Refresh Rate: P2.604: 7680 Hz; P2.97/P3.91: 7680/15360 Hz options
Ip Rating: IP65
Specifications
| Pixel pitch | Indoor: P1.953, P2.604, P2.97, P3.91; outdoor: P2.604, P2.97, P3.91 |
|---|---|
| Module dimensions | 250 × 250 mm |
| Panel dimensions | 500 × 500 × 87 mm or 500 × 1000 × 87 mm |
| Panel weight | 7.2 kg or 12.5 kg |
| Brightness | Indoor: 600–800 cd/m²; outdoor: 4500–5000 cd/m² |
| Refresh rate | Indoor P1.953/P2.604 and outdoor P2.604: 7680 Hz; indoor/outdoor P2.97/P3.91: 7680/15360 Hz options. Confirm the selected configuration. |
| Power consumption | Indoor average/maximum: 120/400 W/m²; outdoor: 180/600 W/m² |
| Curved splicing range | −22.5° to 22.5° |

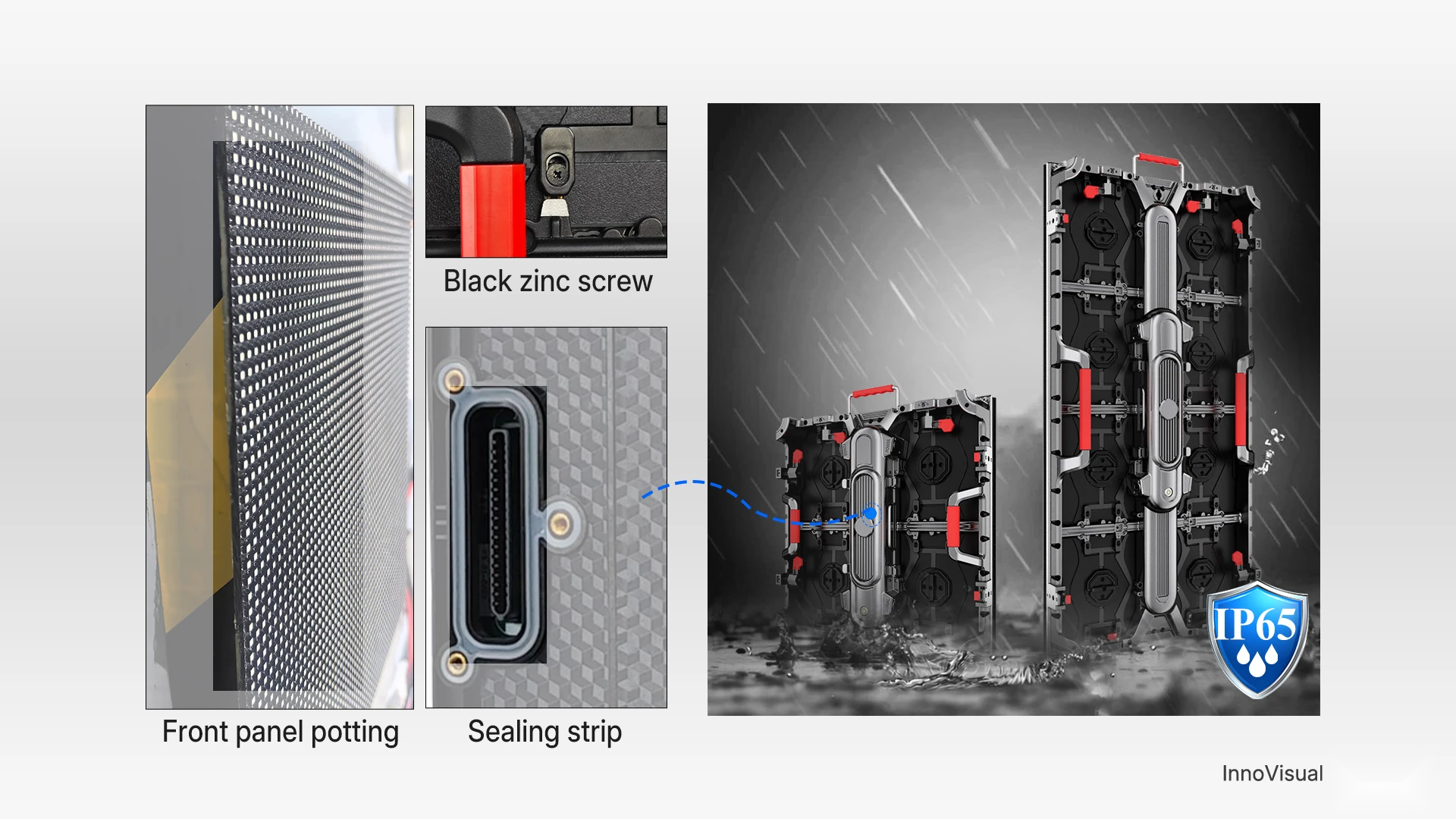

| IP rating | Indoor IP30; outdoor IP65 |
| Control | Novastar / Colorlight |
| Maintenance access | Indoor: front or rear access; outdoor: rear access |
| LED Type | Indoor: P1.953: SMD1515; P2.604: SMD1515; P2.97: SMD2121; P3.91: SMD2121 | Outdoor: P2.604: SMD1415; P2.97: SMD1415; P3.91: SMD1820 |
| Pixel Density (pixels/m²) | Indoor: P1.953: 262178; P2.604: 147456; P2.97: 112896; P3.91: 65536 | Outdoor: P2.604: 147456; P2.97: 112896; P3.91: 65536 |
| Scan Mode | Indoor: P1.953: 1/32; P2.604: 1/24; P2.97: 1/21; P3.91: 1/16 | Outdoor: P2.604: 1/24; P2.97: 1/21; P3.91: 1/16 |
| Grayscale | 16bit |
| Right-angle assembly option | Available |

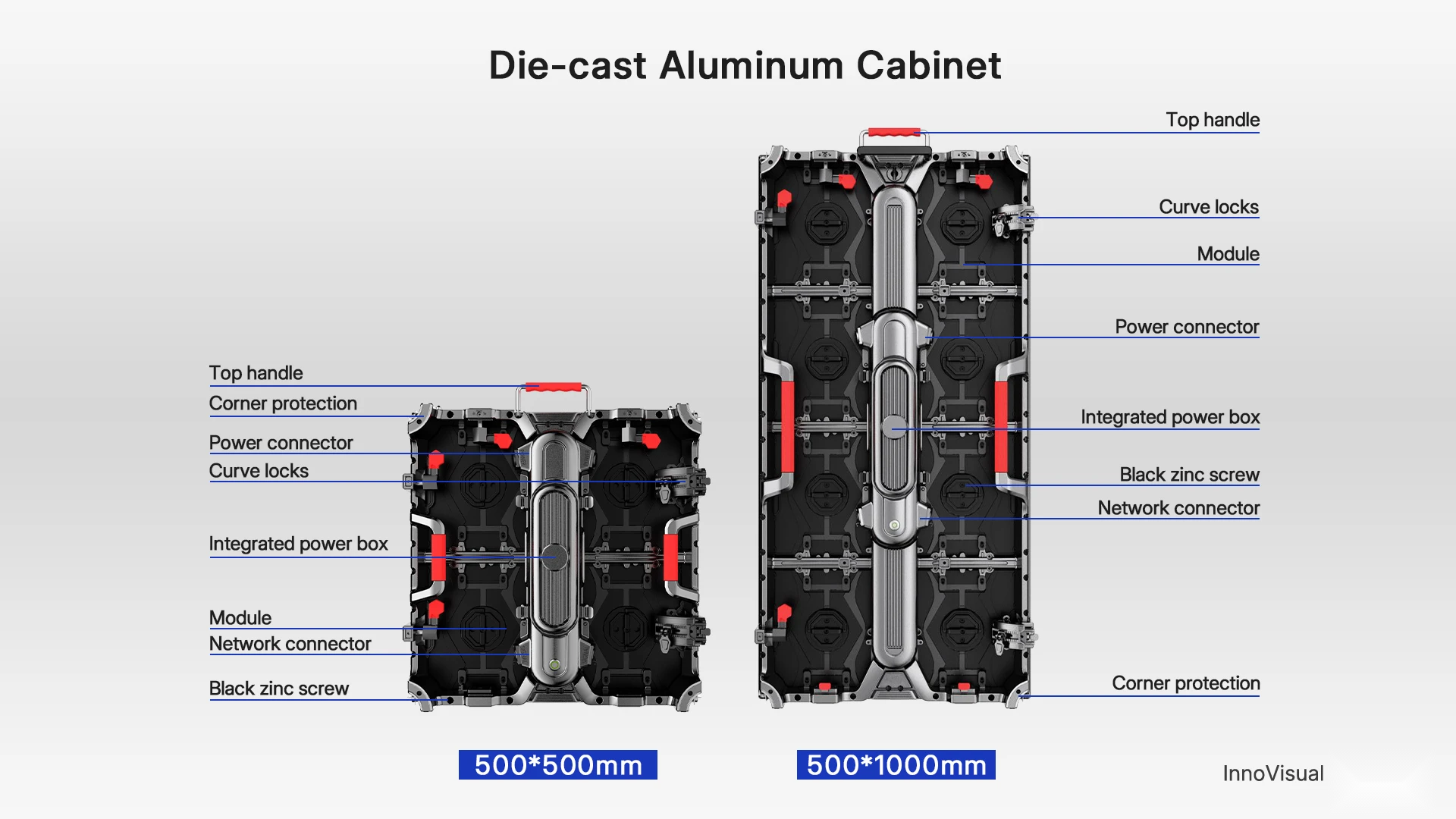

| Cabinet Material | Die Casting Aluminum |
| Contrast Ratio | 5000：1 |
| Viewing Angle (H/V) | 160°/140° |
| Operating Temperature | -40°C to 60°C |
| Input Power | AC100~240 50/60HZ |

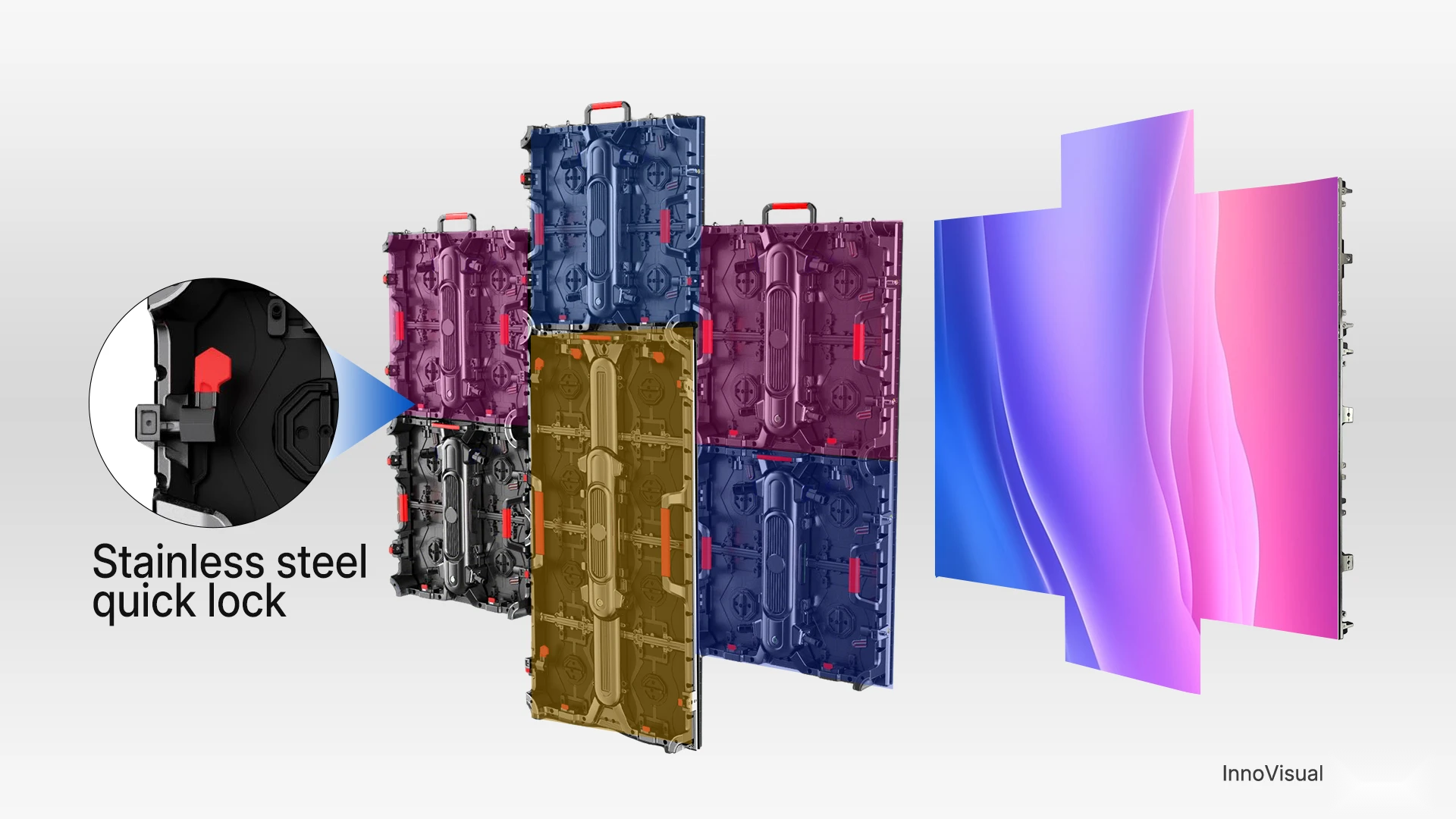

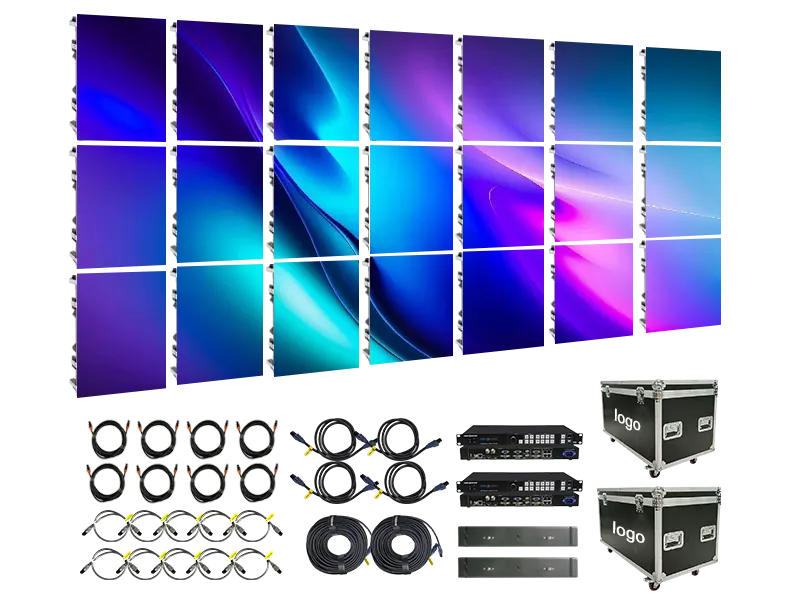

Product details
Supplier illustrations show product features and possible configurations. Brightness, protection ratings and optional assemblies depend on the selected version; use the specifications and confirmed quotation for your order.
