InnoLux
InnoLux brings indoor and outdoor rental configurations together in 500 × 500 mm and 500 × 1000 mm die-cast aluminum panels, with practical maintenance access and connection features for fast event builds.
Product illustrations. Configurations shown may require optional components.
At a glance
- 500 × 500 mm and 500 × 1000 mm panel options
- Front/rear maintenance for indoor and outdoor configurations

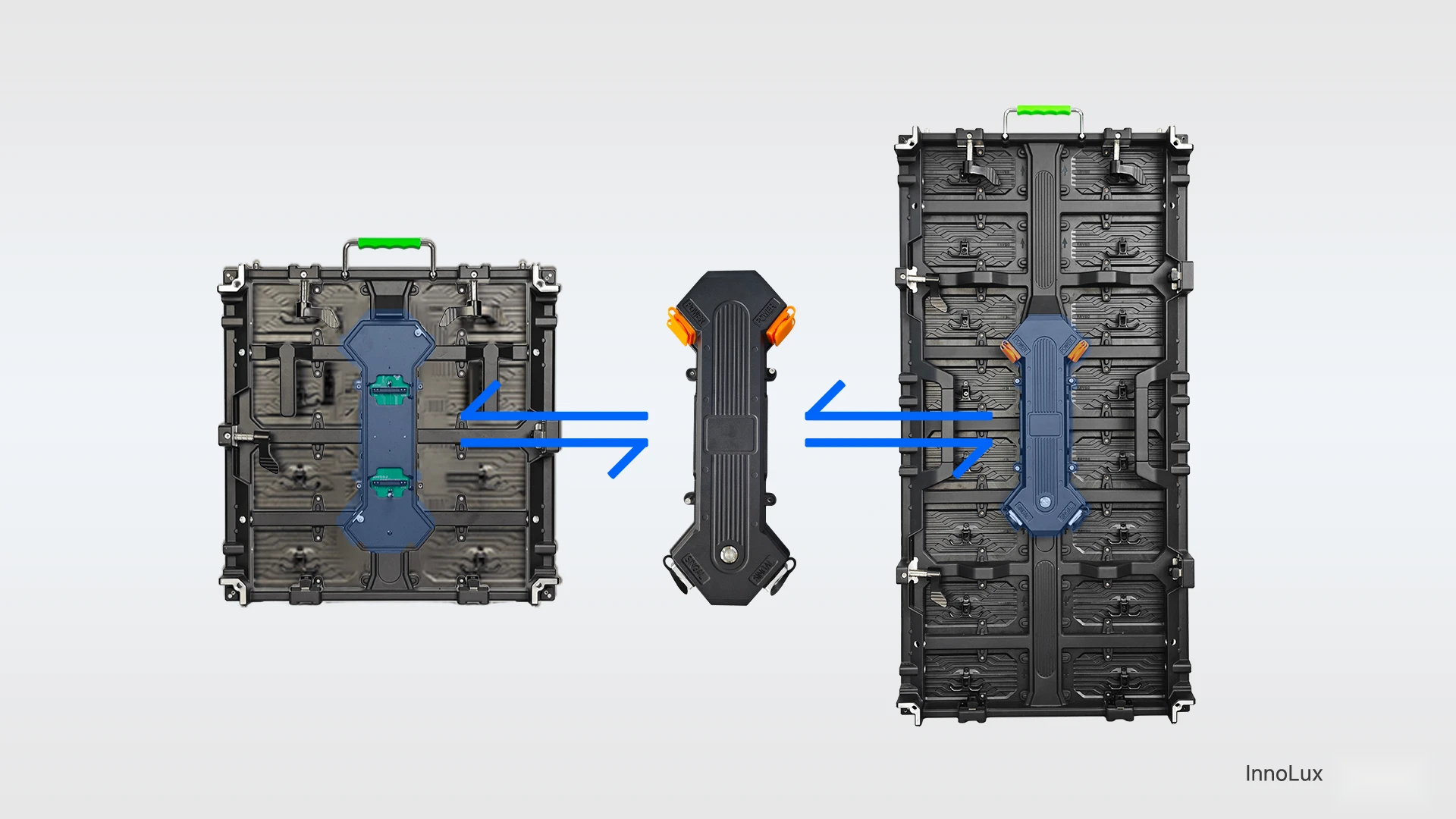

- Universal 400 W power packs and 500 × 125 mm modules support streamlined spares planning

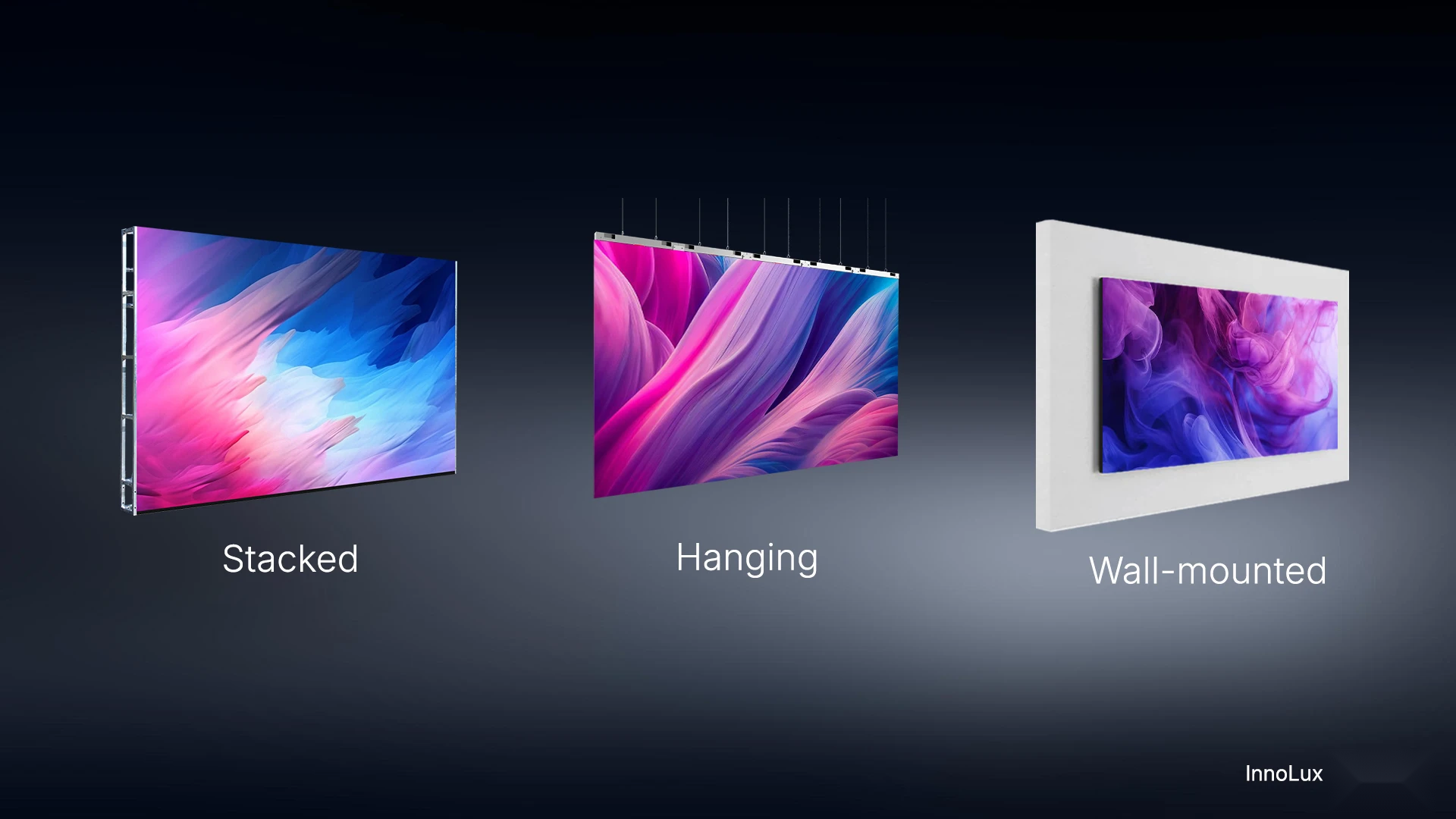

- Suitable for stacked, hung, or wall-mounted installation configurations
Applications

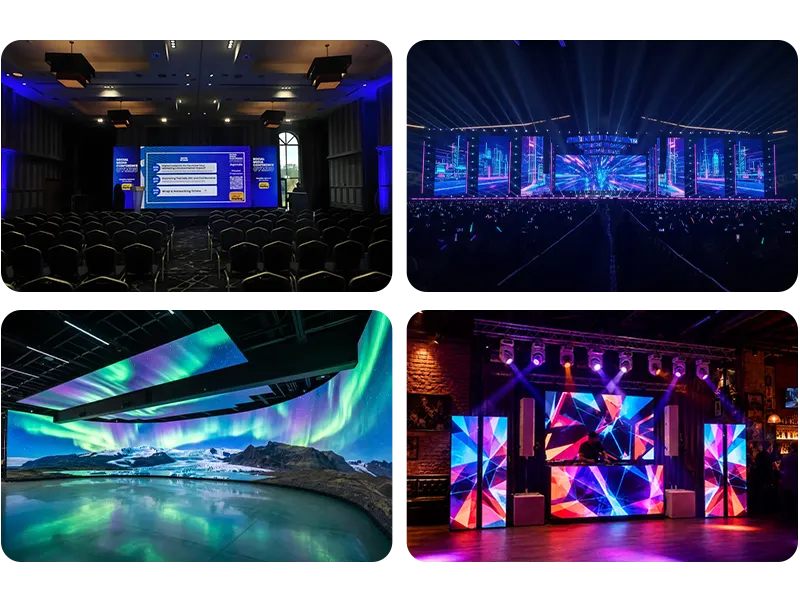

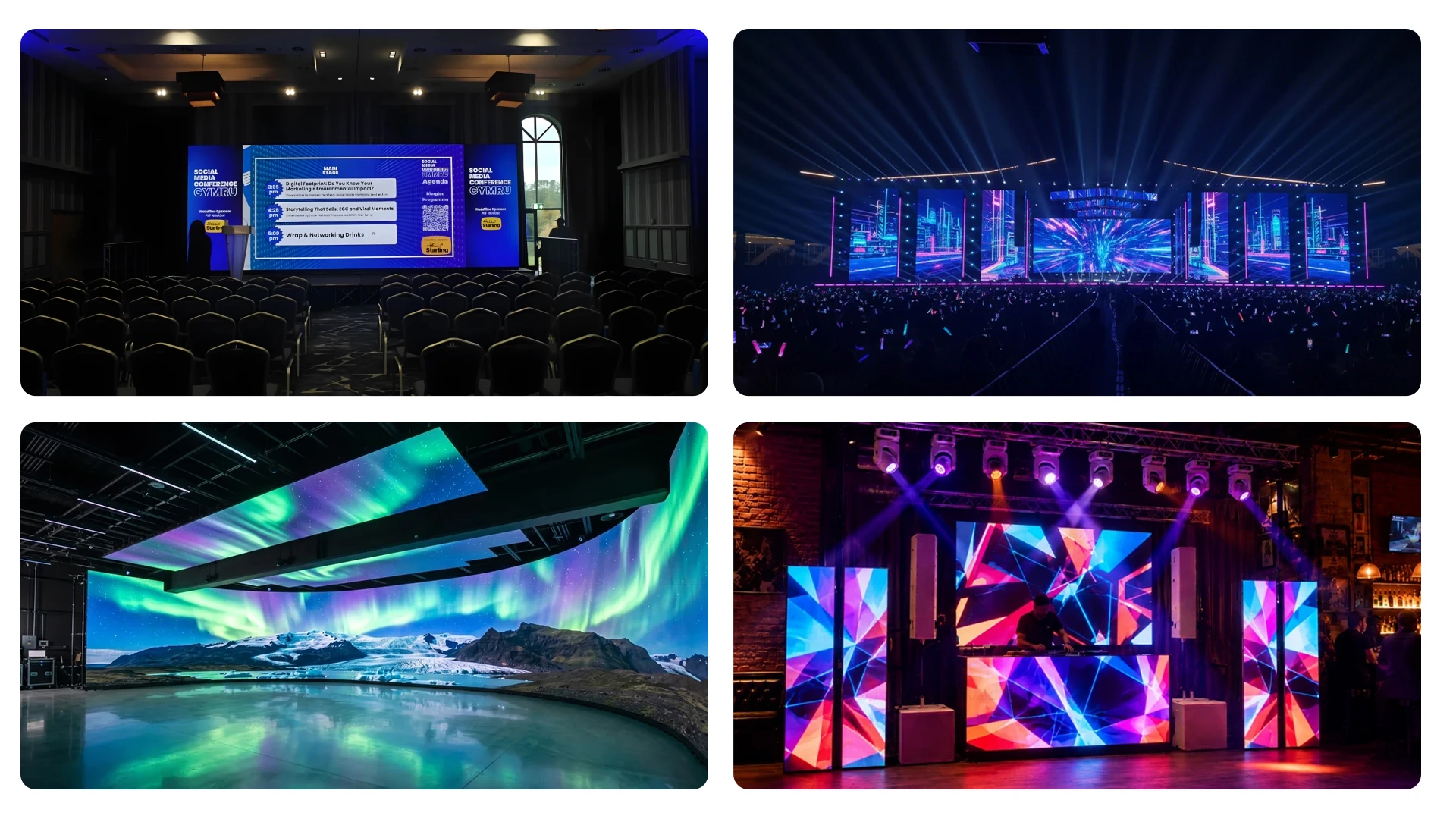

Stage and touring shows · Corporate events · Virtual productions
Wedding & party settings
Where this series fits
- Choose when a 72 mm panel depth and 500 × 125 mm universal module format fit the fleet plan.
- Indoor and outdoor configurations use different brightness, power, and IP conditions; confirm the required environment before quoting.
- Confirm the mounting method, required hardware and project-specific loading before specifying a hung, stacked or wall-mounted system.
Configuration options
Identify the exact pixel pitch, cabinet format and operating environment when requesting a quotation. Listed options do not mean every combination is interchangeable.
Indoor · P1.953 / P2.604 / P2.97 / P3.91 mmView configuration
Pixel Pitch: P1.953 / P2.604 / P2.97 / P3.91
Cabinet Size: 500 × 500 × 72 mm or 500 × 1000 × 72 mm
Brightness: 600–800 cd/m²
Weight: 7.15 kg or 12.5 kg
Refresh Rate: P1.953/P2.604: 7680 Hz; P2.97/P3.91: 7680/15360 Hz options
Ip Rating: IP30
Outdoor · P2.604 / P2.97 / P3.91 mmView configuration
Pixel Pitch: P2.604 / P2.97 / P3.91
Cabinet Size: 500 × 500 × 72 mm or 500 × 1000 × 72 mm
Brightness: 4500–5000 cd/m²
Weight: 7.15 kg or 12.5 kg
Refresh Rate: P2.604: 7680 Hz; P2.97/P3.91: 7680/15360 Hz options
Ip Rating: IP65
Specifications
| Pixel pitch | Indoor: P1.953, P2.604, P2.97, P3.91; outdoor: P2.604, P2.97, P3.91 |
|---|---|
| LED type | Indoor: SMD1515 / SMD2121; outdoor: SMD1415 / SMD1820 |
| Pixel density | Indoor P1.953: 262178; indoor/outdoor P2.604: 147456, P2.97: 112896, P3.91: 65536 pixels/m² (supplier-listed values). |

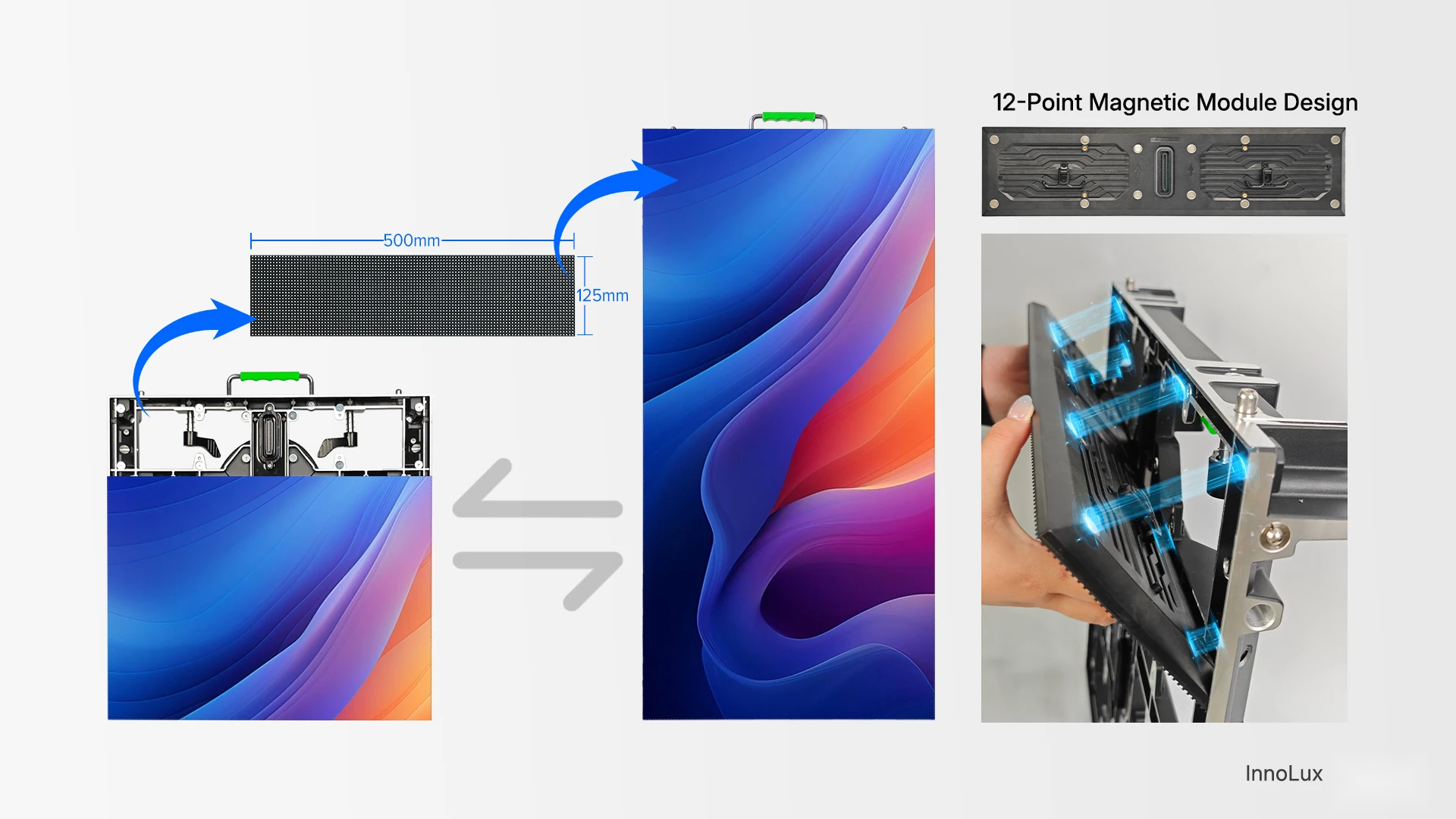

| Module dimensions | 500 × 125 mm |
| Panel dimensions | 500 × 500 × 72 mm or 500 × 1000 × 72 mm |
| Panel weight | 7.15 kg or 12.5 kg |
| Brightness | Indoor: 600–800 cd/m²; outdoor: 4500–5000 cd/m² |
| Refresh rate | Indoor P1.953/P2.604 and outdoor P2.604: 7680 Hz; indoor/outdoor P2.97/P3.91: 7680/15360 Hz options. Confirm the selected configuration. |

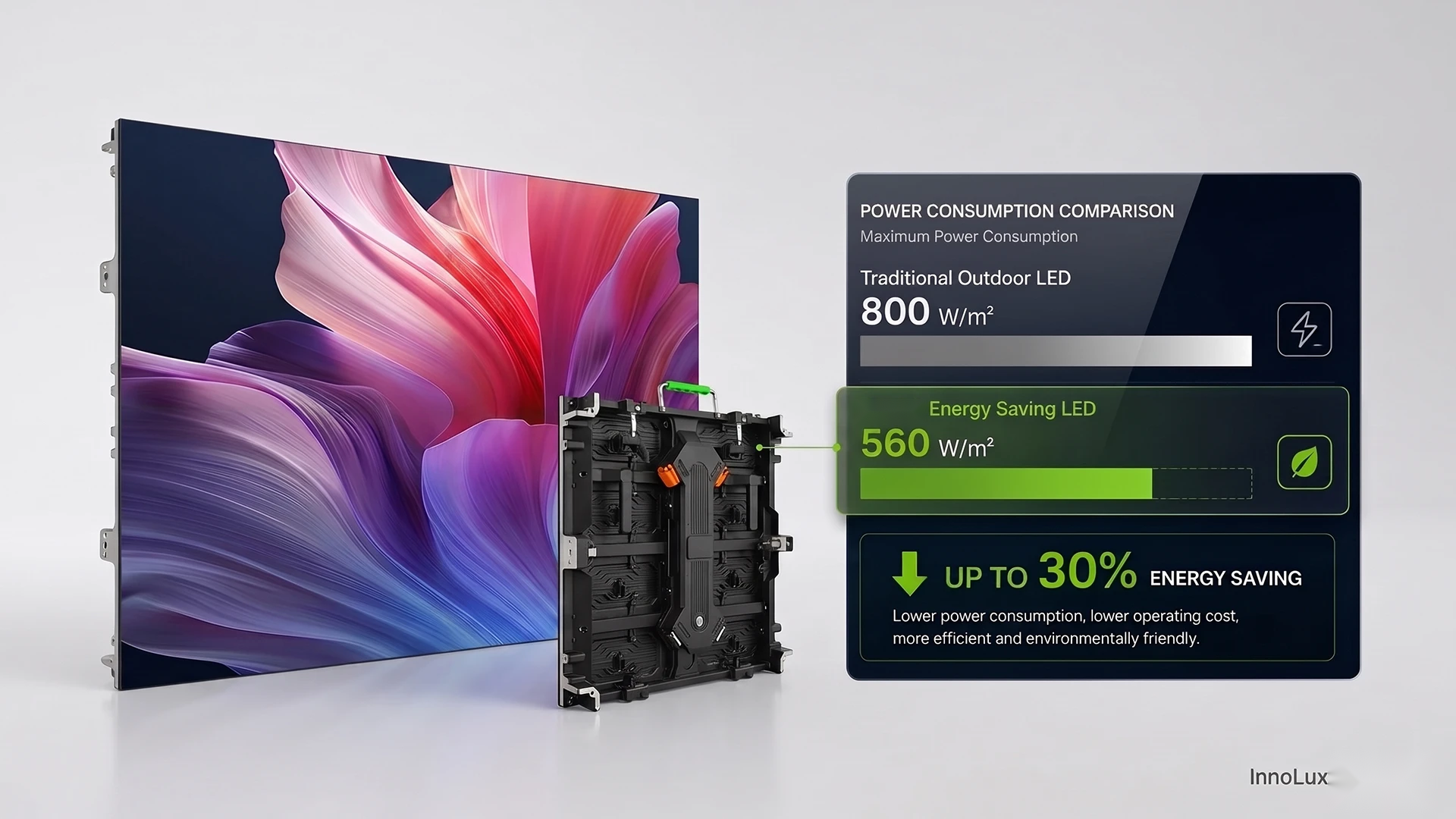

| Power consumption | Indoor average/maximum: 108/360 W/m²; outdoor: 168/560 W/m² |

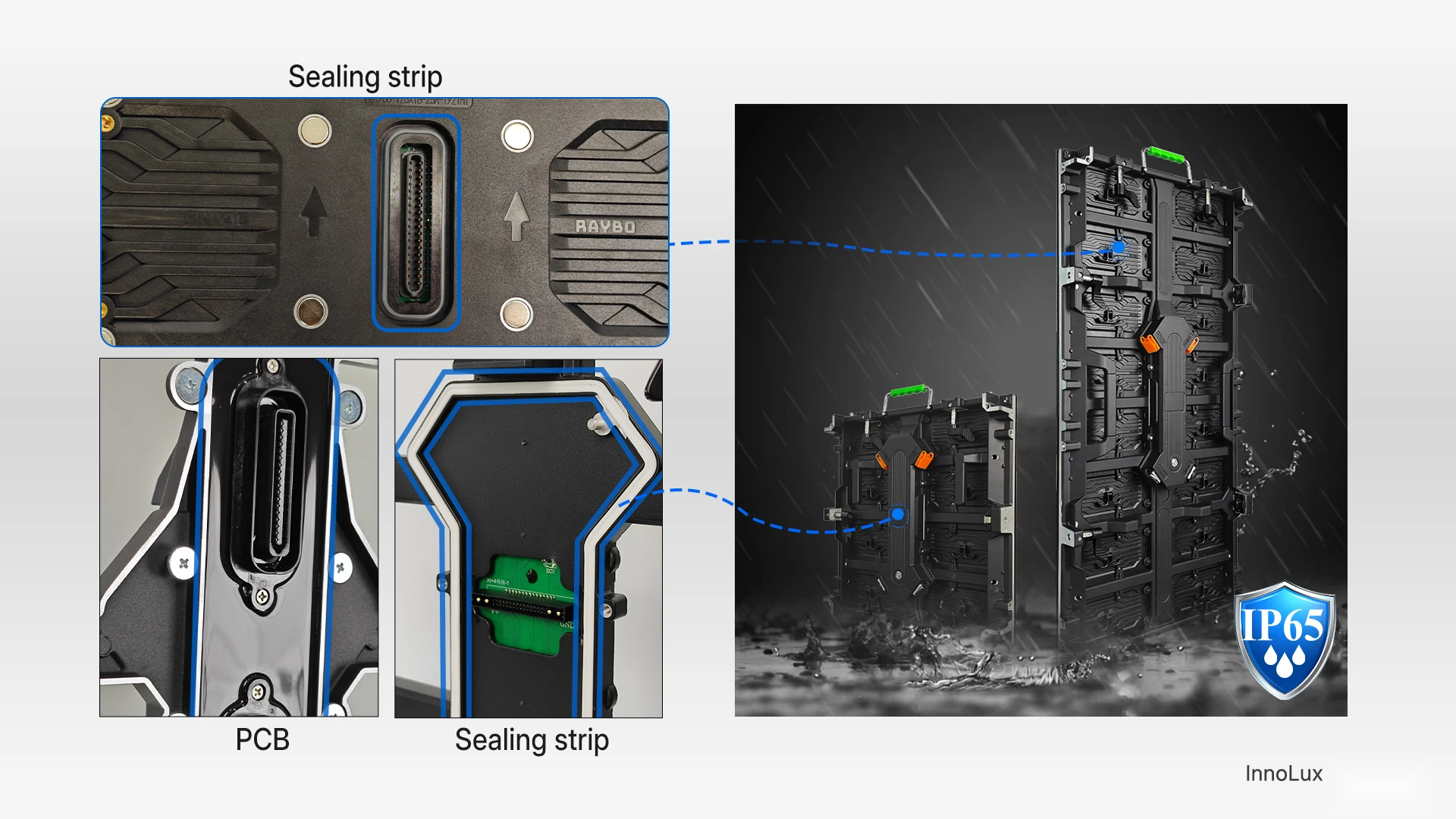

| IP rating | Indoor IP30; outdoor IP65 |
| Control | Novastar / Colorlight |
| Input power | AC100–240 V, 50/60 Hz |
| Operating temperature | −40°C to 60°C |
| Maintenance access | Indoor/outdoor: front or rear access |
| Scan Mode | Indoor: P1.953: 1/32; P2.604: 1/24; P2.97: 1/21; P3.91: 1/16 | Outdoor: P2.604: 1/24; P2.97: 1/21; P3.91: 1/16 |
| Grayscale | 16bit |

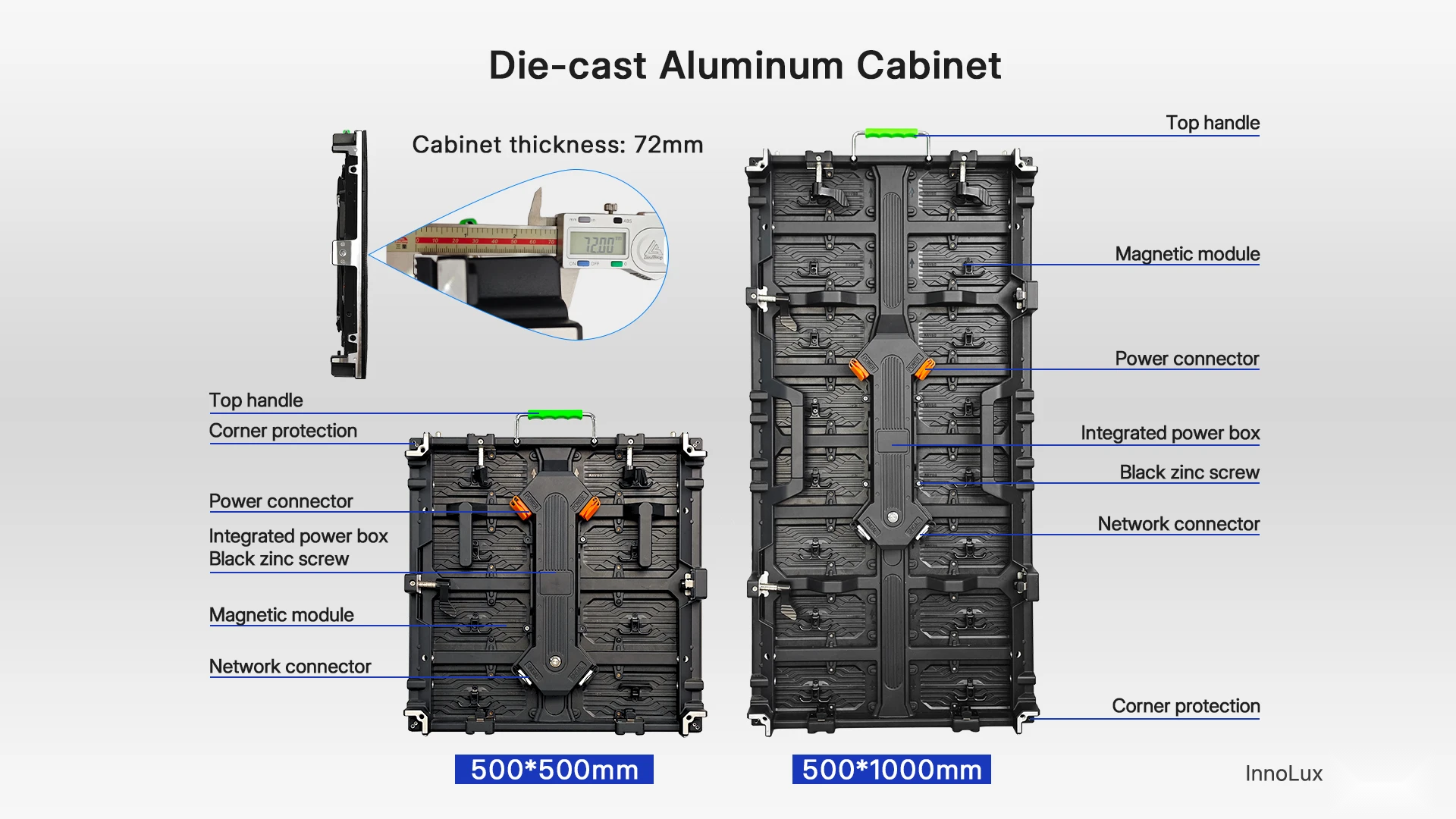

| Cabinet Material | Die Casting Aluminum |
| Contrast Ratio | 5000：1 |
| Viewing Angle (H/V) | 160°/140° |
Product details

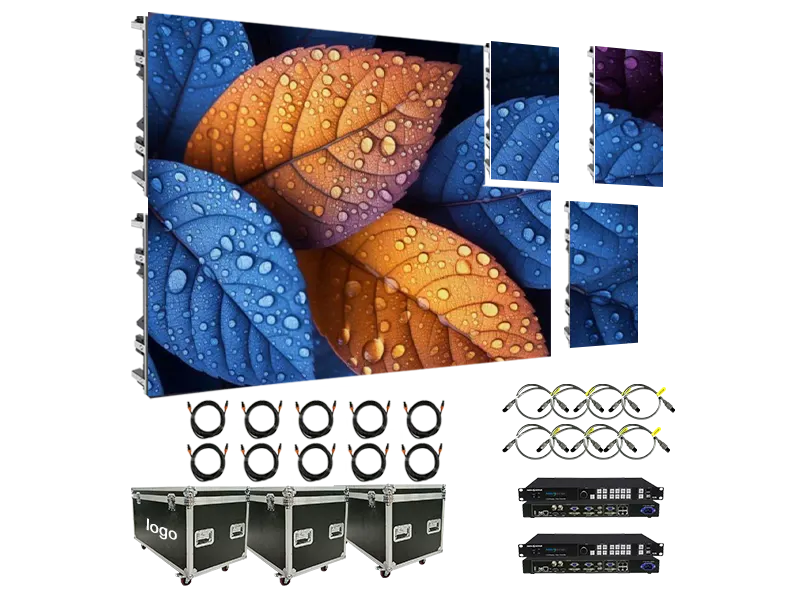

Supplier illustrations show product features and possible configurations. Brightness, protection ratings and optional assemblies depend on the selected version; use the specifications and confirmed quotation for your order.
