PixelFold Pro
PixelFold Pro offers a 640 × 1920 mm LED poster format with indoor and outdoor cabinet configurations. Folding presentation options and front-access maintenance support trade-show, showroom and retail display planning; cabinet depth, weight and IP rating depend on the selected environment.
Product illustrations. Configurations shown may require optional components.
At a glance
- 640 × 1920 mm display format
- Indoor and outdoor configurations have separate brightness, depth and weight specifications

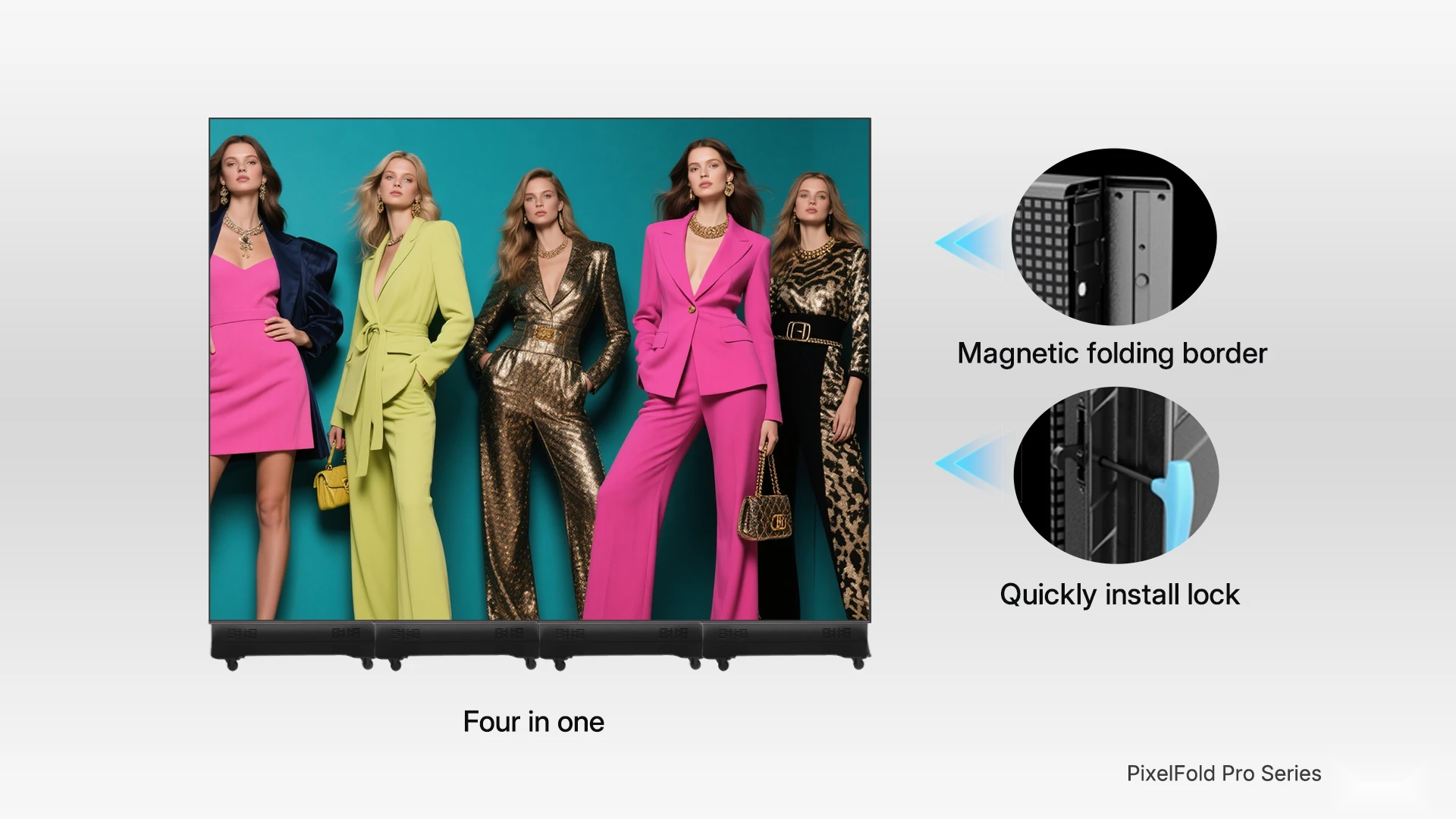

- Folding presentation and multi-unit tiling options
- Front maintenance indoors; front/rear maintenance on the listed outdoor configurations
Applications

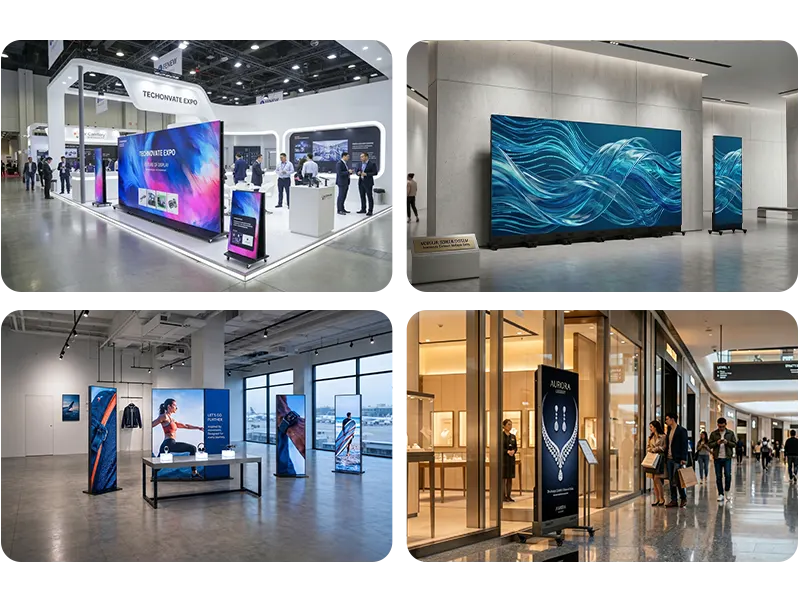

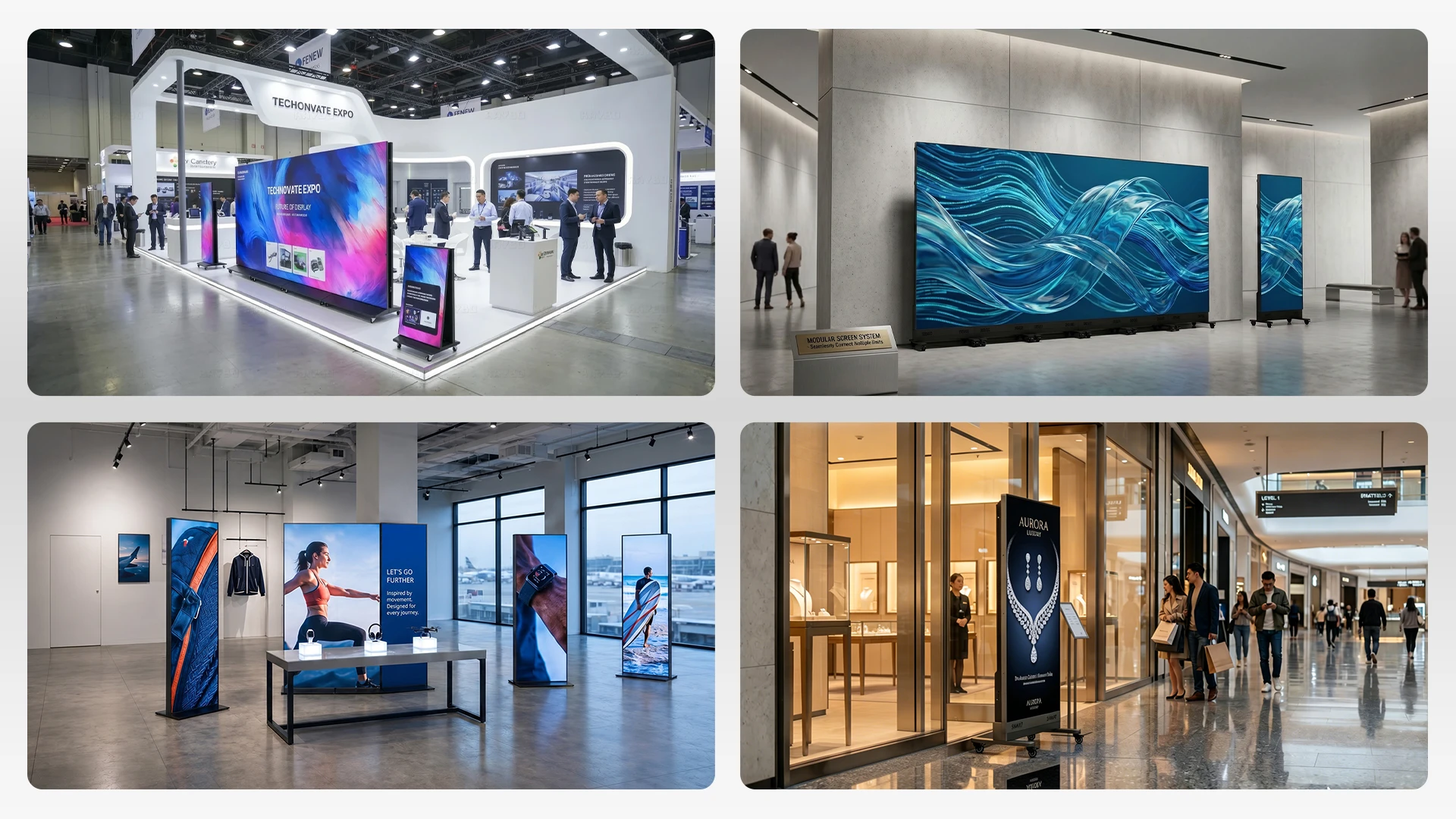

Trade shows · Brand showrooms · Retail displays
Where this series fits
- Choose the indoor or outdoor version before comparing cabinet weight, brightness and IP rating.

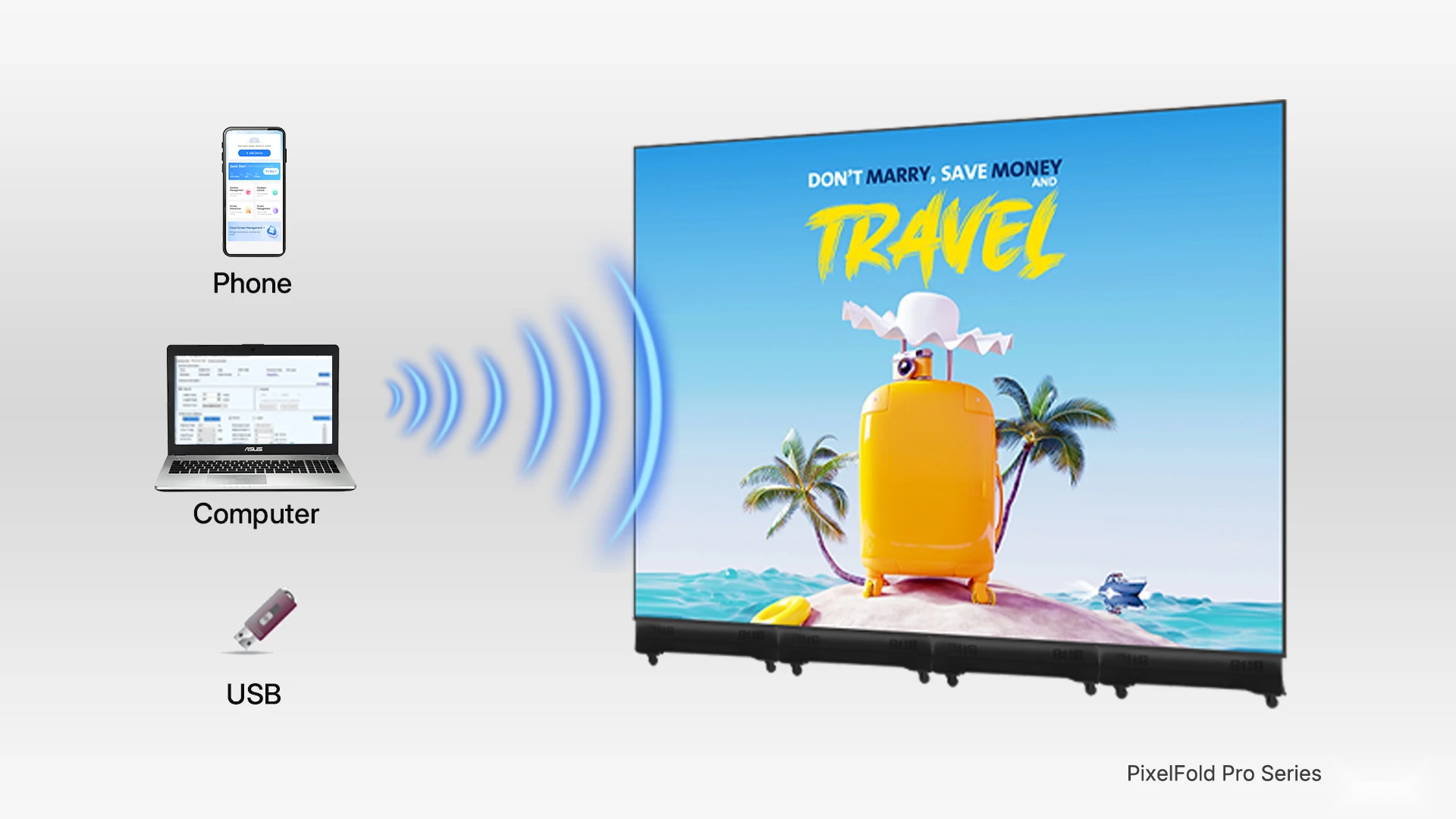

- Confirm the processor, number of linked units and content-control method for a tiled layout.

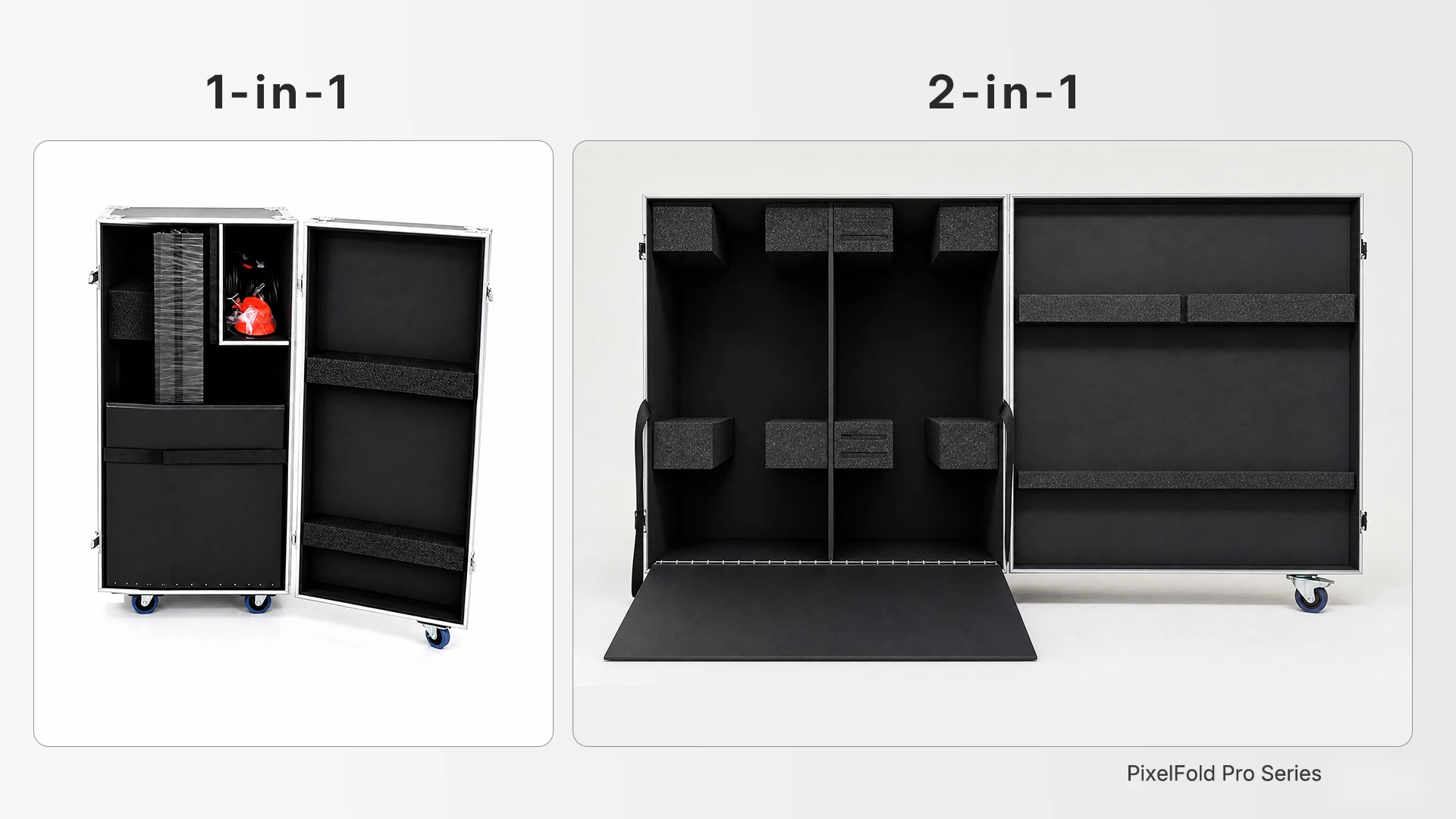

- Confirm the flight-case and folding configuration included in the quotation.
Configuration options
Identify the exact pixel pitch, cabinet format and operating environment when requesting a quotation. Listed options do not mean every combination is interchangeable.
Indoor · P1.25 mmView configuration
Pixel Pitch: P1.25
Cabinet Size: 640×1920×62mm
Brightness: 600-800 cd/m²
Weight: 47.5 kg
Refresh Rate: 3840Hz
Ip Rating: IP30
Maintenance Access: Front
Power Consumption: 120/400W/m²
Led Type: SMD1010
Pixel Density: 640000
Scan Mode: 1/64
Indoor · P1.53 mmView configuration
Pixel Pitch: P1.53
Cabinet Size: 640×1920×62mm
Brightness: 600-800 cd/m²
Weight: 47.5 kg
Refresh Rate: 3840Hz
Ip Rating: IP30
Maintenance Access: Front
Power Consumption: 120/400W/m²
Led Type: SMD1212
Pixel Density: 422750
Scan Mode: 1/52
Indoor · P1.86 mmView configuration
Pixel Pitch: P1.86
Cabinet Size: 640×1920×62mm
Brightness: 600-800 cd/m²
Weight: 47.5 kg
Refresh Rate: 3840Hz
Ip Rating: IP30
Maintenance Access: Front
Power Consumption: 120/400W/m²
Led Type: SMD1515
Pixel Density: 289000
Scan Mode: 1/43
Indoor · P2 mmView configuration
Pixel Pitch: P2
Cabinet Size: 640×1920×62mm
Brightness: 600-800 cd/m²
Weight: 47.5 kg
Refresh Rate: 3840Hz
Ip Rating: IP30
Maintenance Access: Front
Power Consumption: 120/400W/m²
Led Type: SMD1515
Pixel Density: 250000
Scan Mode: 1/40
Indoor · P2.5 mmView configuration
Pixel Pitch: P2.5
Cabinet Size: 640×1920×62mm
Brightness: 600-800 cd/m²
Weight: 47.5 kg
Refresh Rate: 3840Hz
Ip Rating: IP30
Maintenance Access: Front
Power Consumption: 120/400W/m²
Led Type: SMD2121
Pixel Density: 160000
Scan Mode: 1/64
Outdoor · P2 mmView configuration
Pixel Pitch: P2
Cabinet Size: 640×1920×135mm
Brightness: ≥5500 cd/m²
Weight: 62 kg
Refresh Rate: 3840Hz
Ip Rating: IP65
Maintenance Access: Front/Rear
Power Consumption: 260/800W/m²
Led Type: SMD1515
Pixel Density: 250000
Scan Mode: 1/40
Outdoor · P2.5 mmView configuration
Pixel Pitch: P2.5
Cabinet Size: 640×1920×135mm
Brightness: ≥5500 cd/m²
Weight: 62 kg
Refresh Rate: 3840Hz
Ip Rating: IP65
Maintenance Access: Front/Rear
Power Consumption: 260/800W/m²
Led Type: SMD2121
Pixel Density: 160000
Scan Mode: 1/64
Outdoor · P3 mmView configuration
Pixel Pitch: P3
Cabinet Size: 640×1920×135mm
Brightness: ≥5500 cd/m²
Weight: 62 kg
Refresh Rate: 3840Hz
Ip Rating: IP65
Maintenance Access: Front/Rear
Power Consumption: 260/800W/m²
Led Type: SMD2121
Scan Mode: 1/64
Specifications
| Pixel Pitch | Indoor: P1.25: P1.25; P1.53: P1.53; P1.86: P1.86; P2: P2; P2.5: P2.5 | Outdoor: P2: P2; P2.5: P2.5; P3: P3 |
|---|---|
| LED Type | Indoor: P1.25: SMD1010; P1.53: SMD1212; P1.86: SMD1515; P2: SMD1515; P2.5: SMD2121 | Outdoor: P2: SMD1515; P2.5: SMD2121; P3: SMD2121 |
| Pixel Density (pixels/m²) | Indoor: P1.25: 640000; P1.53: 422750; P1.86: 289000; P2: 250000; P2.5: 160000 | Outdoor: P2: 250000; P2.5: 160000; P3: Not specified |
| Module Dimensions (W × H) | 320×160mm |

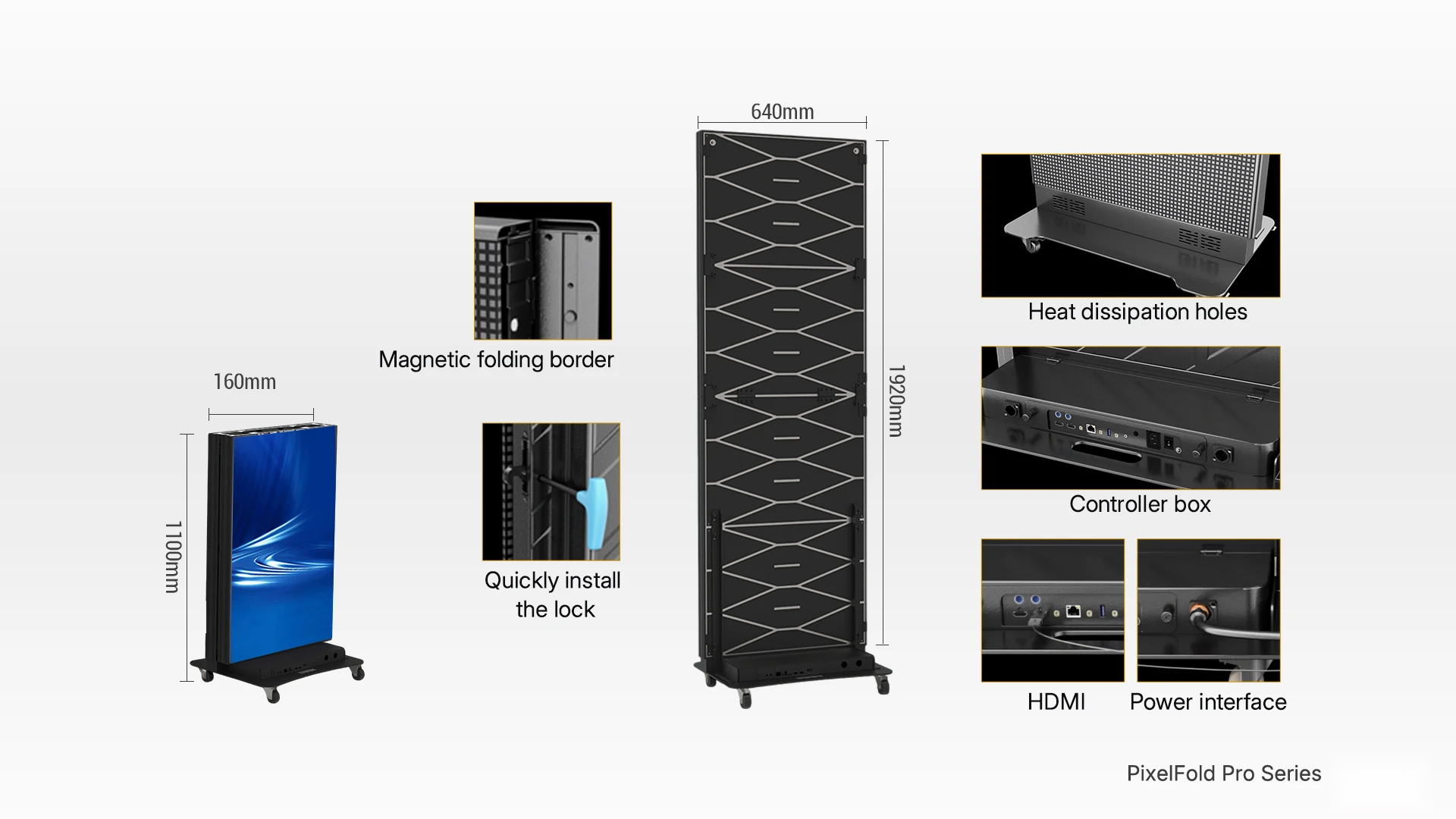

| Panel Dimensions (W × H × T) | Indoor: 640×1920×62mm | Outdoor: 640×1920×135mm |
| Panel Weight | Indoor: 47.5 kg | Outdoor: 62 kg |
| Refresh Rate | 3840Hz |
| Scan Mode | Indoor: P1.25: 1/64; P1.53: 1/52; P1.86: 1/43; P2: 1/40; P2.5: 1/64 | Outdoor: P2: 1/40; P2.5: 1/64; P3: 1/64 |
| Brightness | Indoor: 600-800 cd/m² | Outdoor: ≥5500 cd/m² |
| Grayscale | 16bit |
| Power Consumption (Average/Maximum) | Indoor: 120/400W/m² | Outdoor: 260/800W/m² |
| Maintenance Access | Indoor: Front | Outdoor: Front/Rear |
| IP Rating | Indoor: IP30 | Outdoor: IP65 |
| Cabinet Material | Indoor: Die-cast Aluminum | Outdoor: Die-cast Magnesium |
| Contrast Ratio | ≥5000：1 |
| Viewing Angle (H/V) | Indoor: 160°/160° | Outdoor: 140°/140° |
| Operating Temperature | Indoor: -30°C to 50°C | Outdoor: -40°C to 60°C |
| Input Power | Indoor: AC100~240 50/60HZ | Outdoor: AC110/240 50/60HZ |
| Control | Novastar/Colorlight |
Product details

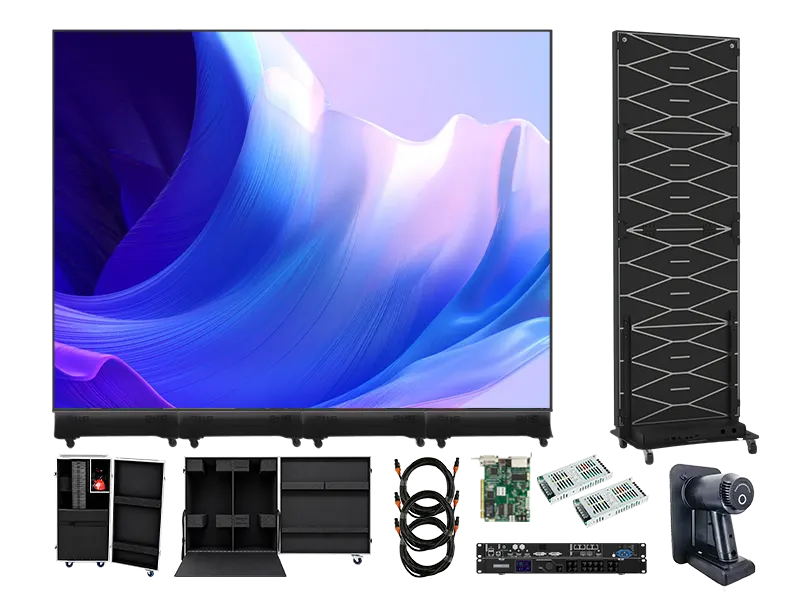

Supplier illustrations show product features and possible configurations. Brightness, protection ratings and optional assemblies depend on the selected version; use the specifications and confirmed quotation for your order.
