AirVue

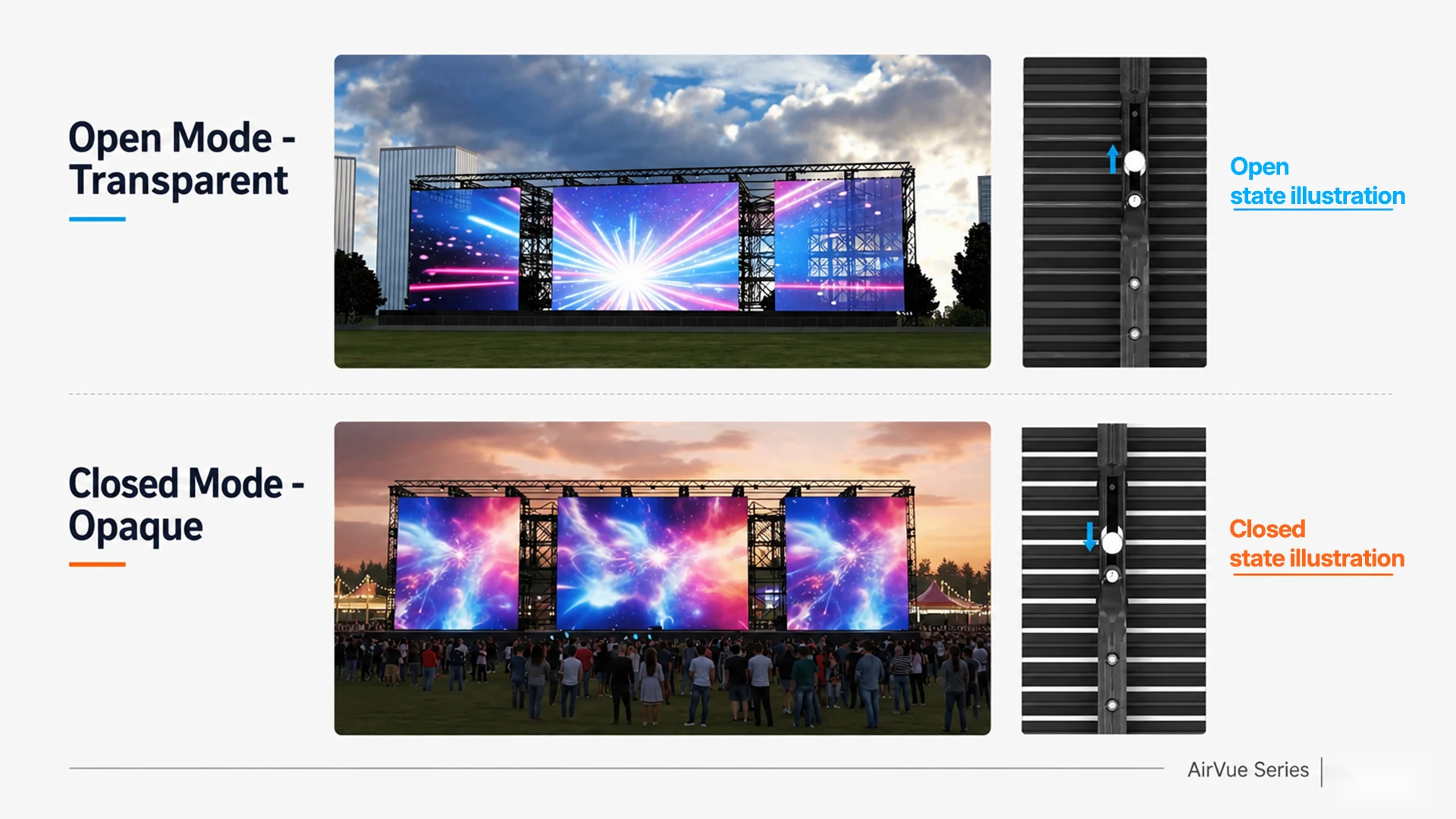

AirVue uses an open-grille panel design for event displays that need light and views to pass through the screen. Its outdoor-rated configuration combines a 1000 × 500 mm cabinet with four horizontal/vertical pitch options; transparency varies with pitch.
Product illustrations. Configurations shown may require optional components.
At a glance
- Horizontal/vertical pixel-pitch options retain their separate values
- 55%, 65% or 80% listed transparency, depending on pitch

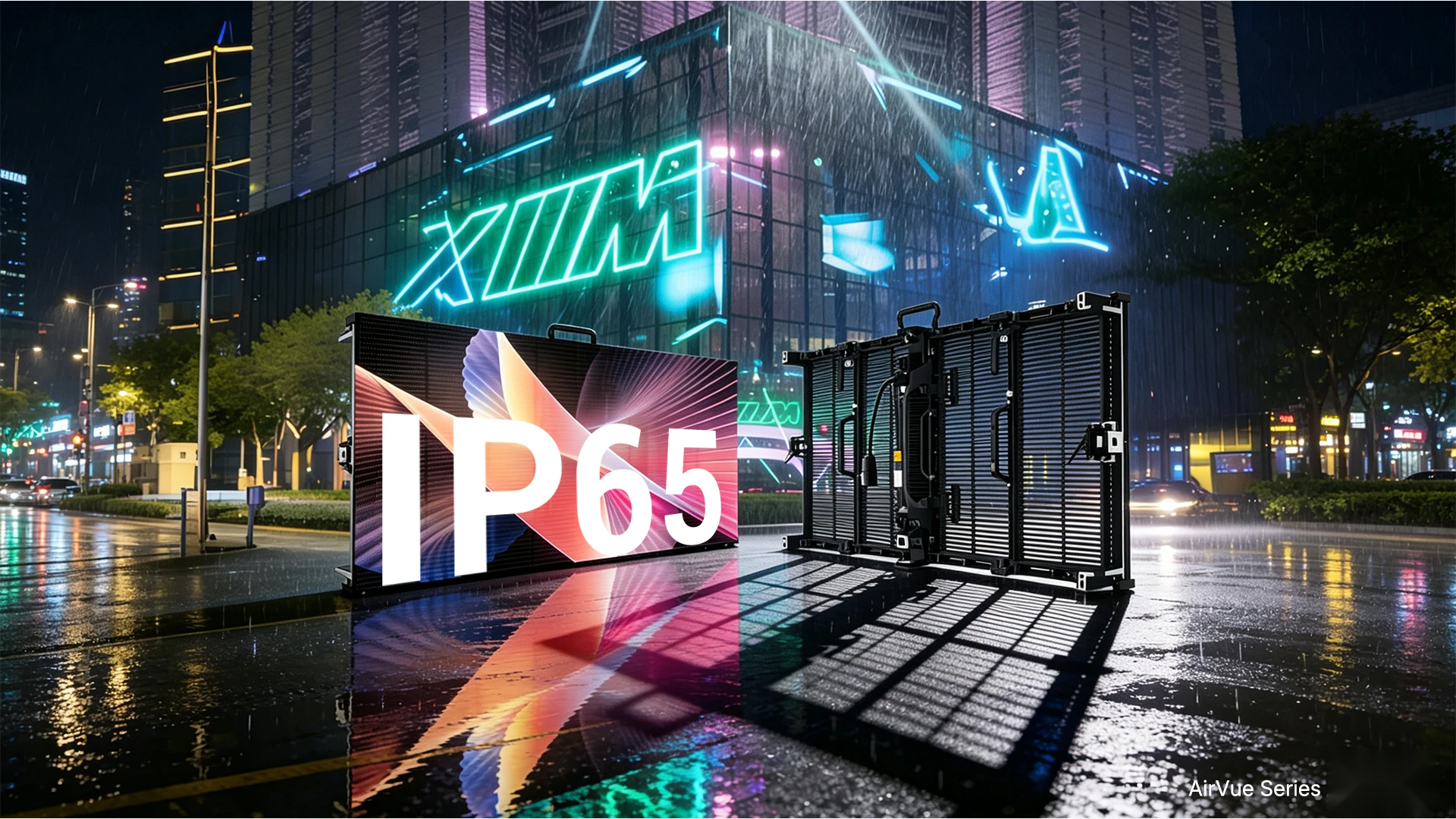

- IP65 outdoor configuration

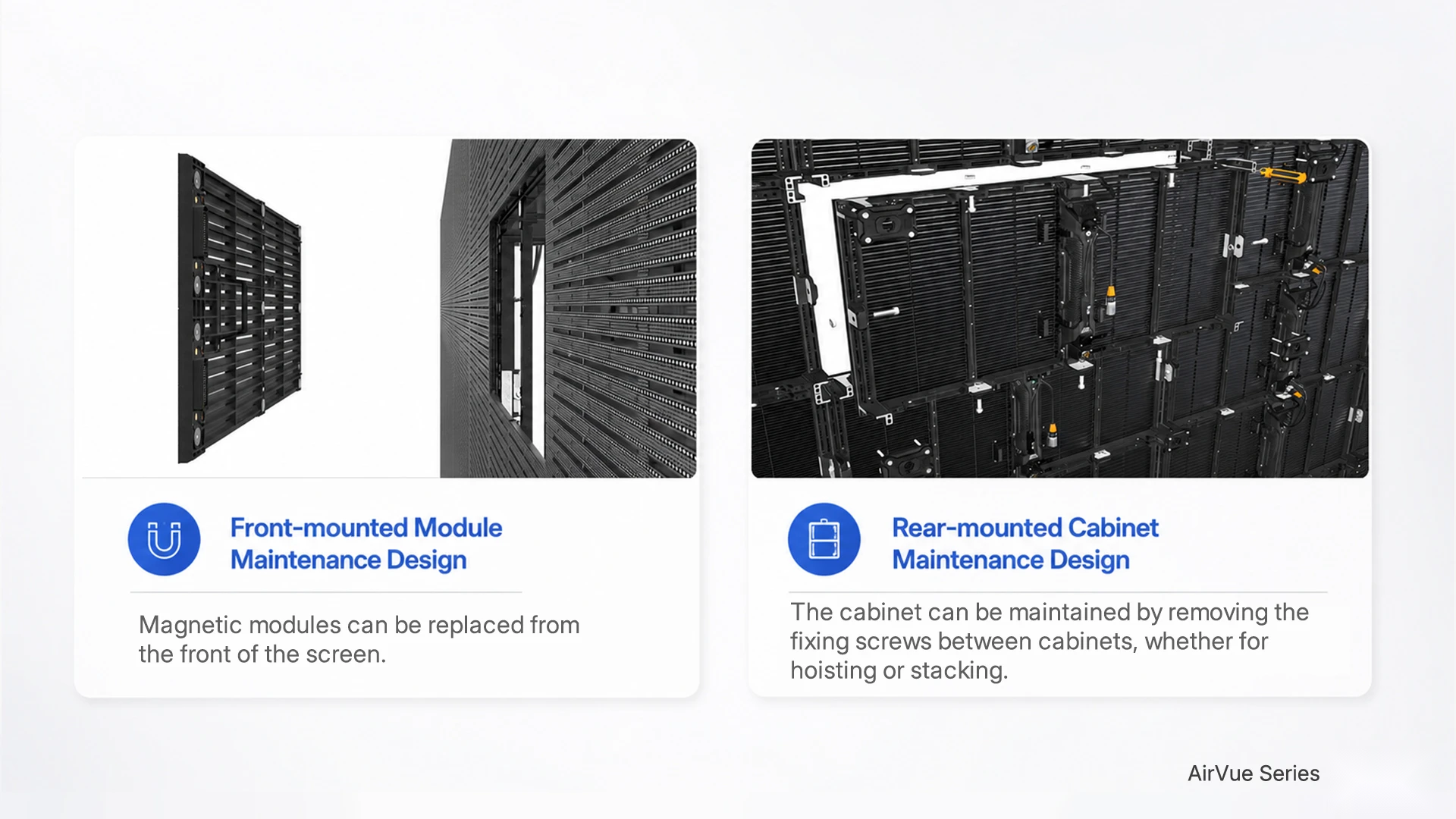

- Front module access and rear cabinet servicing
Applications

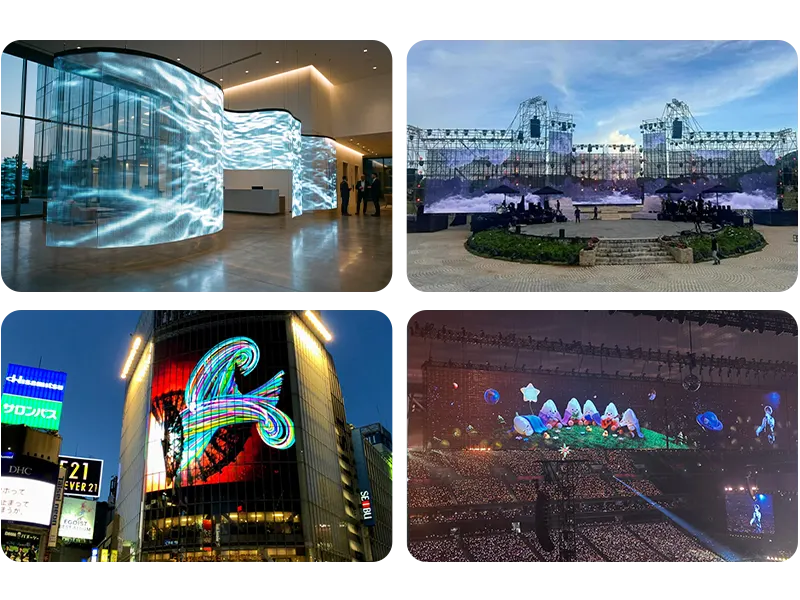

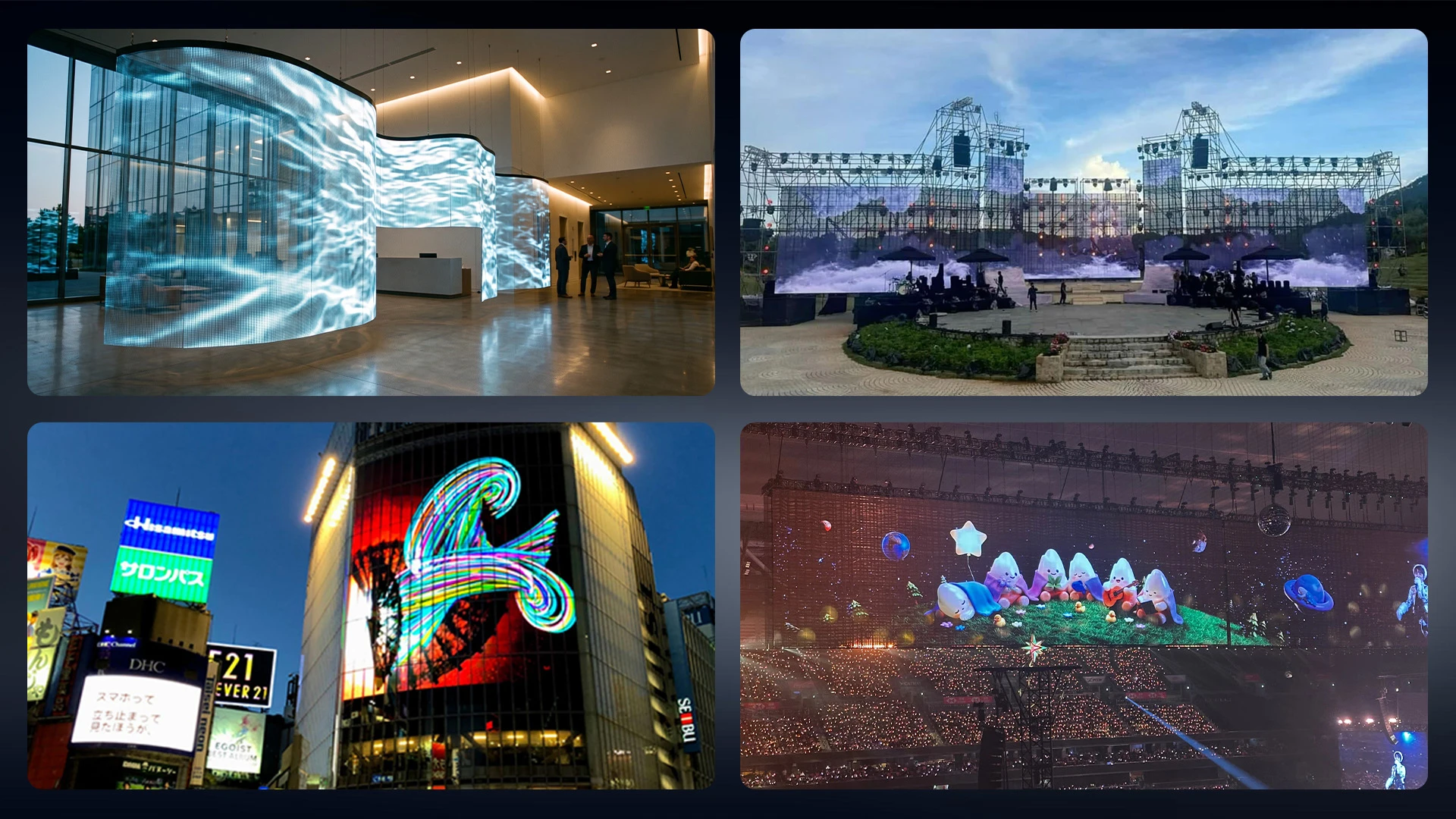

Brand exhibitions · Concerts · Cultural performances
Where this series fits
- Select the horizontal/vertical pitch and transparency together; these are separate configuration choices.
- Confirm cabinet depth and rigging requirements for the selected configuration.

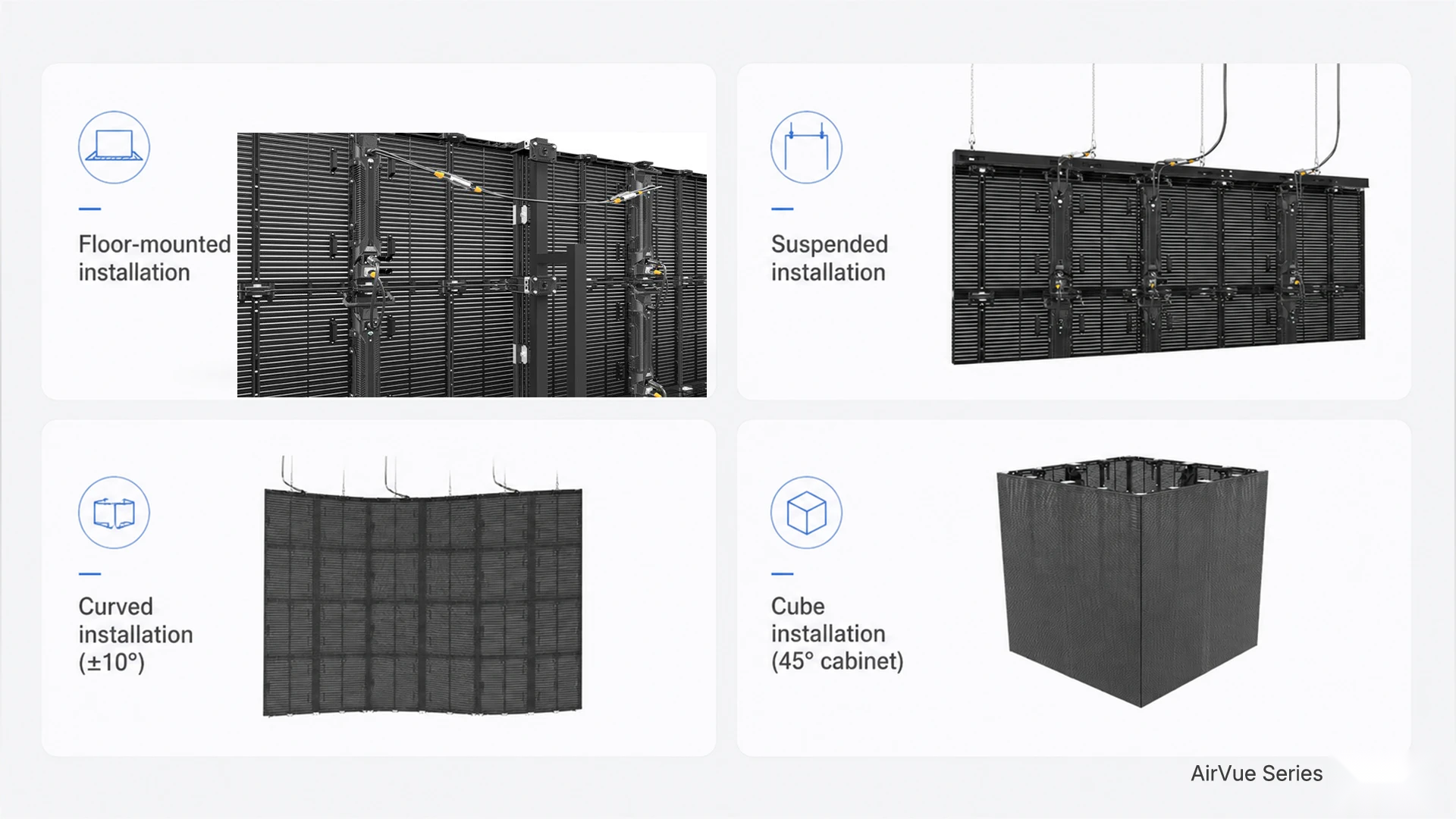

- Confirm the arc-lock or corner-cabinet configuration before specifying curved or cube layouts.
Configuration options
Identify the exact pixel pitch, cabinet format and operating environment when requesting a quotation. Listed options do not mean every combination is interchangeable.
Outdoor · W3.9 H7.8 mmView configuration
Pixel Pitch: W3.9 H7.8
Cabinet Size: 1000×500×80mm
Brightness: ≥4500 cd/m²
Weight: 21 kg
Refresh Rate: 3840Hz
Ip Rating: IP65
Maintenance Access: Front/Rear
Power Consumption: 260/800W/m²
Led Type: SMD1921
Pixel Density: 32768
Scan Mode: 1/8
Transparency: 55%
Outdoor · W5.2 H10.4 mmView configuration
Pixel Pitch: W5.2 H10.4
Cabinet Size: 1000×500×80mm
Brightness: ≥4500 cd/m²
Weight: 21 kg
Refresh Rate: 3840Hz
Ip Rating: IP65
Maintenance Access: Front/Rear
Power Consumption: 260/800W/m²
Led Type: SMD1921
Pixel Density: 18432
Scan Mode: 1/6
Transparency: 65%
Outdoor · W10.4 H10.4 mmView configuration
Pixel Pitch: W10.4 H10.4
Cabinet Size: 1000×500×80mm
Brightness: ≥4500 cd/m²
Weight: 21 kg
Refresh Rate: 3840Hz
Ip Rating: IP65
Maintenance Access: Front/Rear
Power Consumption: 260/800W/m²
Led Type: SMD2727
Pixel Density: 9216
Scan Mode: 1/3
Transparency: 65%
Outdoor · W15.6 H15.6 mmView configuration
Pixel Pitch: W15.6 H15.6
Cabinet Size: 1000×500×80mm
Brightness: ≥4500 cd/m²
Weight: 21 kg
Refresh Rate: 3840Hz
Ip Rating: IP65
Maintenance Access: Front/Rear
Power Consumption: 260/800W/m²
Led Type: SMD2727
Pixel Density: 4096
Scan Mode: Static
Transparency: 80%
Specifications
| Pixel Pitch | Outdoor: W3.9 H7.8: W3.9 H7.8; W5.2 H10.4: W5.2 H10.4; W10.4 H10.4: W10.4 H10.4; W15.6 H15.6: W15.6 H15.6 |
|---|---|
| LED Type | Outdoor: W3.9 H7.8: SMD1921; W5.2 H10.4: SMD1921; W10.4 H10.4: SMD2727; W15.6 H15.6: SMD2727 |
| Pixel Density (pixels/m²) | Outdoor: W3.9 H7.8: 32768; W5.2 H10.4: 18432; W10.4 H10.4: 9216; W15.6 H15.6: 4096 |
| Module Dimensions (W × H) | 500×125mm |

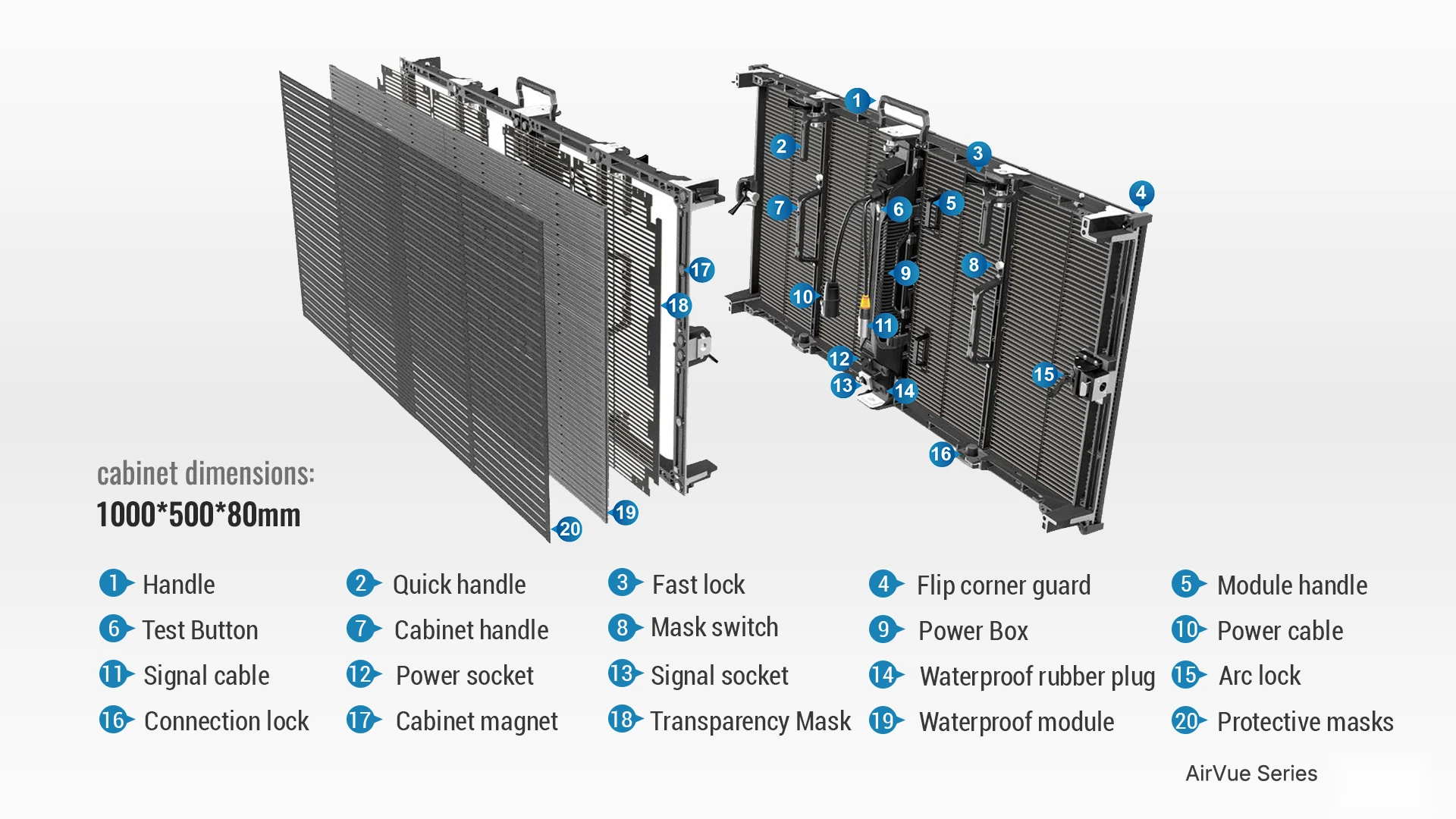

| Panel Dimensions (W × H × T) | 1000×500×80mm |
| Panel Weight | 21 kg |
| Refresh Rate | 3840Hz |
| Scan Mode | Outdoor: W3.9 H7.8: 1/8; W5.2 H10.4: 1/6; W10.4 H10.4: 1/3; W15.6 H15.6: Static |
| Brightness | ≥4500 cd/m² |
| Transparency | Outdoor: W3.9 H7.8: 55%; W5.2 H10.4: 65%; W10.4 H10.4: 65%; W15.6 H15.6: 80% |
| Power Consumption (Average/Maximum) | 260/800W/m² |
| Maintenance Access | Front/Rear |
| IP Rating | IP65 |
| Cabinet Material | Die-cast Aluminum |
| Grayscale | 14-16bit |
| Viewing Angle (H/V) | 140°/120° |
| Operating Temperature | -20 to 55° |
| Input Power | AC100~240V 50/60Hz |
| Control | Novastar |
Product details
Supplier illustrations show product features and possible configurations. Brightness, protection ratings and optional assemblies depend on the selected version; use the specifications and confirmed quotation for your order.
