VisiGuard

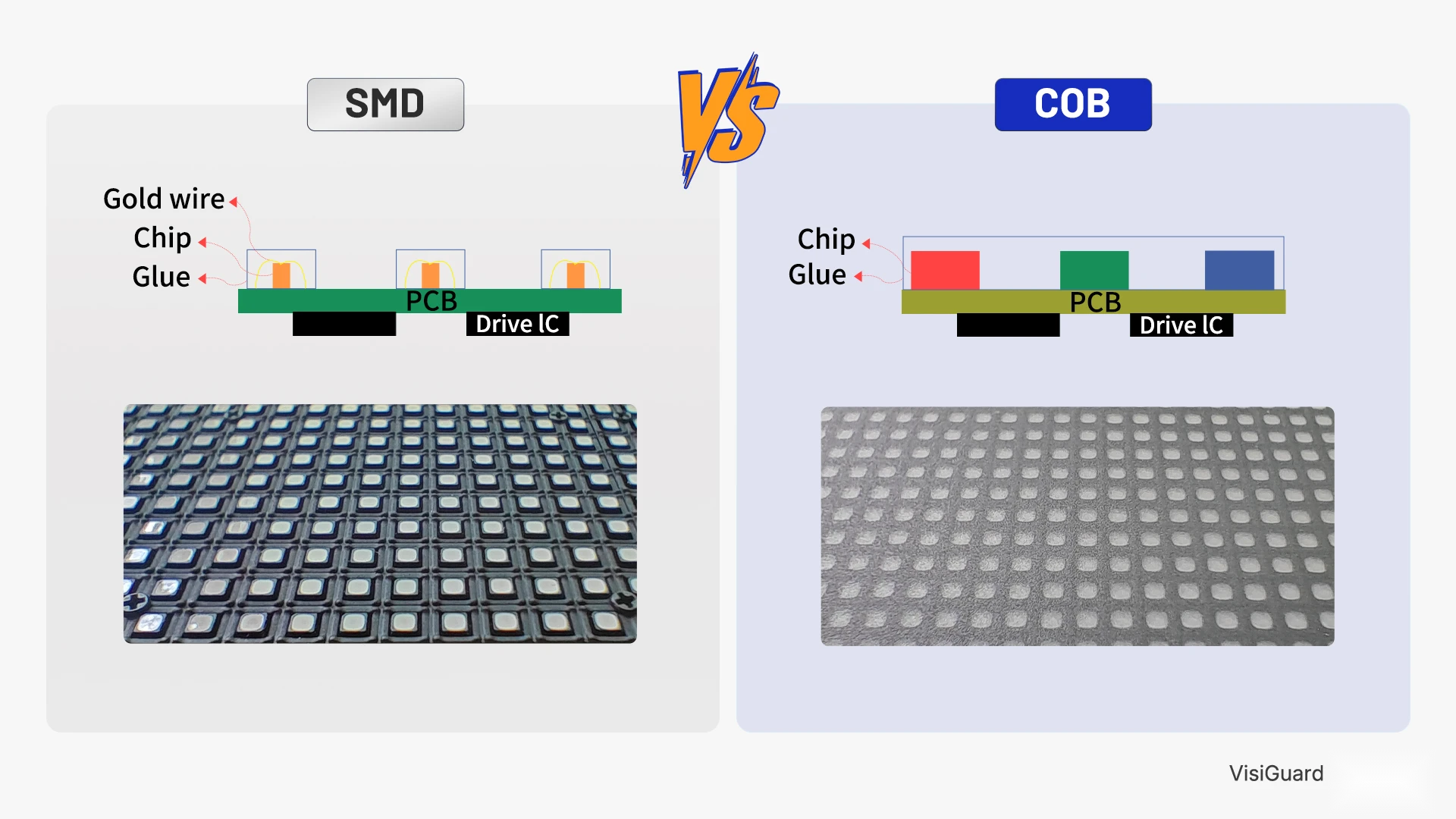

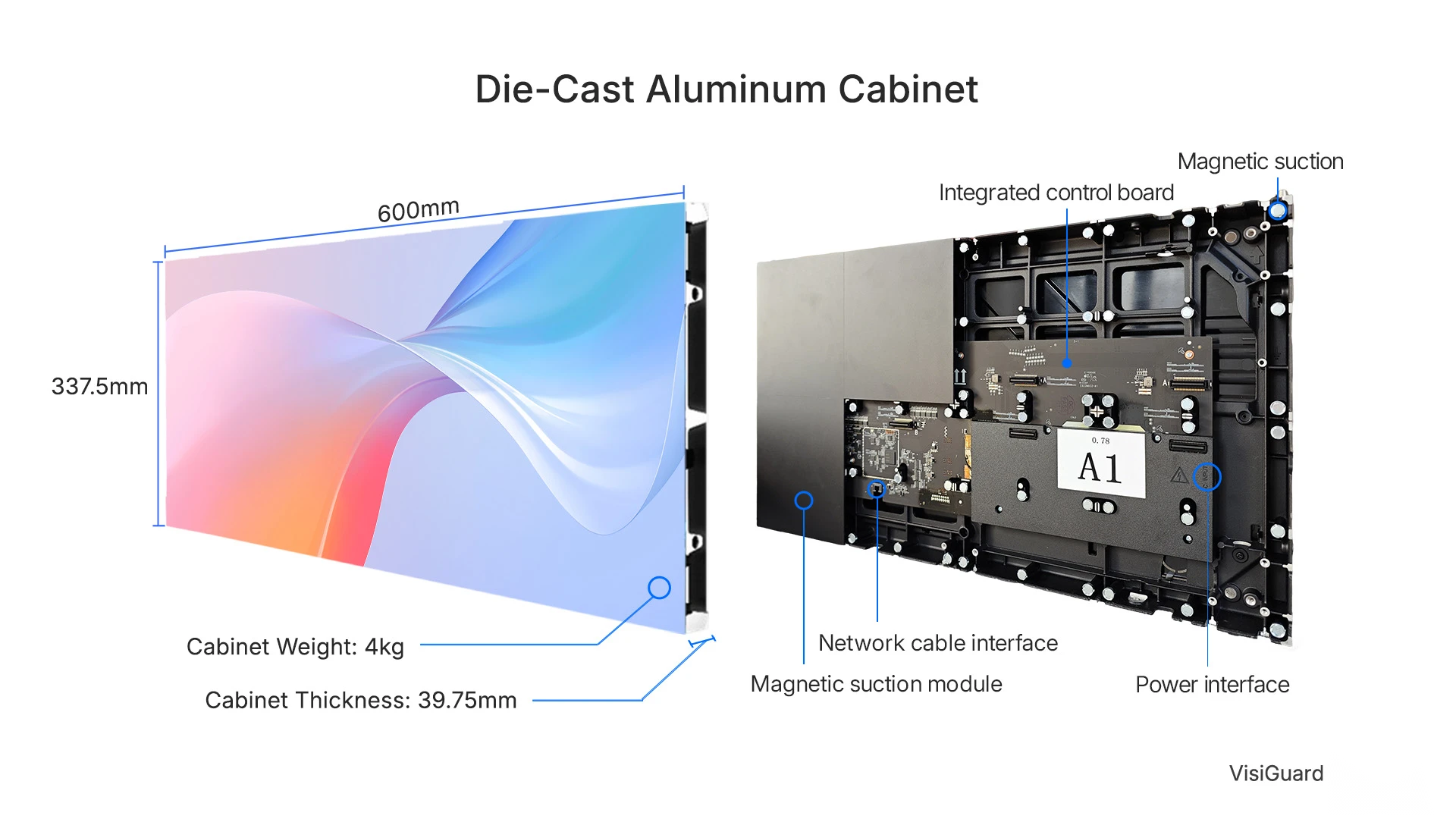

VisiGuard combines flip-chip COB technology with a 39.75 mm die-cast aluminum cabinet and magnetic front maintenance. Five listed pixel-pitch configurations support indoor brand walls, conference rooms and home theaters, with brightness and circuit options varying by pitch.
Product illustrations. Configurations shown may require optional components.
At a glance
- Flip-chip COB display design
- 600 × 337.5 mm and 600 × 675 mm cabinet options
- 39.75 mm cabinet depth

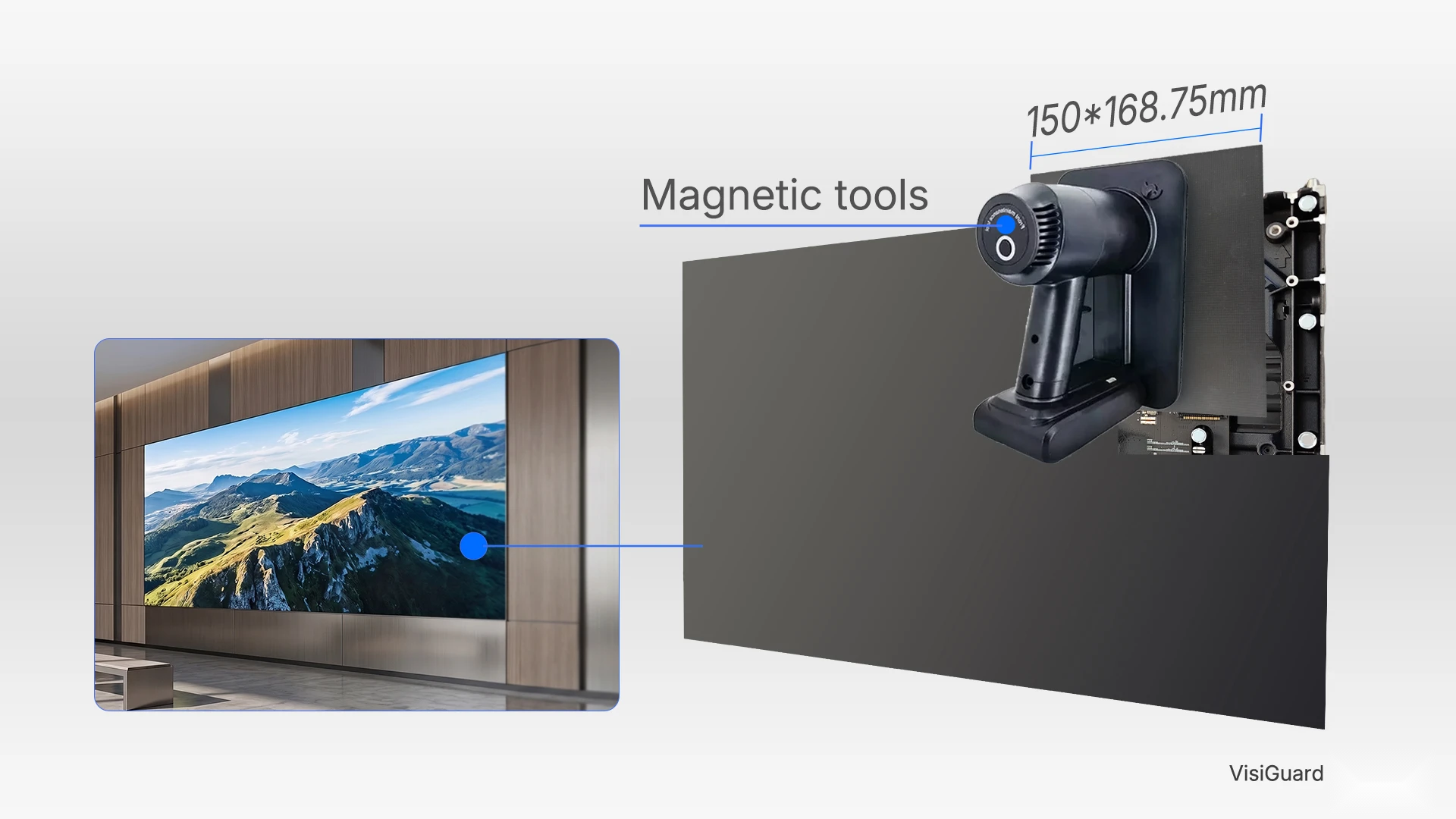

- Magnetic front maintenance and IP54 listed protection
Applications

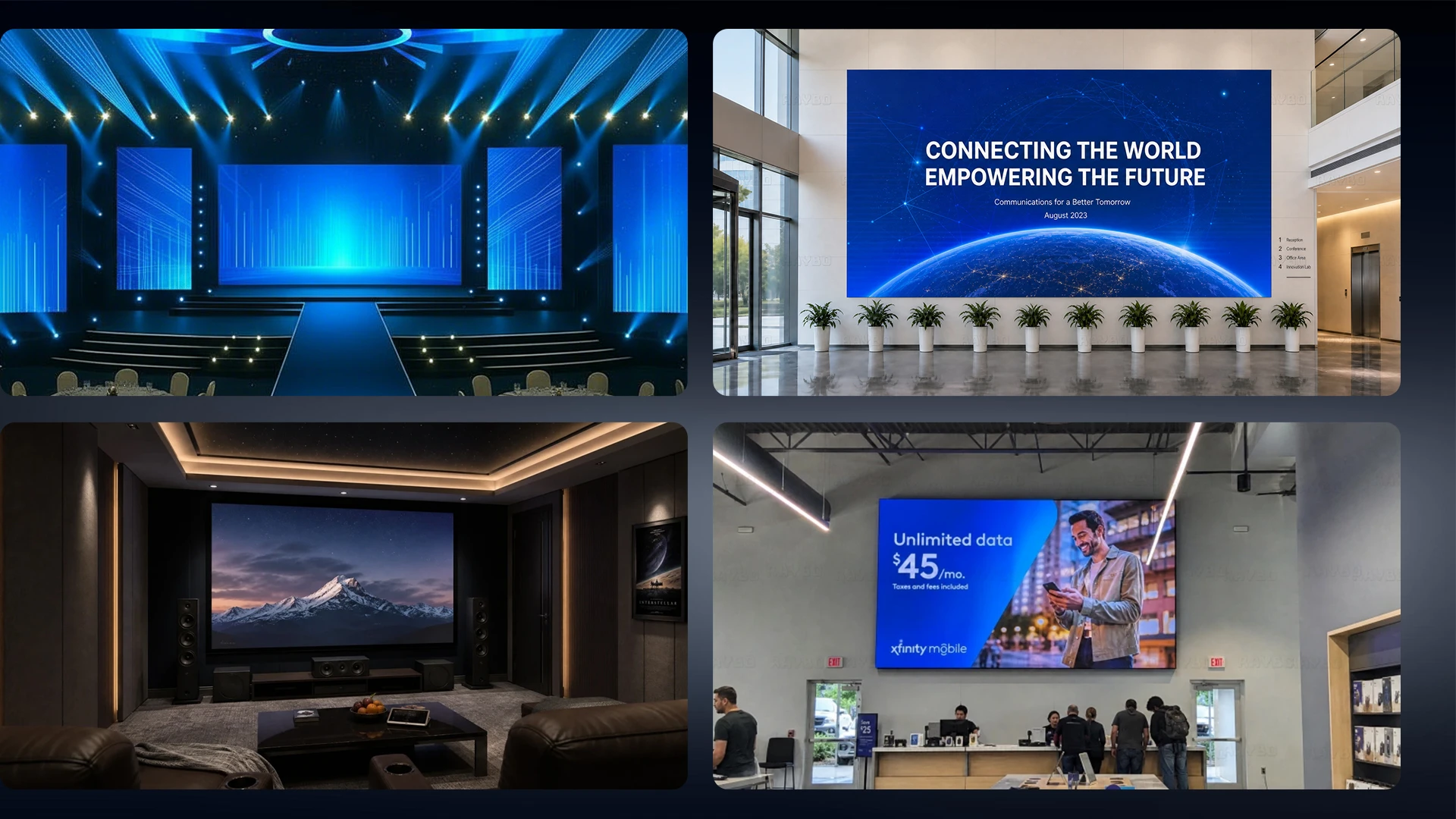

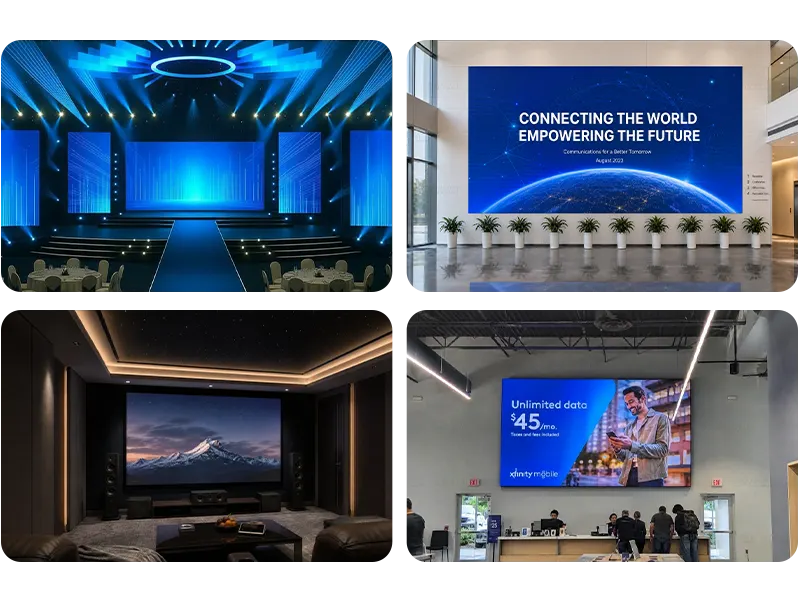

Corporate brand walls · Conference rooms · Home theaters
Where this series fits
- Confirm the exact pixel pitch, native cabinet resolution and signal load before specifying the complete wall.
- Confirm whether the selected pitch uses common-cathode or common-anode circuitry.
- Confirm the selected drive configuration for 3840/7680 Hz refresh options.
Configuration options
Identify the exact pixel pitch, cabinet format and operating environment when requesting a quotation. Listed options do not mean every combination is interchangeable.
Indoor · P0.62 mmView configuration
Pixel Pitch: P0.62
Cabinet Size: 600×337.5×39.75mm,600×675×39.75mm
Brightness: 1000 cd/m²
Weight: 4 kg,8 kg
Refresh Rate: 3840/7680Hz
Ip Rating: IP54
Maintenance Access: Front
Power Consumption: 200/400W/m²
Led Type: Flip Chip
Scan Mode: 1/60
Indoor · P0.78 mmView configuration
Pixel Pitch: P0.78
Cabinet Size: 600×337.5×39.75mm,600×675×39.75mm
Brightness: 1000 cd/m²
Weight: 4 kg,8 kg
Refresh Rate: 3840/7680Hz
Ip Rating: IP54
Maintenance Access: Front
Power Consumption: 200/400W/m²
Led Type: Flip Chip
Scan Mode: 1/48
Indoor · P0.93 mmView configuration
Pixel Pitch: P0.93
Cabinet Size: 600×337.5×39.75mm,600×675×39.75mm
Brightness: 1000 cd/m²
Weight: 4 kg,8 kg
Refresh Rate: 3840/7680Hz
Ip Rating: IP54
Maintenance Access: Front
Power Consumption: 200/400W/m²
Led Type: Flip Chip
Scan Mode: 1/54
Indoor · P1.25 mmView configuration
Pixel Pitch: P1.25
Cabinet Size: 600×337.5×39.75mm,600×675×39.75mm
Brightness: 800 cd/m²
Weight: 4 kg,8 kg
Refresh Rate: 3840/7680Hz
Ip Rating: IP54
Maintenance Access: Front
Power Consumption: 200/400W/m²
Led Type: Flip Chip
Scan Mode: 1/60
Indoor · P1.56 mmView configuration
Pixel Pitch: P1.56
Cabinet Size: 600×337.5×39.75mm,600×675×39.75mm
Brightness: 800 cd/m²
Weight: 4 kg,8 kg
Refresh Rate: 3840/7680Hz
Ip Rating: IP54
Maintenance Access: Front
Power Consumption: 200/400W/m²
Led Type: Flip Chip
Scan Mode: 1/54
Specifications
| Pixel Pitch | Indoor: P0.62: P0.62; P0.78: P0.78; P0.93: P0.93; P1.25: P1.25; P1.56: P1.56 |
|---|---|
| LED Type | Flip Chip |
| Module Dimensions (W × H) | 150×168.75mm |
| Panel Dimensions (W × H × T) | 600×337.5×39.75mm,600×675×39.75mm |
| Panel Weight | 4 kg,8 kg |
| Refresh Rate | 3840/7680Hz |
| Scan Mode | Indoor: P0.62: 1/60; P0.78: 1/48; P0.93: 1/54; P1.25: 1/60; P1.56: 1/54 |
| Brightness | Indoor: P0.62: 1000 cd/m²; P0.78: 1000 cd/m²; P0.93: 1000 cd/m²; P1.25: 800 cd/m²; P1.56: 800 cd/m² |
| Grayscale | 16bit |
| Power Consumption (Average/Maximum) | 200/400W/m² |
| Maintenance Access | Front |
| IP Rating | IP54 |
| Circuit Configuration | Indoor: P0.62: Common Cathode; P0.78: Common Cathode; P0.93: Common Cathode; P1.25: Common Cathode/Common Anode; P1.56: Common Cathode/Common Anode |
| Cabinet Material | Die-Cast Aluminum |
| Contrast Ratio | ≥15000:1 |
| Viewing Angle (H/V) | 160°/160° |
| Operating Temperature | -30°C to 50°C |
| Input Power | AC100~240 50/60HZ |
| Control | Novastar |
Product details

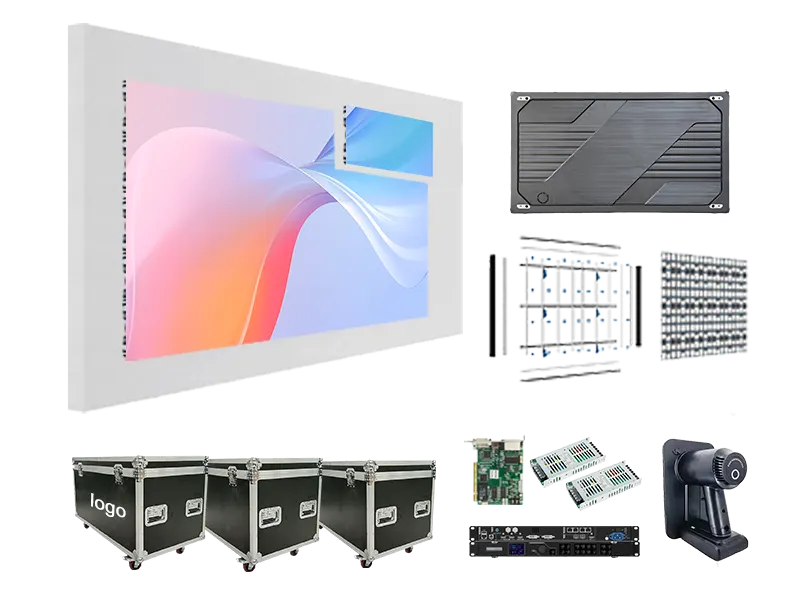

Supplier illustrations show product features and possible configurations. Brightness, protection ratings and optional assemblies depend on the selected version; use the specifications and confirmed quotation for your order.
