PixelFold X

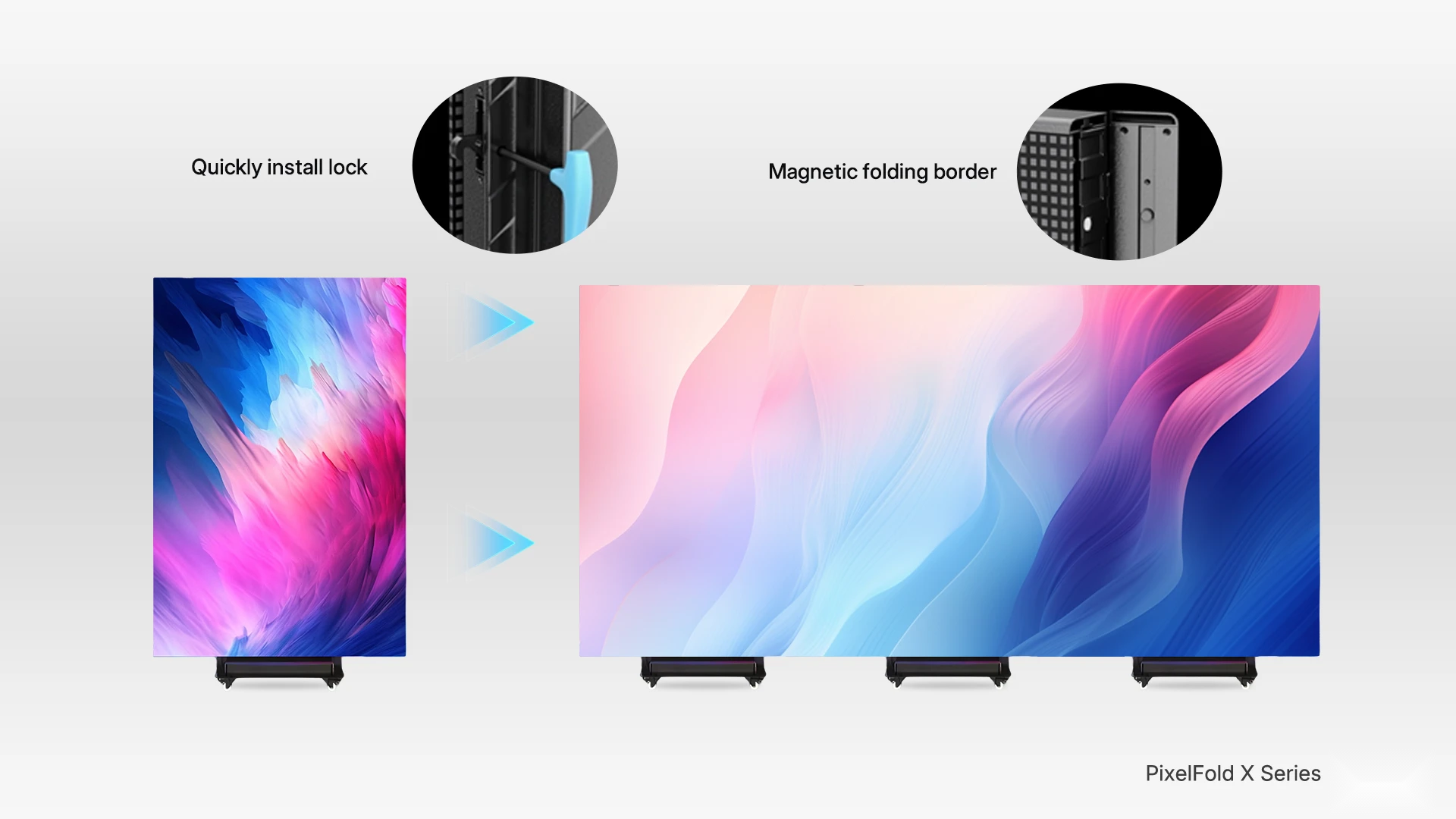

PixelFold X combines a folding aluminum-alloy display structure with magnetic modules and braked swivel casters. Vertical and sideways folding options suit showrooms, exhibitions and hotel lobbies; confirm the required unfolded and folded dimensions when ordering.
Product illustrations. Configurations shown may require optional components.
At a glance

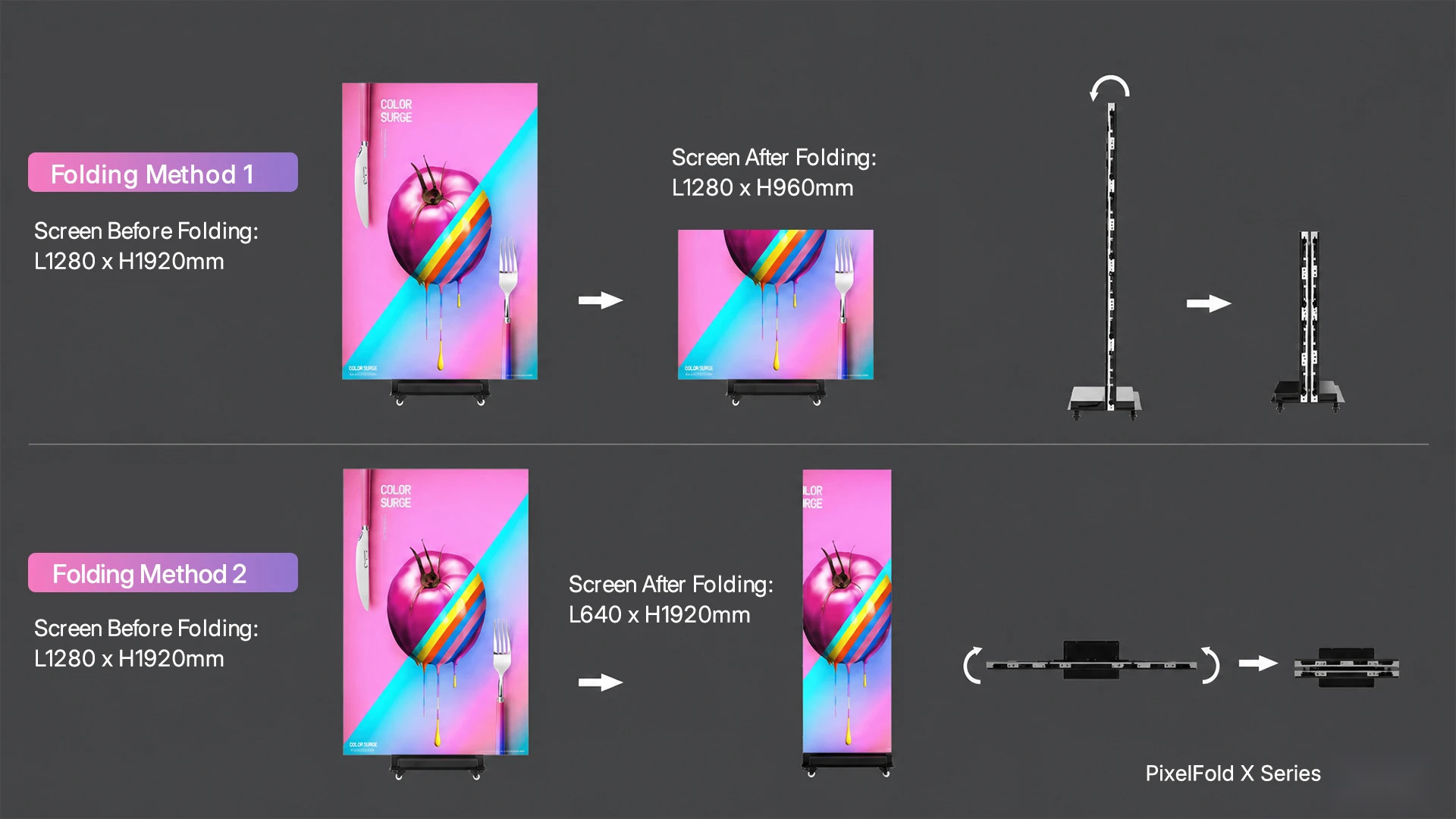

- Vertical and sideways folding presentation options
- 48 magnetic modules in the described unit
- Braked swivel casters for relocation
- Front maintenance with IP30 listed protection
Applications

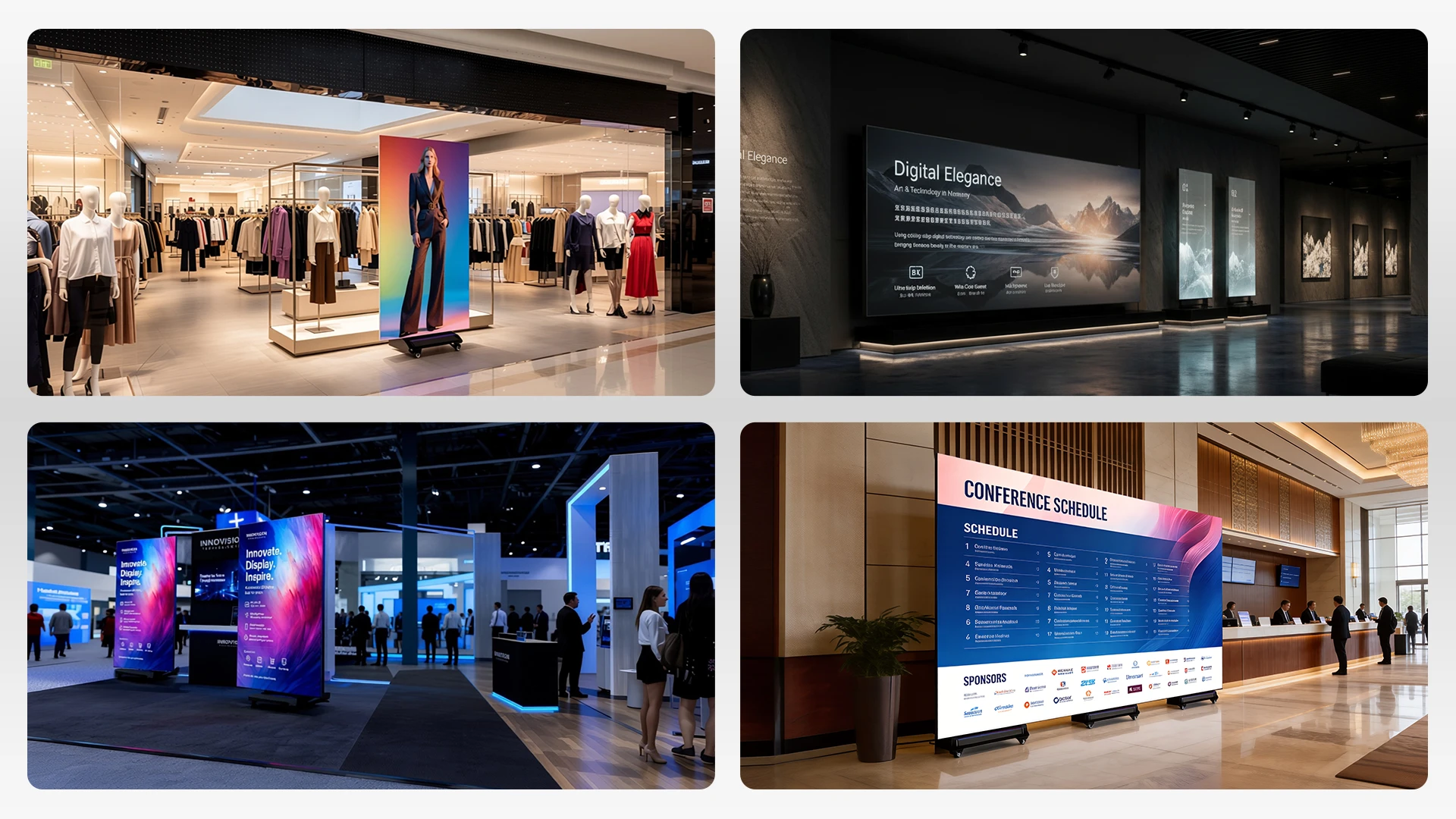

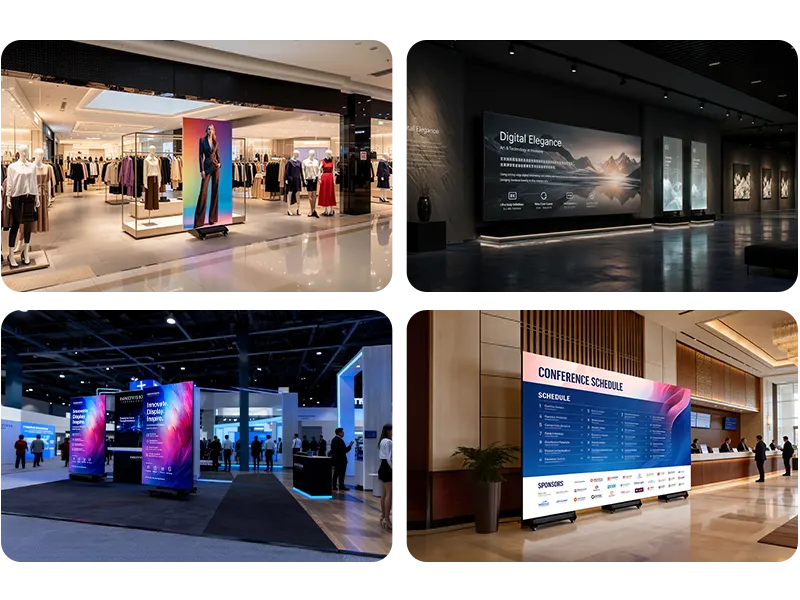

Brand showrooms · Trade shows · Hotel lobbies
Where this series fits

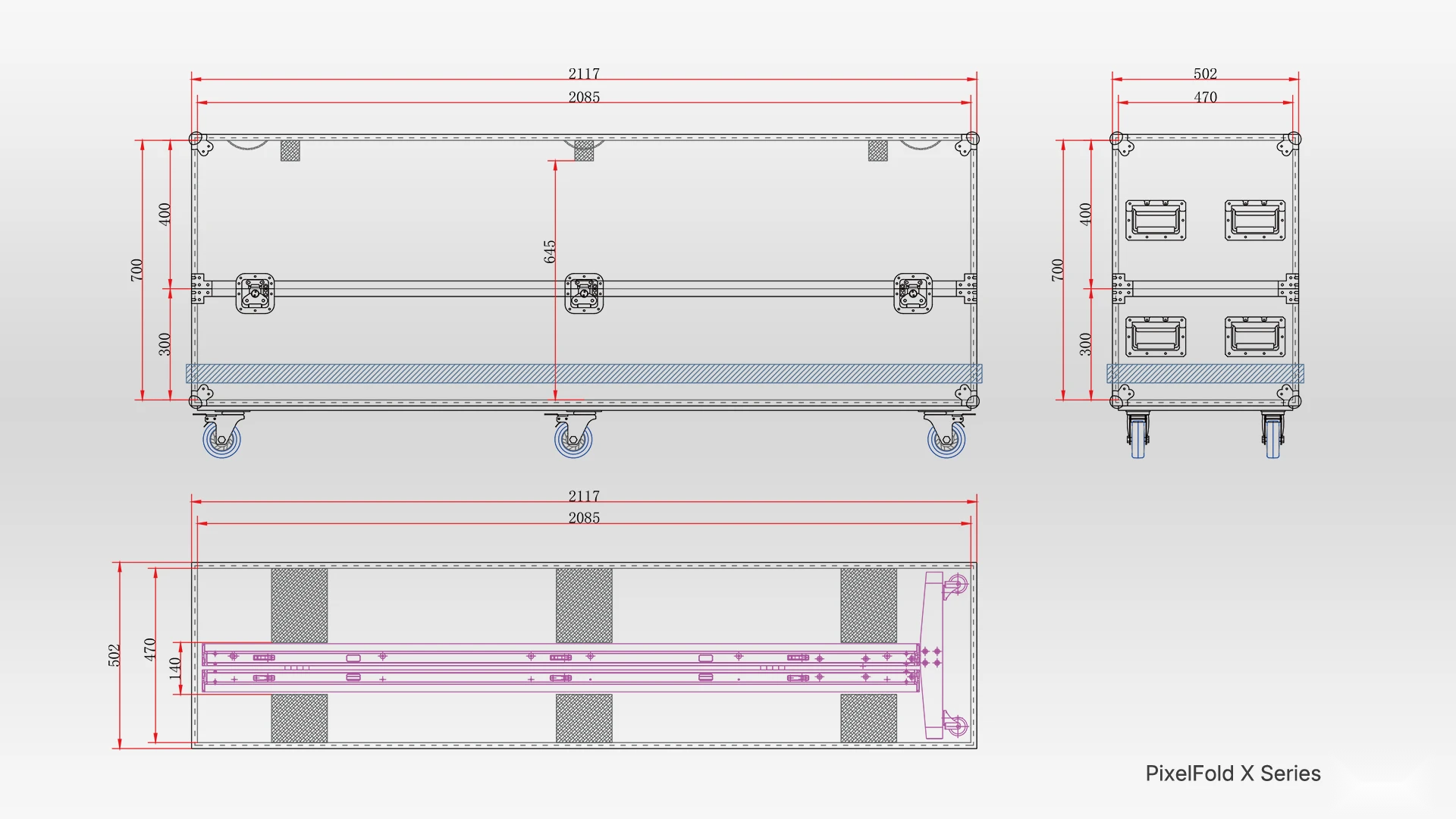

- Confirm unfolded and folded dimensions, transport clearances and the flight-case configuration.
- The listed IP30 configuration requires indoor operating conditions; movement between venues does not establish outdoor weather protection.
- Confirm processor capacity and the number of units in a tiled layout.
Configuration options
Identify the exact pixel pitch, cabinet format and operating environment when requesting a quotation. Listed options do not mean every combination is interchangeable.
Indoor · P1.53 mmView configuration
Pixel Pitch: P1.53
Brightness: 600-800 cd/m²
Weight: 95 kg
Refresh Rate: 3840Hz
Ip Rating: IP30
Maintenance Access: Front
Power Consumption: 120/400W/m²
Led Type: SMD1212
Pixel Density: 422750
Scan Mode: 1/52
Indoor · P1.86 mmView configuration
Pixel Pitch: P1.86
Brightness: 600-800 cd/m²
Weight: 95 kg
Refresh Rate: 3840Hz
Ip Rating: IP30
Maintenance Access: Front
Power Consumption: 120/400W/m²
Led Type: SMD1515
Pixel Density: 289000
Scan Mode: 1/43
Indoor · P2 mmView configuration
Pixel Pitch: P2
Brightness: 600-800 cd/m²
Weight: 95 kg
Refresh Rate: 3840Hz
Ip Rating: IP30
Maintenance Access: Front
Power Consumption: 120/400W/m²
Led Type: SMD1515
Pixel Density: 250000
Scan Mode: 1/40
Indoor · P2.5 mmView configuration
Pixel Pitch: P2.5
Brightness: 600-800 cd/m²
Weight: 95 kg
Refresh Rate: 3840Hz
Ip Rating: IP30
Maintenance Access: Front
Power Consumption: 120/400W/m²
Led Type: SMD2121
Pixel Density: 160000
Scan Mode: 1/64
Specifications
| Pixel Pitch | Indoor: P1.53: P1.53; P1.86: P1.86; P2: P2; P2.5: P2.5 |
|---|---|
| LED Type | Indoor: P1.53: SMD1212; P1.86: SMD1515; P2: SMD1515; P2.5: SMD2121 |
| Pixel Density (pixels/m²) | Indoor: P1.53: 422750; P1.86: 289000; P2: 250000; P2.5: 160000 |
| Module Dimensions (W × H) | 320×160mm |
| Panel Weight | 95 kg |
| Refresh Rate | 3840Hz |
| Scan Mode | Indoor: P1.53: 1/52; P1.86: 1/43; P2: 1/40; P2.5: 1/64 |
| Brightness | 600-800 cd/m² |
| Grayscale | 16bit |
| Power Consumption (Average/Maximum) | 120/400W/m² |
| Maintenance Access | Front |
| IP Rating | IP30 |
| Cabinet Material | Aluminium Alloy |
| Contrast Ratio | ≥5000：1 |
| Viewing Angle (H/V) | 160°/160° |
| Operating Temperature | -30°C to 50°C |
| Input Power | AC100~240 50/60HZ |

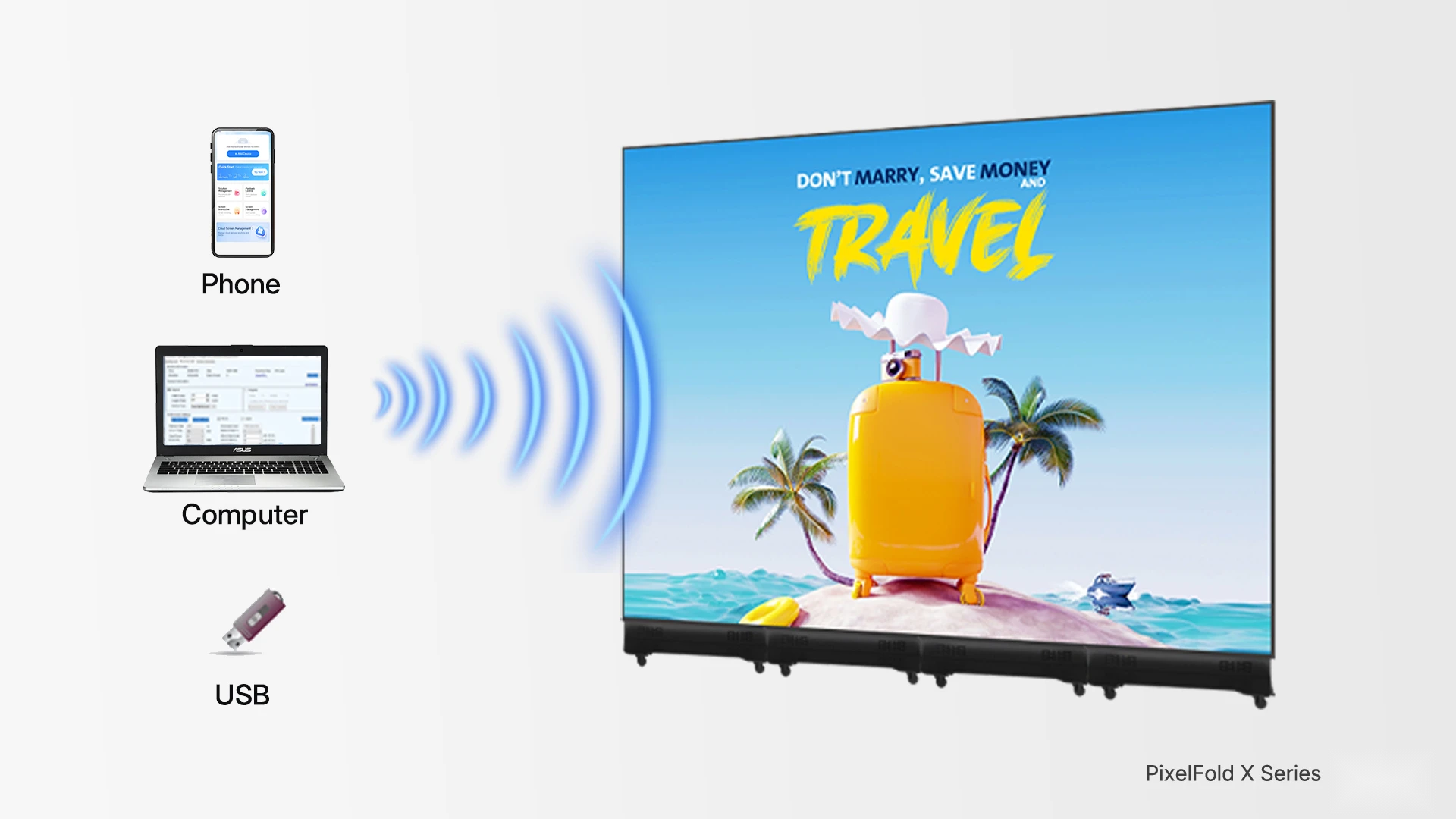

| Control | Novastar/Colorlight |
Product details
Supplier illustrations show product features and possible configurations. Brightness, protection ratings and optional assemblies depend on the selected version; use the specifications and confirmed quotation for your order.
