LuxEdge
LuxEdge combines a 25 mm aluminum-profile cabinet with magnetic front maintenance for indoor commercial displays. Three cabinet sizes and five listed pixel pitches support retail, showroom and lobby layouts, with an optional bevelled cabinet design for 90° corners.
Product illustrations. Configurations shown may require optional components.
At a glance
- 25 mm cabinet depth in the website configuration

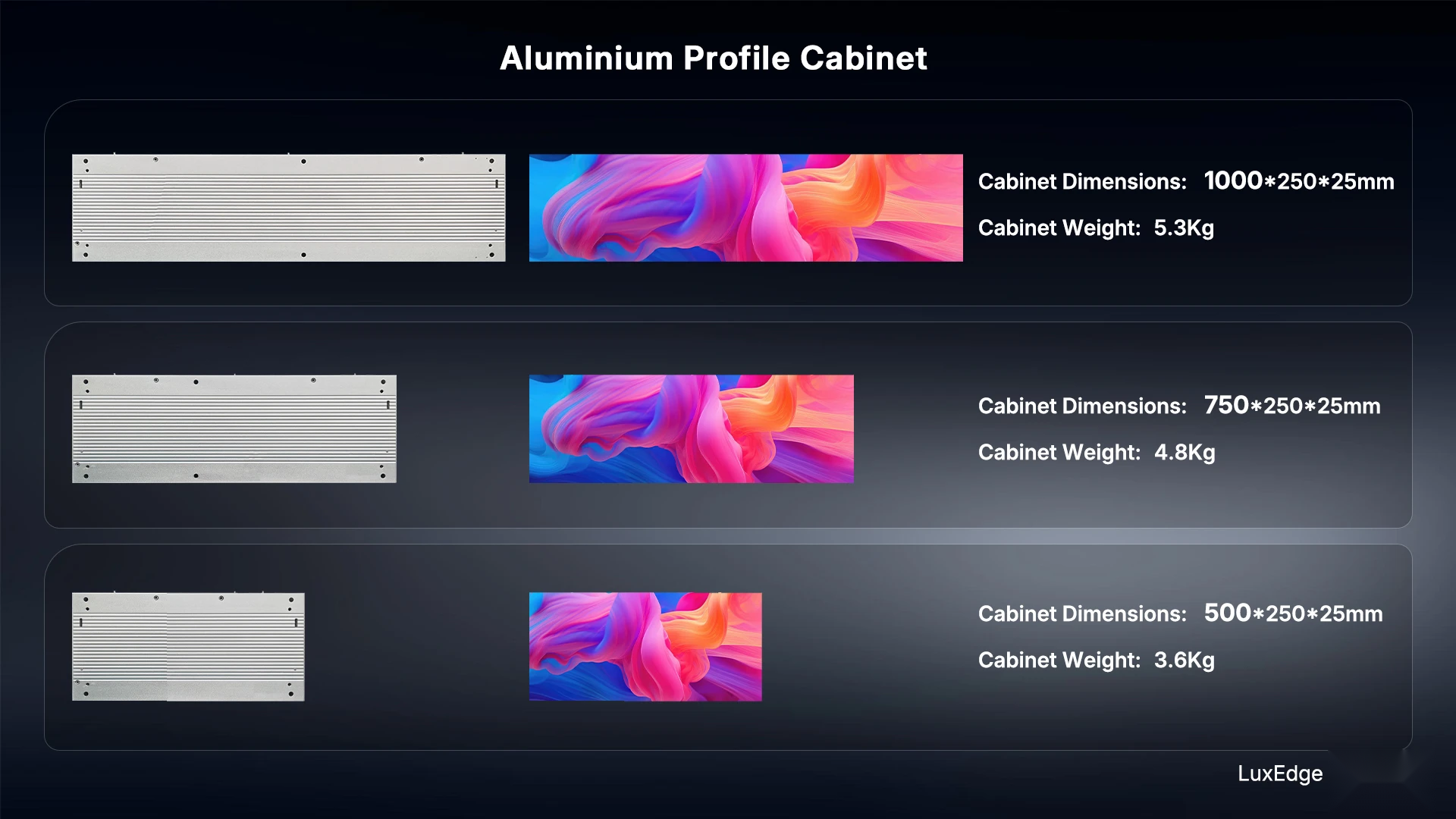

- 500 × 250, 750 × 250 and 1000 × 250 mm cabinet options

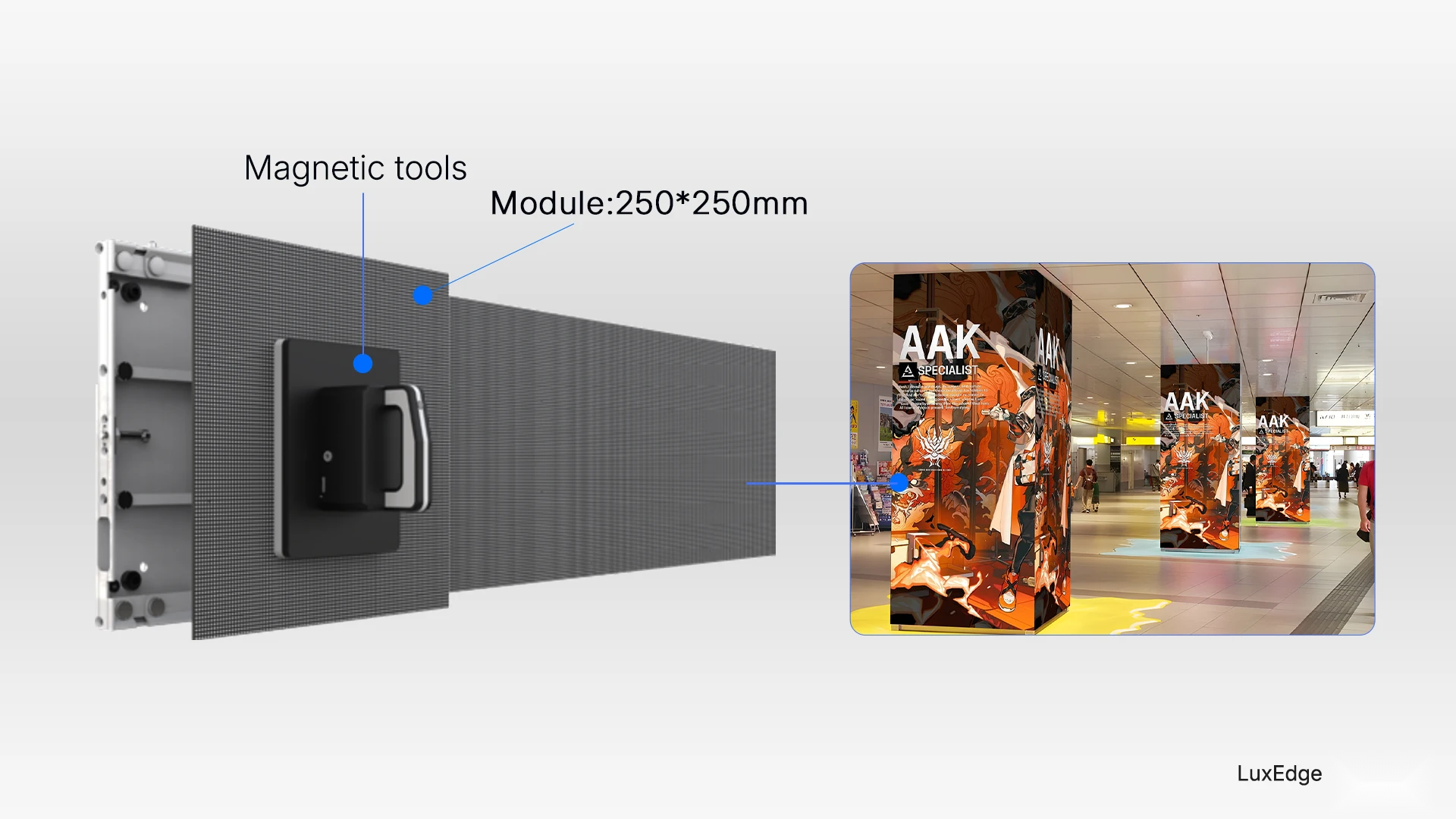

- Magnetic front maintenance

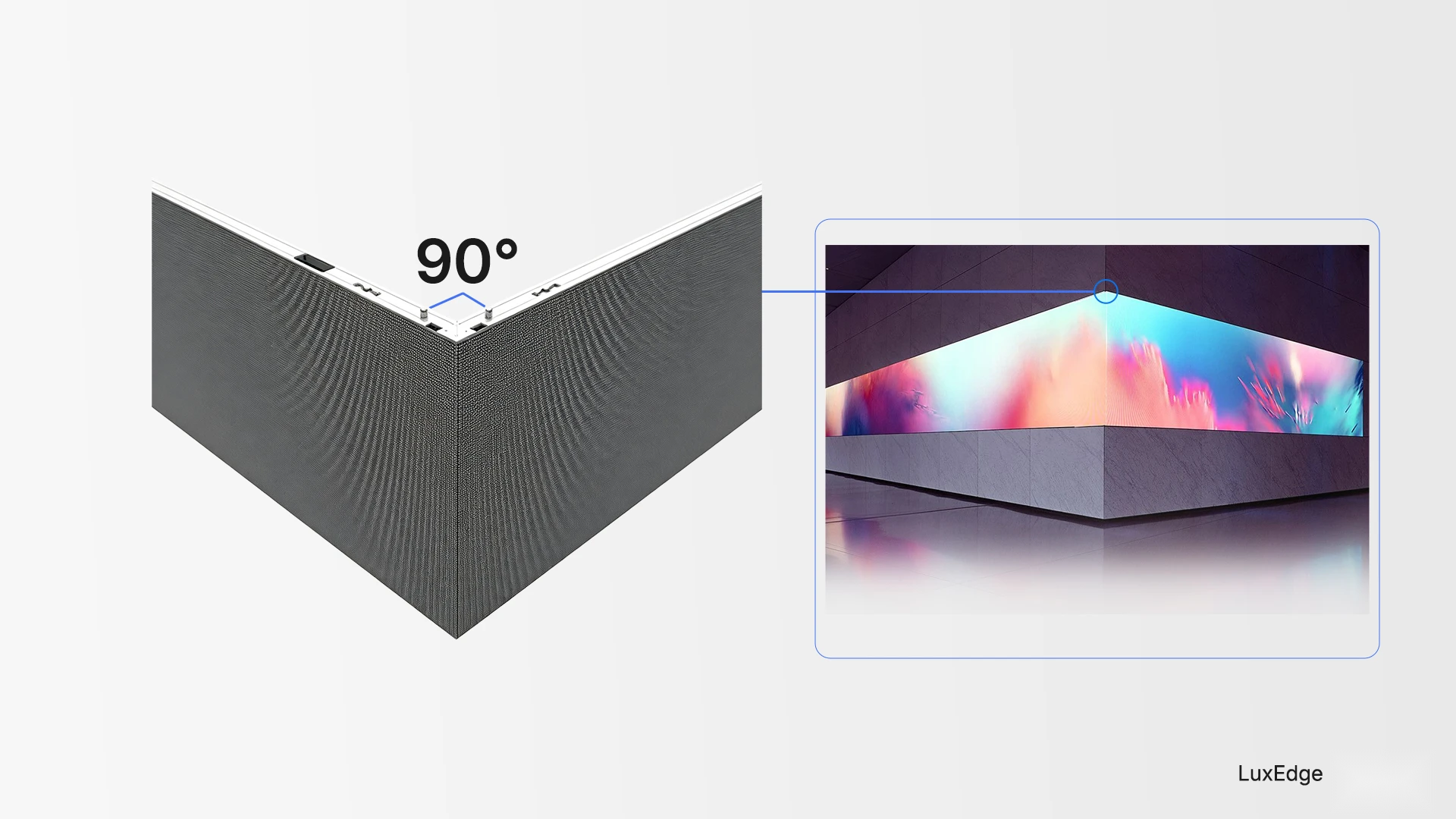

- Optional bevelled cabinet design for 90° corner assemblies
Applications

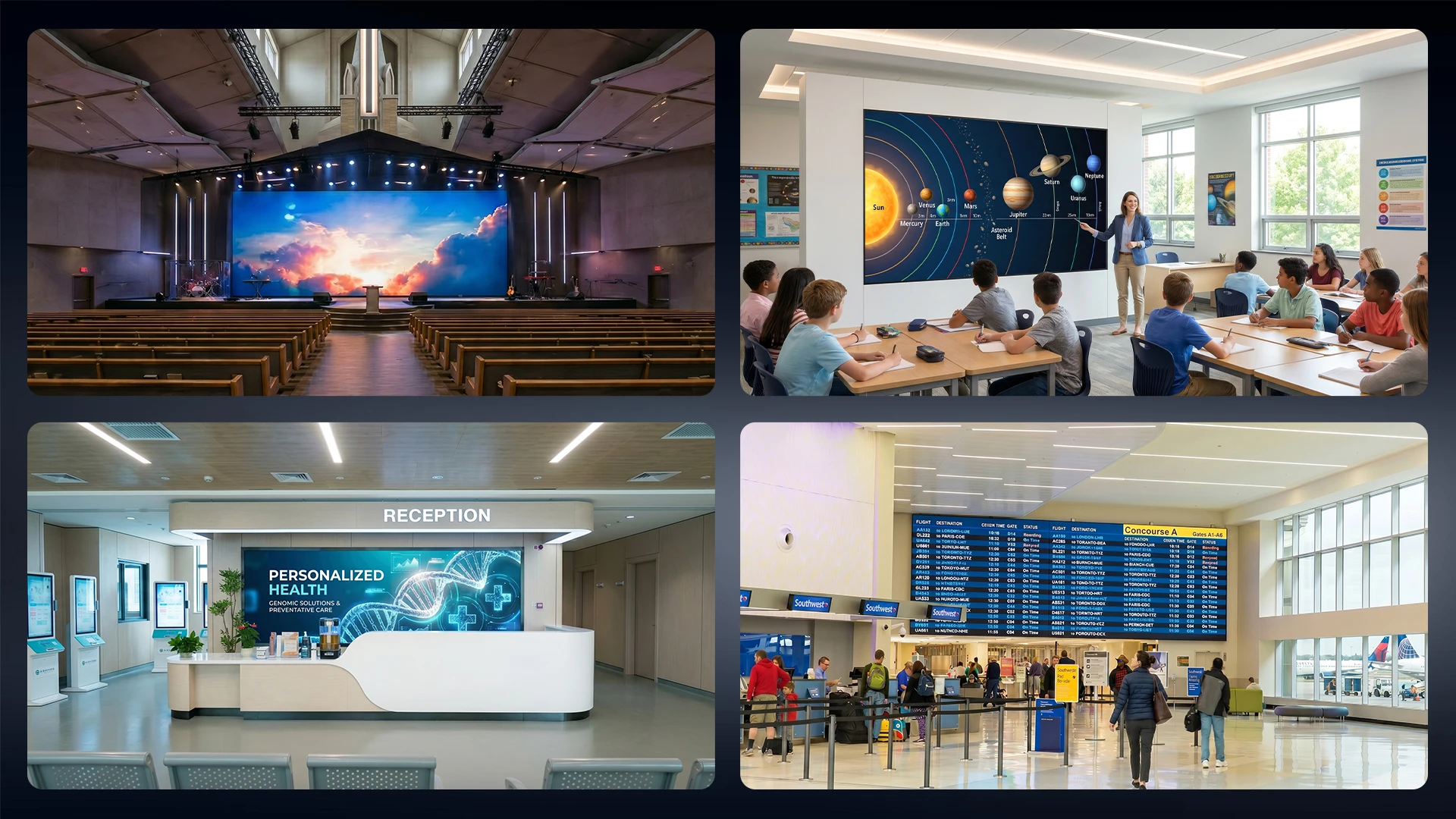

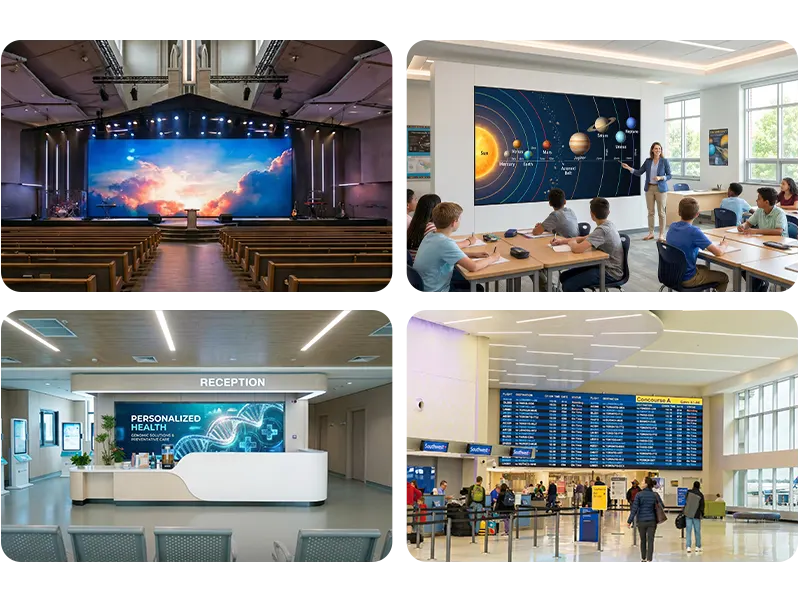

Retail stores · Showrooms · Lobbies
Where this series fits
- Confirm the 25 mm cabinet depth and the weight of each selected cabinet size in the quotation.

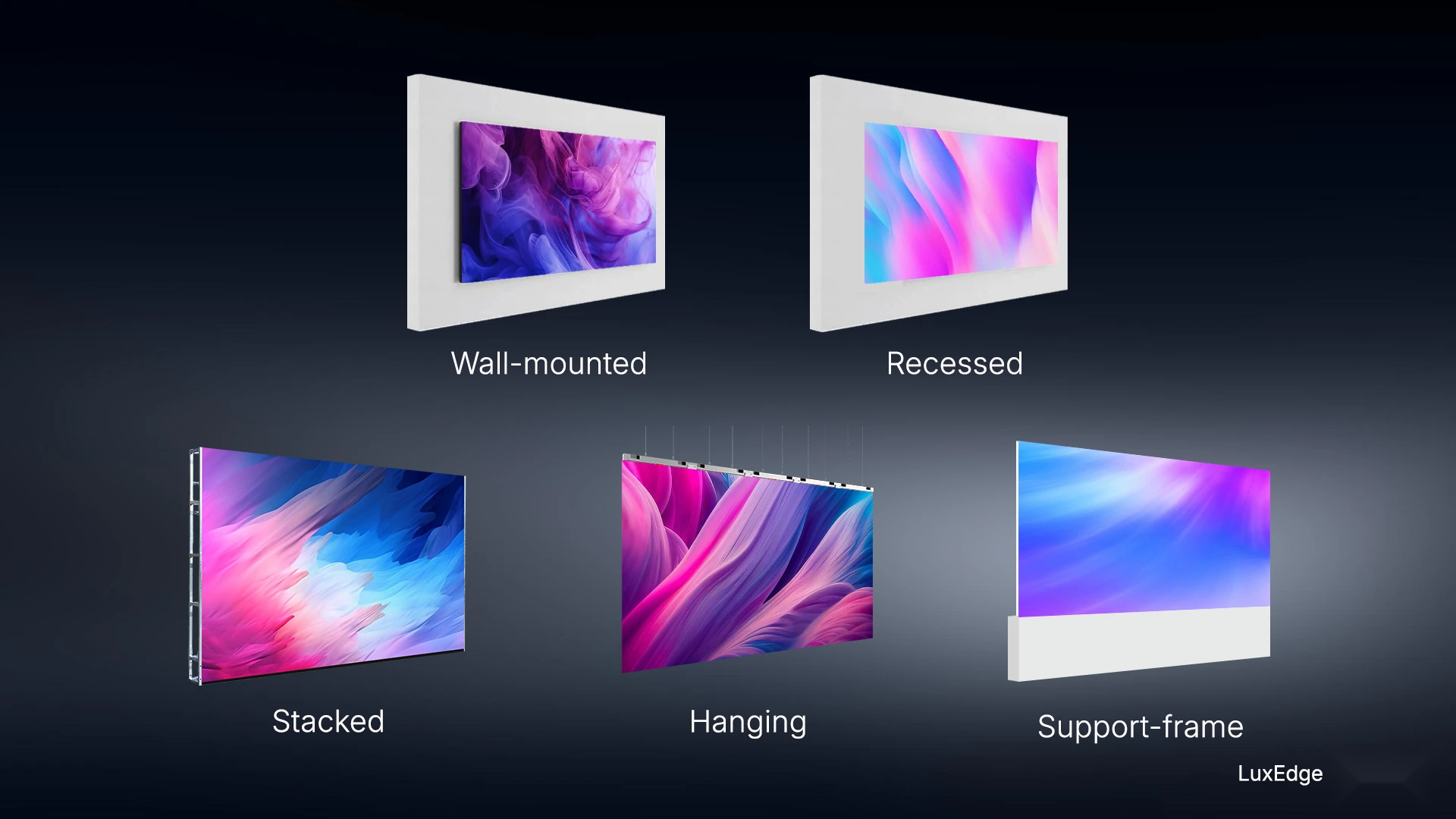

- Confirm front service clearance, mounting hardware and cable routing for the final installation.

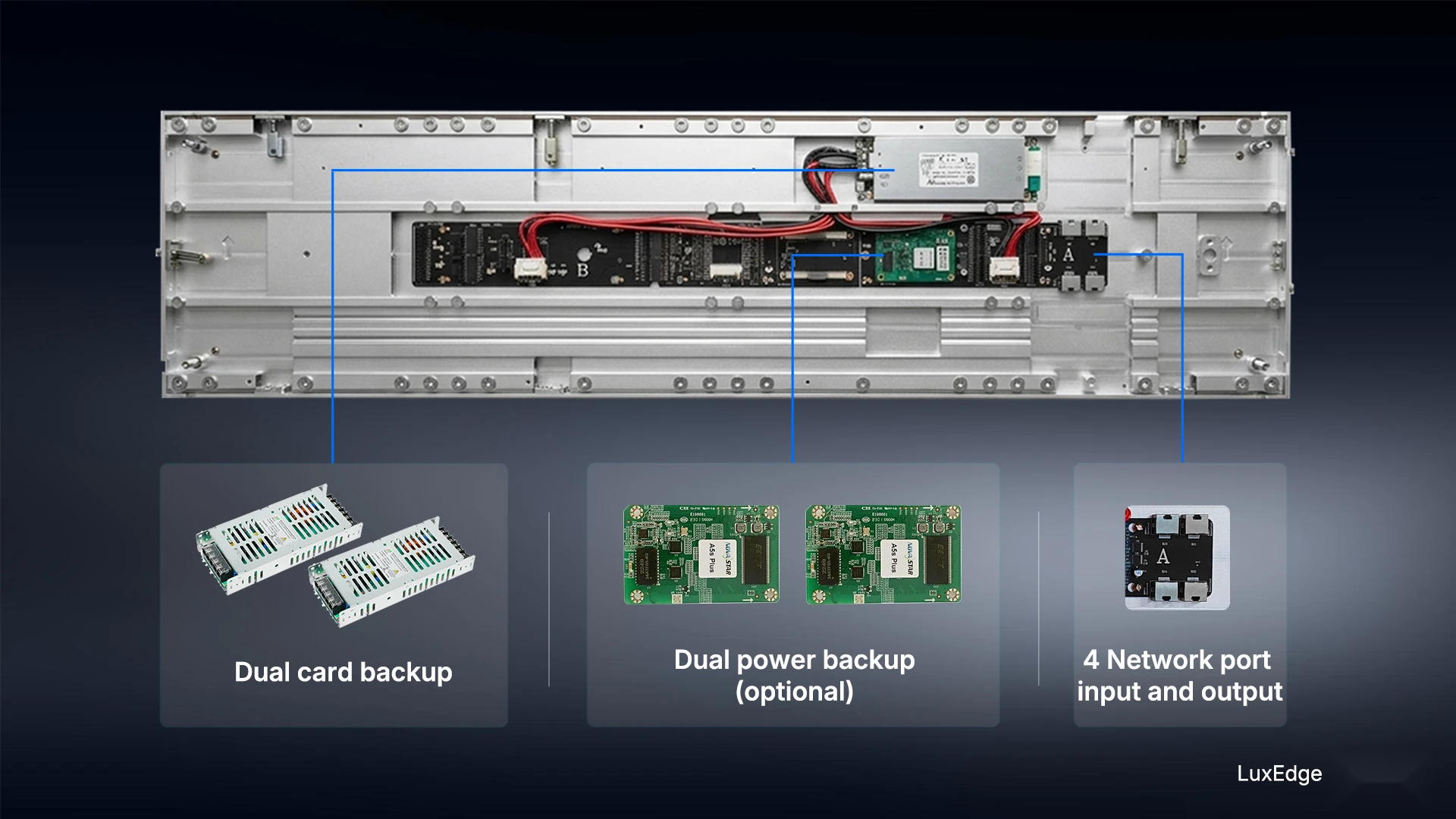

- Confirm the selected drive configuration for 3840/7680 Hz refresh options and any optional power backup.
- For curved assemblies, confirm the required components and curve radius.
Configuration options
Identify the exact pixel pitch, cabinet format and operating environment when requesting a quotation. Listed options do not mean every combination is interchangeable.
Indoor · P1.56 mmView configuration
Pixel Pitch: P1.56
Cabinet Size: 500×250×25mm,750×250×25mm,1000×250×25mm
Brightness: ≥600 cd/m²
Weight: 2.4 kg,3.6 kg,4.8 kg
Refresh Rate: 3840/7680 Hz
Ip Rating: IP20
Maintenance Access: Front
Power Consumption: 165/500W/m²
Led Type: SMD1212
Pixel Density: 409600
Scan Mode: 1/40
Indoor · P1.953 mmView configuration
Pixel Pitch: P1.953
Cabinet Size: 500×250×25mm,750×250×25mm,1000×250×25mm
Brightness: ≥600 cd/m²
Weight: 2.4 kg,3.6 kg,4.8 kg
Refresh Rate: 3840/7680 Hz
Ip Rating: IP20
Maintenance Access: Front
Power Consumption: 165/500W/m²
Led Type: SMD1515
Pixel Density: 262144
Scan Mode: 1/32
Indoor · P2.604 mmView configuration
Pixel Pitch: P2.604
Cabinet Size: 500×250×25mm,750×250×25mm,1000×250×25mm
Brightness: ≥600 cd/m²
Weight: 2.4 kg,3.6 kg,4.8 kg
Refresh Rate: 3840/7680 Hz
Ip Rating: IP20
Maintenance Access: Front
Power Consumption: 165/500W/m²
Led Type: SMD1515
Pixel Density: 147456
Scan Mode: 1/32
Indoor · P2.97 mmView configuration
Pixel Pitch: P2.97
Cabinet Size: 500×250×25mm,750×250×25mm,1000×250×25mm
Brightness: ≥600 cd/m²
Weight: 2.4 kg,3.6 kg,4.8 kg
Refresh Rate: 3840/7680 Hz
Ip Rating: IP20
Maintenance Access: Front
Power Consumption: 165/500W/m²
Led Type: SMD2020
Pixel Density: 112896
Scan Mode: 1/28
Indoor · P3.91 mmView configuration
Pixel Pitch: P3.91
Cabinet Size: 500×250×25mm,750×250×25mm,1000×250×25mm
Brightness: ≥600 cd/m²
Weight: 2.4 kg,3.6 kg,4.8 kg
Refresh Rate: 3840/7680 Hz
Ip Rating: IP20
Maintenance Access: Front
Power Consumption: 165/500W/m²
Led Type: SMD2020
Pixel Density: 65536
Scan Mode: 1/16
Specifications
| Pixel Pitch | Indoor: P1.56: P1.56; P1.953: P1.953; P2.604: P2.604; P2.97: P2.97; P3.91: P3.91 |
|---|---|
| LED Type | Indoor: P1.56: SMD1212; P1.953: SMD1515; P2.604: SMD1515; P2.97: SMD2020; P3.91: SMD2020 |
| Pixel Density (pixels/m²) | Indoor: P1.56: 409600; P1.953: 262144; P2.604: 147456; P2.97: 112896; P3.91: 65536 |
| Module Dimensions (W × H) | 250×250mm |
| Panel Dimensions (W × H × T) | 500×250×25mm,750×250×25mm,1000×250×25mm |
| Panel Weight | 2.4 kg,3.6 kg,4.8 kg |
| Refresh Rate | 3840/7680 Hz |
| Scan Mode | Indoor: P1.56: 1/40; P1.953: 1/32; P2.604: 1/32; P2.97: 1/28; P3.91: 1/16 |
| Brightness | ≥600 cd/m² |
| Grayscale | 16bit |
| Power Consumption (Average/Maximum) | 165/500W/m² |
| Maintenance Access | Front |
| IP Rating | IP20 |
| Curved splicing range / availability | Available |
| Right-angle assembly option | Available |
| Cabinet Material | Aluminium Profile |
| Contrast Ratio | ≥5000：1 |
| Viewing Angle (H/V) | 140°/120° |
| Operating Temperature | -30°C to 50°C |
| Input Power | AC100~240 50/60HZ |
| Control | Novastar/Colorlight |

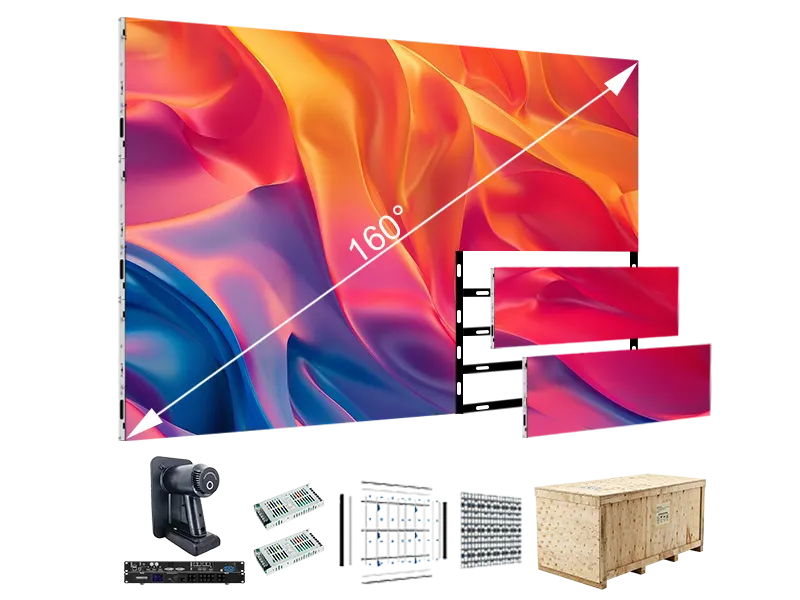

Product details
Supplier illustrations show product features and possible configurations. Brightness, protection ratings and optional assemblies depend on the selected version; use the specifications and confirmed quotation for your order.
