Indoor Fixed

AuraVue

AuraVue uses 33 mm die-cast aluminum cabinets, magnetic front maintenance and rotating-module options for indoor architectural displays. Seven listed pitches include GOB configurations at P1.25, P1.56 and P1.95; cabinet and corner options should be selected for the required layout.

Request this series Explore Indoor Fixed

Product illustrations. Configurations shown may require optional components.

At a glance

33 mm cabinet depth
Magnetic front maintenance

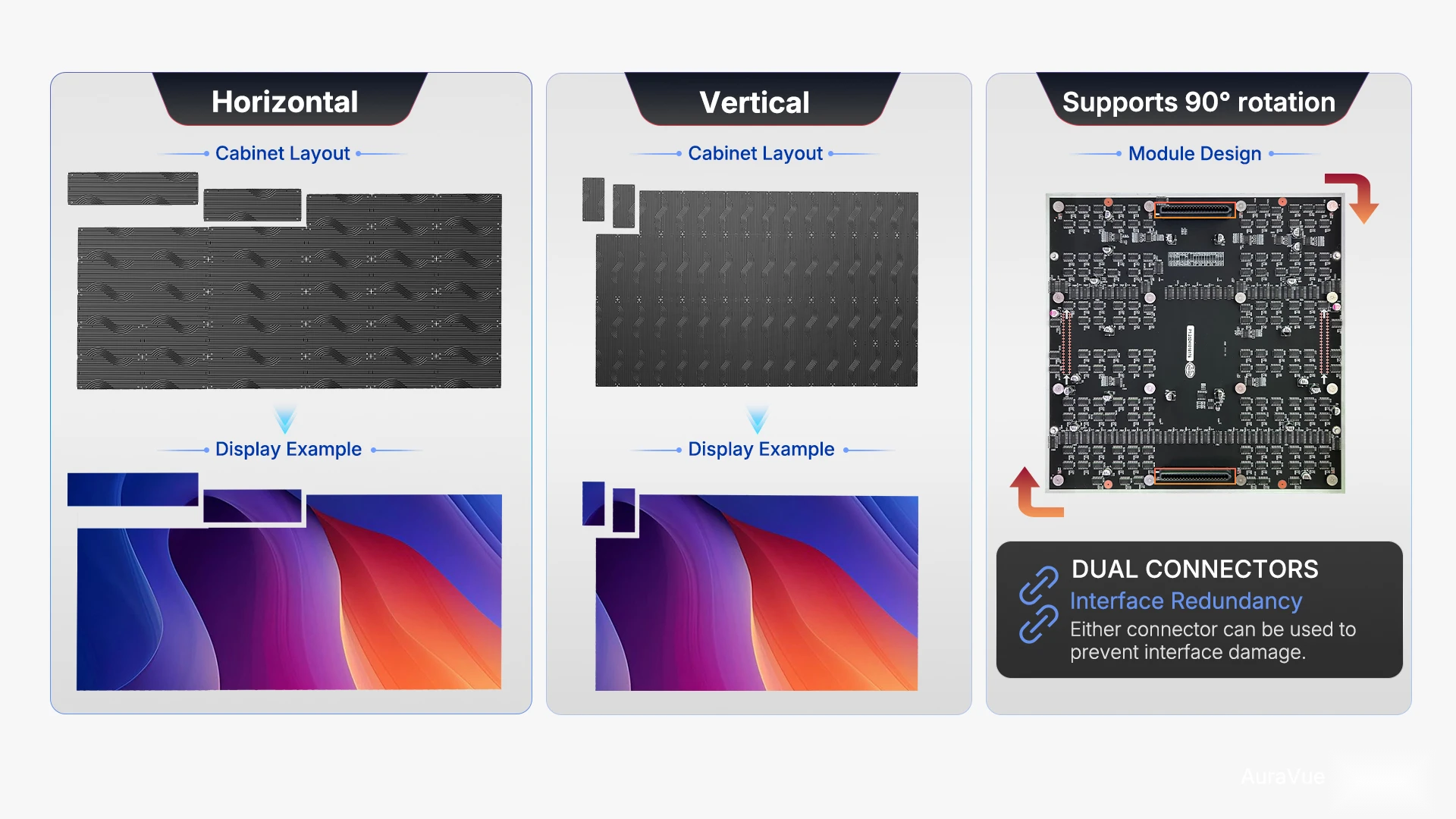

90° rotating-module layout options
GOB listed at P1.25, P1.56 and P1.95

Applications

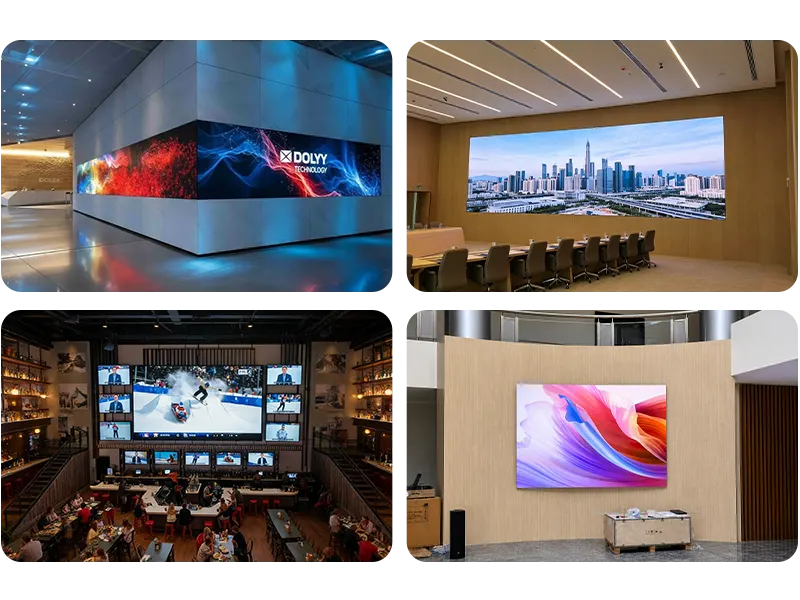

Corporate brand walls · Conference rooms · Indoor restaurants

Selection considerations

Where this series fits

Confirm the cabinet sizes and orientation for the final wall or column layout.

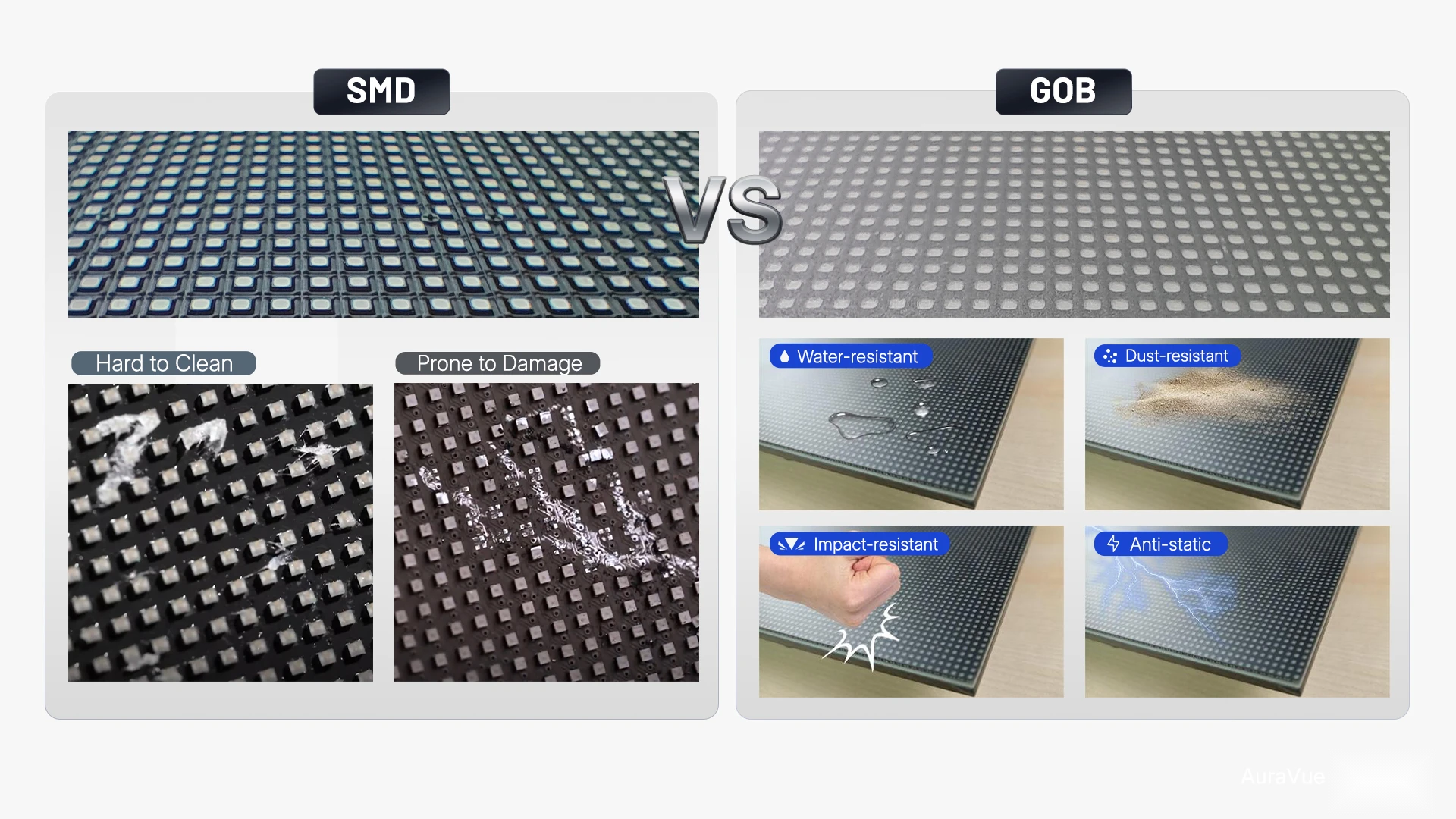

Select GOB by the specified pixel pitch; it is not listed across every pitch.
Confirm corner or curved-layout components separately from module rotation.

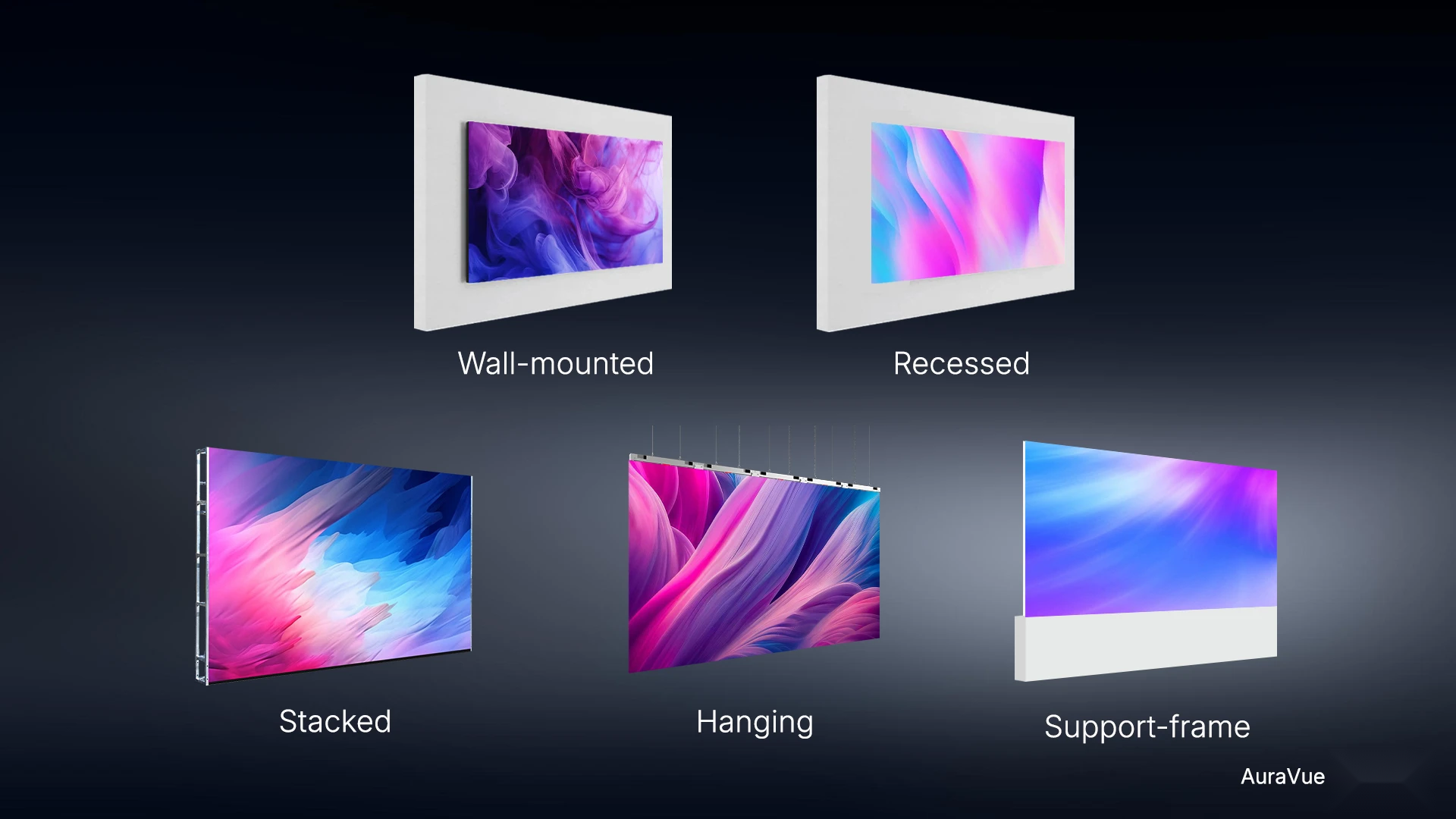

Allow for mounting, cabling, cooling and front service access when planning recessed installations.

Before requesting a quote

Plan the installation around the room

What are the closest viewing position, intended screen dimensions and main content types?
Is there service space behind the screen, or does the installation require front access?
What mounting structure, signal sources, power provision and access constraints need to be considered?

LED Pixel Pitch and Viewing Distance: A Practical Buying Guide →LED Video Wall Resolution: Calculate the Native Canvas Before You Buy →

Configuration options

Identify the exact pixel pitch, cabinet format and operating environment when requesting a quotation. Listed options do not mean every combination is interchangeable.

Indoor · P1.25 mmView configuration

Pixel Pitch: P1.25

Cabinet Size: 500×250×33mm,750×250×33mm,1000×250×33mm,1000×500×33mm

Brightness: 600 cd/m²

Weight: 3 kg, 4 kg, 5 kg, 9.8 kg

Refresh Rate: 3840Hz

Ip Rating: IP31

Maintenance Access: Front

Power Consumption: 100-200/350W/m²

Led Type: SMD1010(GOB)

Pixel Density: 640000

Scan Mode: 1/50

Indoor · P1.56 mmView configuration

Pixel Pitch: P1.56

Cabinet Size: 500×250×33mm,750×250×33mm,1000×250×33mm,1000×500×33mm

Brightness: 600 cd/m²

Weight: 3 kg, 4 kg, 5 kg, 9.8 kg

Refresh Rate: 3840Hz

Ip Rating: IP31

Maintenance Access: Front

Power Consumption: 100-200/350W/m²

Led Type: SMD1212(GOB)

Pixel Density: 409600

Scan Mode: 1/40

Indoor · P1.95 mmView configuration

Pixel Pitch: P1.95

Cabinet Size: 500×250×33mm,750×250×33mm,1000×250×33mm,1000×500×33mm

Brightness: 800 cd/m²

Weight: 3 kg, 4 kg, 5 kg, 9.8 kg

Refresh Rate: 3840Hz

Ip Rating: IP31

Maintenance Access: Front

Power Consumption: 100-200/350W/m²

Led Type: SMD1515(GOB)

Pixel Density: 262144

Scan Mode: 1/32

Indoor · P2.5 mmView configuration

Pixel Pitch: P2.5

Cabinet Size: 500×250×33mm,750×250×33mm,1000×250×33mm,1000×500×33mm

Brightness: 800 cd/m²

Weight: 3 kg, 4 kg, 5 kg, 9.8 kg

Refresh Rate: 3840Hz

Ip Rating: IP31

Maintenance Access: Front

Power Consumption: 100-200/350W/m²

Led Type: SMD1515

Pixel Density: 160000

Scan Mode: 1/25

Indoor · P2.604 mmView configuration

Pixel Pitch: P2.604

Cabinet Size: 500×250×33mm,750×250×33mm,1000×250×33mm,1000×500×33mm

Brightness: 800 cd/m²

Weight: 3 kg, 4 kg, 5 kg, 9.8 kg

Refresh Rate: 3840Hz

Ip Rating: IP31

Maintenance Access: Front

Power Consumption: 100-200/350W/m²

Led Type: SMD1515

Pixel Density: 147456

Scan Mode: 1/32

Indoor · P2.976 mmView configuration

Pixel Pitch: P2.976

Cabinet Size: 500×250×33mm,750×250×33mm,1000×250×33mm,1000×500×33mm

Brightness: 800 cd/m²

Weight: 3 kg, 4 kg, 5 kg, 9.8 kg

Refresh Rate: 3840Hz

Ip Rating: IP31

Maintenance Access: Front

Power Consumption: 100-200/350W/m²

Led Type: SMD1515

Pixel Density: 112896

Scan Mode: 1/28

Indoor · P3.91 mmView configuration

Pixel Pitch: P3.91

Cabinet Size: 500×250×33mm,750×250×33mm,1000×250×33mm,1000×500×33mm

Brightness: 800 cd/m²

Weight: 3 kg, 4 kg, 5 kg, 9.8 kg

Refresh Rate: 3840Hz

Ip Rating: IP31

Maintenance Access: Front

Power Consumption: 100-200/350W/m²

Led Type: SMD2020

Pixel Density: 65536

Scan Mode: 1/16

Specifications

Pixel Pitch	Indoor: P1.25: P1.25; P1.56: P1.56; P1.95: P1.95; P2.5: P2.5; P2.604: P2.604; P2.976: P2.976; P3.91: P3.91
LED Type	Indoor: P1.25: SMD1010(GOB); P1.56: SMD1212(GOB); P1.95: SMD1515(GOB); P2.5: SMD1515; P2.604: SMD1515; P2.976: SMD1515; P3.91: SMD2020
Pixel Density (pixels/m²)	Indoor: P1.25: 640000; P1.56: 409600; P1.95: 262144; P2.5: 160000; P2.604: 147456; P2.976: 112896; P3.91: 65536

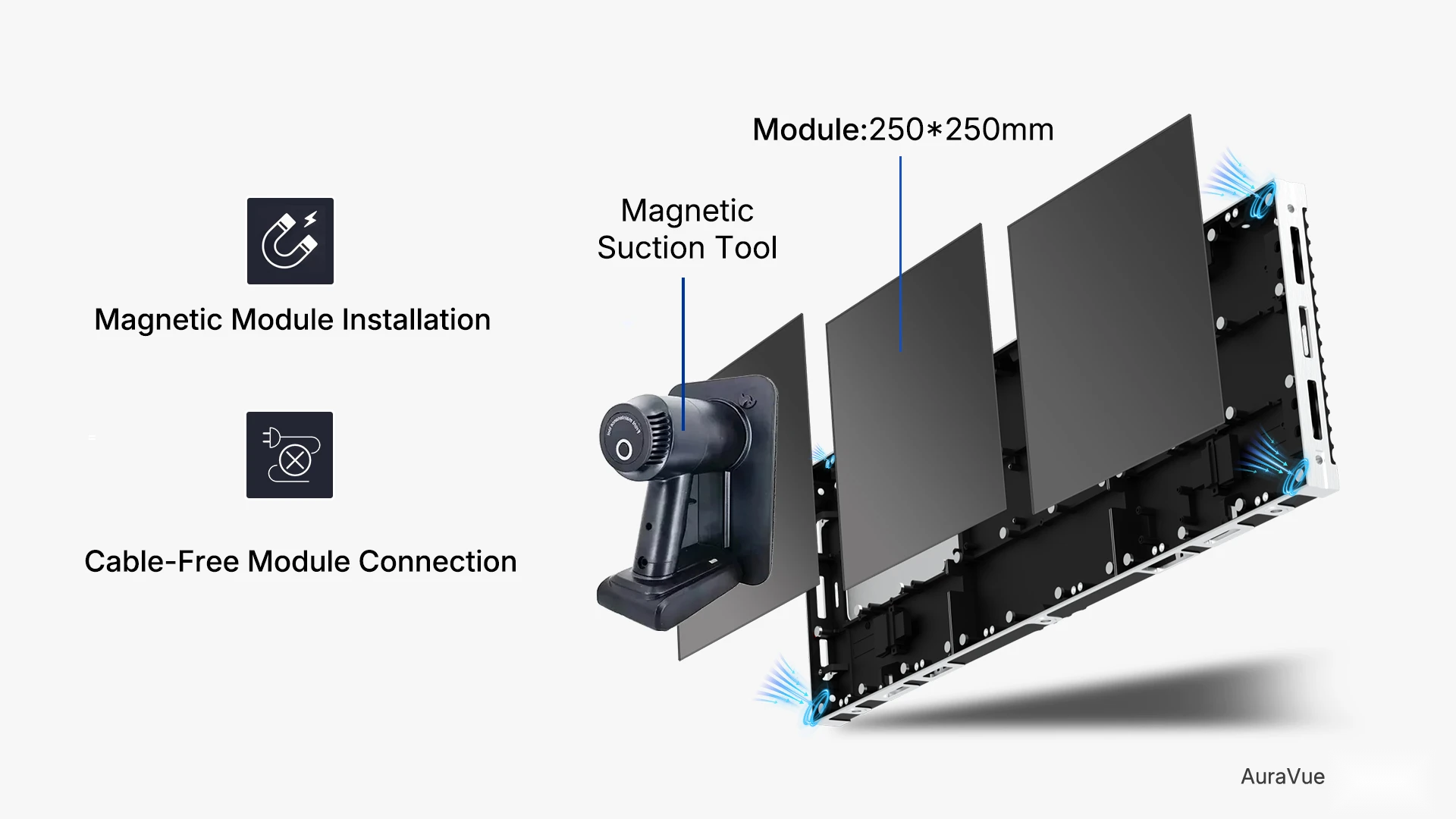

Module Dimensions (W × H)	250×250mm

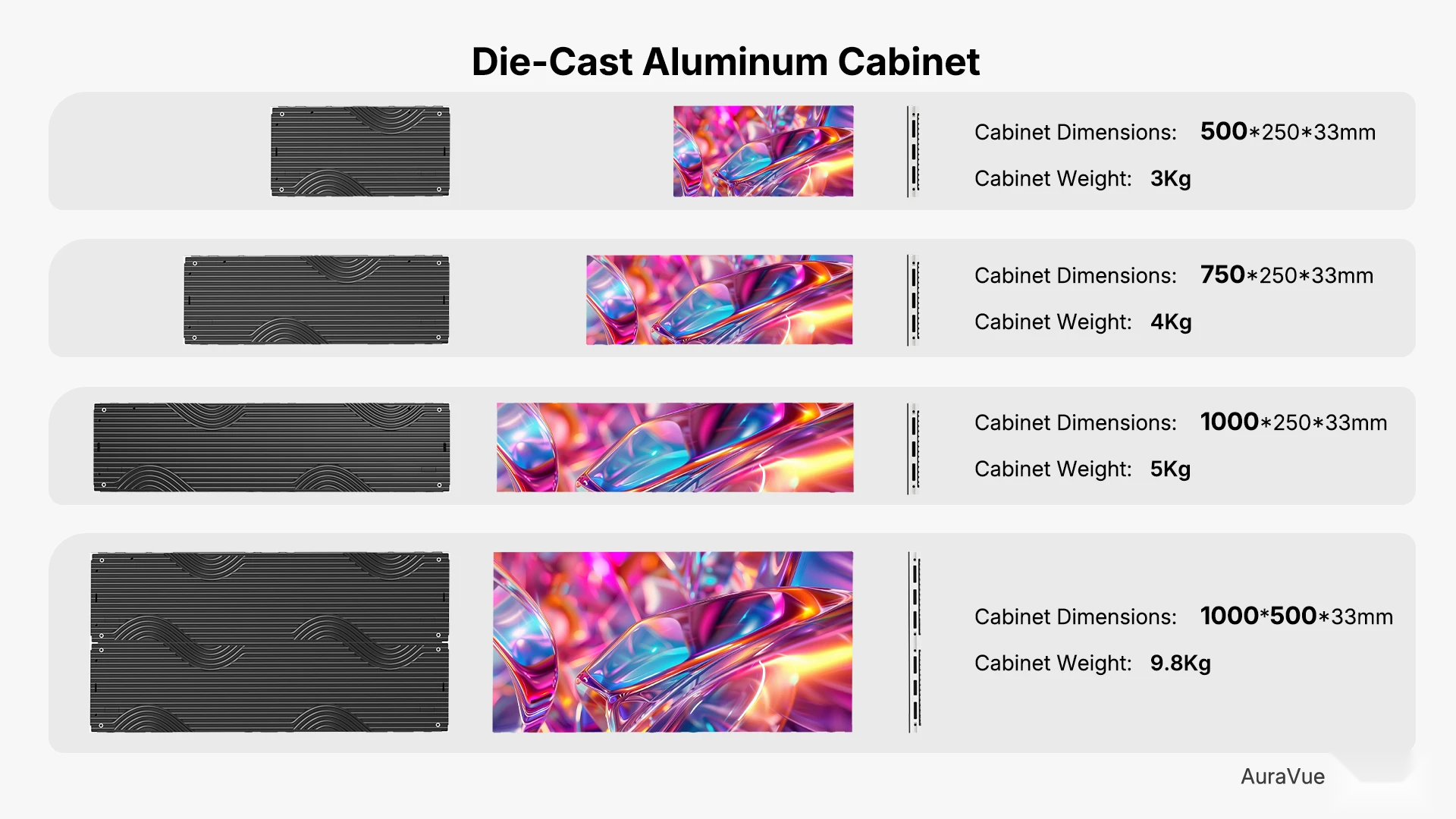

Panel Dimensions (W × H × T)	500×250×33mm,750×250×33mm,1000×250×33mm,1000×500×33mm
Panel Weight	3 kg, 4 kg, 5 kg, 9.8 kg
Refresh Rate	3840Hz
Scan Mode	Indoor: P1.25: 1/50; P1.56: 1/40; P1.95: 1/32; P2.5: 1/25; P2.604: 1/32; P2.976: 1/28; P3.91: 1/16
Brightness	Indoor: P1.25: 600 cd/m²; P1.56: 600 cd/m²; P1.95: 800 cd/m²; P2.5: 800 cd/m²; P2.604: 800 cd/m²; P2.976: 800 cd/m²; P3.91: 800 cd/m²
Grayscale	16bit
Power Consumption (Average/Maximum)	100-200/350W/m²
Maintenance Access	Front
IP Rating	IP31

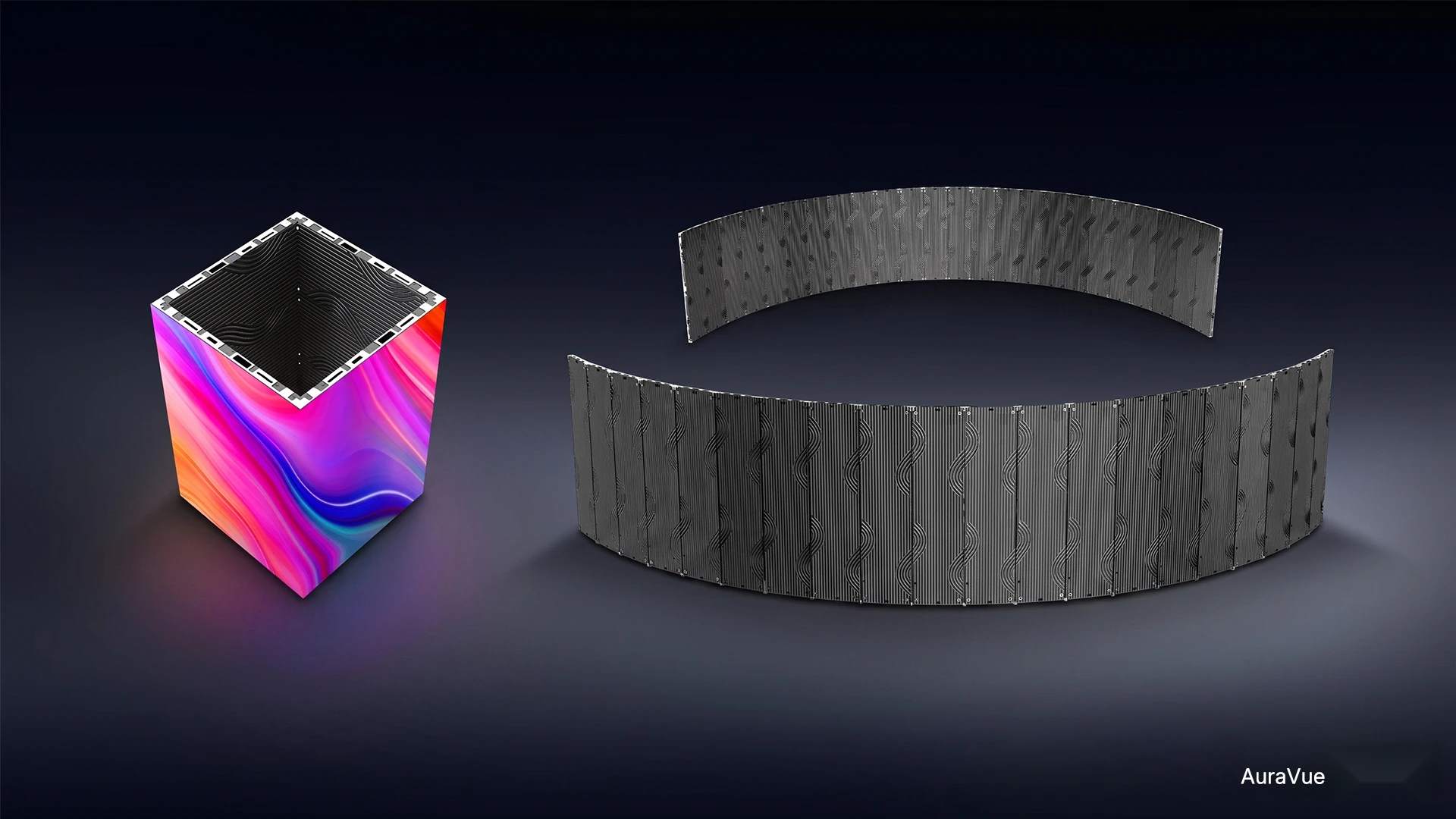

Curved splicing range / availability	Available
Right-angle assembly option	Available

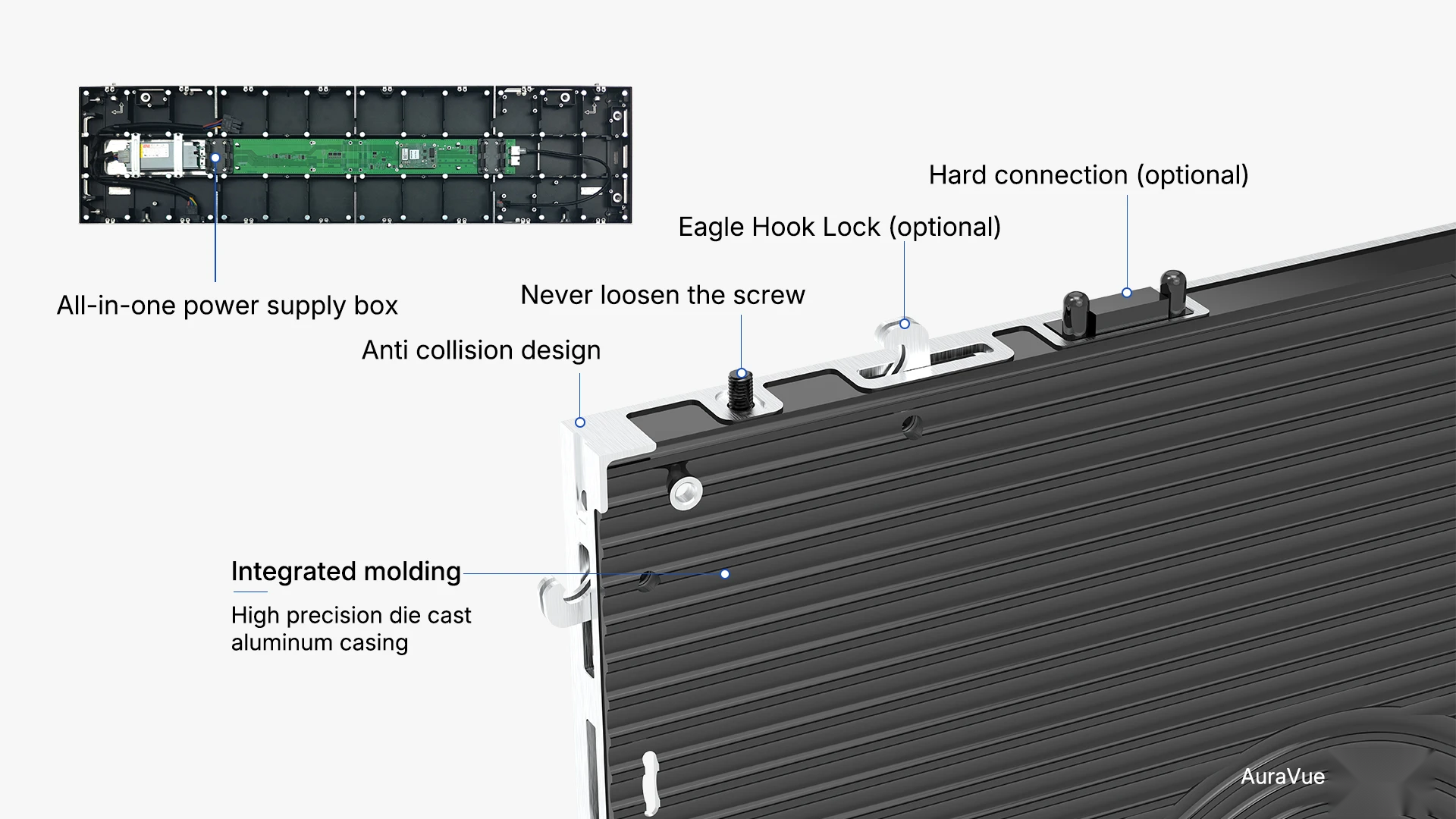

Cabinet Material	Die-Cast Aluminum
Contrast Ratio	10000 : 1
Viewing Angle (H/V)	160°/160°
Operating Temperature	-20 to 60°C
Input Power	AC100~240 50/60HZ
Control	Novastar/Colorlight

Product details

Supplier illustrations show product features and possible configurations. Brightness, protection ratings and optional assemblies depend on the selected version; use the specifications and confirmed quotation for your order.
