SeamLux
SeamLux uses die-cast aluminum cabinets with magnetic front-service modules for indoor video walls. The technical table lists five pitch configurations and two cabinet formats; specify the exact cabinet layout and native pixel canvas for the installation.

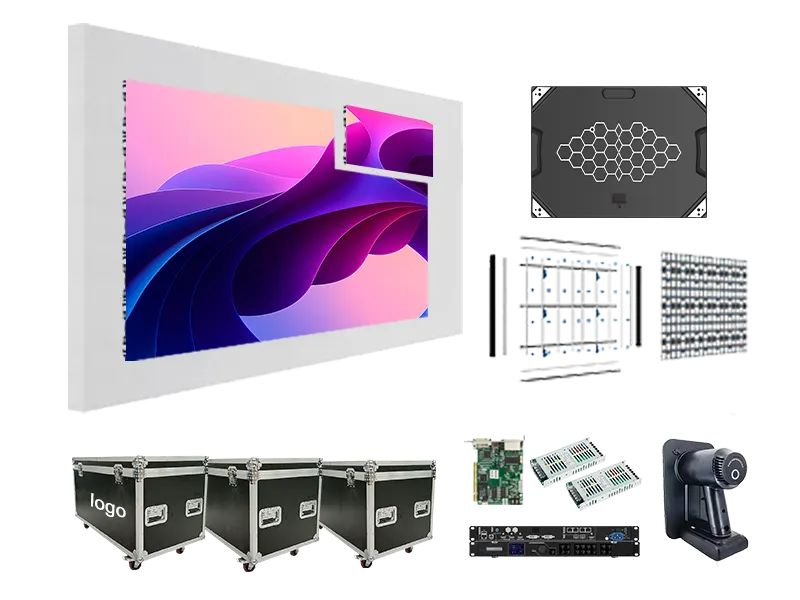

Product illustrations. Configurations shown may require optional components.
At a glance

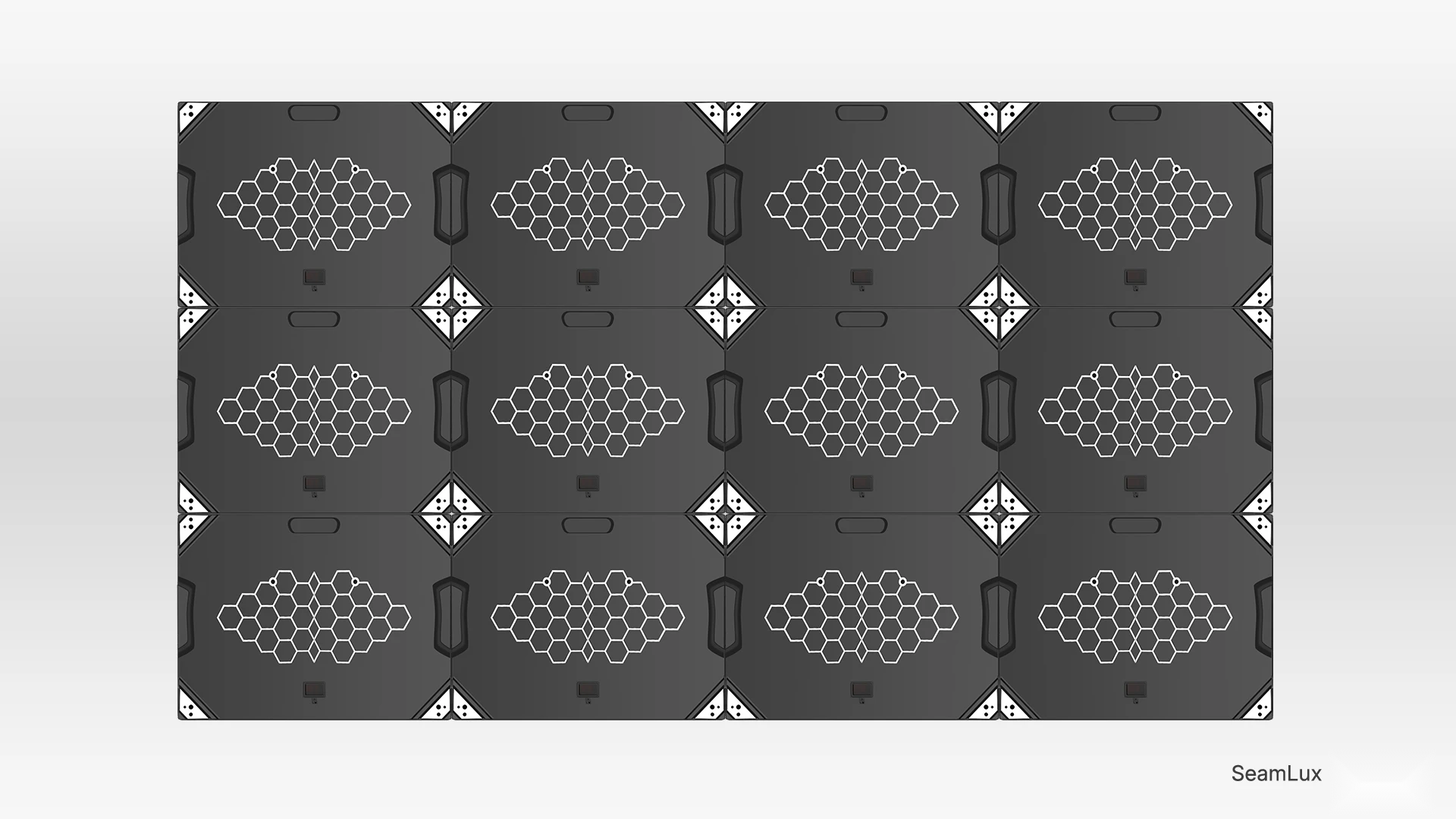

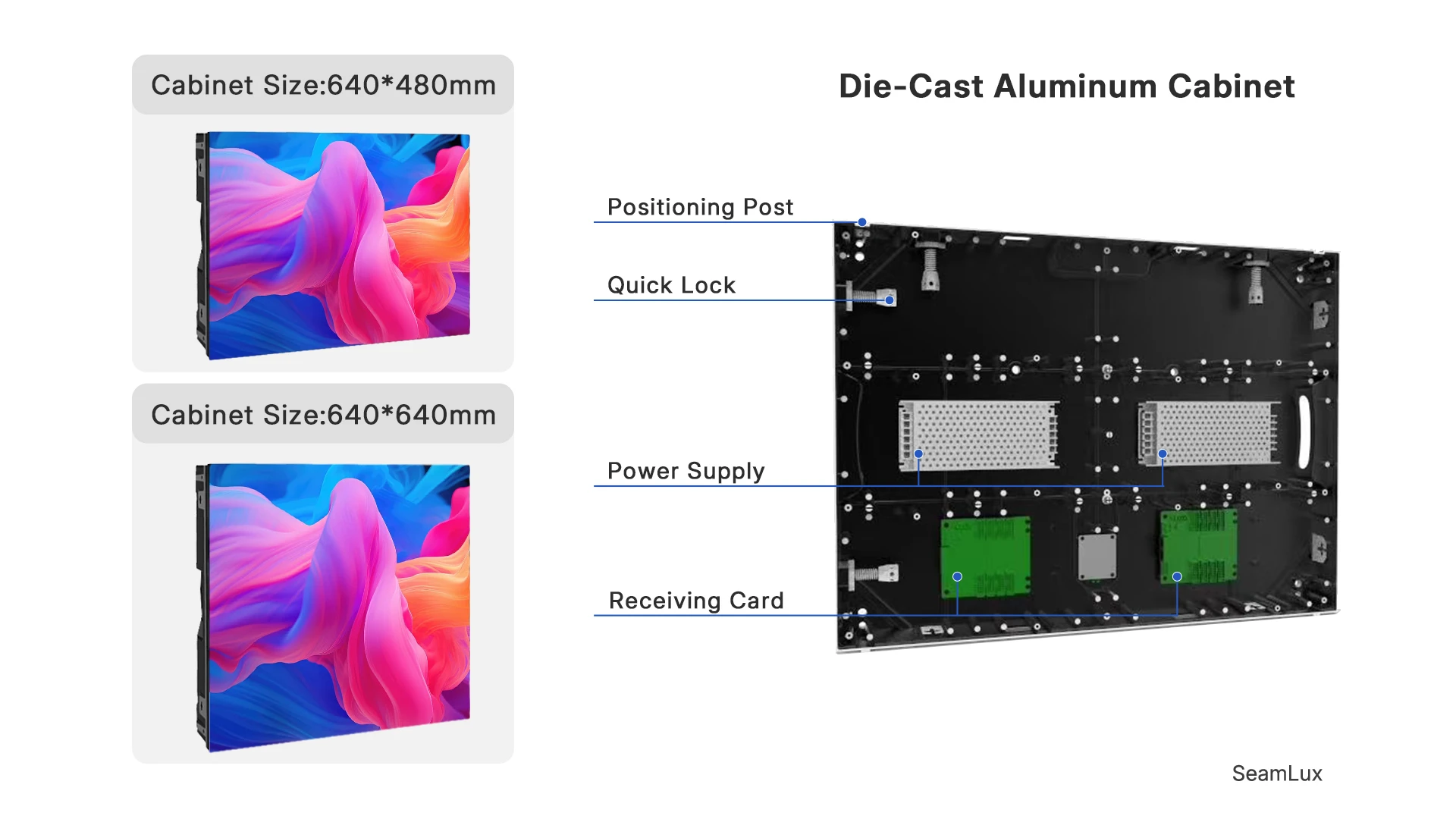

- 640 × 480 mm and 640 × 640 mm cabinet formats

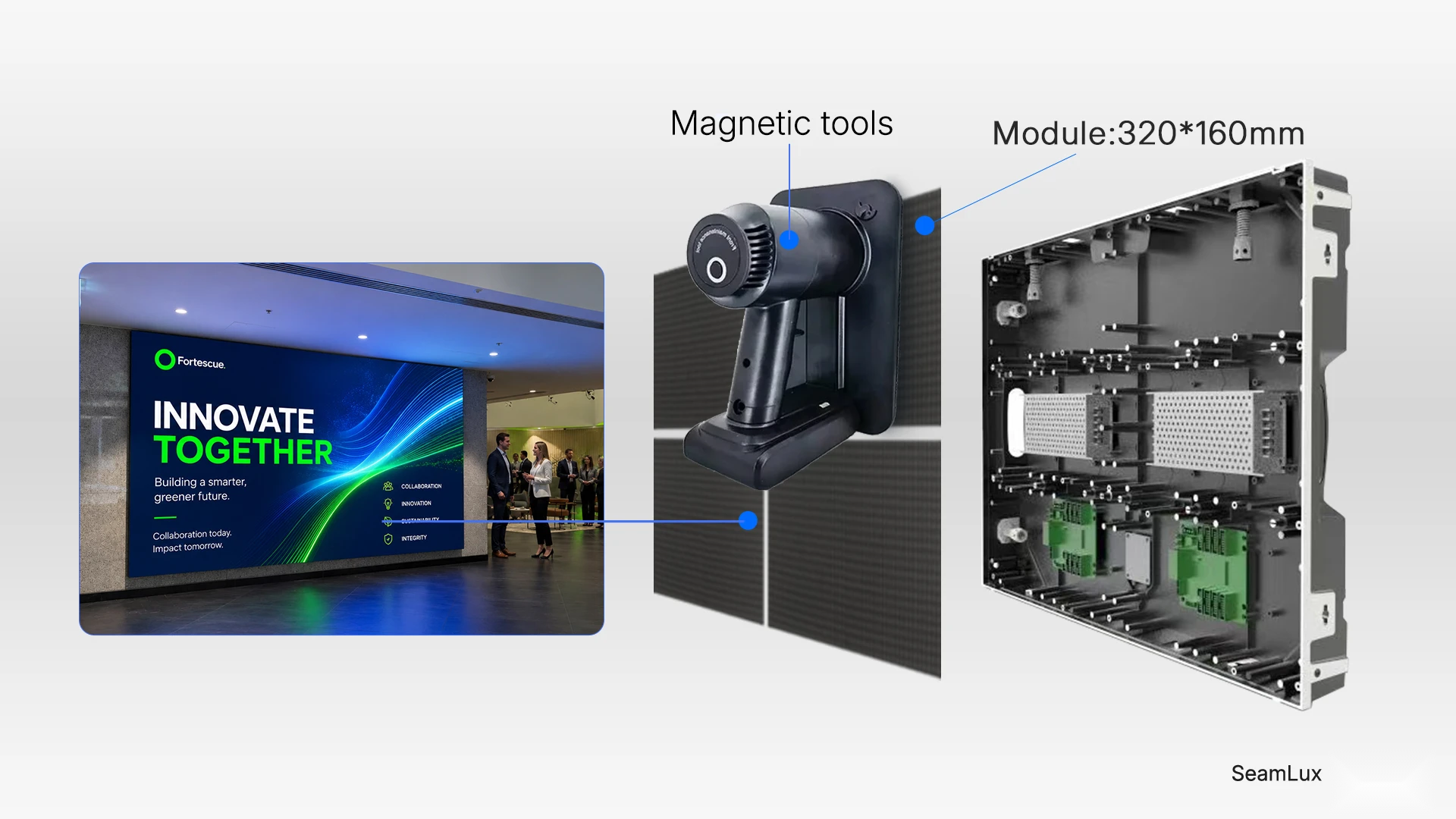

- 320 × 160 mm magnetic front-service modules
- 3840 Hz listed refresh rate

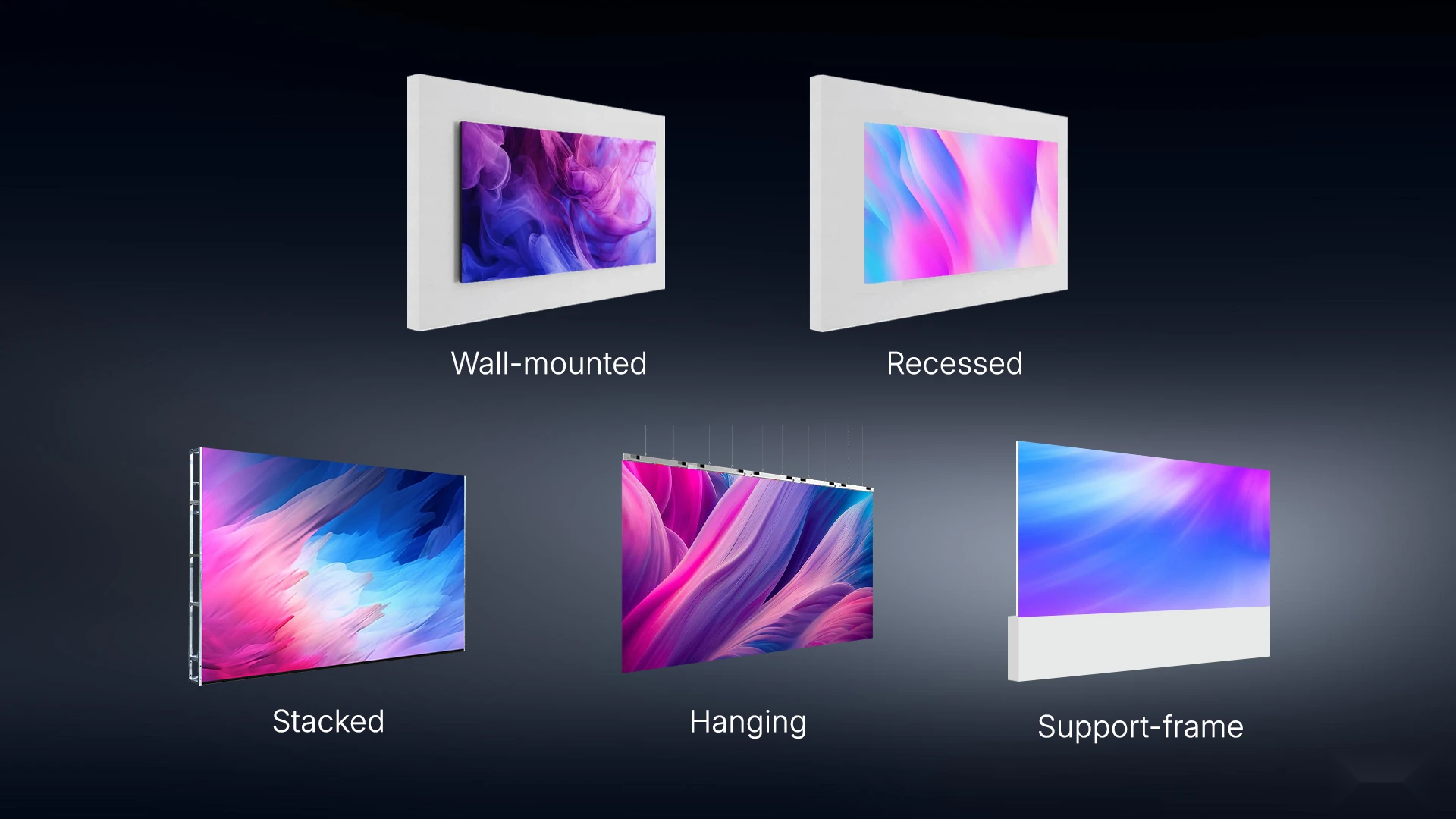

- Wall-mounted, recessed, hanging and support-frame installation options
Applications

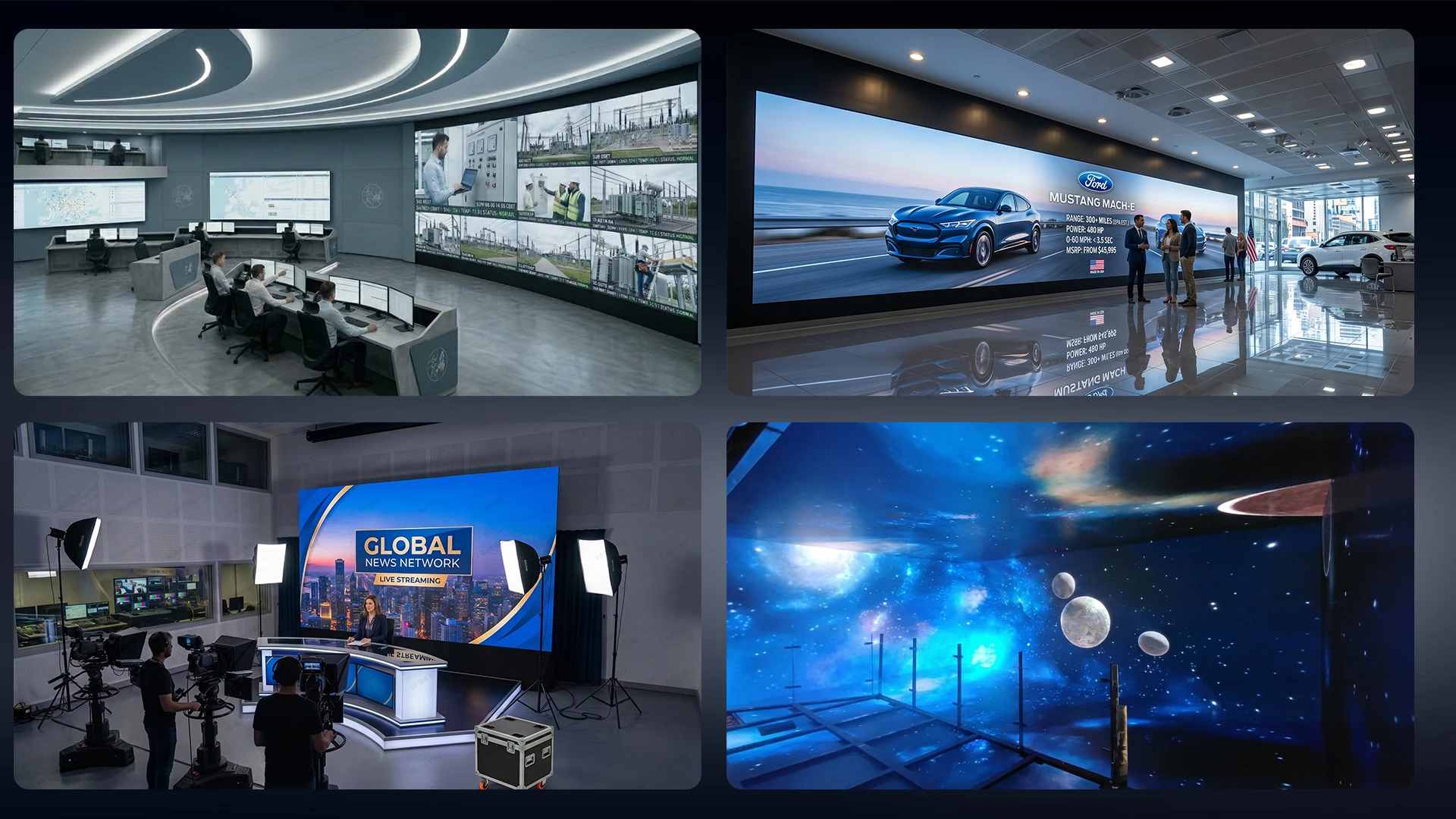

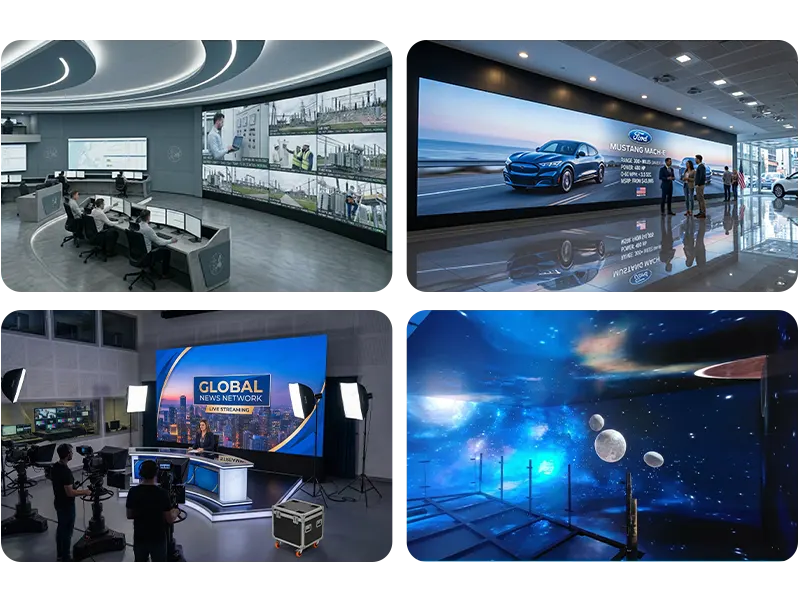

Monitoring rooms · Showrooms · Broadcast spaces
Where this series fits
- Confirm the cabinet layout, mounting hardware and front service clearance.

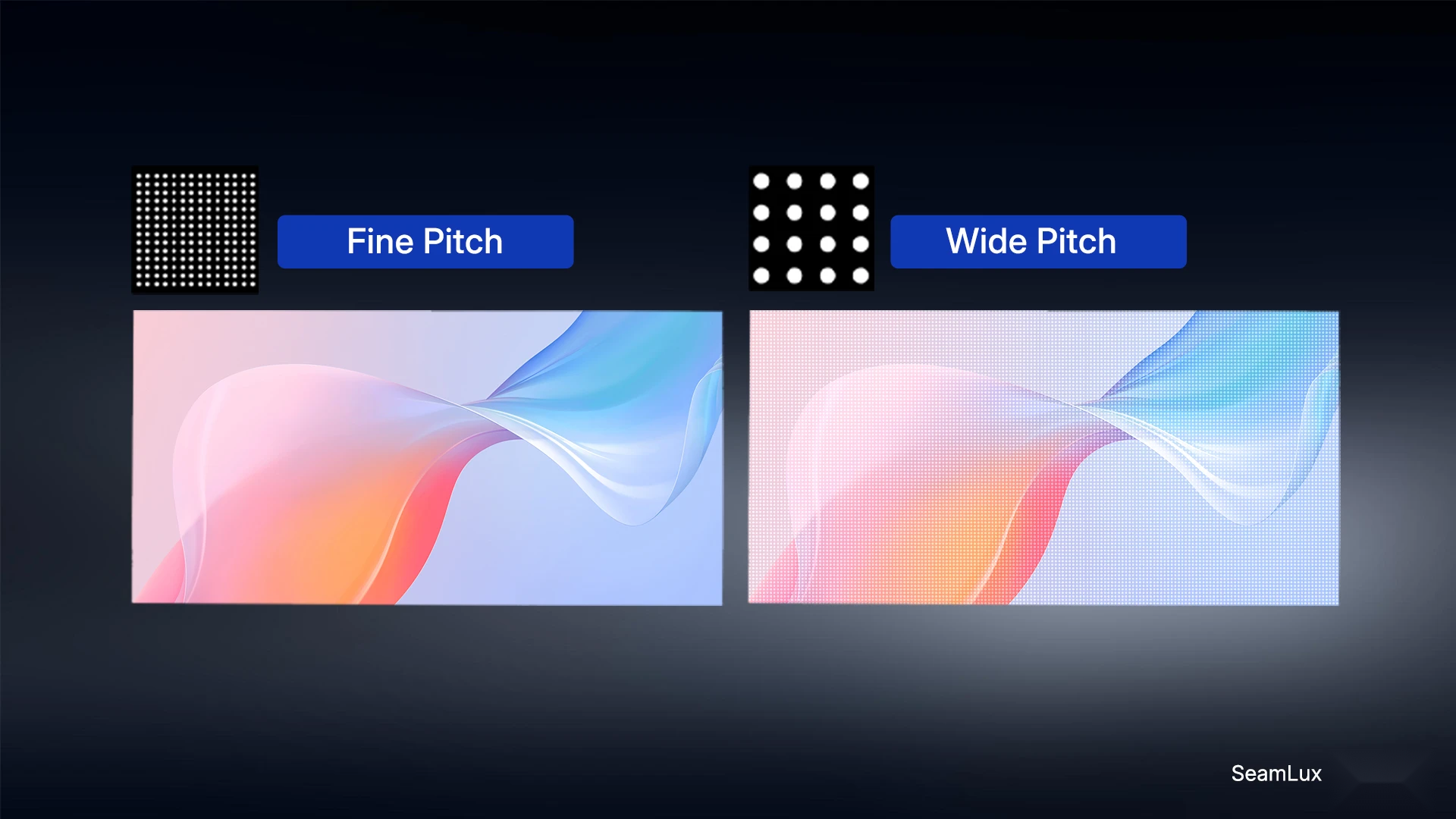

- Use the technical table for the selected pitch: its P2.5 option is not included in the shorter introductory pitch list.
- Confirm the assembled native pixel canvas; a 4K or 8K content source does not determine wall resolution.
Configuration options
Identify the exact pixel pitch, cabinet format and operating environment when requesting a quotation. Listed options do not mean every combination is interchangeable.
Indoor · P1.25 mmView configuration
Pixel Pitch: P1.25
Cabinet Size: 640×480×61mm,640×640×61mm
Brightness: 600-800 cd/m²
Weight: 6.75 kg,9 kg
Refresh Rate: 3840Hz
Ip Rating: IP30
Maintenance Access: Front
Power Consumption: 120/400W/m²
Led Type: SMD1010
Pixel Density: 640000
Scan Mode: 1/64
Indoor · P1.538 mmView configuration
Pixel Pitch: P1.538
Cabinet Size: 640×480×61mm,640×640×61mm
Brightness: 600-800 cd/m²
Weight: 6.75 kg,9 kg
Refresh Rate: 3840Hz
Ip Rating: IP30
Maintenance Access: Front
Power Consumption: 120/400W/m²
Led Type: SMD1212
Pixel Density: 422750
Scan Mode: 1/52
Indoor · P1.86 mmView configuration
Pixel Pitch: P1.86
Cabinet Size: 640×480×61mm,640×640×61mm
Brightness: 600-800 cd/m²
Weight: 6.75 kg,9 kg
Refresh Rate: 3840Hz
Ip Rating: IP30
Maintenance Access: Front
Power Consumption: 120/400W/m²
Led Type: SMD1515
Pixel Density: 289000
Scan Mode: 1/43
Indoor · P2 mmView configuration
Pixel Pitch: P2
Cabinet Size: 640×480×61mm,640×640×61mm
Brightness: 600-800 cd/m²
Weight: 6.75 kg,9 kg
Refresh Rate: 3840Hz
Ip Rating: IP30
Maintenance Access: Front
Power Consumption: 120/400W/m²
Led Type: SMD1515
Pixel Density: 250000
Scan Mode: 1/40
Indoor · P2.5 mmView configuration
Pixel Pitch: P2.5
Cabinet Size: 640×480×61mm,640×640×61mm
Brightness: 600-800 cd/m²
Weight: 6.75 kg,9 kg
Refresh Rate: 3840Hz
Ip Rating: IP30
Maintenance Access: Front
Power Consumption: 120/400W/m²
Led Type: SMD2121
Pixel Density: 160000
Scan Mode: 1/64
Specifications
| Pixel Pitch | Indoor: P1.25: P1.25; P1.538: P1.538; P1.86: P1.86; P2: P2; P2.5: P2.5 |
|---|---|
| LED Type | Indoor: P1.25: SMD1010; P1.538: SMD1212; P1.86: SMD1515; P2: SMD1515; P2.5: SMD2121 |
| Pixel Density (pixels/m²) | Indoor: P1.25: 640000; P1.538: 422750; P1.86: 289000; P2: 250000; P2.5: 160000 |
| Module Dimensions (W × H) | 320×160mm |
| Panel Dimensions (W × H × T) | 640×480×61mm,640×640×61mm |
| Panel Weight | 6.75 kg,9 kg |

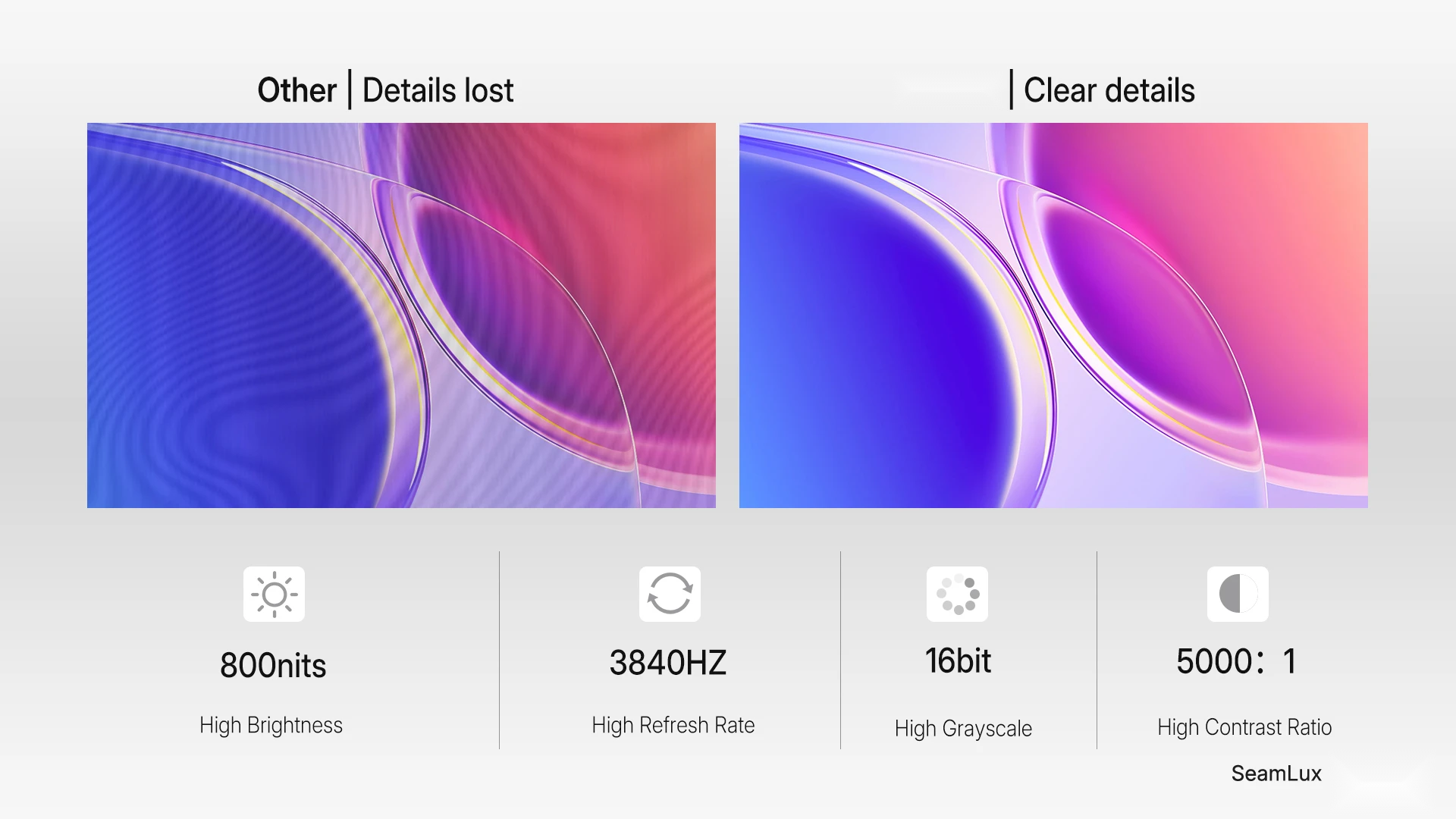

| Refresh Rate | 3840Hz |
| Scan Mode | Indoor: P1.25: 1/64; P1.538: 1/52; P1.86: 1/43; P2: 1/40; P2.5: 1/64 |
| Brightness | 600-800 cd/m² |
| Grayscale | 16bit |
| Power Consumption (Average/Maximum) | 120/400W/m² |
| Maintenance Access | Front |
| IP Rating | IP30 |
| Curved splicing range / availability | Available |
| Right-angle assembly option | Available |
| Cabinet Material | Die-Cast Aluminum |
| Contrast Ratio | ≥5000：1 |
| Viewing Angle (H/V) | 160°/160° |
| Operating Temperature | -30°C to 50°C |
| Input Power | AC100~240 50/60HZ |
| Control | Novastar/Colorlight |
Product details
Supplier illustrations show product features and possible configurations. Brightness, protection ratings and optional assemblies depend on the selected version; use the specifications and confirmed quotation for your order.
