PitchEdge Pro

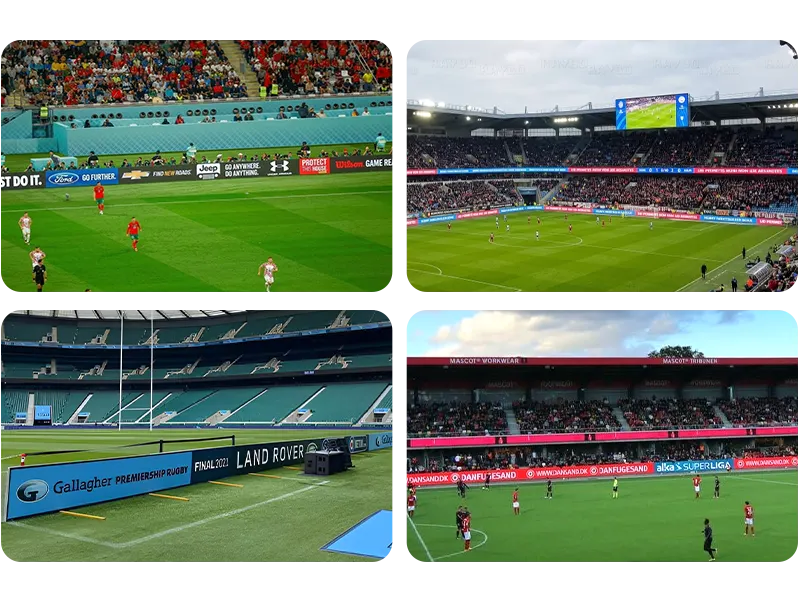

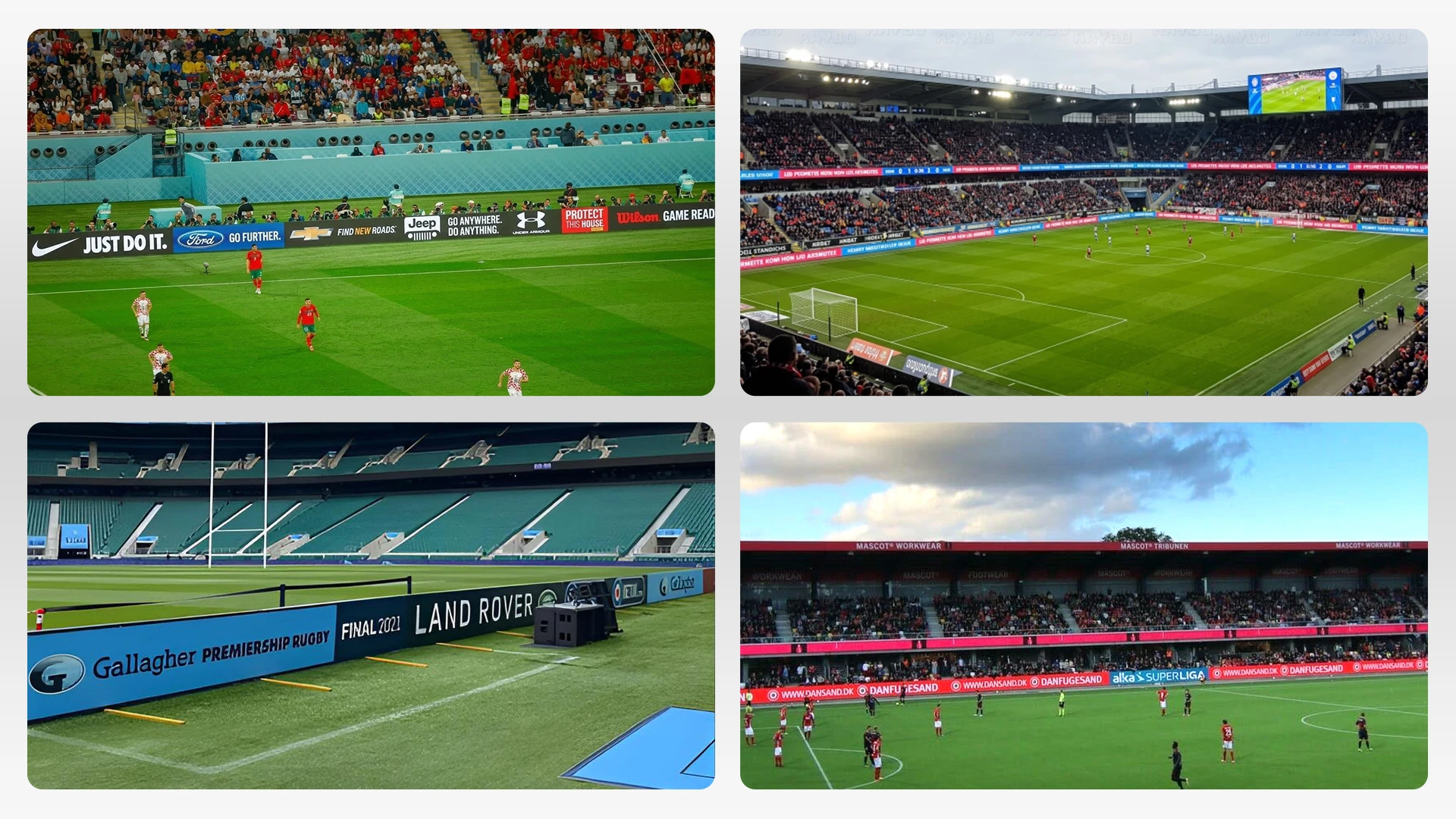

PitchEdge Pro uses 1600 × 900 mm cabinets for stadium display applications, with multiple pixel pitches and a listed 7680 Hz refresh rate.
Product illustrations. Configurations shown may require optional components.
At a glance

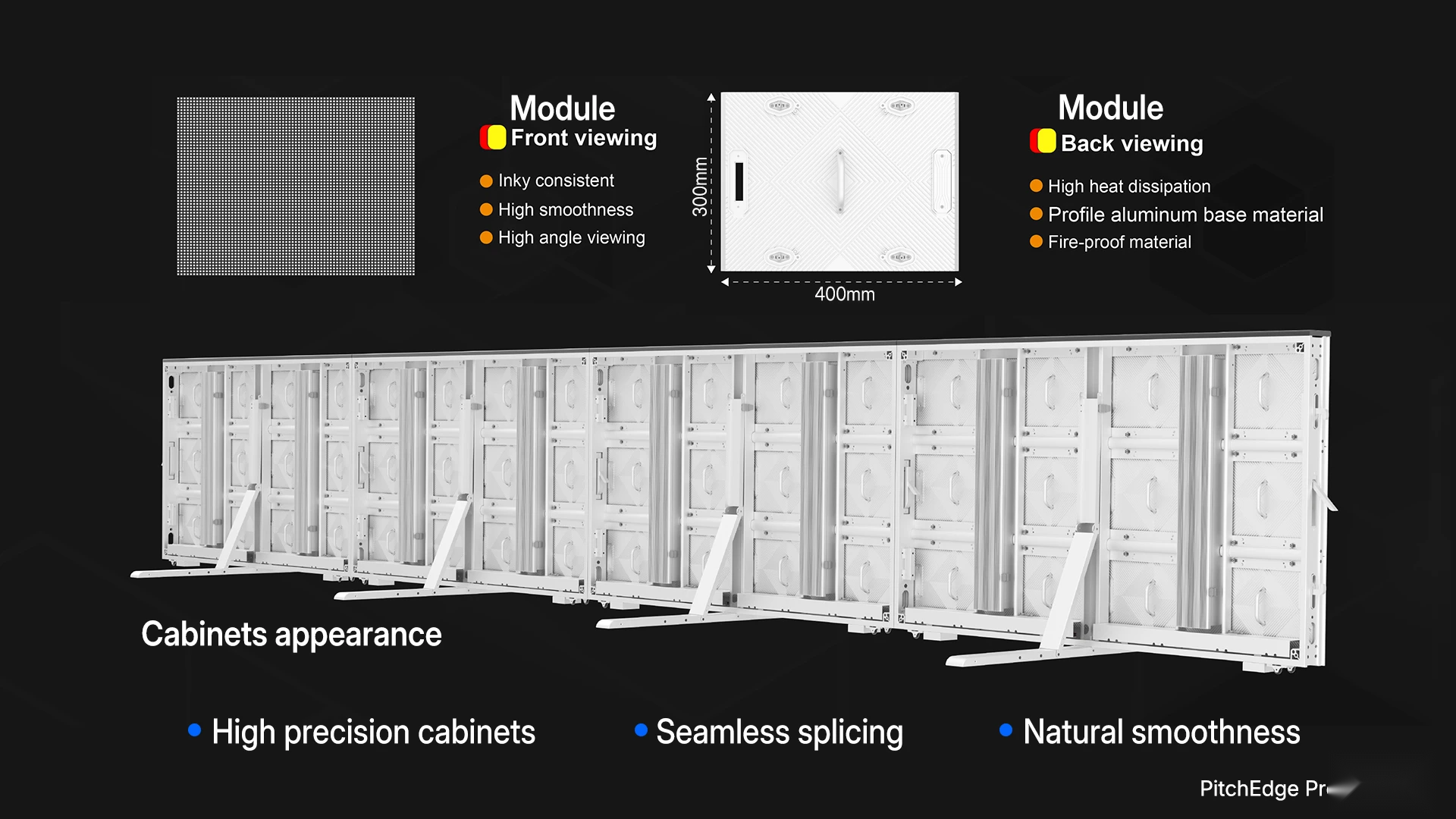

- Module Size: 400×300mm

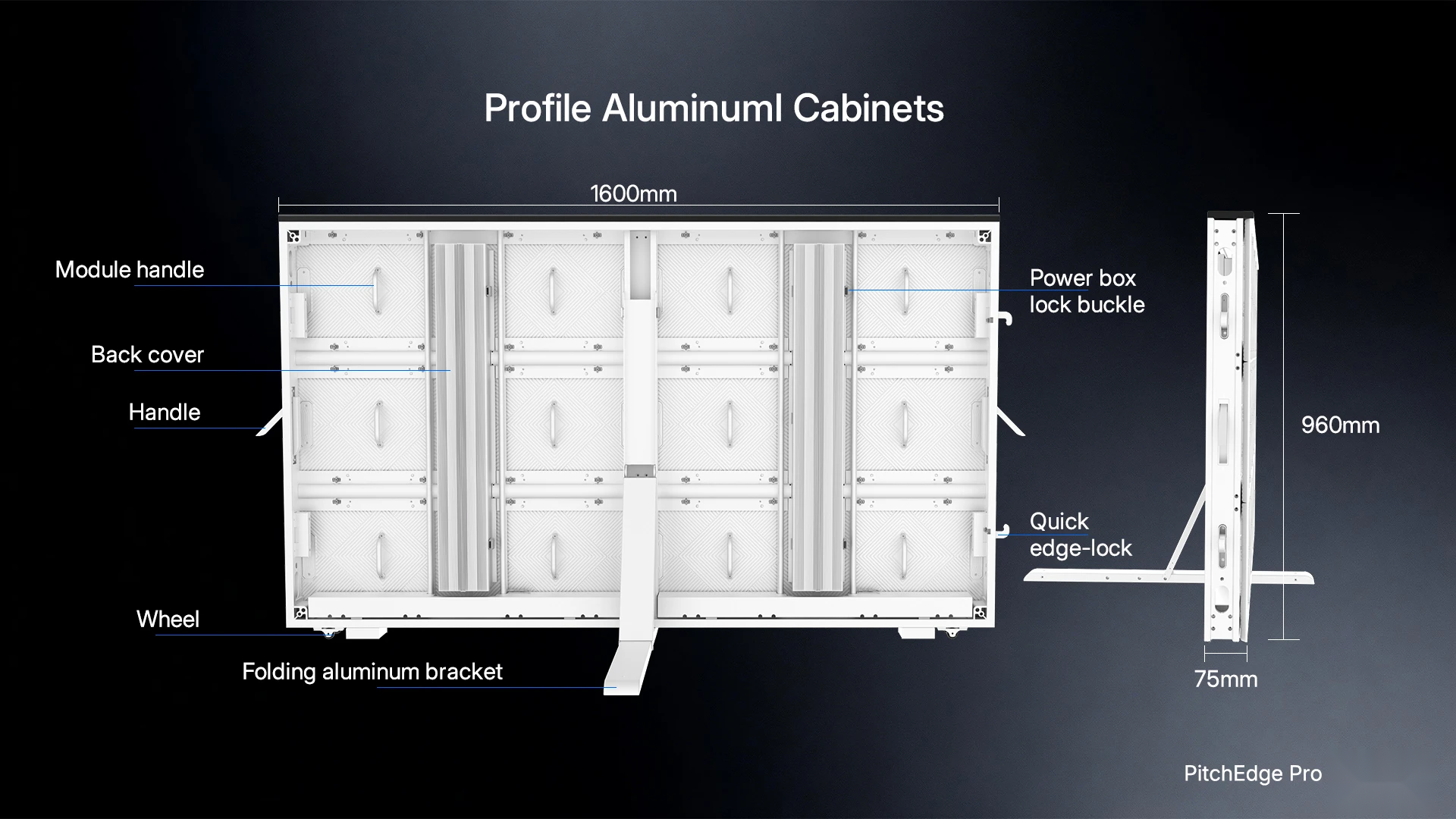

- Cabinet Size: 1600×900×75mm
- Refresh Rate: 7680Hz
- IP Rating: IP65
Configuration options
Identify the exact pixel pitch, cabinet format and operating environment when requesting a quotation. Listed options do not mean every combination is interchangeable.
Outdoor · 5 mmView configuration
Pixel Pitch: 5
LED Type: SMD1921
Pixel Density (pixels/m²): 40000
Module Dimensions (W × H): 400×300mm
Panel Dimensions (W × H × T): 1600×900×75mm
Panel Weight: 51.2 kg
Refresh Rate: 7680Hz
Scan Mode: 1/6
Brightness: ≥6000 cd/m²
Grayscale: 15bit
Power Consumption (Average/Maximum): 180/550W W/m²
Maintenance Access: Front/Rear
IP Rating: IP65
Cabinet Material: Profile AluminumI Cabinets
Contrast Ratio: 15000：1

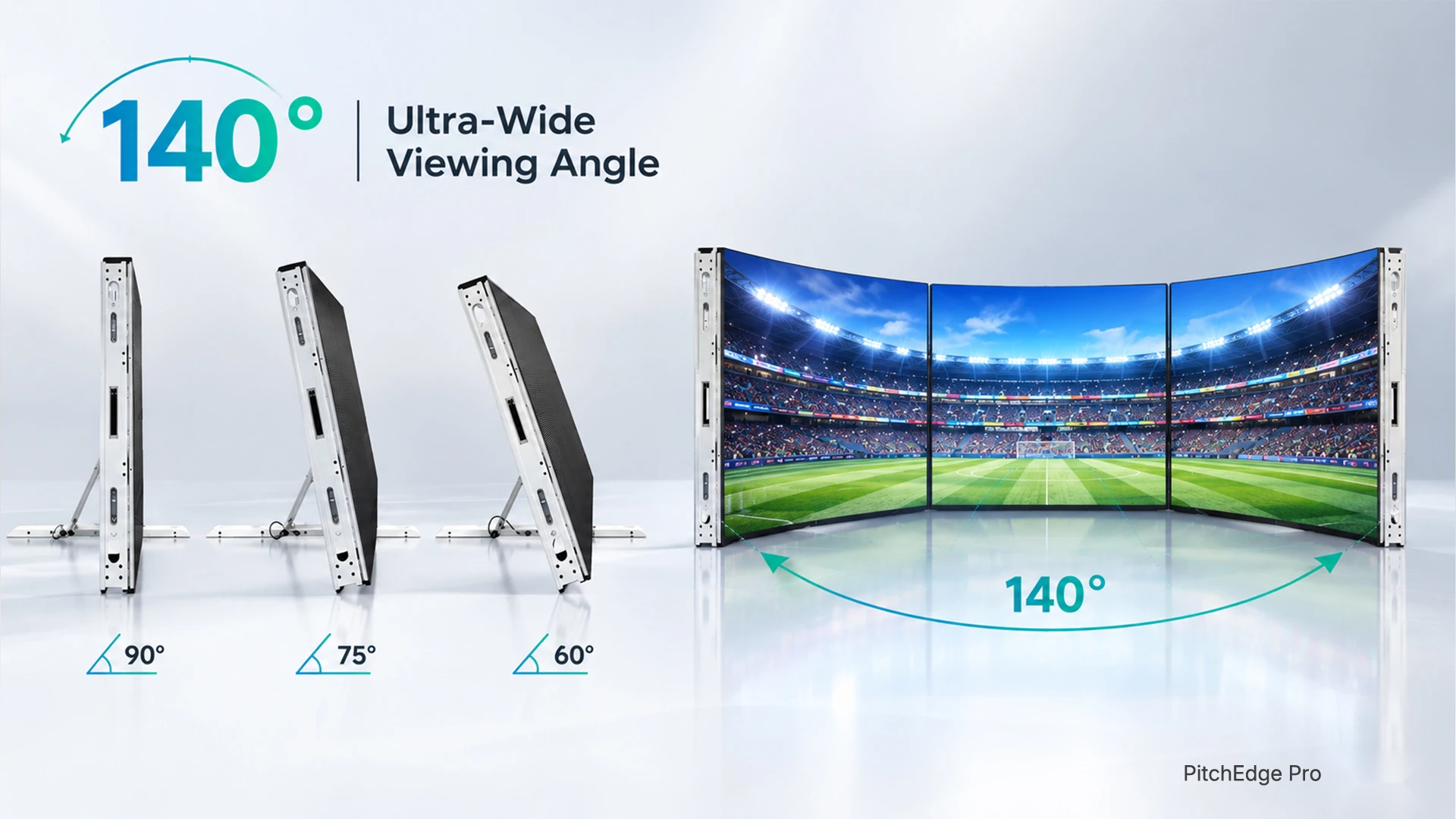

Viewing Angle (H/V): 140°/140°
Operating Temperature: -40°C to 80°C
Input Power: AC100~240 50/60HZ
Control: Novastar/Colorlight
Outdoor · 6.25 mmView configuration
Pixel Pitch: 6.25
LED Type: SMD2727
Pixel Density (pixels/m²): 25600
Module Dimensions (W × H): 400×300mm
Panel Dimensions (W × H × T): 1600×900×75mm
Panel Weight: 51.2 kg
Refresh Rate: 7680Hz
Scan Mode: 1/6
Brightness: ≥6000 cd/m²
Grayscale: 15bit
Power Consumption (Average/Maximum): 180/550W W/m²
Maintenance Access: Front/Rear
IP Rating: IP65
Cabinet Material: Profile AluminumI Cabinets
Contrast Ratio: 15000：1
Viewing Angle (H/V): 140°/140°
Operating Temperature: -40°C to 80°C
Input Power: AC100~240 50/60HZ
Control: Novastar/Colorlight
Outdoor · 8.33 mmView configuration
Pixel Pitch: 8.33
LED Type: SMD2727
Pixel Density (pixels/m²): 14412
Module Dimensions (W × H): 400×300mm
Panel Dimensions (W × H × T): 1600×900×75mm
Panel Weight: 51.2 kg
Refresh Rate: 7680Hz
Scan Mode: 1/3
Brightness: ≥6000 cd/m²
Grayscale: 15bit
Power Consumption (Average/Maximum): 180/550W W/m²
Maintenance Access: Front/Rear
IP Rating: IP65
Cabinet Material: Profile AluminumI Cabinets
Contrast Ratio: 15000：1
Viewing Angle (H/V): 140°/140°
Operating Temperature: -40°C to 80°C
Input Power: AC100~240 50/60HZ
Control: Novastar/Colorlight
Outdoor · 10 mmView configuration
Pixel Pitch: 10
LED Type: SMD2727
Pixel Density (pixels/m²): 10000
Module Dimensions (W × H): 400×300mm
Panel Dimensions (W × H × T): 1600×900×75mm
Panel Weight: 51.2 kg
Refresh Rate: 7680Hz
Scan Mode: 1/2
Brightness: ≥6000 cd/m²
Grayscale: 15bit
Power Consumption (Average/Maximum): 180/550W W/m²
Maintenance Access: Front/Rear
IP Rating: IP65
Cabinet Material: Profile AluminumI Cabinets
Contrast Ratio: 15000：1
Viewing Angle (H/V): 140°/140°
Operating Temperature: -40°C to 80°C
Input Power: AC100~240 50/60HZ
Control: Novastar/Colorlight
Specifications
| Pixel Pitch | Outdoor 5: 5; Outdoor 6.25: 6.25; Outdoor 8.33: 8.33; Outdoor 10: 10 |
|---|---|
| LED Type | Outdoor 5: SMD1921; Outdoor 6.25: SMD2727; Outdoor 8.33: SMD2727; Outdoor 10: SMD2727 |
| Pixel Density (pixels/m²) | Outdoor 5: 40000; Outdoor 6.25: 25600; Outdoor 8.33: 14412; Outdoor 10: 10000 |
| Module Dimensions (W × H) | 400×300mm |
| Panel Dimensions (W × H × T) | 1600×900×75mm |
| Panel Weight | 51.2 kg |
| Refresh Rate | 7680Hz |
| Scan Mode | Outdoor 5: 1/6; Outdoor 6.25: 1/6; Outdoor 8.33: 1/3; Outdoor 10: 1/2 |
| Brightness | ≥6000 cd/m² |
| Grayscale | 15bit |
| Power Consumption (Average/Maximum) | 180/550W W/m² |
| Maintenance Access | Front/Rear |
| IP Rating | IP65 |
| Cabinet Material | Profile AluminumI Cabinets |
| Contrast Ratio | 15000：1 |
| Viewing Angle (H/V) | 140°/140° |
| Operating Temperature | -40°C to 80°C |
| Input Power | AC100~240 50/60HZ |
| Control | Novastar/Colorlight |
Product details
Supplier illustrations show product features and possible configurations. Brightness, protection ratings and optional assemblies depend on the selected version; use the specifications and confirmed quotation for your order.
