NovaShield
NovaShield offers 640 mm and 960 mm cabinet formats with outdoor LED configurations. Select the pitch and cabinet combination before confirming the screen layout.

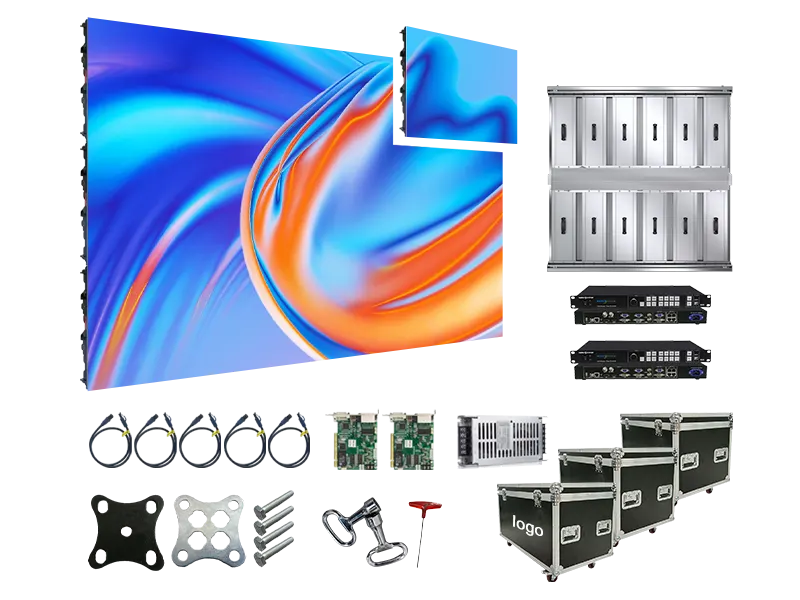

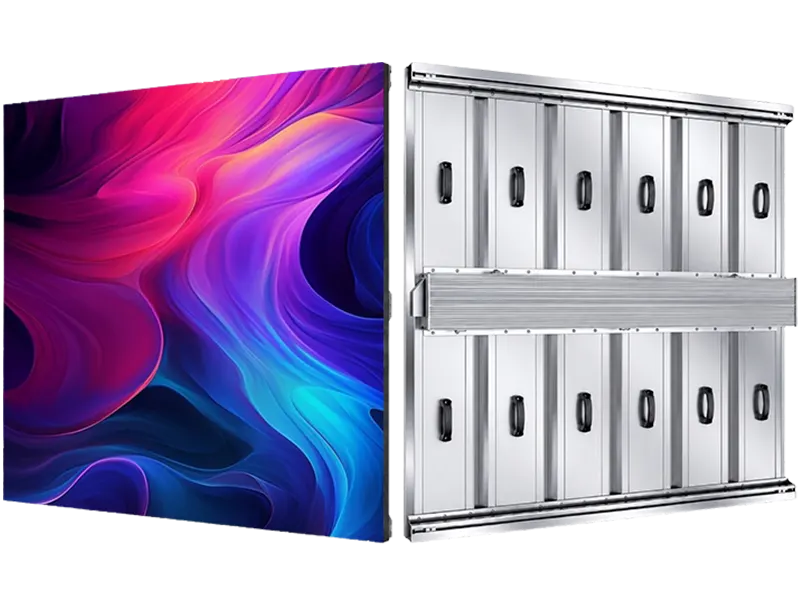

Product illustrations. Configurations shown may require optional components.
At a glance
- Module Size: 160×640mm 160×960mm
- Cabinet Size: 640×640×84.5mm 960×960×85-87mm
- Refresh Rate: 3840/7680Hz
- IP Rating: IP65
Configuration options
Identify the exact pixel pitch, cabinet format and operating environment when requesting a quotation. Listed options do not mean every combination is interchangeable.
Outdoor · P2.5 mmView configuration
Pixel Pitch: P2.5
LED Type: SMD1415
Pixel Density (pixels/m²): 160000
Module Dimensions (W × H): 160×640mm
Panel Dimensions (W × H × T): 640×640×84.5mm
Panel Weight: 13 kg
Refresh Rate: 3840/7680Hz
Scan Mode: 1/21
Brightness: ≥4500 cd/m²
Grayscale: 16bit
Power Consumption (Average/Maximum): 210/650W W/m²

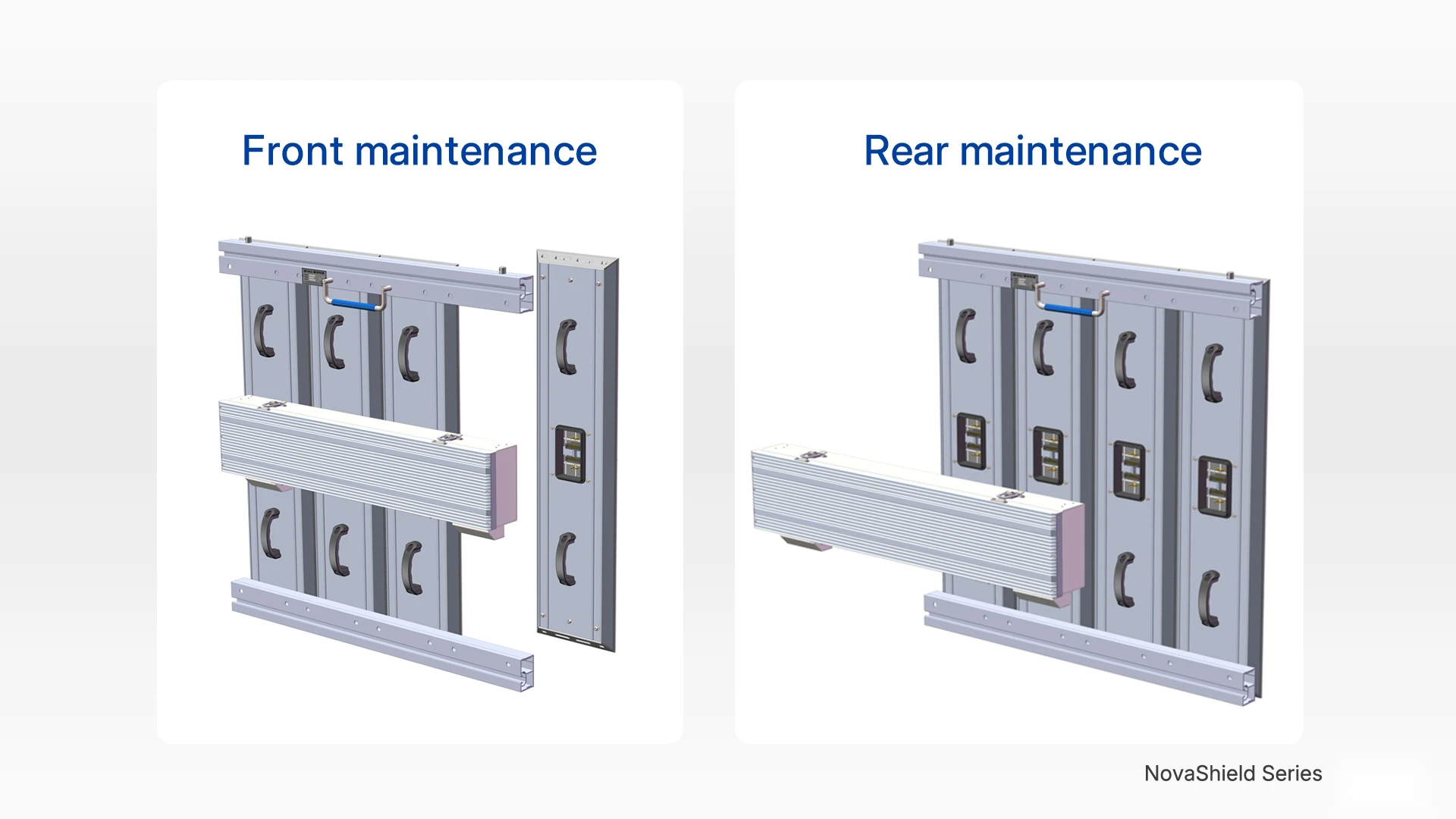

Maintenance Access: Front/Rear
IP Rating: IP65

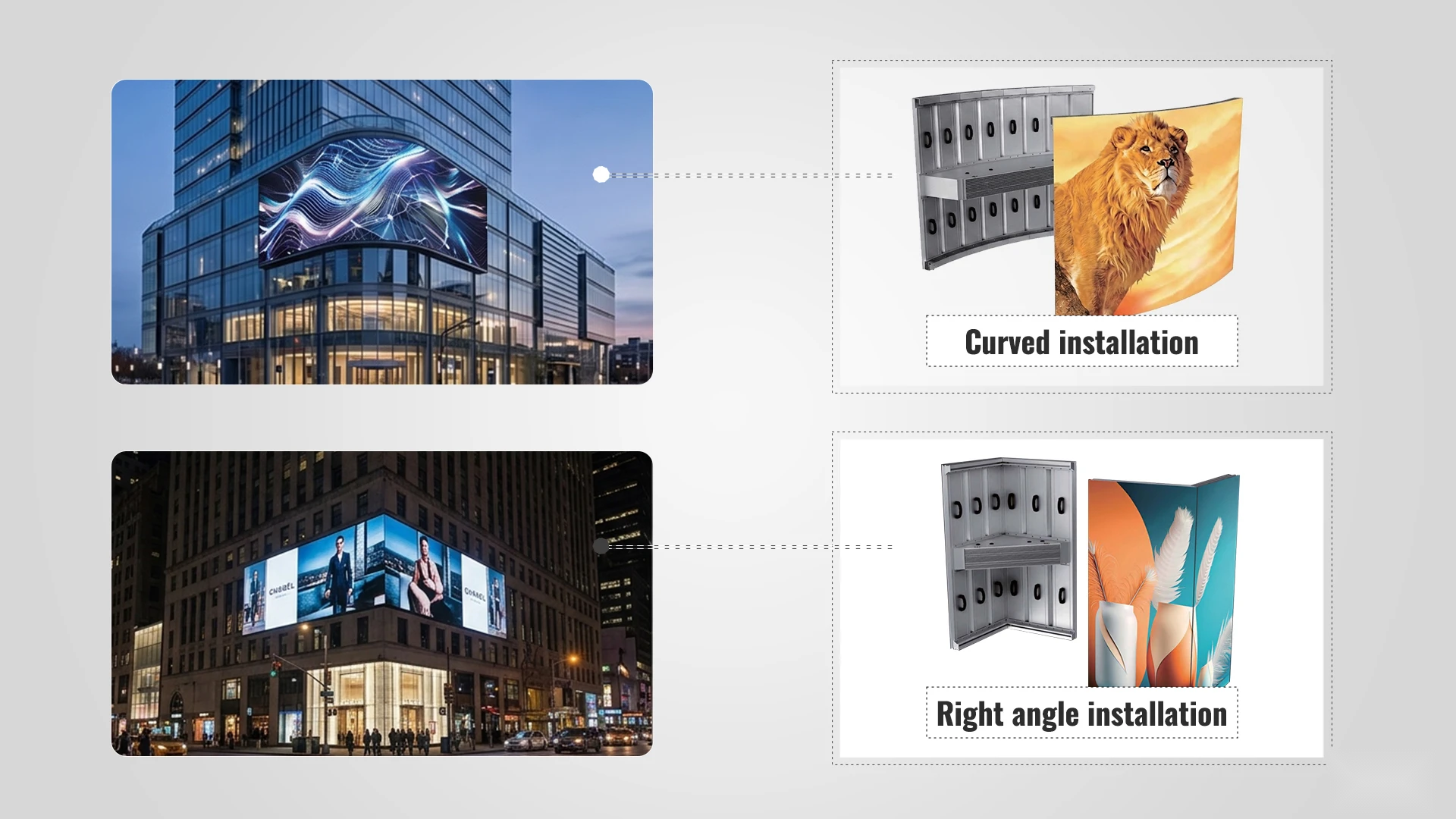

Curved / Right-Angle Splicing: Available / Available

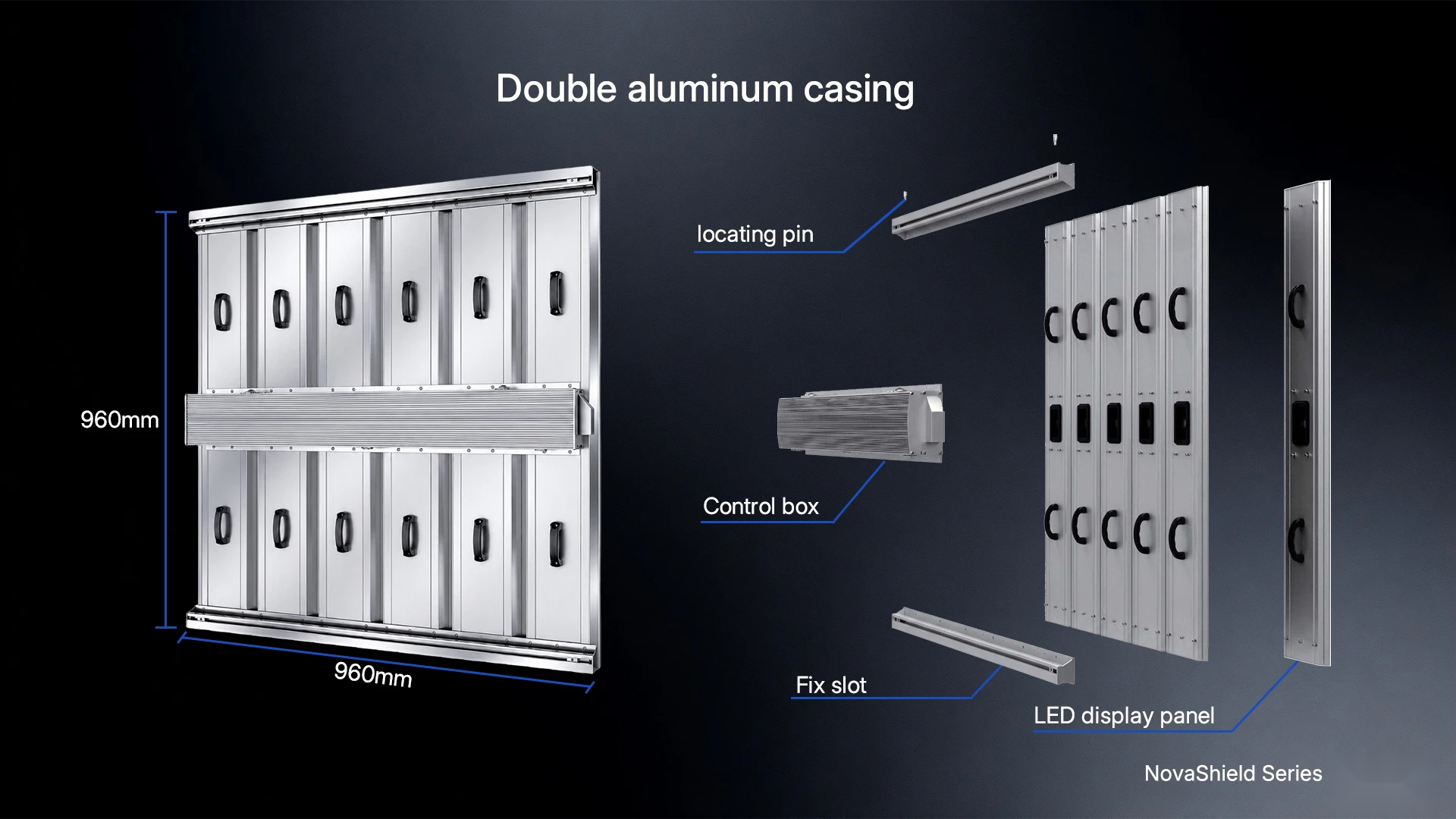

Cabinet Material: Double Aluminum
Contrast Ratio: 8000:1
Viewing Angle (H/V): 140°/140°
Operating Temperature: -40°C to 80°C
Input Power: AC 200~240V
Control: Novastar/Colorlight
Outdoor · P3.076 mmView configuration
Pixel Pitch: P3.076
LED Type: SMD1415
Pixel Density (pixels/m²): 105680
Module Dimensions (W × H): 160×640mm
Panel Dimensions (W × H × T): 640×640×84.5mm
Panel Weight: 13 kg
Refresh Rate: 3840/7680Hz
Scan Mode: 1/16
Brightness: ≥4500 cd/m²
Grayscale: 16bit
Power Consumption (Average/Maximum): 210/650W W/m²
Maintenance Access: Front/Rear
IP Rating: IP65
Curved / Right-Angle Splicing: Available / Available
Cabinet Material: Double Aluminum
Contrast Ratio: 8000:1
Viewing Angle (H/V): 140°/140°
Operating Temperature: -40°C to 80°C
Input Power: AC 200~240V
Control: Novastar/Colorlight
Outdoor · P4 mmView configuration
Pixel Pitch: P4
LED Type: SMD1921
Pixel Density (pixels/m²): 62500
Module Dimensions (W × H): 160×960mm
Panel Dimensions (W × H × T): 960×960×85-87mm
Panel Weight: 24 kg
Refresh Rate: 3840/7680Hz
Scan Mode: 1/9
Brightness: ≥5000 cd/m²
Grayscale: 16bit
Power Consumption (Average/Maximum): 210/650W W/m²
Maintenance Access: Front/Rear
IP Rating: IP65
Curved / Right-Angle Splicing: Available / Available
Cabinet Material: Double Aluminum
Contrast Ratio: 8000:1
Viewing Angle (H/V): 140°/140°
Operating Temperature: -40°C to 80°C
Input Power: AC 200~240V
Control: Novastar/Colorlight
Outdoor · P5 mmView configuration
Pixel Pitch: P5
LED Type: SMD1921
Pixel Density (pixels/m²): 40000
Module Dimensions (W × H): 160×960mm
Panel Dimensions (W × H × T): 960×960×85-87mm
Panel Weight: 24 kg
Refresh Rate: 3840/7680Hz
Scan Mode: 1/7
Brightness: ≥5000 cd/m²
Grayscale: 16bit
Power Consumption (Average/Maximum): 210/650W W/m²
Maintenance Access: Front/Rear
IP Rating: IP65
Curved / Right-Angle Splicing: Available / Available
Cabinet Material: Double Aluminum
Contrast Ratio: 8000:1
Viewing Angle (H/V): 140°/140°
Operating Temperature: -40°C to 80°C
Input Power: AC 200~240V
Control: Novastar/Colorlight
Outdoor · P5.9 mmView configuration
Pixel Pitch: P5.9
LED Type: SMD1921
Pixel Density (pixels/m²): 28720
Module Dimensions (W × H): 160×960mm
Panel Dimensions (W × H × T): 960×960×85-87mm
Panel Weight: 24 kg
Refresh Rate: 3840/7680Hz
Scan Mode: 1/7
Brightness: ≥5000 cd/m²
Grayscale: 16bit
Power Consumption (Average/Maximum): 210/650W W/m²
Maintenance Access: Front/Rear
IP Rating: IP65
Curved / Right-Angle Splicing: Available / Available
Cabinet Material: Double Aluminum
Contrast Ratio: 8000:1
Viewing Angle (H/V): 140°/140°
Operating Temperature: -40°C to 80°C
Input Power: AC 200~240V
Control: Novastar/Colorlight
Outdoor · P6.667 mmView configuration
Pixel Pitch: P6.667
LED Type: SMD2727
Pixel Density (pixels/m²): 22490
Module Dimensions (W × H): 160×960mm
Panel Dimensions (W × H × T): 960×960×85-87mm
Panel Weight: 24 kg
Refresh Rate: 3840/7680Hz
Scan Mode: 1/6
Brightness: ≥5500 cd/m²
Grayscale: 16bit
Power Consumption (Average/Maximum): 210/650W W/m²
Maintenance Access: Front/Rear
IP Rating: IP65
Curved / Right-Angle Splicing: Available / Available
Cabinet Material: Double Aluminum
Contrast Ratio: 8000:1
Viewing Angle (H/V): 140°/140°
Operating Temperature: -40°C to 80°C
Input Power: AC 200~240V
Control: Novastar/Colorlight
Outdoor · P8 mmView configuration
Pixel Pitch: P8
LED Type: SMD2727
Pixel Density (pixels/m²): 15625
Module Dimensions (W × H): 160×960mm
Panel Dimensions (W × H × T): 960×960×85-87mm
Panel Weight: 24 kg
Refresh Rate: 3840/7680Hz
Scan Mode: 1/5
Brightness: ≥5500 cd/m²
Grayscale: 16bit
Power Consumption (Average/Maximum): 210/650W W/m²
Maintenance Access: Front/Rear
IP Rating: IP65
Curved / Right-Angle Splicing: Available / Available
Cabinet Material: Double Aluminum
Contrast Ratio: 8000:1
Viewing Angle (H/V): 140°/140°
Operating Temperature: -40°C to 80°C
Input Power: AC 200~240V
Control: Novastar/Colorlight
Outdoor · P10 mmView configuration
Pixel Pitch: P10
LED Type: SMD2727
Pixel Density (pixels/m²): 10000
Module Dimensions (W × H): 160×960mm
Panel Dimensions (W × H × T): 960×960×85-87mm
Panel Weight: 24 kg
Refresh Rate: 3840/7680Hz
Scan Mode: 1/2
Brightness: ≥5500 cd/m²
Grayscale: 16bit
Power Consumption (Average/Maximum): 210/650W W/m²
Maintenance Access: Front/Rear
IP Rating: IP65
Curved / Right-Angle Splicing: Available / Available
Cabinet Material: Double Aluminum
Contrast Ratio: 8000:1
Viewing Angle (H/V): 140°/140°
Operating Temperature: -40°C to 80°C
Input Power: AC 200~240V
Control: Novastar/Colorlight
Specifications
| Pixel Pitch | Outdoor P2.5: P2.5; Outdoor P3.076: P3.076; Outdoor P4: P4; Outdoor P5: P5; Outdoor P5.9: P5.9; Outdoor P6.667: P6.667; Outdoor P8: P8; Outdoor P10: P10 |
|---|---|
| LED Type | Outdoor P2.5: SMD1415; Outdoor P3.076: SMD1415; Outdoor P4: SMD1921; Outdoor P5: SMD1921; Outdoor P5.9: SMD1921; Outdoor P6.667: SMD2727; Outdoor P8: SMD2727; Outdoor P10: SMD2727 |
| Pixel Density (pixels/m²) | Outdoor P2.5: 160000; Outdoor P3.076: 105680; Outdoor P4: 62500; Outdoor P5: 40000; Outdoor P5.9: 28720; Outdoor P6.667: 22490; Outdoor P8: 15625; Outdoor P10: 10000 |
| Module Dimensions (W × H) | Outdoor P2.5: 160×640mm; Outdoor P3.076: 160×640mm; Outdoor P4: 160×960mm; Outdoor P5: 160×960mm; Outdoor P5.9: 160×960mm; Outdoor P6.667: 160×960mm; Outdoor P8: 160×960mm; Outdoor P10: 160×960mm |
| Panel Dimensions (W × H × T) | Outdoor P2.5: 640×640×84.5mm; Outdoor P3.076: 640×640×84.5mm; Outdoor P4: 960×960×85-87mm; Outdoor P5: 960×960×85-87mm; Outdoor P5.9: 960×960×85-87mm; Outdoor P6.667: 960×960×85-87mm; Outdoor P8: 960×960×85-87mm; Outdoor P10: 960×960×85-87mm |
| Panel Weight | Outdoor P2.5: 13 kg; Outdoor P3.076: 13 kg; Outdoor P4: 24 kg; Outdoor P5: 24 kg; Outdoor P5.9: 24 kg; Outdoor P6.667: 24 kg; Outdoor P8: 24 kg; Outdoor P10: 24 kg |
| Refresh Rate | 3840/7680Hz |
| Scan Mode | Outdoor P2.5: 1/21; Outdoor P3.076: 1/16; Outdoor P4: 1/9; Outdoor P5: 1/7; Outdoor P5.9: 1/7; Outdoor P6.667: 1/6; Outdoor P8: 1/5; Outdoor P10: 1/2 |
| Brightness | Outdoor P2.5: ≥4500 cd/m²; Outdoor P3.076: ≥4500 cd/m²; Outdoor P4: ≥5000 cd/m²; Outdoor P5: ≥5000 cd/m²; Outdoor P5.9: ≥5000 cd/m²; Outdoor P6.667: ≥5500 cd/m²; Outdoor P8: ≥5500 cd/m²; Outdoor P10: ≥5500 cd/m² |
| Grayscale | 16bit |
| Power Consumption (Average/Maximum) | 210/650W W/m² |
| Maintenance Access | Front/Rear |
| IP Rating | IP65 |
| Curved / Right-Angle Splicing | Available / Available |
| Cabinet Material | Double Aluminum |
| Contrast Ratio | 8000:1 |
| Viewing Angle (H/V) | 140°/140° |
| Operating Temperature | -40°C to 80°C |
| Input Power | AC 200~240V |
| Control | Novastar/Colorlight |
Product details

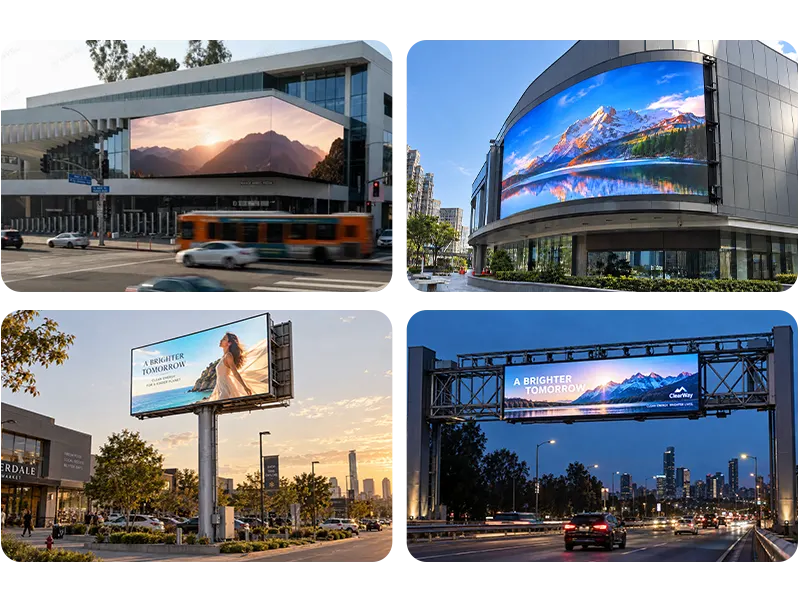

Supplier illustrations show product features and possible configurations. Brightness, protection ratings and optional assemblies depend on the selected version; use the specifications and confirmed quotation for your order.
