MagiVue
MagiVue uses a 960 × 960 mm magnesium cabinet, with P4 through P10 configurations for outdoor advertising displays.

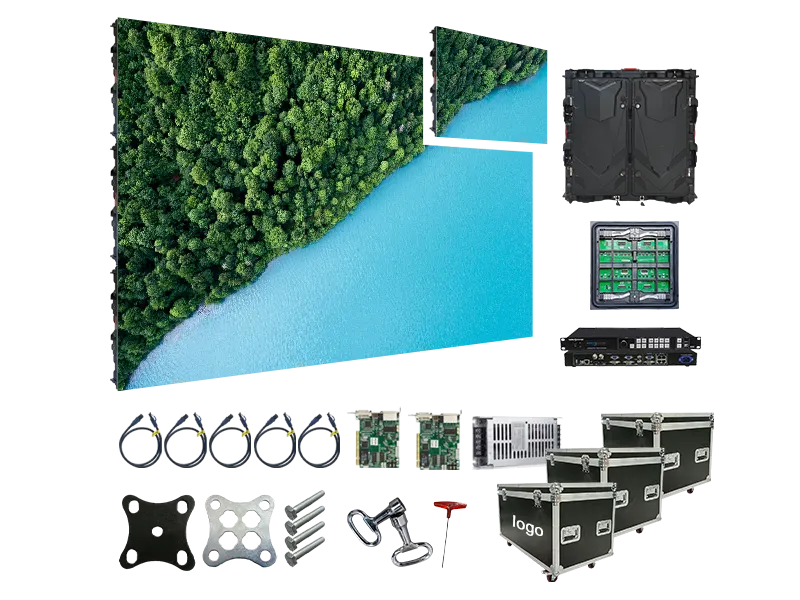

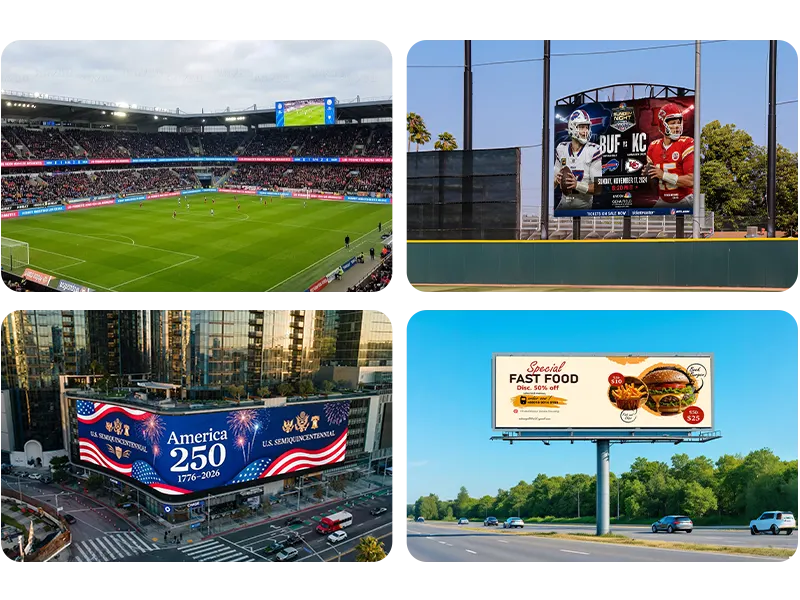

Product illustrations. Configurations shown may require optional components.
At a glance
- Module Size: 320×160mm
- Cabinet Size: 960×960×115mm
- Refresh Rate: 3840/7680Hz
- IP Rating: IP65
Configuration options
Identify the exact pixel pitch, cabinet format and operating environment when requesting a quotation. Listed options do not mean every combination is interchangeable.
Outdoor · P4 mmView configuration
Pixel Pitch: P4
LED Type: SMD1921
Pixel Density (pixels/m²): 62500
Module Dimensions (W × H): 320×160mm
Panel Dimensions (W × H × T): 960×960×115mm
Panel Weight: 26 kg
Refresh Rate: 3840/7680Hz
Scan Mode: 1/10
Brightness: ≥5500 cd/m²
Grayscale: 16bit
Power Consumption (Average/Maximum): 260/800W W/m²

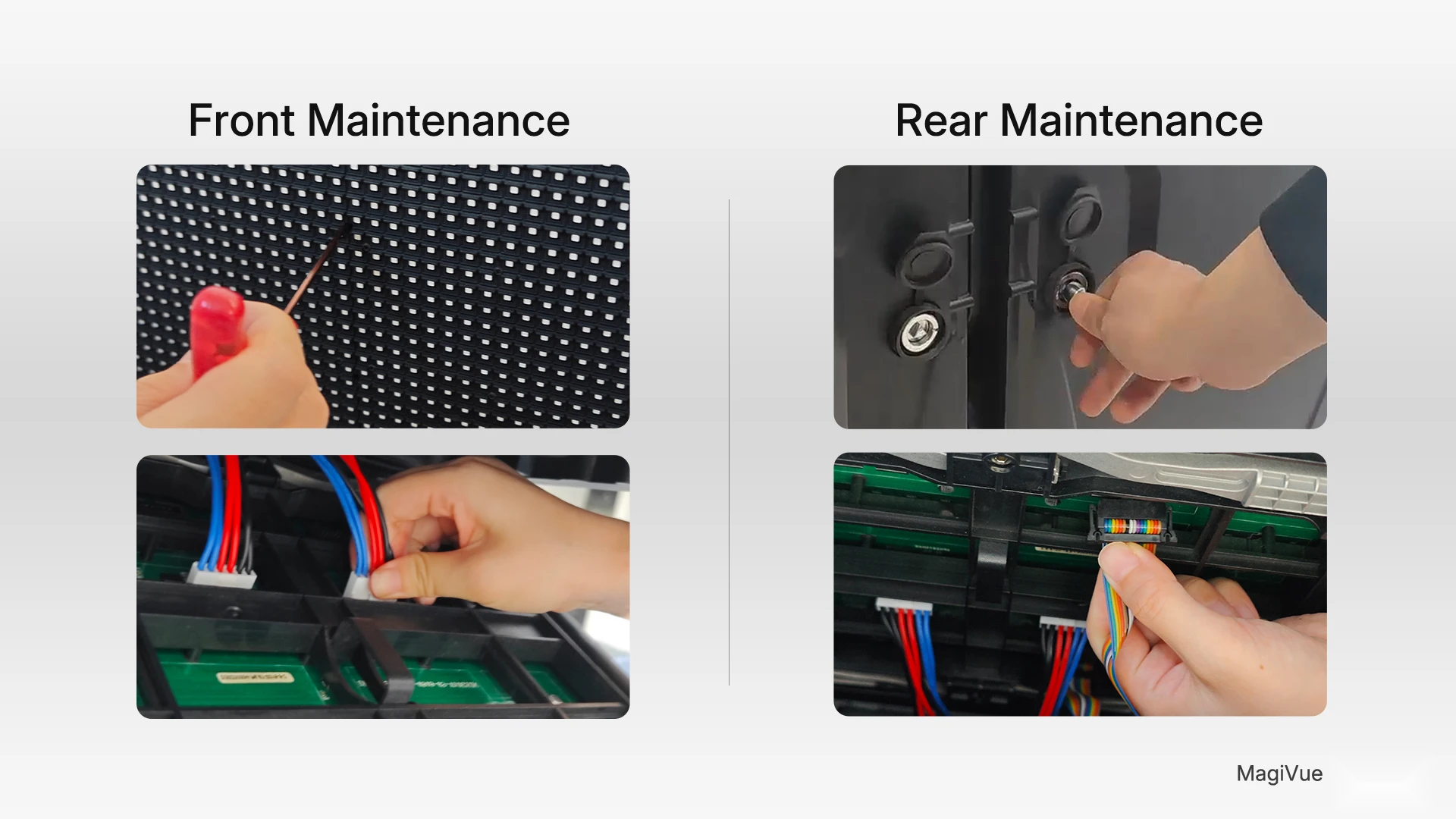

Maintenance Access: Front/Rear
IP Rating: IP65
Curved / Right-Angle Splicing: Available / Available

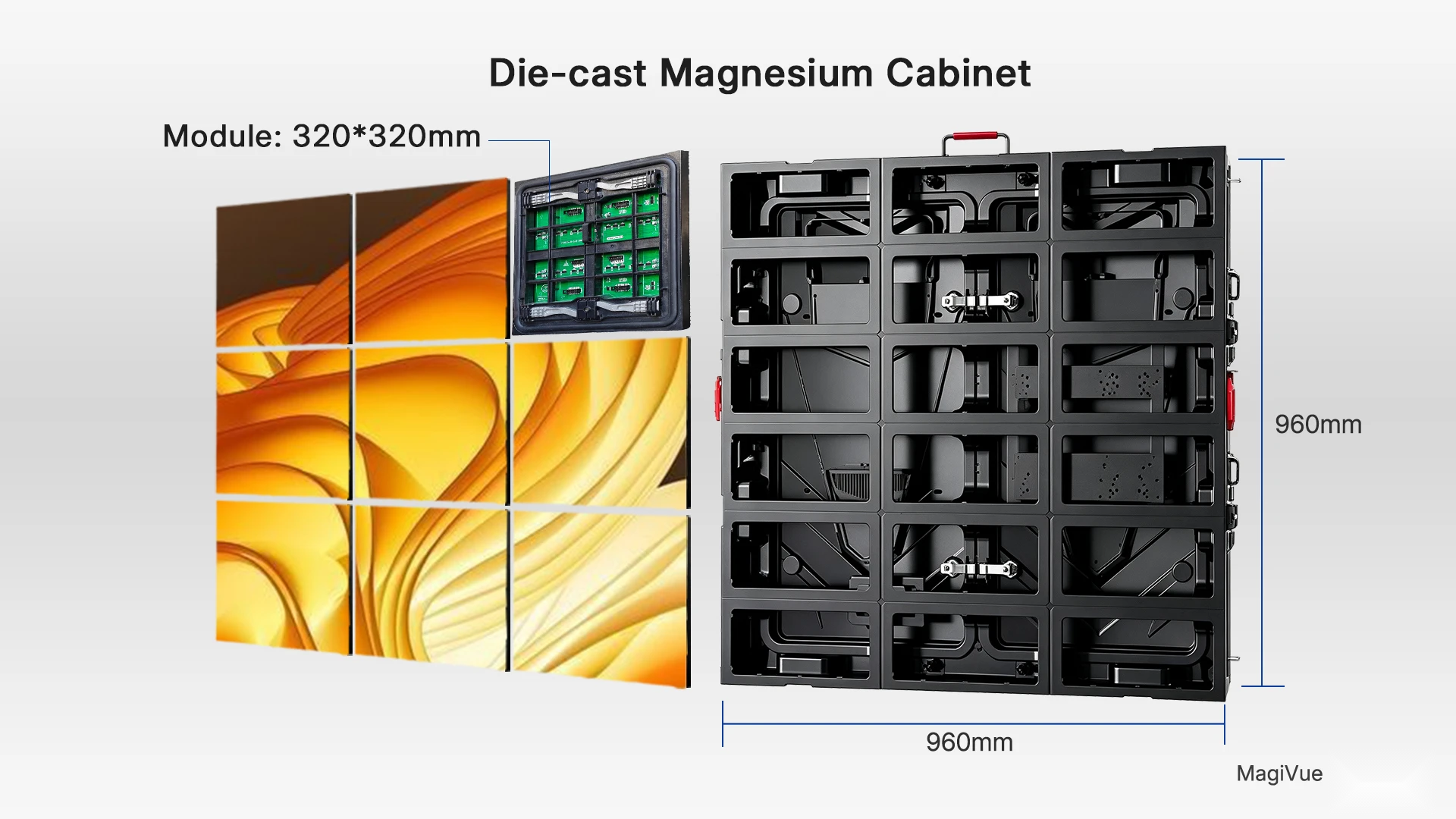

Cabinet Material: Die-Cast Magnesium
Contrast Ratio: ≥5000：1
Viewing Angle (H/V): 140°/140°
Operating Temperature: -40°C to 60°C
Input Power: AC110/240 50/60HZ
Control: Novastar/Colorlight
Outdoor · P5 mmView configuration
Pixel Pitch: P5
LED Type: SMD1921
Pixel Density (pixels/m²): 40000
Module Dimensions (W × H): 320×160mm
Panel Dimensions (W × H × T): 960×960×115mm
Panel Weight: 26 kg
Refresh Rate: 3840/7680Hz
Scan Mode: 1/8
Brightness: ≥5500 cd/m²
Grayscale: 16bit
Power Consumption (Average/Maximum): 260/800W W/m²
Maintenance Access: Front/Rear
IP Rating: IP65
Curved / Right-Angle Splicing: Available / Available
Cabinet Material: Die-Cast Magnesium
Contrast Ratio: ≥5000：1
Viewing Angle (H/V): 140°/140°
Operating Temperature: -40°C to 60°C
Input Power: AC110/240 50/60HZ
Control: Novastar/Colorlight
Outdoor · P6.67 mmView configuration
Pixel Pitch: P6.67
LED Type: SMD2525
Pixel Density (pixels/m²): 22500
Module Dimensions (W × H): 320×160mm
Panel Dimensions (W × H × T): 960×960×115mm
Panel Weight: 26 kg
Refresh Rate: 3840/7680Hz
Scan Mode: 1/6
Brightness: ≥5500 cd/m²
Grayscale: 16bit
Power Consumption (Average/Maximum): 260/800W W/m²
Maintenance Access: Front/Rear
IP Rating: IP65
Curved / Right-Angle Splicing: Available / Available
Cabinet Material: Die-Cast Magnesium
Contrast Ratio: ≥5000：1
Viewing Angle (H/V): 140°/140°
Operating Temperature: -40°C to 60°C
Input Power: AC110/240 50/60HZ
Control: Novastar/Colorlight
Outdoor · P8 mmView configuration
Pixel Pitch: P8
LED Type: SMD3535
Pixel Density (pixels/m²): 15625
Module Dimensions (W × H): 320×160mm
Panel Dimensions (W × H × T): 960×960×115mm
Panel Weight: 26 kg
Refresh Rate: 3840/7680Hz
Scan Mode: 1/5
Brightness: ≥5500 cd/m²
Grayscale: 16bit
Power Consumption (Average/Maximum): 260/800W W/m²
Maintenance Access: Front/Rear
IP Rating: IP65
Curved / Right-Angle Splicing: Available / Available
Cabinet Material: Die-Cast Magnesium
Contrast Ratio: ≥5000：1
Viewing Angle (H/V): 140°/140°
Operating Temperature: -40°C to 60°C
Input Power: AC110/240 50/60HZ
Control: Novastar/Colorlight
Outdoor · P10 mmView configuration
Pixel Pitch: P10
LED Type: SMD3535
Pixel Density (pixels/m²): 10000
Module Dimensions (W × H): 320×160mm
Panel Dimensions (W × H × T): 960×960×115mm
Panel Weight: 26 kg
Refresh Rate: 3840/7680Hz
Scan Mode: 1/4
Brightness: ≥5500 cd/m²
Grayscale: 16bit
Power Consumption (Average/Maximum): 260/800W W/m²
Maintenance Access: Front/Rear
IP Rating: IP65
Curved / Right-Angle Splicing: Available / Available
Cabinet Material: Die-Cast Magnesium
Contrast Ratio: ≥5000：1
Viewing Angle (H/V): 140°/140°
Operating Temperature: -40°C to 60°C
Input Power: AC110/240 50/60HZ
Control: Novastar/Colorlight
Specifications
| Pixel Pitch | Outdoor P4: P4; Outdoor P5: P5; Outdoor P6.67: P6.67; Outdoor P8: P8; Outdoor P10: P10 |
|---|---|
| LED Type | Outdoor P4: SMD1921; Outdoor P5: SMD1921; Outdoor P6.67: SMD2525; Outdoor P8: SMD3535; Outdoor P10: SMD3535 |
| Pixel Density (pixels/m²) | Outdoor P4: 62500; Outdoor P5: 40000; Outdoor P6.67: 22500; Outdoor P8: 15625; Outdoor P10: 10000 |
| Module Dimensions (W × H) | 320×160mm |
| Panel Dimensions (W × H × T) | 960×960×115mm |
| Panel Weight | 26 kg |
| Refresh Rate | 3840/7680Hz |
| Scan Mode | Outdoor P4: 1/10; Outdoor P5: 1/8; Outdoor P6.67: 1/6; Outdoor P8: 1/5; Outdoor P10: 1/4 |
| Brightness | ≥5500 cd/m² |
| Grayscale | 16bit |
| Power Consumption (Average/Maximum) | 260/800W W/m² |
| Maintenance Access | Front/Rear |
| IP Rating | IP65 |
| Curved / Right-Angle Splicing | Available / Available |
| Cabinet Material | Die-Cast Magnesium |
| Contrast Ratio | ≥5000：1 |
| Viewing Angle (H/V) | 140°/140° |
| Operating Temperature | -40°C to 60°C |
| Input Power | AC110/240 50/60HZ |
| Control | Novastar/Colorlight |
Product details

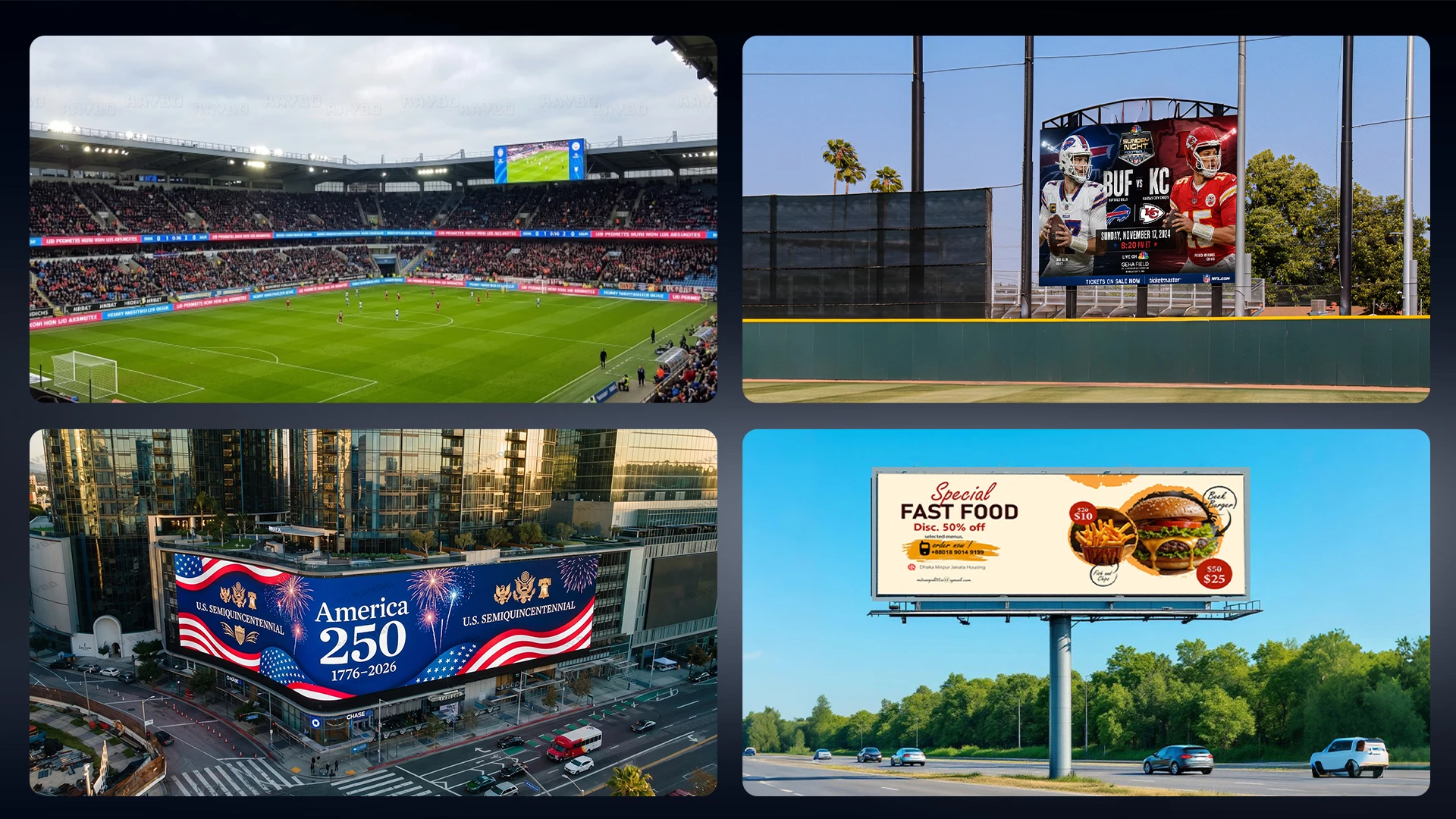

Supplier illustrations show product features and possible configurations. Brightness, protection ratings and optional assemblies depend on the selected version; use the specifications and confirmed quotation for your order.
