Outdoor Fixed

EcoGuard

EcoGuard offers a 960 × 960 mm cabinet format with pitch-dependent brightness options and front or rear maintenance.

Request this series Explore Outdoor Fixed

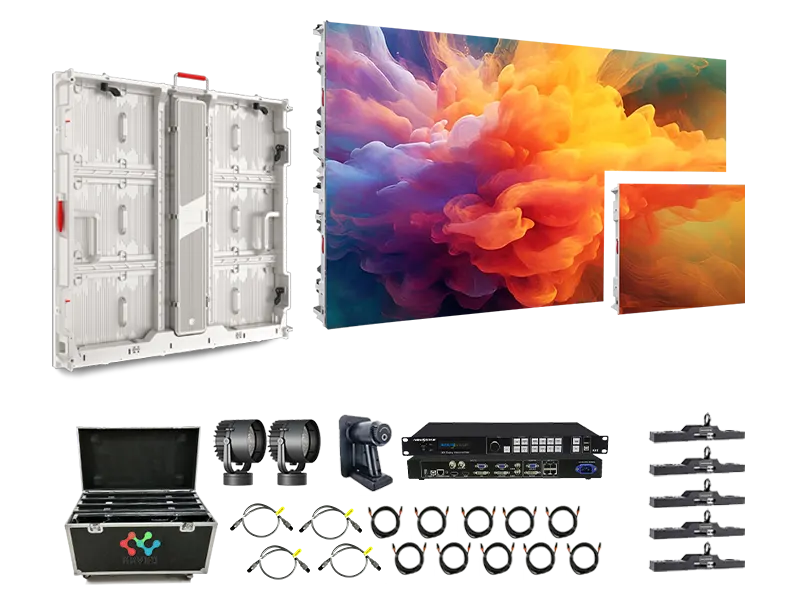

EcoGuard supplier product illustration 2

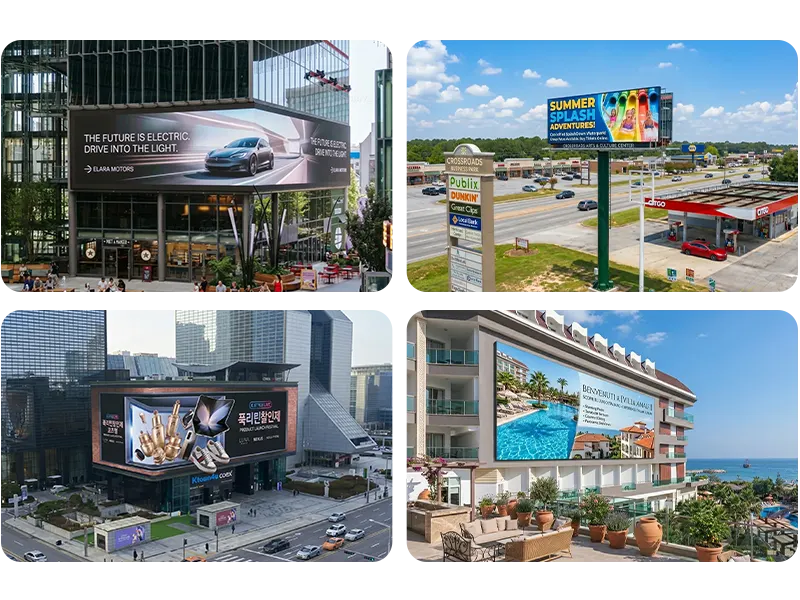

EcoGuard supplier product illustration 3

Product illustrations. Configurations shown may require optional components.

At a glance

Module Size: 480*320mm

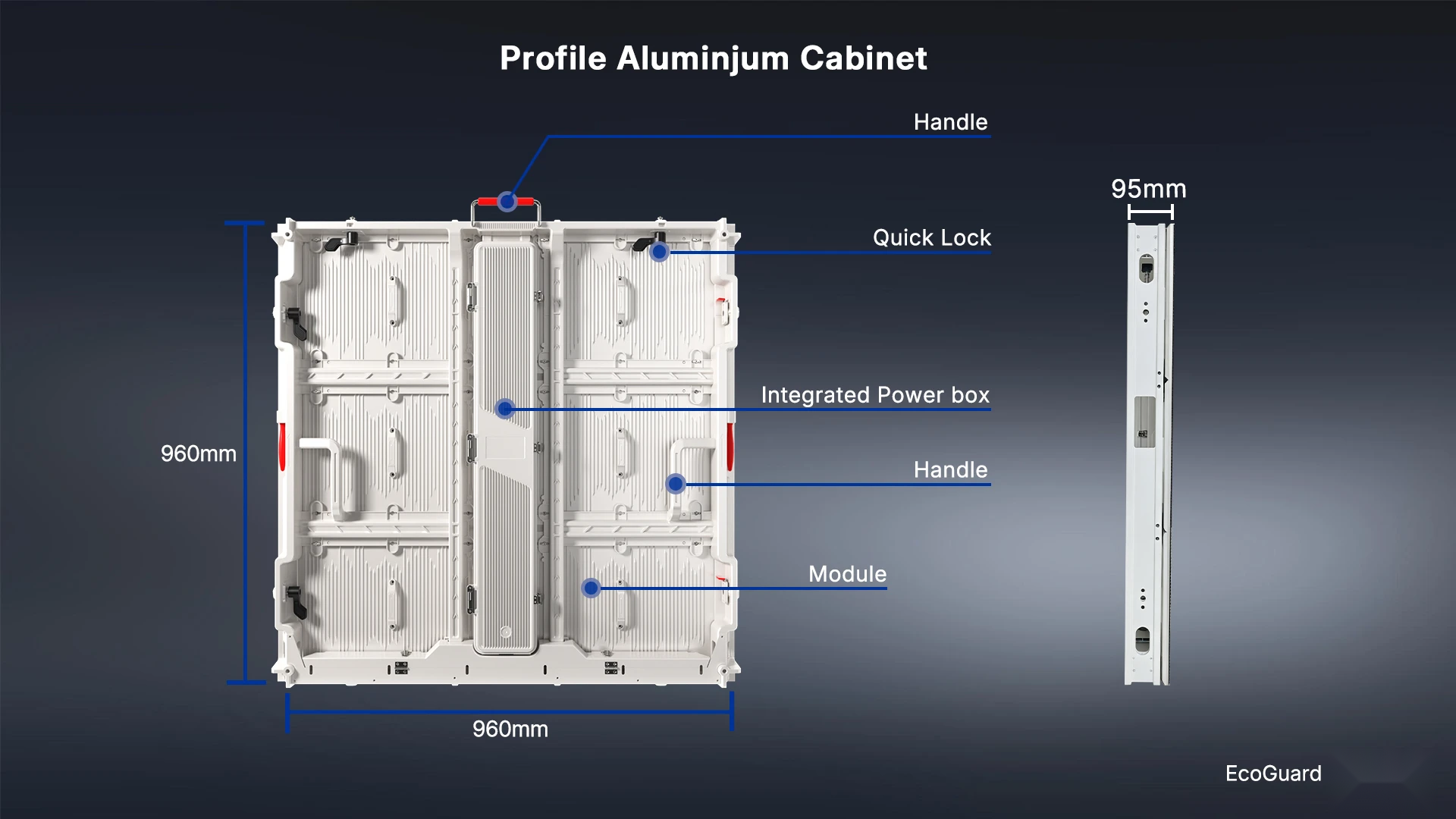

Cabinet Size: 960×960×95mm
Refresh Rate: 3840/7680Hz
IP Rating: IP65

Before requesting a quote

Specify the site before choosing the cabinet

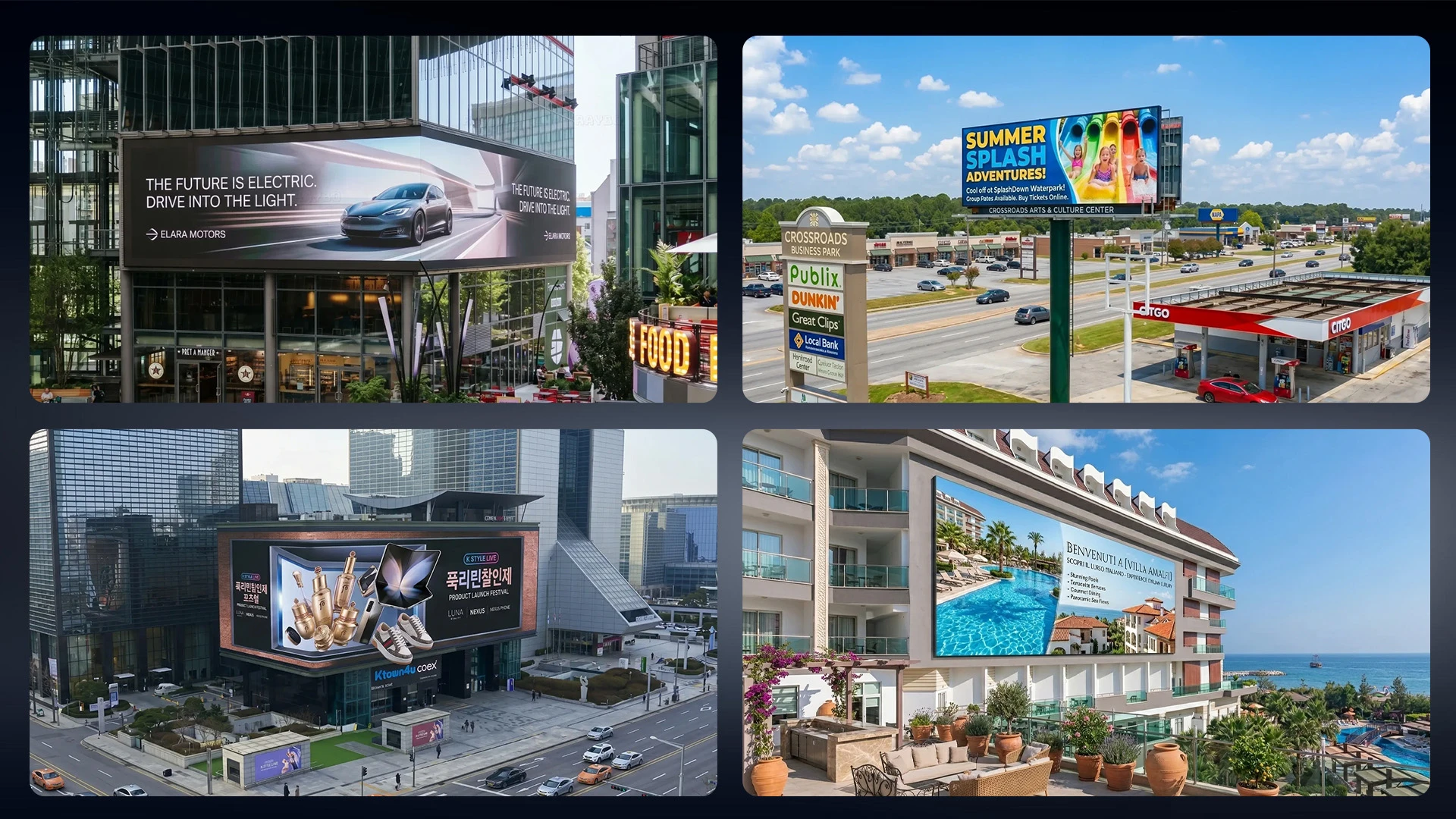

Where will the display be installed, and what are the sunlight, weather and mounting conditions?
What are the screen dimensions, viewing distance and available front or rear maintenance access?
Which local structural, electrical and installation requirements must the quoted system address?

LED Pixel Pitch and Viewing Distance: A Practical Buying Guide →LED Video Wall Power Consumption: Average, Maximum and Quote Assumptions →

Configuration options

Identify the exact pixel pitch, cabinet format and operating environment when requesting a quotation. Listed options do not mean every combination is interchangeable.

Outdoor · P4.44 mmView configuration

Pixel Pitch: P4.44

LED Type: SMD1415

Pixel Density (pixels/m²): 50625

Module Dimensions (W × H): 480×320mm

Panel Dimensions (W × H × T): 960×960×95mm

Panel Weight: 23 kg

Refresh Rate: 3840/7680Hz

Scan Mode: 1/9

Brightness: ≥5500 cd/m²

Grayscale: 14bit

Power Consumption (Average/Maximum): 320/800W W/m²

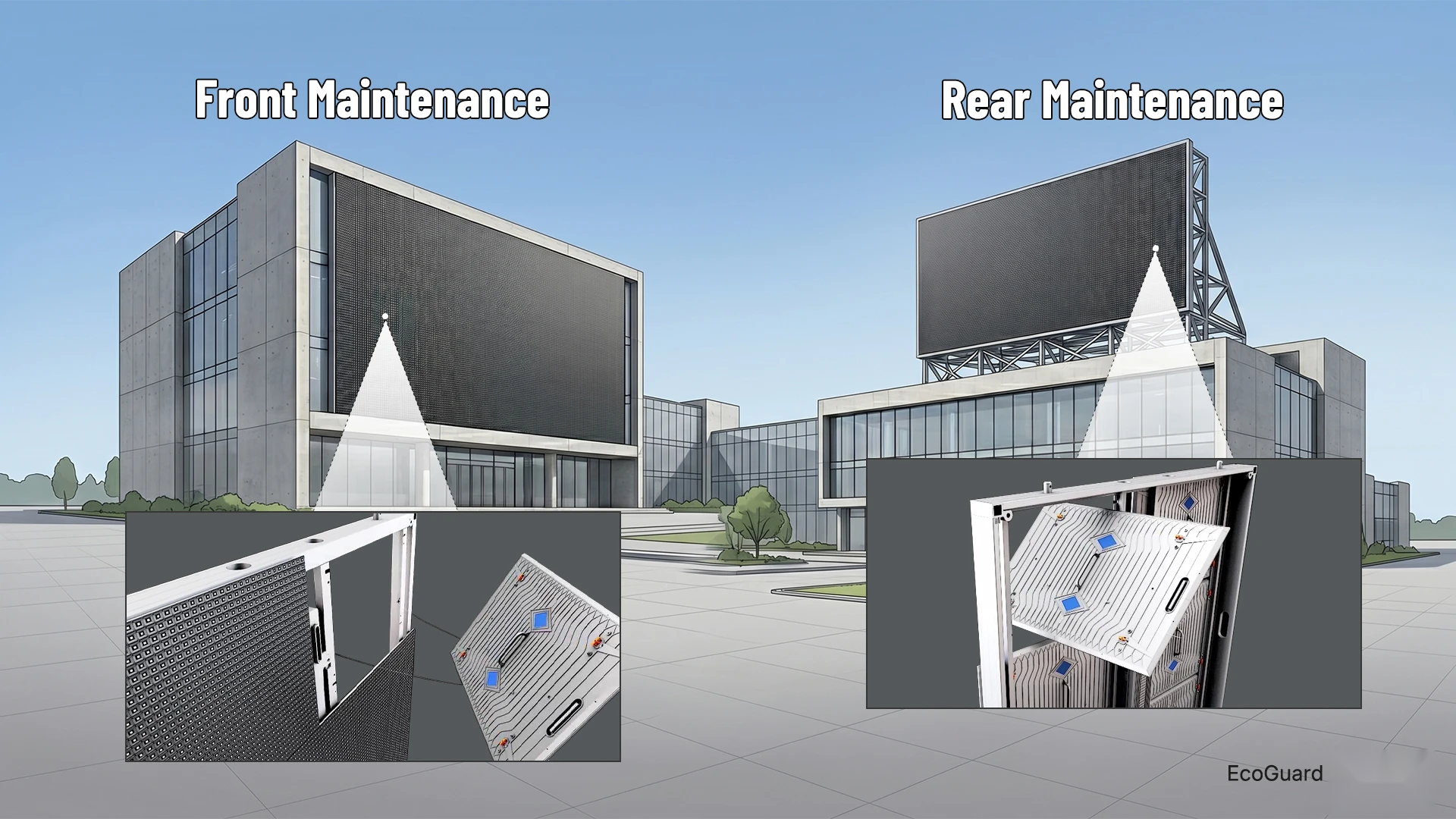

Maintenance Access: Front/Rear

IP Rating: IP65

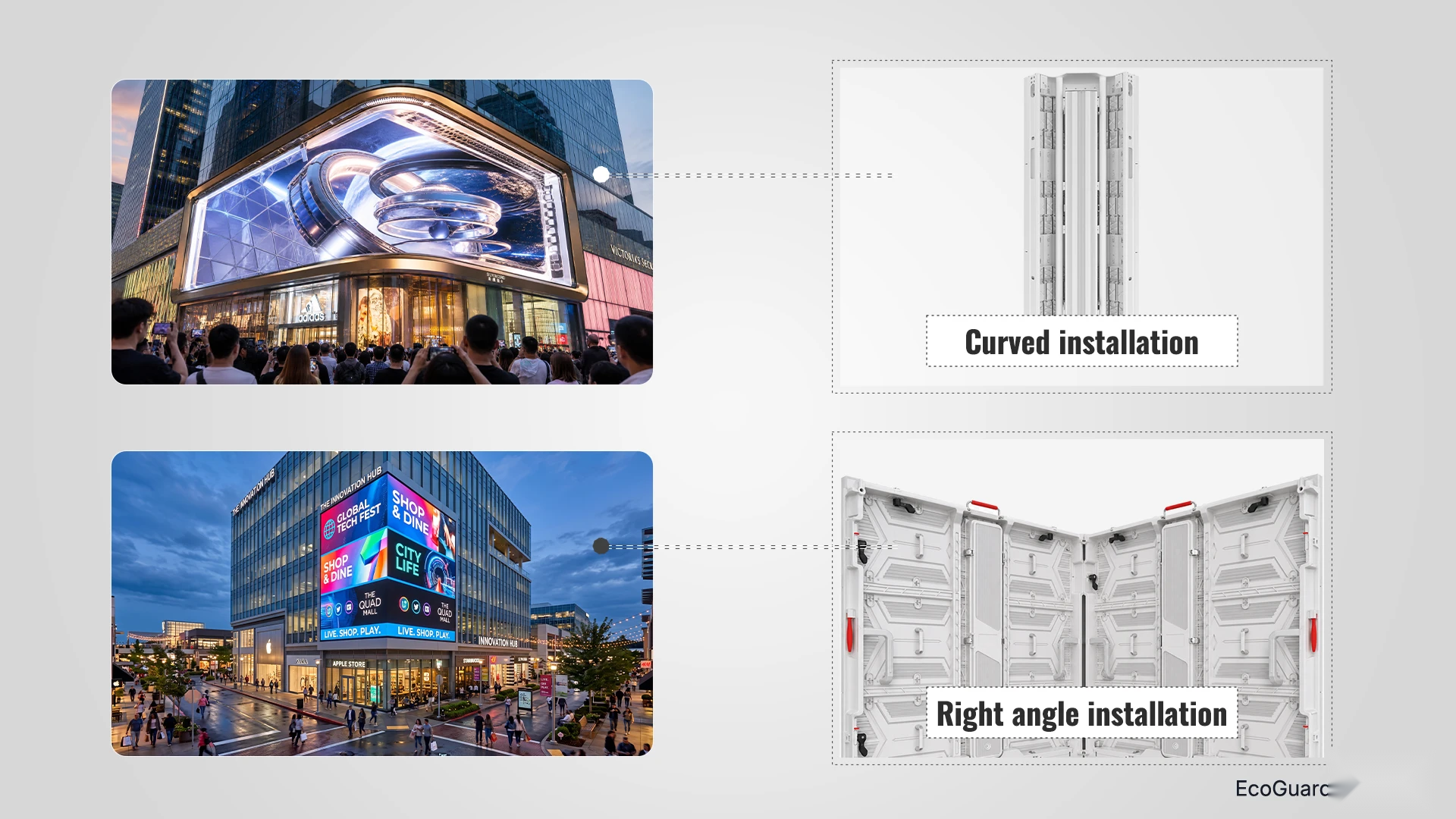

Curved / Right-Angle Splicing: Available / Available

Cabinet Material: Profile Aluminum

Contrast Ratio: ≥8000：1

Viewing Angle (H/V): 140°/140°

Operating Temperature: -40°C to 60°C

Input Power: AC100~240 50/60HZ

Control: Novastar/Colorlight

Outdoor · P5.71 mmView configuration

Pixel Pitch: P5.71

LED Type: SMD2727

Pixel Density (pixels/m²): 30625

Module Dimensions (W × H): 480×320mm

Panel Dimensions (W × H × T): 960×960×95mm

Panel Weight: 23 kg

Refresh Rate: 3840/7680Hz

Scan Mode: 1/7

Brightness: ≥6000 cd/m²

Grayscale: 14bit

Power Consumption (Average/Maximum): 320/800W W/m²

Maintenance Access: Front/Rear

IP Rating: IP65

Curved / Right-Angle Splicing: Available / Available

Cabinet Material: Profile Aluminum

Contrast Ratio: ≥8000：1

Viewing Angle (H/V): 140°/140°

Operating Temperature: -40°C to 60°C

Input Power: AC100~240 50/60HZ

Control: Novastar/Colorlight

Outdoor · P6.66 mmView configuration

Pixel Pitch: P6.66

LED Type: SMD2727

Pixel Density (pixels/m²): 22500

Module Dimensions (W × H): 480×320mm

Panel Dimensions (W × H × T): 960×960×95mm

Panel Weight: 23 kg

Refresh Rate: 3840/7680Hz

Scan Mode: 1/6

Brightness: ≥6000 cd/m²

Grayscale: 14bit

Power Consumption (Average/Maximum): 320/800W W/m²

Maintenance Access: Front/Rear

IP Rating: IP65

Curved / Right-Angle Splicing: Available / Available

Cabinet Material: Profile Aluminum

Contrast Ratio: ≥8000：1

Viewing Angle (H/V): 140°/140°

Operating Temperature: -40°C to 60°C

Input Power: AC100~240 50/60HZ

Control: Novastar/Colorlight

Outdoor · P8 mmView configuration

Pixel Pitch: P8

LED Type: SMD3535

Pixel Density (pixels/m²): 15625

Module Dimensions (W × H): 480×320mm

Panel Dimensions (W × H × T): 960×960×95mm

Panel Weight: 23 kg

Refresh Rate: 3840/7680Hz

Scan Mode: 1/5

Brightness: ≥6000 cd/m²

Grayscale: 14bit

Power Consumption (Average/Maximum): 320/800W W/m²

Maintenance Access: Front/Rear

IP Rating: IP65

Curved / Right-Angle Splicing: Available / Available

Cabinet Material: Profile Aluminum

Contrast Ratio: ≥8000：1

Viewing Angle (H/V): 140°/140°

Operating Temperature: -40°C to 60°C

Input Power: AC100~240 50/60HZ

Control: Novastar/Colorlight

Outdoor · P10 mmView configuration

Pixel Pitch: P10

LED Type: SMD3535

Pixel Density (pixels/m²): 10000

Module Dimensions (W × H): 480×320mm

Panel Dimensions (W × H × T): 960×960×95mm

Panel Weight: 23 kg

Refresh Rate: 3840/7680Hz

Scan Mode: 1/2

Brightness: ≥6500 cd/m²

Grayscale: 14bit

Power Consumption (Average/Maximum): 320/800W W/m²

Maintenance Access: Front/Rear

IP Rating: IP65

Curved / Right-Angle Splicing: Available / Available

Cabinet Material: Profile Aluminum

Contrast Ratio: ≥8000：1

Viewing Angle (H/V): 140°/140°

Operating Temperature: -40°C to 60°C

Input Power: AC100~240 50/60HZ

Control: Novastar/Colorlight

Specifications

Pixel Pitch	Outdoor P4.44: P4.44; Outdoor P5.71: P5.71; Outdoor P6.66: P6.66; Outdoor P8: P8; Outdoor P10: P10
LED Type	Outdoor P4.44: SMD1415; Outdoor P5.71: SMD2727; Outdoor P6.66: SMD2727; Outdoor P8: SMD3535; Outdoor P10: SMD3535
Pixel Density (pixels/m²)	Outdoor P4.44: 50625; Outdoor P5.71: 30625; Outdoor P6.66: 22500; Outdoor P8: 15625; Outdoor P10: 10000
Module Dimensions (W × H)	480×320mm
Panel Dimensions (W × H × T)	960×960×95mm
Panel Weight	23 kg
Refresh Rate	3840/7680Hz
Scan Mode	Outdoor P4.44: 1/9; Outdoor P5.71: 1/7; Outdoor P6.66: 1/6; Outdoor P8: 1/5; Outdoor P10: 1/2
Brightness	Outdoor P4.44: ≥5500 cd/m²; Outdoor P5.71: ≥6000 cd/m²; Outdoor P6.66: ≥6000 cd/m²; Outdoor P8: ≥6000 cd/m²; Outdoor P10: ≥6500 cd/m²
Grayscale	14bit
Power Consumption (Average/Maximum)	320/800W W/m²
Maintenance Access	Front/Rear
IP Rating	IP65
Curved / Right-Angle Splicing	Available / Available
Cabinet Material	Profile Aluminum
Contrast Ratio	≥8000：1
Viewing Angle (H/V)	140°/140°
Operating Temperature	-40°C to 60°C
Input Power	AC100~240 50/60HZ
Control	Novastar/Colorlight

Product details

Supplier illustrations show product features and possible configurations. Brightness, protection ratings and optional assemblies depend on the selected version; use the specifications and confirmed quotation for your order.
