AquaLux
AquaLux uses a 1000 × 1000 mm cabinet and 500 × 250 mm modules, with multiple pixel pitches for outdoor fixed installations.

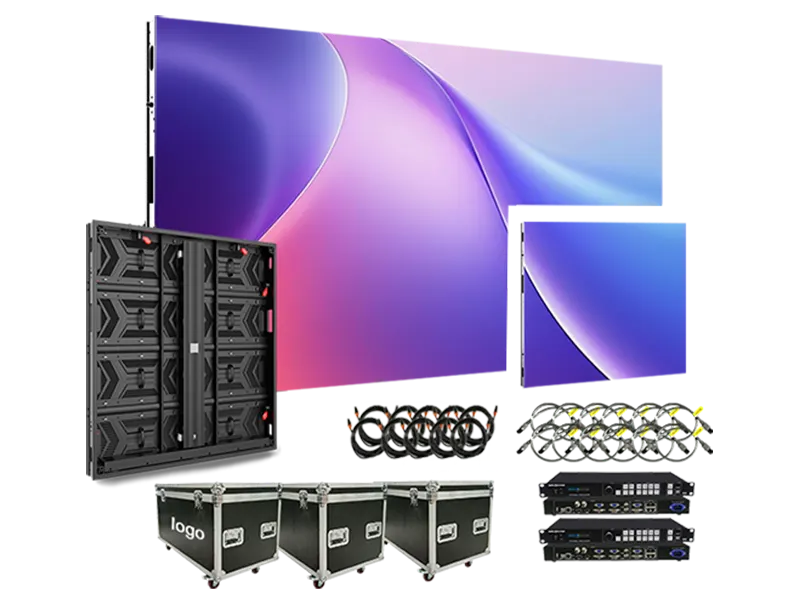

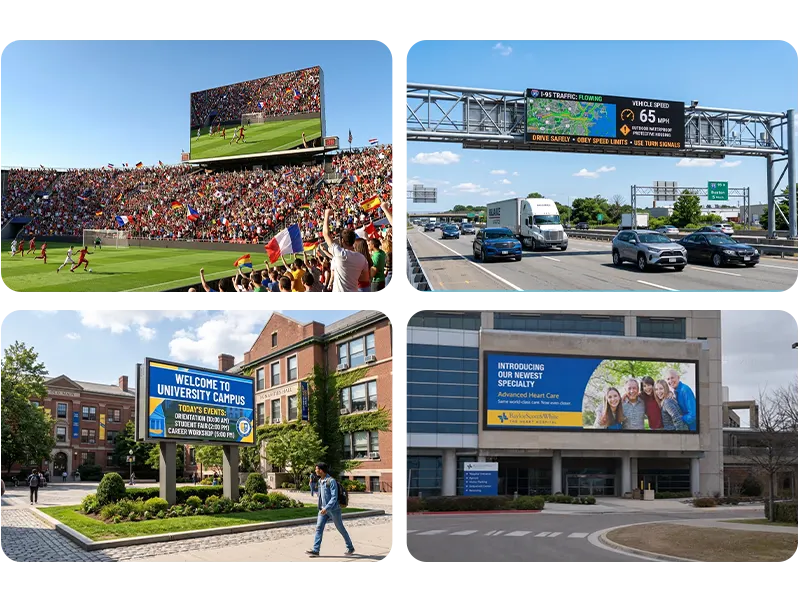

Product illustrations. Configurations shown may require optional components.
At a glance
- Module Size: 500×250mm
- Cabinet Size: 1000×1000×95mm
- Refresh Rate: 3840/7680Hz
- IP Rating: IP65
Configuration options
Identify the exact pixel pitch, cabinet format and operating environment when requesting a quotation. Listed options do not mean every combination is interchangeable.
Outdoor · P2.97 mmView configuration
Pixel Pitch: P2.97
LED Type: SMD1415
Module Dimensions (W × H): 500×250mm

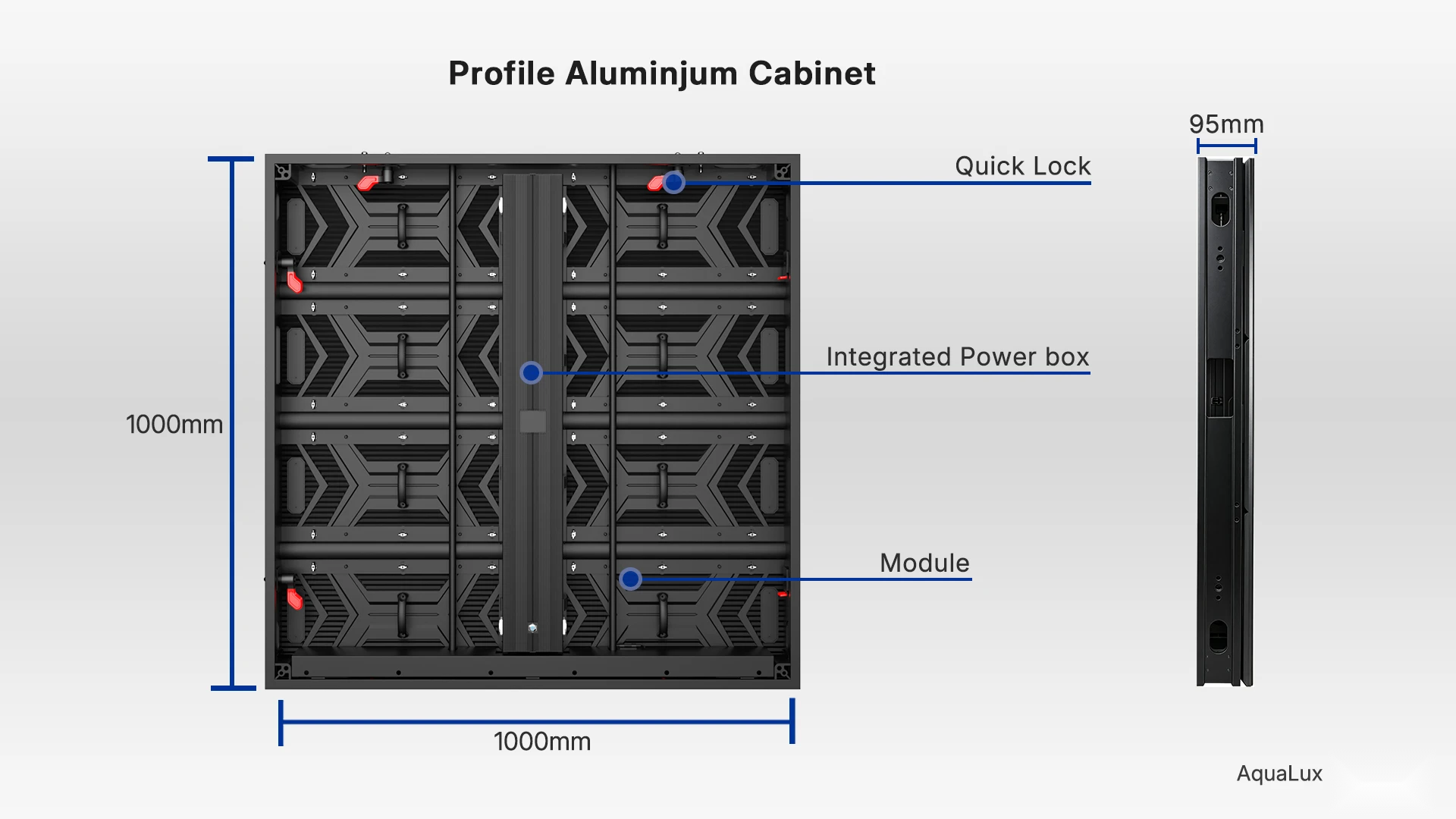

Panel Dimensions (W × H × T): 1000×1000×95mm
Panel Weight: 25 kg
Refresh Rate: 3840/7680Hz
Scan Mode: 1/21
Brightness: ≥4500 cd/m²
Grayscale: 14bit
Power Consumption (Average/Maximum): 280/700W W/m²

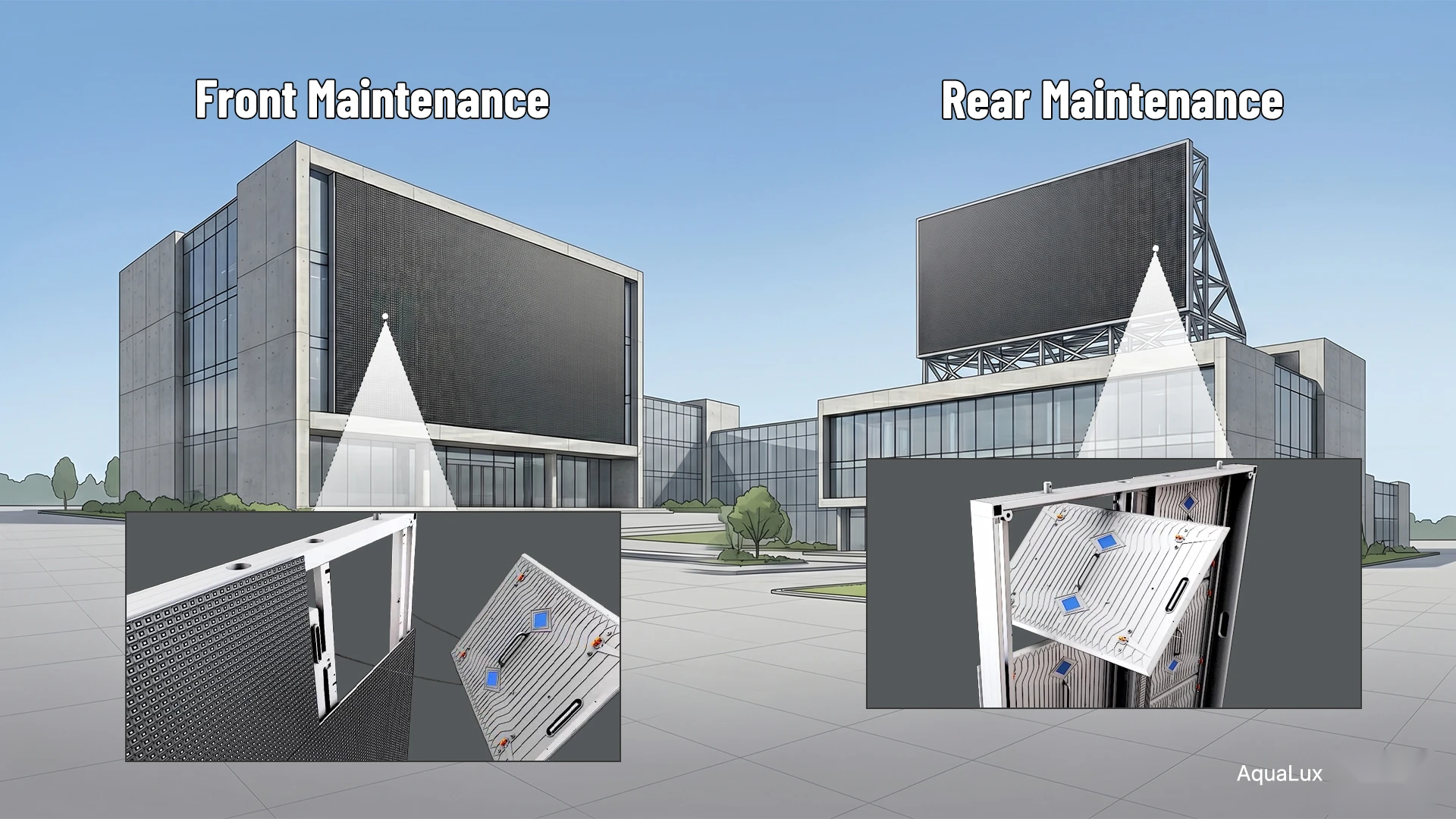

Maintenance Access: Front/Rear
IP Rating: IP65

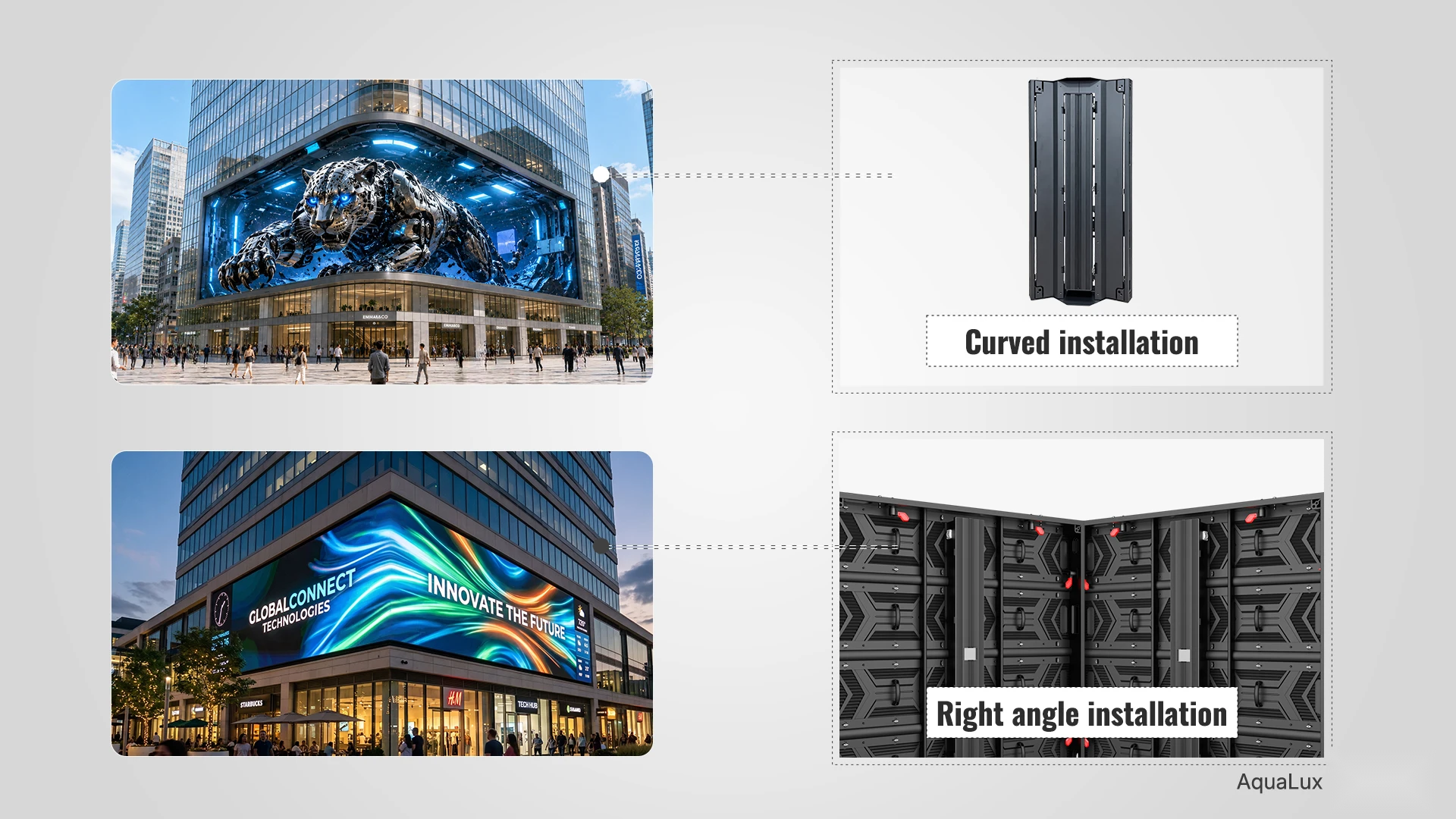

Curved / Right-Angle Splicing: Available / Available
Cabinet Material: Profile Aluminum
Contrast Ratio: ≥8000：1
Viewing Angle (H/V): 140°/140°
Operating Temperature: -40°C to 60°C
Input Power: AC100~240 50/60HZ
Control: Novastar/Colorlight
Outdoor · P3.91 mmView configuration
Pixel Pitch: P3.91
LED Type: SMD1921
Pixel Density (pixels/m²): 65536
Module Dimensions (W × H): 500×250mm
Panel Dimensions (W × H × T): 1000×1000×95mm
Panel Weight: 25 kg
Refresh Rate: 3840/7680Hz
Scan Mode: 1/16
Brightness: ≥4500 cd/m²
Grayscale: 14bit
Power Consumption (Average/Maximum): 280/700W W/m²
Maintenance Access: Front/Rear
IP Rating: IP65
Curved / Right-Angle Splicing: Available / Available
Cabinet Material: Profile Aluminum
Contrast Ratio: ≥8000：1
Viewing Angle (H/V): 140°/140°
Operating Temperature: -40°C to 60°C
Input Power: AC100~240 50/60HZ
Control: Novastar/Colorlight
Outdoor · P4.81 mmView configuration
Pixel Pitch: P4.81
LED Type: SMD1921
Pixel Density (pixels/m²): 43264
Module Dimensions (W × H): 500×250mm
Panel Dimensions (W × H × T): 1000×1000×95mm
Panel Weight: 25 kg
Refresh Rate: 3840/7680Hz
Scan Mode: 1/13
Brightness: ≥4500 cd/m²
Grayscale: 14bit
Power Consumption (Average/Maximum): 280/700W W/m²
Maintenance Access: Front/Rear
IP Rating: IP65
Curved / Right-Angle Splicing: Available / Available
Cabinet Material: Profile Aluminum
Contrast Ratio: ≥8000：1
Viewing Angle (H/V): 140°/140°
Operating Temperature: -40°C to 60°C
Input Power: AC100~240 50/60HZ
Control: Novastar/Colorlight
Outdoor · P6.25 mmView configuration
Pixel Pitch: P6.25
LED Type: SMD2727
Pixel Density (pixels/m²): 25600
Module Dimensions (W × H): 500×250mm
Panel Dimensions (W × H × T): 1000×1000×95mm
Panel Weight: 25 kg
Refresh Rate: 3840/7680Hz
Scan Mode: 1/5
Brightness: ≥6000 cd/m²
Grayscale: 14bit
Power Consumption (Average/Maximum): 280/700W W/m²
Maintenance Access: Front/Rear
IP Rating: IP65
Curved / Right-Angle Splicing: Available / Available
Cabinet Material: Profile Aluminum
Contrast Ratio: ≥8000：1
Viewing Angle (H/V): 140°/140°
Operating Temperature: -40°C to 60°C
Input Power: AC100~240 50/60HZ
Control: Novastar/Colorlight
Outdoor · P7.81 mmView configuration
Pixel Pitch: P7.81
LED Type: SMD2727
Pixel Density (pixels/m²): 16384
Module Dimensions (W × H): 500×250mm
Panel Dimensions (W × H × T): 1000×1000×95mm
Panel Weight: 25 kg
Refresh Rate: 3840/7680Hz
Scan Mode: 1/4
Brightness: ≥6000 cd/m²
Grayscale: 14bit
Power Consumption (Average/Maximum): 280/700W W/m²
Maintenance Access: Front/Rear
IP Rating: IP65
Curved / Right-Angle Splicing: Available / Available
Cabinet Material: Profile Aluminum
Contrast Ratio: ≥8000：1
Viewing Angle (H/V): 140°/140°
Operating Temperature: -40°C to 60°C
Input Power: AC100~240 50/60HZ
Control: Novastar/Colorlight
Outdoor · P10.42 mmView configuration
Pixel Pitch: P10.42
LED Type: SMD2727
Pixel Density (pixels/m²): 9216
Module Dimensions (W × H): 500×250mm
Panel Dimensions (W × H × T): 1000×1000×95mm
Panel Weight: 25 kg
Refresh Rate: 3840/7680Hz
Scan Mode: 1/2
Brightness: ≥6000 cd/m²
Grayscale: 14bit
Power Consumption (Average/Maximum): 280/700W W/m²
Maintenance Access: Front/Rear
IP Rating: IP65
Curved / Right-Angle Splicing: Available / Available
Cabinet Material: Profile Aluminum
Contrast Ratio: ≥8000：1
Viewing Angle (H/V): 140°/140°
Operating Temperature: -40°C to 60°C
Input Power: AC100~240 50/60HZ
Control: Novastar/Colorlight
Specifications
| Pixel Pitch | Outdoor P2.97: P2.97; Outdoor P3.91: P3.91; Outdoor P4.81: P4.81; Outdoor P6.25: P6.25; Outdoor P7.81: P7.81; Outdoor P10.42: P10.42 |
|---|---|
| LED Type | Outdoor P2.97: SMD1415; Outdoor P3.91: SMD1921; Outdoor P4.81: SMD1921; Outdoor P6.25: SMD2727; Outdoor P7.81: SMD2727; Outdoor P10.42: SMD2727 |
| Pixel Density (pixels/m²) | Outdoor P2.97: Not specified; Outdoor P3.91: 65536; Outdoor P4.81: 43264; Outdoor P6.25: 25600; Outdoor P7.81: 16384; Outdoor P10.42: 9216 |
| Module Dimensions (W × H) | 500×250mm |
| Panel Dimensions (W × H × T) | 1000×1000×95mm |
| Panel Weight | 25 kg |
| Refresh Rate | 3840/7680Hz |
| Scan Mode | Outdoor P2.97: 1/21; Outdoor P3.91: 1/16; Outdoor P4.81: 1/13; Outdoor P6.25: 1/5; Outdoor P7.81: 1/4; Outdoor P10.42: 1/2 |
| Brightness | Outdoor P2.97: ≥4500 cd/m²; Outdoor P3.91: ≥4500 cd/m²; Outdoor P4.81: ≥4500 cd/m²; Outdoor P6.25: ≥6000 cd/m²; Outdoor P7.81: ≥6000 cd/m²; Outdoor P10.42: ≥6000 cd/m² |
| Grayscale | 14bit |
| Power Consumption (Average/Maximum) | 280/700W W/m² |
| Maintenance Access | Front/Rear |
| IP Rating | IP65 |
| Curved / Right-Angle Splicing | Available / Available |
| Cabinet Material | Profile Aluminum |
| Contrast Ratio | ≥8000：1 |
| Viewing Angle (H/V) | 140°/140° |
| Operating Temperature | -40°C to 60°C |
| Input Power | AC100~240 50/60HZ |
| Control | Novastar/Colorlight |
Product details
Supplier illustrations show product features and possible configurations. Brightness, protection ratings and optional assemblies depend on the selected version; use the specifications and confirmed quotation for your order.
