Spherical Screen

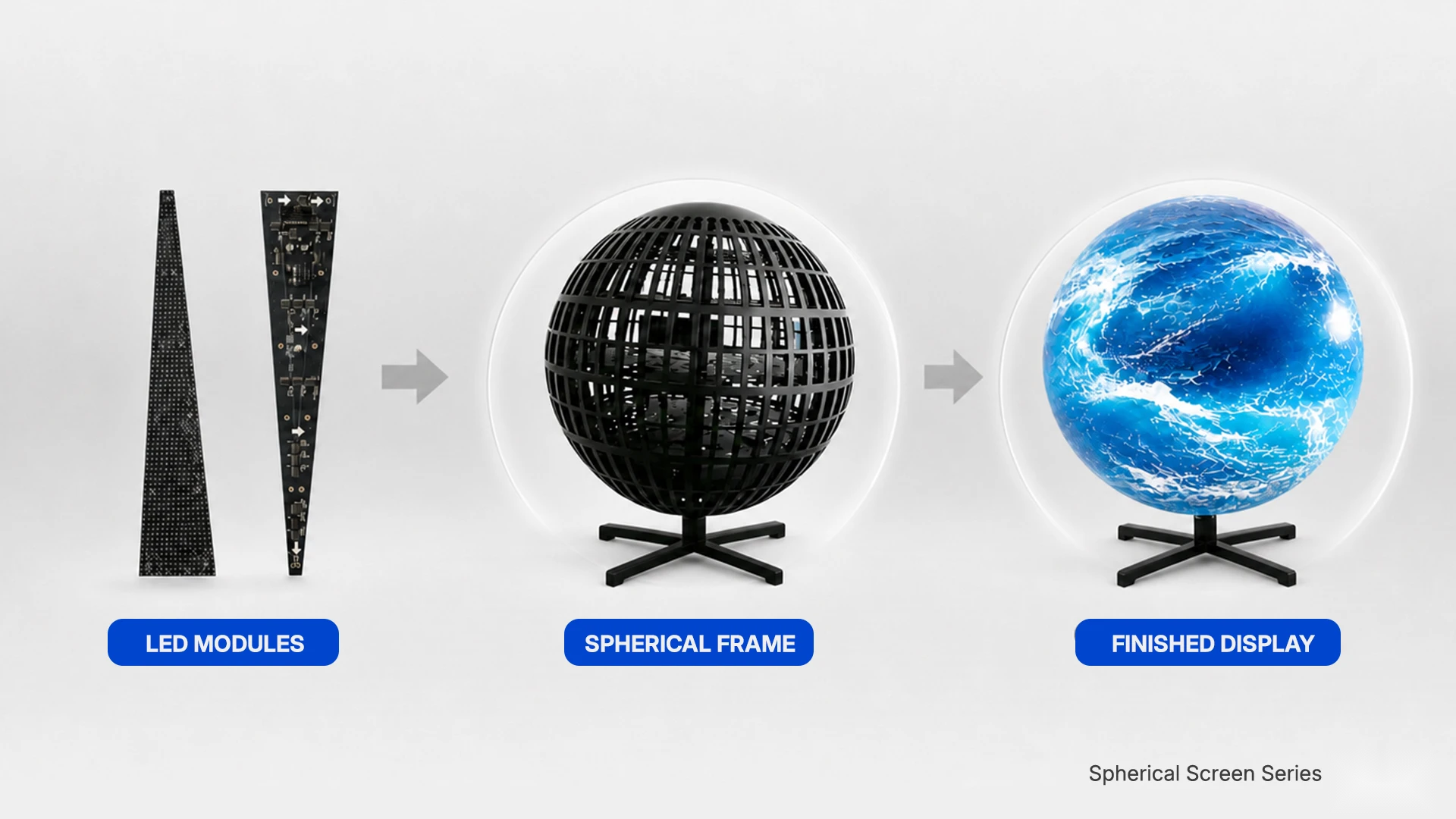

Spherical Screen uses shaped LED modules for spherical creative installations. Confirm sphere diameter, pixel pitch, support structure and content mapping together.

Request this series Explore Creative

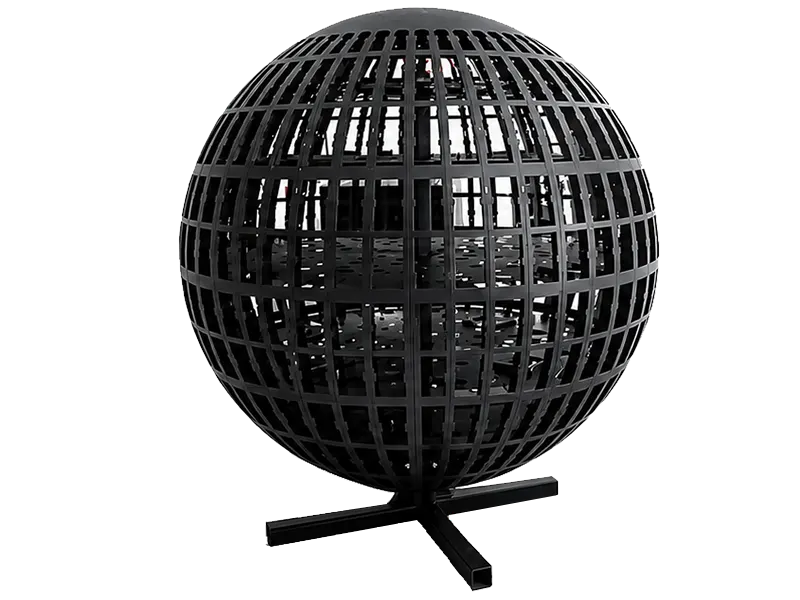

Spherical Screen supplier product illustration 2

Product illustrations. Configurations shown may require optional components.

At a glance

Module Size: Custom
Refresh Rate: 3840HZ
IP Rating: IP43

Before requesting a quote

Define the display format and installation

Which format does the project require: a rotating cube, advertising trailer, LED floor, sphere or pole display?
What are the intended dimensions, operating environment and mounting or movement requirements?
Which content mapping, control equipment, service access and project-specific safety checks need to be included?

LED Video Wall Resolution: Calculate the Native Canvas Before You Buy →LED Video Wall Power Consumption: Average, Maximum and Quote Assumptions →

Configuration options

Identify the exact pixel pitch, cabinet format and operating environment when requesting a quotation. Listed options do not mean every combination is interchangeable.

1.25 mmView configuration

Pixel Pitch: 1.25

LED Type: SMD

Pixel Density (pixels/m²): 640000

Module Dimensions (W × H): Custom

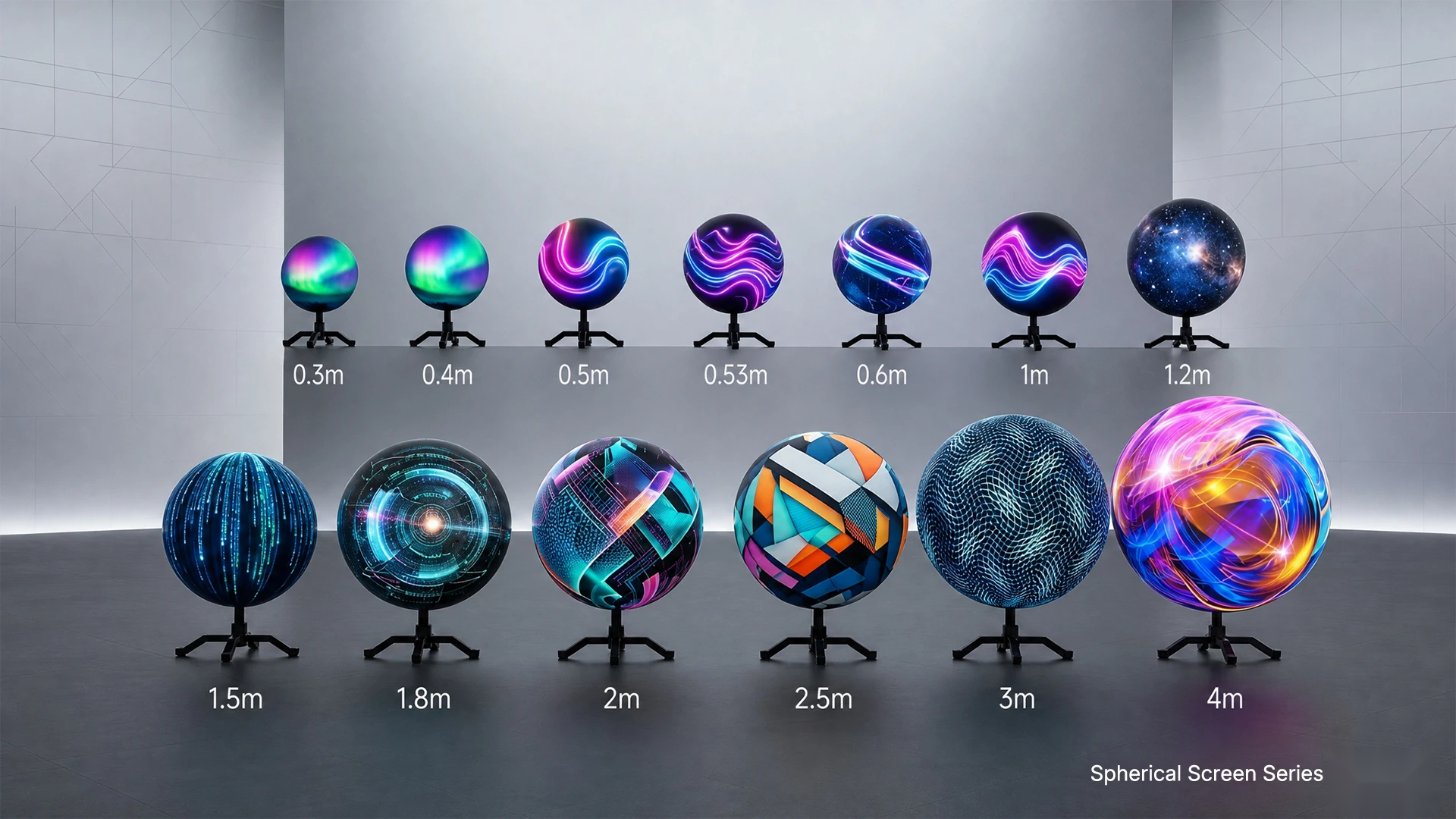

Diameter: 1m, 1.5m, 2m, 2.5m, 3m, 4m

Spherical Screen Area: 3.14㎡, 7.065㎡, 12.56㎡, 19.625㎡, 28.26㎡, 50.24㎡,

Refresh Rate: 3840Hz

Scan Mode: 1/64

Brightness: ≥600 cd/m²

Grayscale: 16bit

Power Consumption (Average/Maximum): 250/680W/m²

Maintenance Access: Front

IP Rating: IP43

Surface Flatness: ≤0.5 mm between adjacent pixels; <1 mm panel splicing gap

Operating System: Windows(98,2000,XP,Vin7)

Color Temperature: 3200 K–7000 K (adjustable)

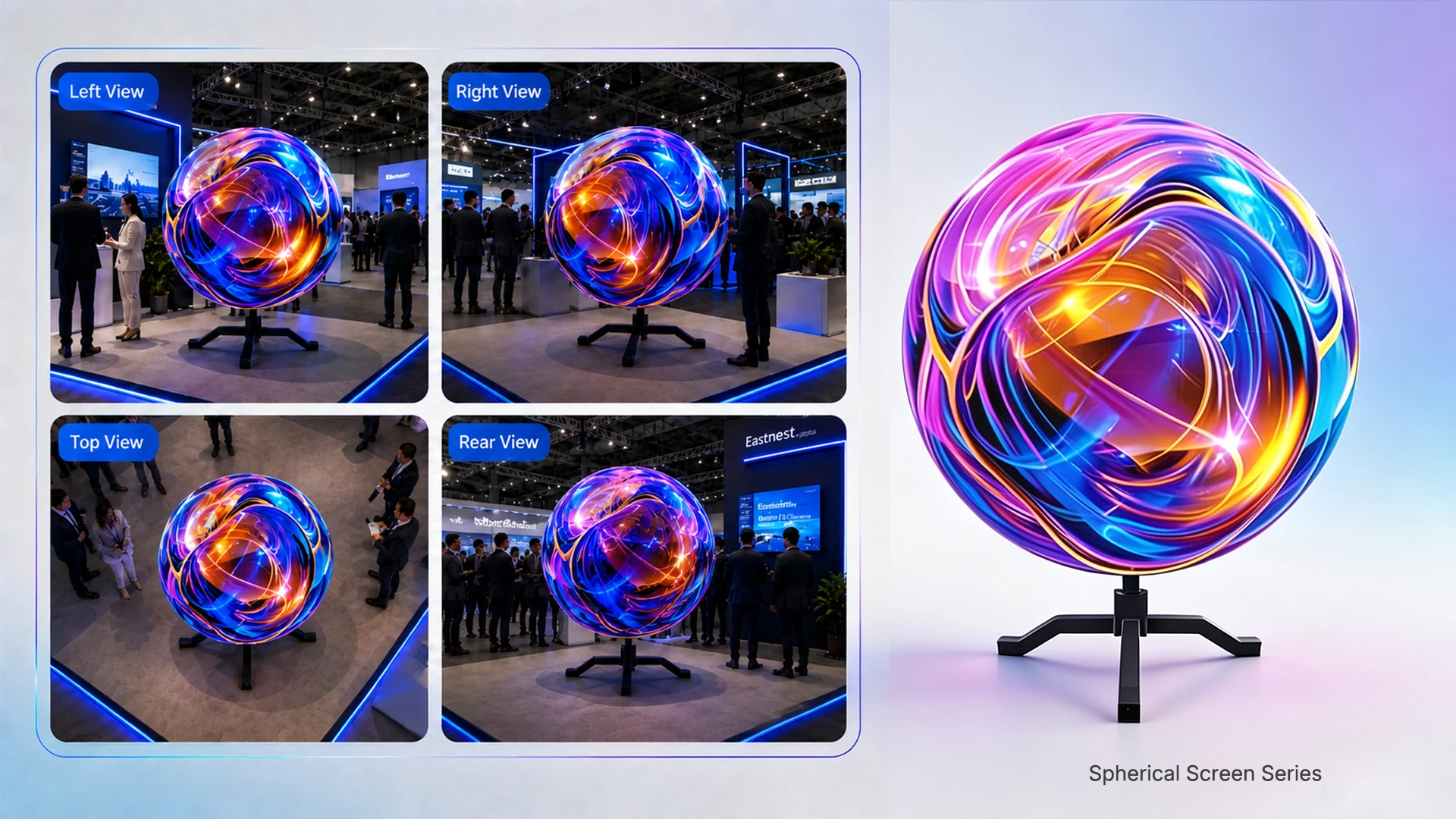

Viewing Angle: 360°

Operating Temperature: -20°C～+50°C

Input Voltage: 110V / 220V,50-60Hz

Control System Configuration: PC + DVI graphics card + sending card + receiving card

1.53 mmView configuration

Pixel Pitch: 1.53

LED Type: SMD

Pixel Density (pixels/m²): 427180

Module Dimensions (W × H): Custom

Diameter: 1m, 1.5m, 2m, 2.5m, 3m, 4m

Spherical Screen Area: 3.14㎡, 7.065㎡, 12.56㎡, 19.625㎡, 28.26㎡, 50.24㎡,

Refresh Rate: 3840Hz

Scan Mode: 1/52

Brightness: ≥600 cd/m²

Grayscale: 16bit

Power Consumption (Average/Maximum): 250/680W/m²

Maintenance Access: Front

IP Rating: IP43

Surface Flatness: ≤0.5 mm between adjacent pixels; <1 mm panel splicing gap

Operating System: Windows(98,2000,XP,Vin7)

Color Temperature: 3200 K–7000 K (adjustable)

Viewing Angle: 360°

Operating Temperature: -20°C～+50°C

Input Voltage: 110V / 220V,50-60Hz

Control System Configuration: PC + DVI graphics card + sending card + receiving card

1.86 mmView configuration

Pixel Pitch: 1.86

LED Type: SMD

Pixel Density (pixels/m²): 289050

Module Dimensions (W × H): Custom

Diameter: 1m, 1.5m, 2m, 2.5m, 3m, 4m

Spherical Screen Area: 3.14㎡, 7.065㎡, 12.56㎡, 19.625㎡, 28.26㎡, 50.24㎡,

Refresh Rate: 3840Hz

Scan Mode: 1/43

Brightness: ≥600 cd/m²

Grayscale: 16bit

Power Consumption (Average/Maximum): 250/680W/m²

Maintenance Access: Front

IP Rating: IP43

Surface Flatness: ≤0.5 mm between adjacent pixels; <1 mm panel splicing gap

Operating System: Windows(98,2000,XP,Vin7)

Color Temperature: 3200 K–7000 K (adjustable)

Viewing Angle: 360°

Operating Temperature: -20°C～+50°C

Input Voltage: 110V / 220V,50-60Hz

Control System Configuration: PC + DVI graphics card + sending card + receiving card

2 mmView configuration

Pixel Pitch: 2

LED Type: SMD

Pixel Density (pixels/m²): 250000

Module Dimensions (W × H): Custom

Diameter: 1m, 1.5m, 2m, 2.5m, 3m, 4m

Spherical Screen Area: 3.14㎡, 7.065㎡, 12.56㎡, 19.625㎡, 28.26㎡, 50.24㎡,

Refresh Rate: 3840Hz

Scan Mode: 1/40

Brightness: ≥600 cd/m²

Grayscale: 16bit

Power Consumption (Average/Maximum): 250/680W/m²

Maintenance Access: Front

IP Rating: IP43

Surface Flatness: ≤0.5 mm between adjacent pixels; <1 mm panel splicing gap

Operating System: Windows(98,2000,XP,Vin7)

Color Temperature: 3200 K–7000 K (adjustable)

Viewing Angle: 360°

Operating Temperature: -20°C～+50°C

Input Voltage: 110V / 220V,50-60Hz

Control System Configuration: PC + DVI graphics card + sending card + receiving card

2.5 mmView configuration

Pixel Pitch: 2.5

LED Type: SMD

Pixel Density (pixels/m²): 160000

Module Dimensions (W × H): Custom

Diameter: 1m, 1.5m, 2m, 2.5m, 3m, 4m

Spherical Screen Area: 3.14㎡, 7.065㎡, 12.56㎡, 19.625㎡, 28.26㎡, 50.24㎡,

Refresh Rate: 3840Hz

Scan Mode: 1/32

Brightness: ≥600 cd/m²

Grayscale: 16bit

Power Consumption (Average/Maximum): 250/680W/m²

Maintenance Access: Front

IP Rating: IP43

Surface Flatness: ≤0.5 mm between adjacent pixels; <1 mm panel splicing gap

Operating System: Windows(98,2000,XP,Vin7)

Color Temperature: 3200 K–7000 K (adjustable)

Viewing Angle: 360°

Operating Temperature: -20°C～+50°C

Input Voltage: 110V / 220V,50-60Hz

Control System Configuration: PC + DVI graphics card + sending card + receiving card

Specifications

Pixel Pitch	1.25: 1.25; 1.53: 1.53; 1.86: 1.86; 2: 2; 2.5: 2.5
LED Type	SMD
Pixel Density (pixels/m²)	1.25: 640000; 1.53: 427180; 1.86: 289050; 2: 250000; 2.5: 160000
Module Dimensions (W × H)	Custom
Diameter	1m, 1.5m, 2m, 2.5m, 3m, 4m
Spherical Screen Area	3.14㎡, 7.065㎡, 12.56㎡, 19.625㎡, 28.26㎡, 50.24㎡,
Refresh Rate	3840Hz
Scan Mode	1.25: 1/64; 1.53: 1/52; 1.86: 1/43; 2: 1/40; 2.5: 1/32
Brightness	≥600 cd/m²
Grayscale	16bit
Power Consumption (Average/Maximum)	250/680W/m²
Maintenance Access	Front
IP Rating	IP43
Surface Flatness	≤0.5 mm between adjacent pixels; <1 mm panel splicing gap
Operating System	Windows(98,2000,XP,Vin7)
Color Temperature	3200 K–7000 K (adjustable)
Viewing Angle	360°
Operating Temperature	-20°C～+50°C
Input Voltage	110V / 220V,50-60Hz
Control System Configuration	PC + DVI graphics card + sending card + receiving card

Product details

Supplier illustrations show product features and possible configurations. Brightness, protection ratings and optional assemblies depend on the selected version; use the specifications and confirmed quotation for your order.
