Creative

LumiPole

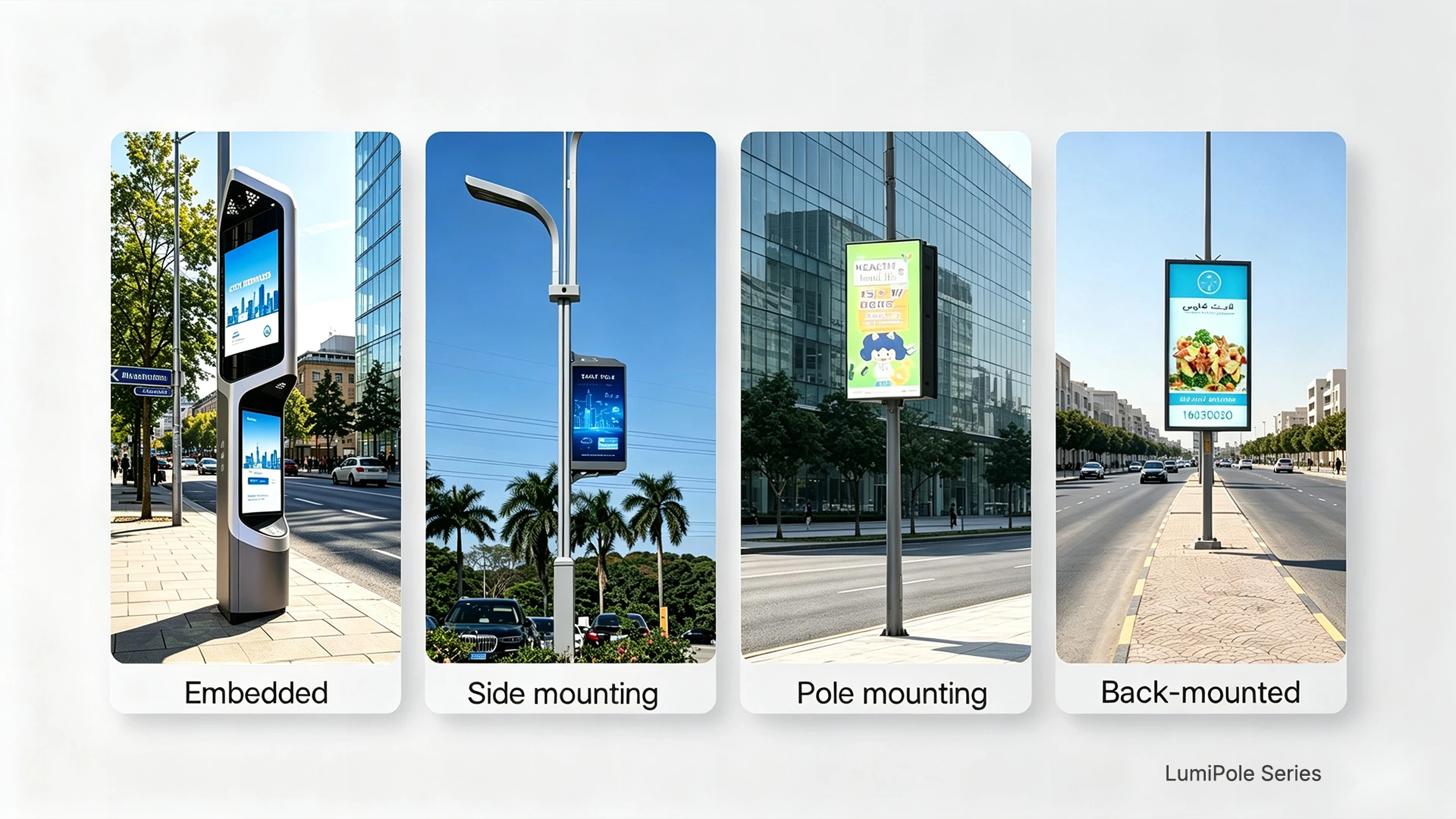

LumiPole offers outdoor LED displays for pole and related mounting arrangements. Confirm the active display area, housing dimensions and mounting structure separately.

Request this series Explore Creative

LumiPole supplier product illustration 2

Product illustrations. Configurations shown may require optional components.

At a glance

Module Size: 320×160mm
Cabinet Size: 1060×1700×135mm
Refresh Rate: 4300Hz
IP Rating: IP65

Before requesting a quote

Define the display format and installation

Which format does the project require: a rotating cube, advertising trailer, LED floor, sphere or pole display?
What are the intended dimensions, operating environment and mounting or movement requirements?
Which content mapping, control equipment, service access and project-specific safety checks need to be included?

LED Video Wall Resolution: Calculate the Native Canvas Before You Buy →LED Video Wall Power Consumption: Average, Maximum and Quote Assumptions →

Configuration options

Identify the exact pixel pitch, cabinet format and operating environment when requesting a quotation. Listed options do not mean every combination is interchangeable.

Outdoor · P2.5 mmView configuration

Pixel Pitch: P2.5

LED Type: SMD1415

Pixel Density (pixels/m²): 160000

Module Dimensions (W × H): 320×160mm

Screen Dimensions (W × H × T): 1060×1700×135mm

Panel Weight: 78 kg

Refresh Rate: 4300Hz

Brightness: 7000 cd/m²

Compatible Pole Height: 12-15m

Best Viewing Distance: 40-50m

Power Consumption (Average): 800 W/unit

Maintenance Access: Rear

IP Rating: IP65

Cabinet Material: Die-cast Aluminum

Contrast Ratio: 3000:1

Grayscale: 14bit

Viewing Angle (H/V): 120°/120°

Operating Temperature: -40°C to 60°C

Input Power: AV 220 V to 5 V DC power supply

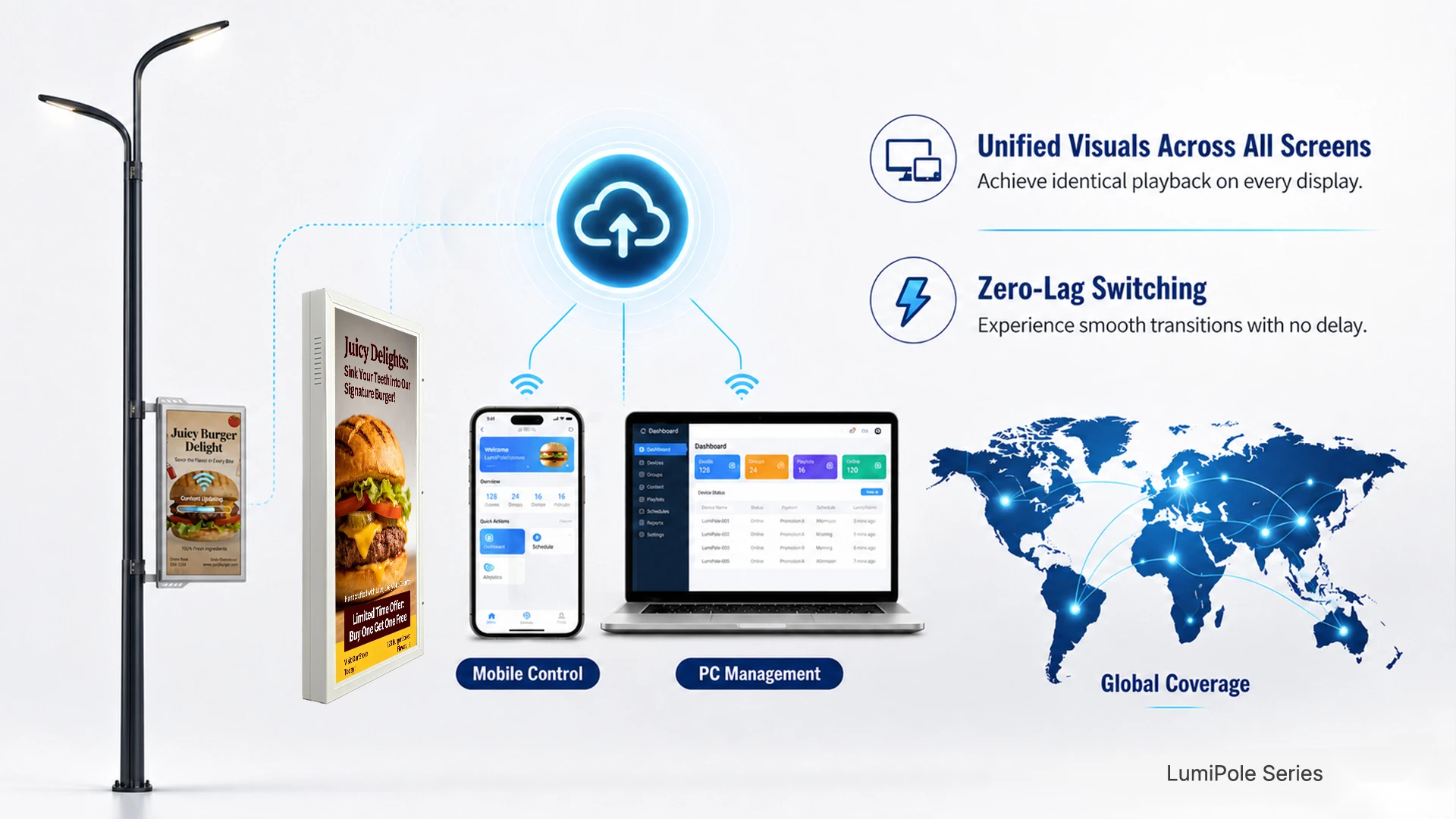

Control: Novastar/Colorlight

Outdoor · P2.85 mmView configuration

Pixel Pitch: P2.85

LED Type: SMD1415

Pixel Density (pixels/m²): 123100

Module Dimensions (W × H): 320×160mm

Screen Dimensions (W × H × T): 1060×1700×135mm

Panel Weight: 78 kg

Refresh Rate: 4300Hz

Brightness: 7000 cd/m²

Compatible Pole Height: 12-15m

Best Viewing Distance: 40-50m

Power Consumption (Average): 800 W/unit

Maintenance Access: Rear

IP Rating: IP65

Cabinet Material: Die-cast Aluminum

Contrast Ratio: 3000:1

Grayscale: 14bit

Viewing Angle (H/V): 120°/120°

Operating Temperature: -40°C to 60°C

Input Power: AV 220 V to 5 V DC power supply

Control: Novastar/Colorlight

Outdoor · P3.33 mmView configuration

Pixel Pitch: P3.33

LED Type: SMD1415

Pixel Density (pixels/m²): 90180

Module Dimensions (W × H): 320×160mm

Screen Dimensions (W × H × T): 1060×1700×135mm

Panel Weight: 78 kg

Refresh Rate: 4300Hz

Brightness: 7000 cd/m²

Compatible Pole Height: 12-15m

Best Viewing Distance: 40-50m

Power Consumption (Average): 800 W/unit

Maintenance Access: Rear

IP Rating: IP65

Cabinet Material: Die-cast Aluminum

Contrast Ratio: 3000:1

Grayscale: 14bit

Viewing Angle (H/V): 120°/120°

Operating Temperature: -40°C to 60°C

Input Power: AV 220 V to 5 V DC power supply

Control: Novastar/Colorlight

Outdoor · P3.85 mmView configuration

Pixel Pitch: P3.85

LED Type: SMD1415

Pixel Density (pixels/m²): 67460

Module Dimensions (W × H): 320×160mm

Screen Dimensions (W × H × T): 1060×1700×135mm

Panel Weight: 78 kg

Refresh Rate: 4300Hz

Brightness: 7000 cd/m²

Compatible Pole Height: 12-15m

Best Viewing Distance: 40-50m

Power Consumption (Average): 800 W/unit

Maintenance Access: Rear

IP Rating: IP65

Cabinet Material: Die-cast Aluminum

Contrast Ratio: 3000:1

Grayscale: 14bit

Viewing Angle (H/V): 120°/120°

Operating Temperature: -40°C to 60°C

Input Power: AV 220 V to 5 V DC power supply

Control: Novastar/Colorlight

Outdoor · P4 mmView configuration

Pixel Pitch: P4

LED Type: SMD1415

Module Dimensions (W × H): 320×160mm

Screen Dimensions (W × H × T): 1060×1700×135mm

Panel Weight: 78 kg

Refresh Rate: 4300Hz

Brightness: 7000 cd/m²

Compatible Pole Height: 12-15m

Best Viewing Distance: 40-50m

Power Consumption (Average): 800 W/unit

Maintenance Access: Rear

IP Rating: IP65

Cabinet Material: Die-cast Aluminum

Contrast Ratio: 3000:1

Grayscale: 14bit

Viewing Angle (H/V): 120°/120°

Operating Temperature: -40°C to 60°C

Input Power: AV 220 V to 5 V DC power supply

Control: Novastar/Colorlight

Specifications

Pixel Pitch	Outdoor P2.5: P2.5; Outdoor P2.85: P2.85; Outdoor P3.33: P3.33; Outdoor P3.85: P3.85; Outdoor P4: P4
LED Type	SMD1415
Pixel Density (pixels/m²)	Outdoor P2.5: 160000; Outdoor P2.85: 123100; Outdoor P3.33: 90180; Outdoor P3.85: 67460; Outdoor P4: Not specified
Module Dimensions (W × H)	320×160mm

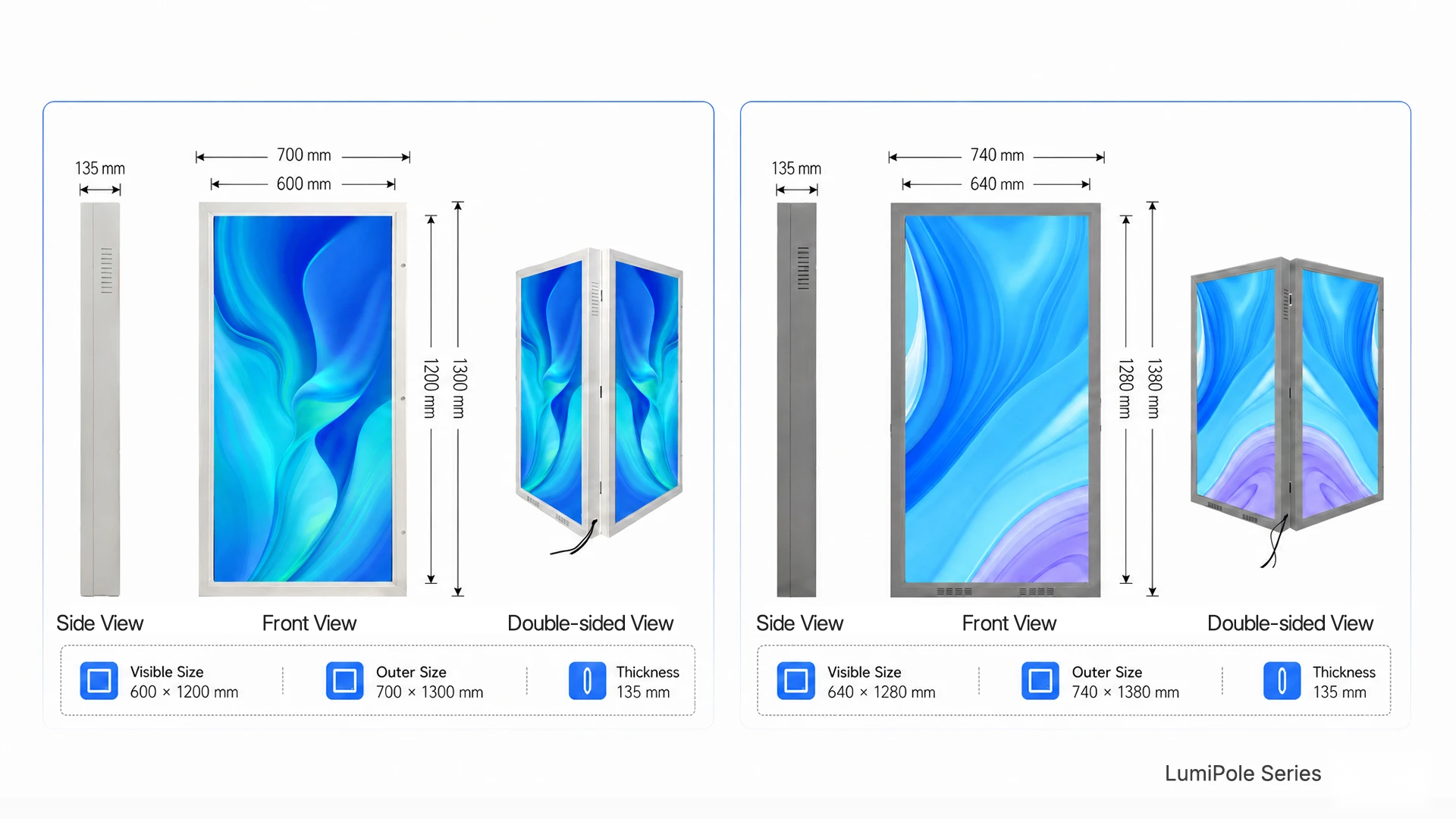

Screen Dimensions (W × H × T)	1060×1700×135mm
Panel Weight	78 kg

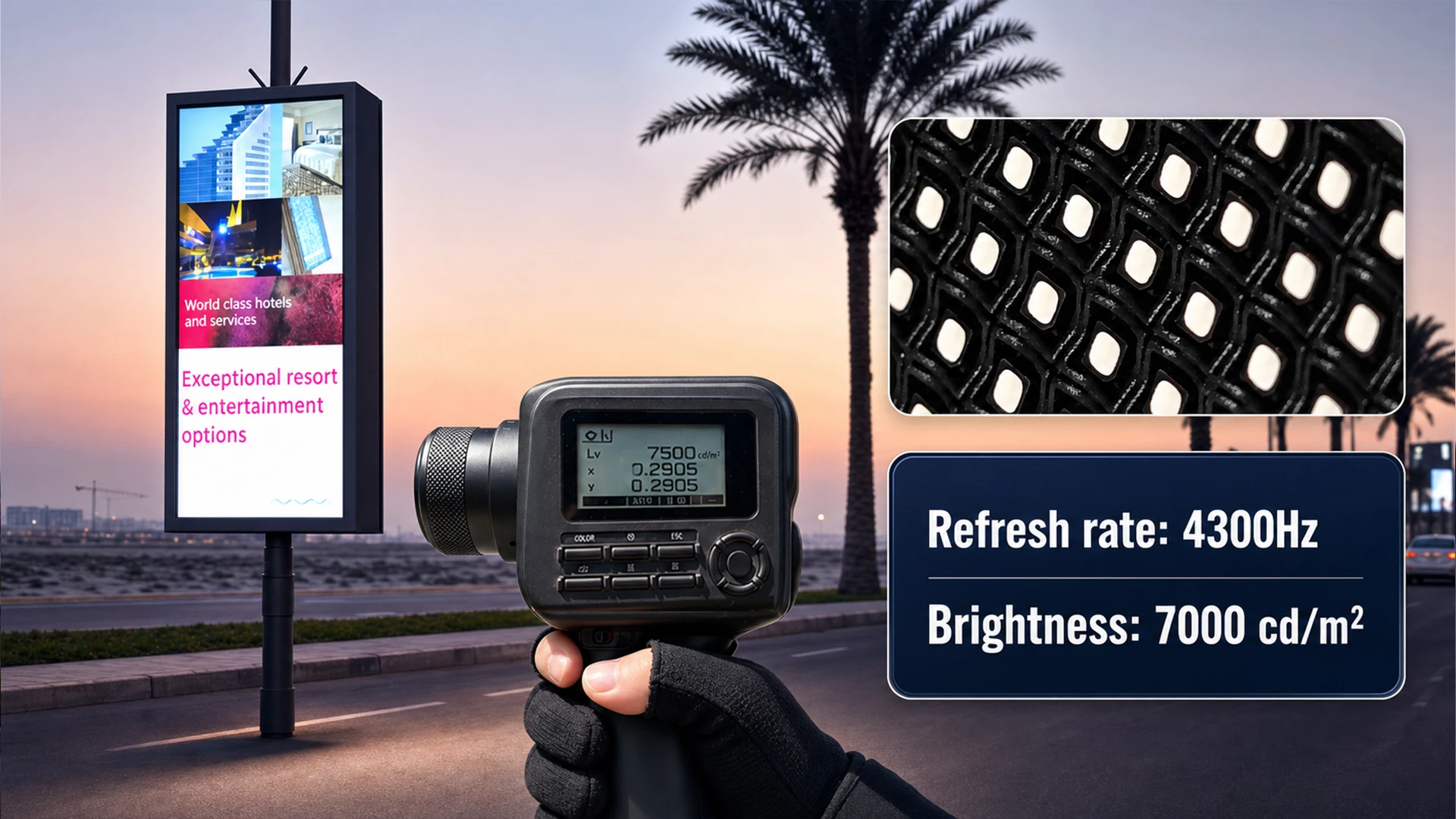

Refresh Rate	4300Hz
Brightness	7000 cd/m²
Compatible Pole Height	12-15m
Best Viewing Distance	40-50m
Power Consumption (Average)	800 W/unit
Maintenance Access	Rear

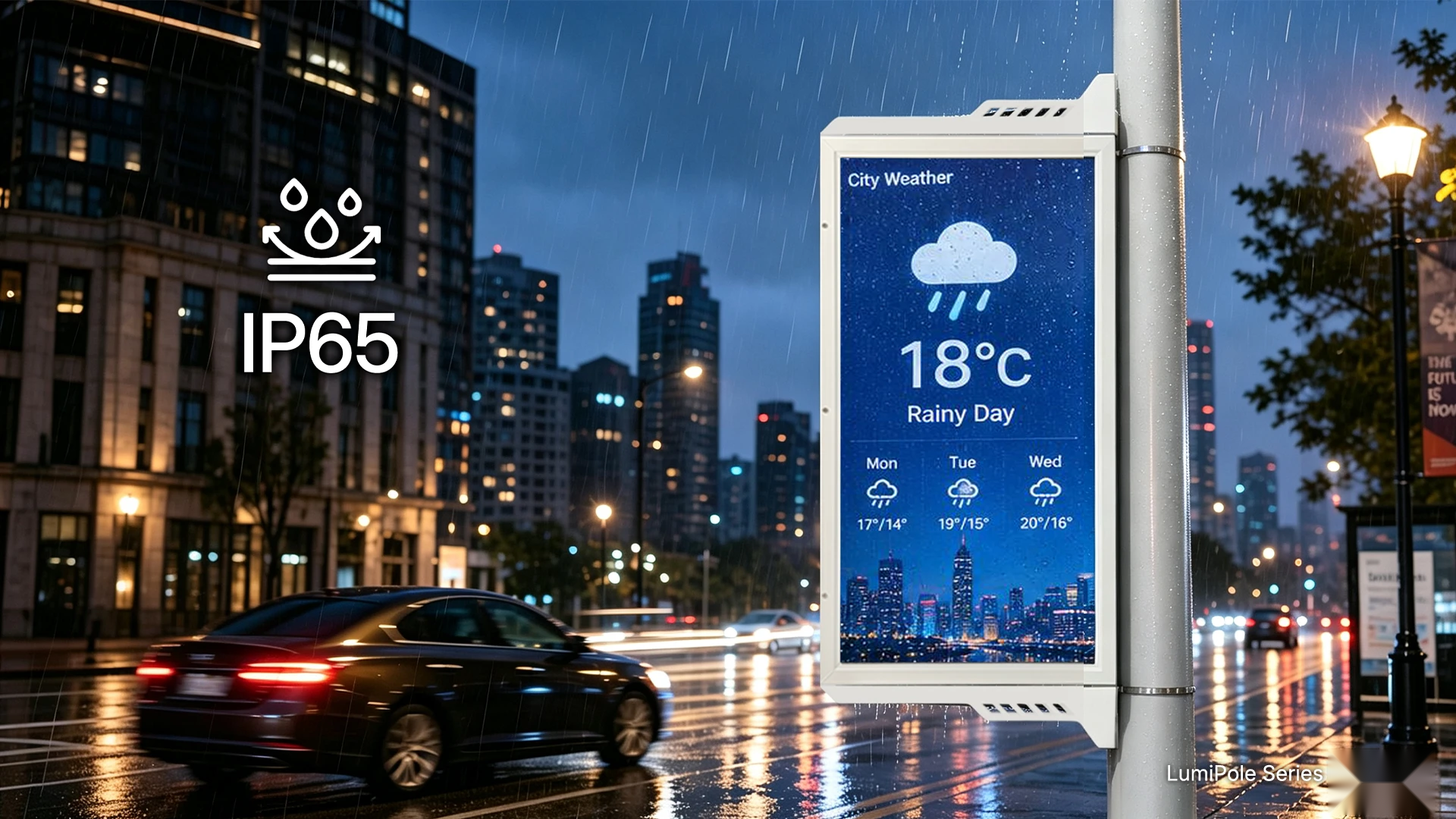

IP Rating	IP65
Cabinet Material	Die-cast Aluminum
Contrast Ratio	3000:1
Grayscale	14bit
Viewing Angle (H/V)	120°/120°
Operating Temperature	-40°C to 60°C
Input Power	AV 220 V to 5 V DC power supply
Control	Novastar/Colorlight

Product details

Supplier illustrations show product features and possible configurations. Brightness, protection ratings and optional assemblies depend on the selected version; use the specifications and confirmed quotation for your order.
