GlowGrid
GlowGrid uses 500 × 1000 mm floor cabinets. Indoor and outdoor versions have different brightness and protection ratings; select the version for the installation environment.
Product illustrations. Configurations shown may require optional components.
At a glance
- Module Size: 250×250mm
- Cabinet Size: 500×1000×80mm
- Refresh Rate: 3840HZ
- IP Rating: IP30(Indoor) IP65(Outdoor)
Configuration options
Identify the exact pixel pitch, cabinet format and operating environment when requesting a quotation. Listed options do not mean every combination is interchangeable.
Indoor · 2.5 mmView configuration
Pixel Pitch: 2.5
LED Type: SMD1515
Pixel Density (pixels/m²): 160000
Module Dimensions (W × H): 250×250mm

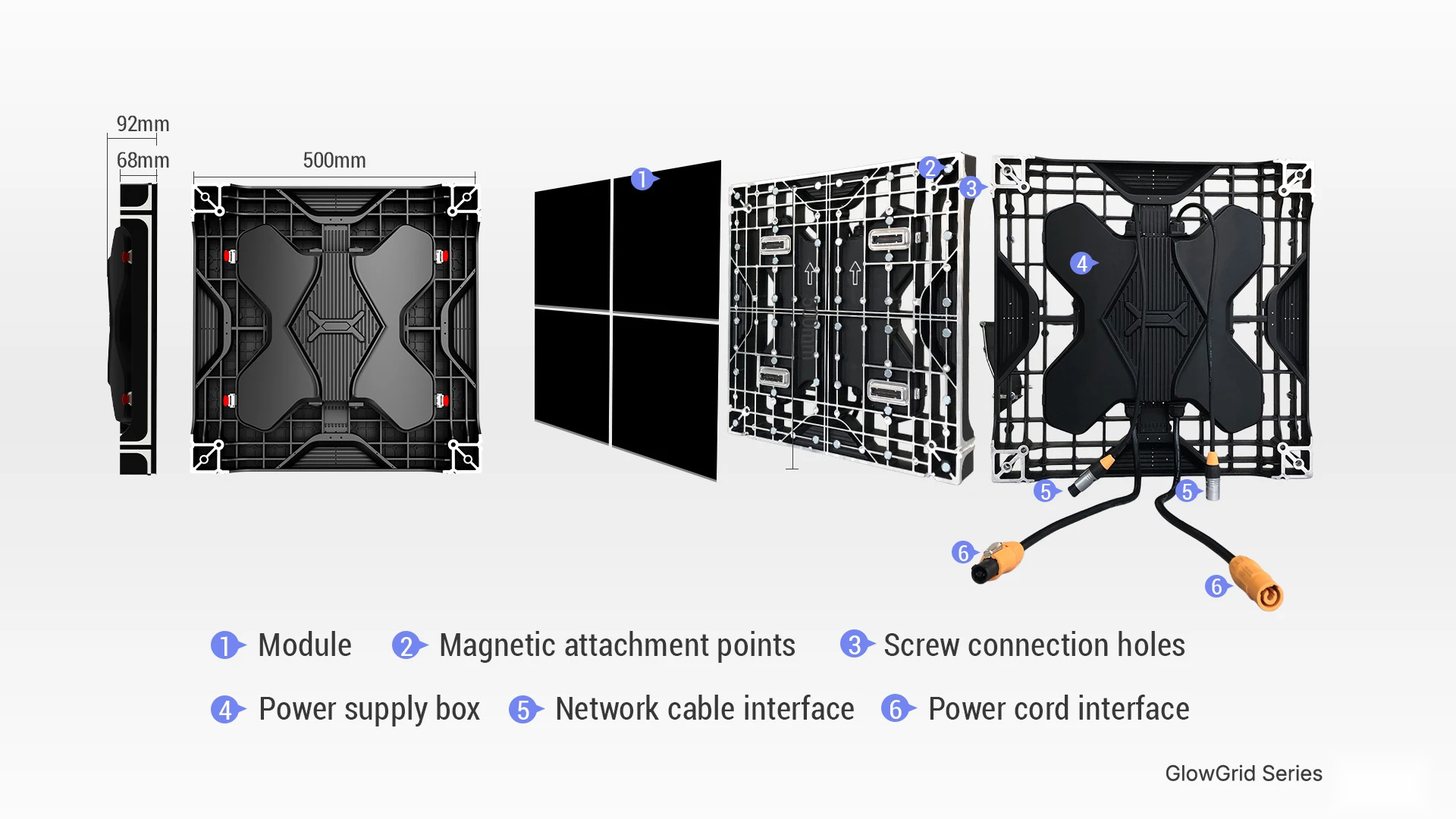

Panel Dimensions (W × H × T): 500×1000×80mm
Panel Weight: 25 kg
Refresh Rate: 3840Hz
Scan Mode: 1/25
Brightness: 600-800 cd/m²
Grayscale: 14bit
Power Consumption (Average/Maximum): 120/400 W/m²

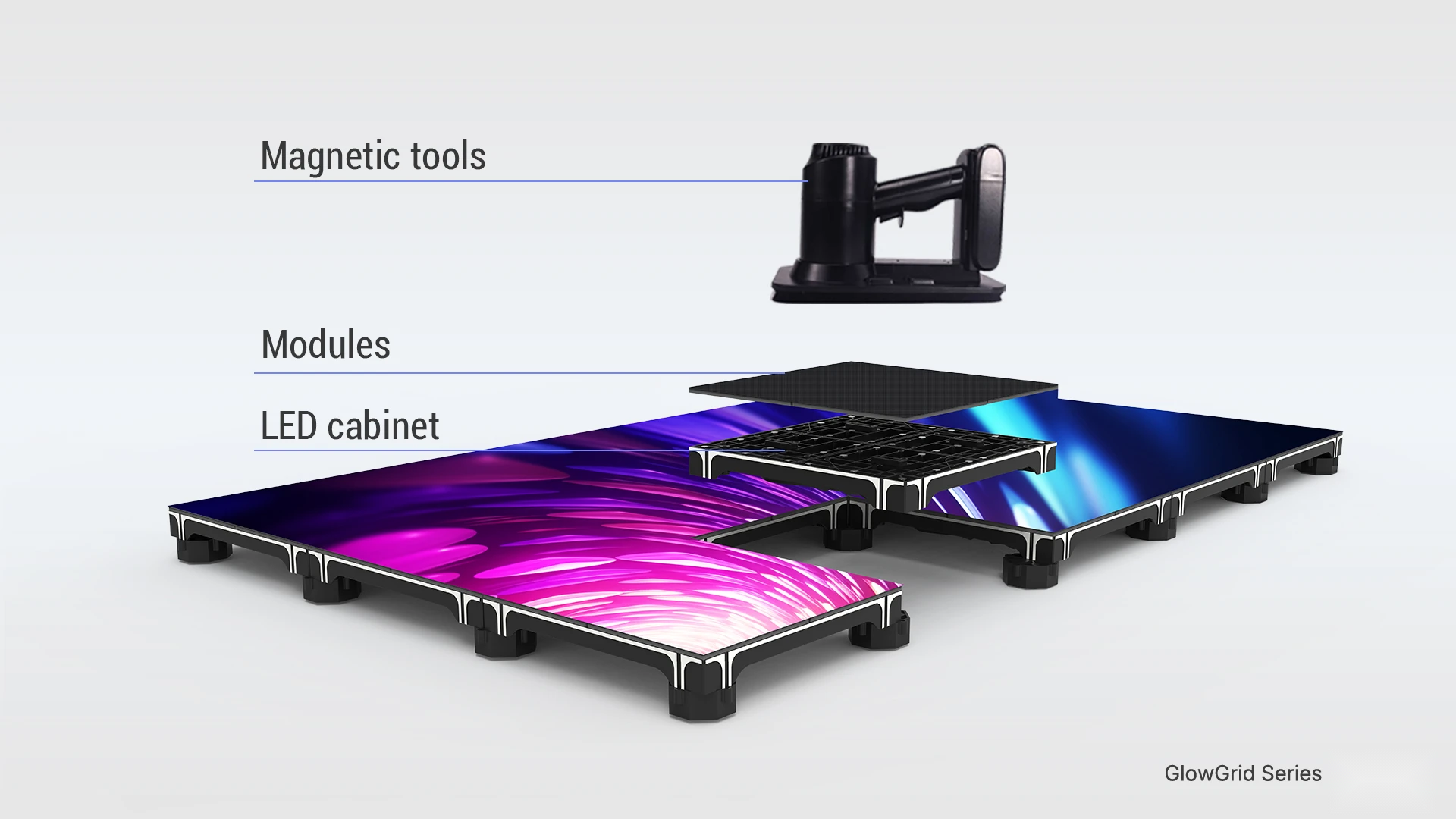

Maintenance Access: Front
IP Rating: IP30
Cabinet Material: Iron
Contrast Ratio: 5000:1
Best Viewing Distance: 2.9-29m
Viewing Angle (H/V): 140°/120°
Operating Temperature: -40°C to 60°C
Input Power: AC100~240 50/60HZ
Control: Novastar/Colorlight
Indoor · 2.976 mmView configuration
Pixel Pitch: 2.976
LED Type: SMD1515
Pixel Density (pixels/m²): 112896
Module Dimensions (W × H): 250×250mm
Panel Dimensions (W × H × T): 500×1000×80mm
Panel Weight: 25 kg
Refresh Rate: 3840Hz
Scan Mode: 1/42
Brightness: 600-800 cd/m²
Grayscale: 14bit
Power Consumption (Average/Maximum): 120/400 W/m²
Maintenance Access: Front
IP Rating: IP30
Cabinet Material: Iron
Contrast Ratio: 5000:1
Best Viewing Distance: 2.9-29m
Viewing Angle (H/V): 140°/120°
Operating Temperature: -40°C to 60°C
Input Power: AC100~240 50/60HZ
Control: Novastar/Colorlight
Indoor · 3.91 mmView configuration
Pixel Pitch: 3.91
LED Type: SMD2020
Pixel Density (pixels/m²): 65536
Module Dimensions (W × H): 250×250mm
Panel Dimensions (W × H × T): 500×1000×80mm
Panel Weight: 25 kg
Refresh Rate: 3840Hz
Scan Mode: 1/16
Brightness: 600-800 cd/m²
Grayscale: 14bit
Power Consumption (Average/Maximum): 120/400 W/m²
Maintenance Access: Front
IP Rating: IP30
Cabinet Material: Iron
Contrast Ratio: 5000:1
Best Viewing Distance: 2.9-29m
Viewing Angle (H/V): 140°/120°
Operating Temperature: -40°C to 60°C
Input Power: AC100~240 50/60HZ
Control: Novastar/Colorlight
Outdoor · 2.5 mmView configuration
Pixel Pitch: 2.5
LED Type: SMD1415
Pixel Density (pixels/m²): 160000
Module Dimensions (W × H): 250×250mm
Panel Dimensions (W × H × T): 500×1000×80mm
Panel Weight: 25 kg
Refresh Rate: 3840Hz
Scan Mode: 1/25
Brightness: 2000-3000 cd/m²
Grayscale: 14bit
Power Consumption (Average/Maximum): 180/600 W/m²
Maintenance Access: Front
IP Rating: IP65
Cabinet Material: Iron
Contrast Ratio: 5000:1
Best Viewing Distance: 2.9-29m
Viewing Angle (H/V): 140°/120°
Operating Temperature: -40°C to 60°C
Input Power: AC100~240 50/60HZ
Control: Novastar/Colorlight
Outdoor · 2.976 mmView configuration
Pixel Pitch: 2.976
LED Type: SMD1415
Pixel Density (pixels/m²): 112896
Module Dimensions (W × H): 250×250mm
Panel Dimensions (W × H × T): 500×1000×80mm
Panel Weight: 25 kg
Refresh Rate: 3840Hz
Scan Mode: 1/42
Brightness: 2000-3000 cd/m²
Grayscale: 14bit
Power Consumption (Average/Maximum): 180/600 W/m²
Maintenance Access: Front
IP Rating: IP65
Cabinet Material: Iron
Contrast Ratio: 5000:1
Best Viewing Distance: 2.9-29m
Viewing Angle (H/V): 140°/120°
Operating Temperature: -40°C to 60°C
Input Power: AC100~240 50/60HZ
Control: Novastar/Colorlight
Outdoor · 3.91 mmView configuration
Pixel Pitch: 3.91
LED Type: SMD1415
Pixel Density (pixels/m²): 65536
Module Dimensions (W × H): 250×250mm
Panel Dimensions (W × H × T): 500×1000×80mm
Panel Weight: 25 kg
Refresh Rate: 3840Hz
Scan Mode: 1/32
Brightness: 2000-3000 cd/m²
Grayscale: 14bit
Power Consumption (Average/Maximum): 180/600 W/m²
Maintenance Access: Front
IP Rating: IP65
Cabinet Material: Iron
Contrast Ratio: 5000:1
Best Viewing Distance: 2.9-29m
Viewing Angle (H/V): 140°/120°
Operating Temperature: -40°C to 60°C
Input Power: AC100~240 50/60HZ
Control: Novastar/Colorlight
Specifications
| Pixel Pitch | Indoor 2.5: 2.5; Indoor 2.976: 2.976; Indoor 3.91: 3.91; Outdoor 2.5: 2.5; Outdoor 2.976: 2.976; Outdoor 3.91: 3.91 |
|---|---|
| LED Type | Indoor 2.5: SMD1515; Indoor 2.976: SMD1515; Indoor 3.91: SMD2020; Outdoor 2.5: SMD1415; Outdoor 2.976: SMD1415; Outdoor 3.91: SMD1415 |
| Pixel Density (pixels/m²) | Indoor 2.5: 160000; Indoor 2.976: 112896; Indoor 3.91: 65536; Outdoor 2.5: 160000; Outdoor 2.976: 112896; Outdoor 3.91: 65536 |
| Module Dimensions (W × H) | 250×250mm |
| Panel Dimensions (W × H × T) | 500×1000×80mm |
| Panel Weight | 25 kg |
| Refresh Rate | 3840Hz |
| Scan Mode | Indoor 2.5: 1/25; Indoor 2.976: 1/42; Indoor 3.91: 1/16; Outdoor 2.5: 1/25; Outdoor 2.976: 1/42; Outdoor 3.91: 1/32 |
| Brightness | Indoor 2.5: 600-800 cd/m²; Indoor 2.976: 600-800 cd/m²; Indoor 3.91: 600-800 cd/m²; Outdoor 2.5: 2000-3000 cd/m²; Outdoor 2.976: 2000-3000 cd/m²; Outdoor 3.91: 2000-3000 cd/m² |
| Grayscale | 14bit |
| Power Consumption (Average/Maximum) | Indoor 2.5: 120/400 W/m²; Indoor 2.976: 120/400 W/m²; Indoor 3.91: 120/400 W/m²; Outdoor 2.5: 180/600 W/m²; Outdoor 2.976: 180/600 W/m²; Outdoor 3.91: 180/600 W/m² |
| Maintenance Access | Front |
| IP Rating | Indoor 2.5: IP30; Indoor 2.976: IP30; Indoor 3.91: IP30; Outdoor 2.5: IP65; Outdoor 2.976: IP65; Outdoor 3.91: IP65 |
| Cabinet Material | Iron |
| Contrast Ratio | 5000:1 |
| Best Viewing Distance | 2.9-29m |
| Viewing Angle (H/V) | 140°/120° |
| Operating Temperature | -40°C to 60°C |
| Input Power | AC100~240 50/60HZ |
| Control | Novastar/Colorlight |
Product details
Supplier illustrations show product features and possible configurations. Brightness, protection ratings and optional assemblies depend on the selected version; use the specifications and confirmed quotation for your order.
