AdHaul

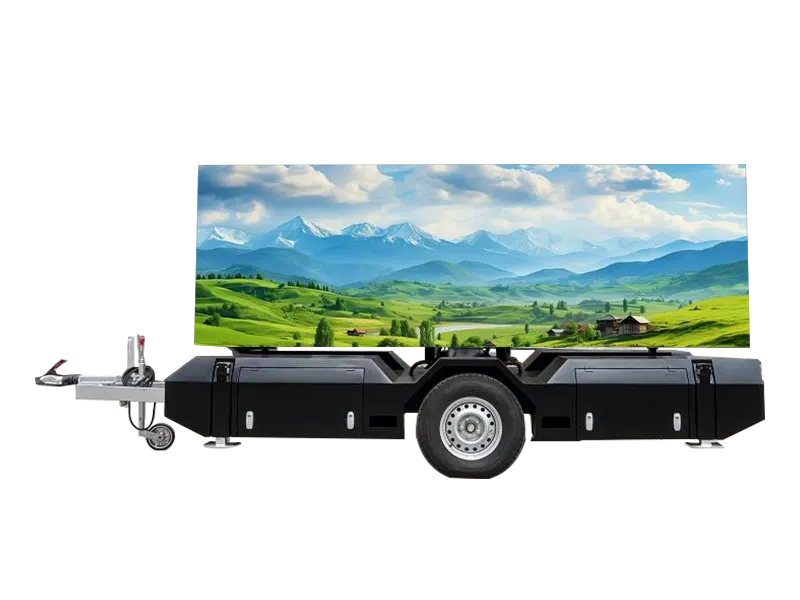

AdHaul combines an LED screen with a trailer platform and hydraulic lifting system for mobile advertising. Specify screen configuration, power and local transport requirements before ordering.
Product illustrations. Configurations shown may require optional components.
Configuration options
Identify the exact pixel pitch, cabinet format and operating environment when requesting a quotation. Listed options do not mean every combination is interchangeable.
P3 mmView configuration
Pixel Pitch: P3
Vehicle Dimensions: 5595×1900×2085mm
Screen Dimensions: 3840×2240mm
Module Dimensions (W × H): 250×250mm
Panel Dimensions (W×H×D): 500×500×85mm, 500×1000×85mm
Gross Vehicle Weight: 1750 kg

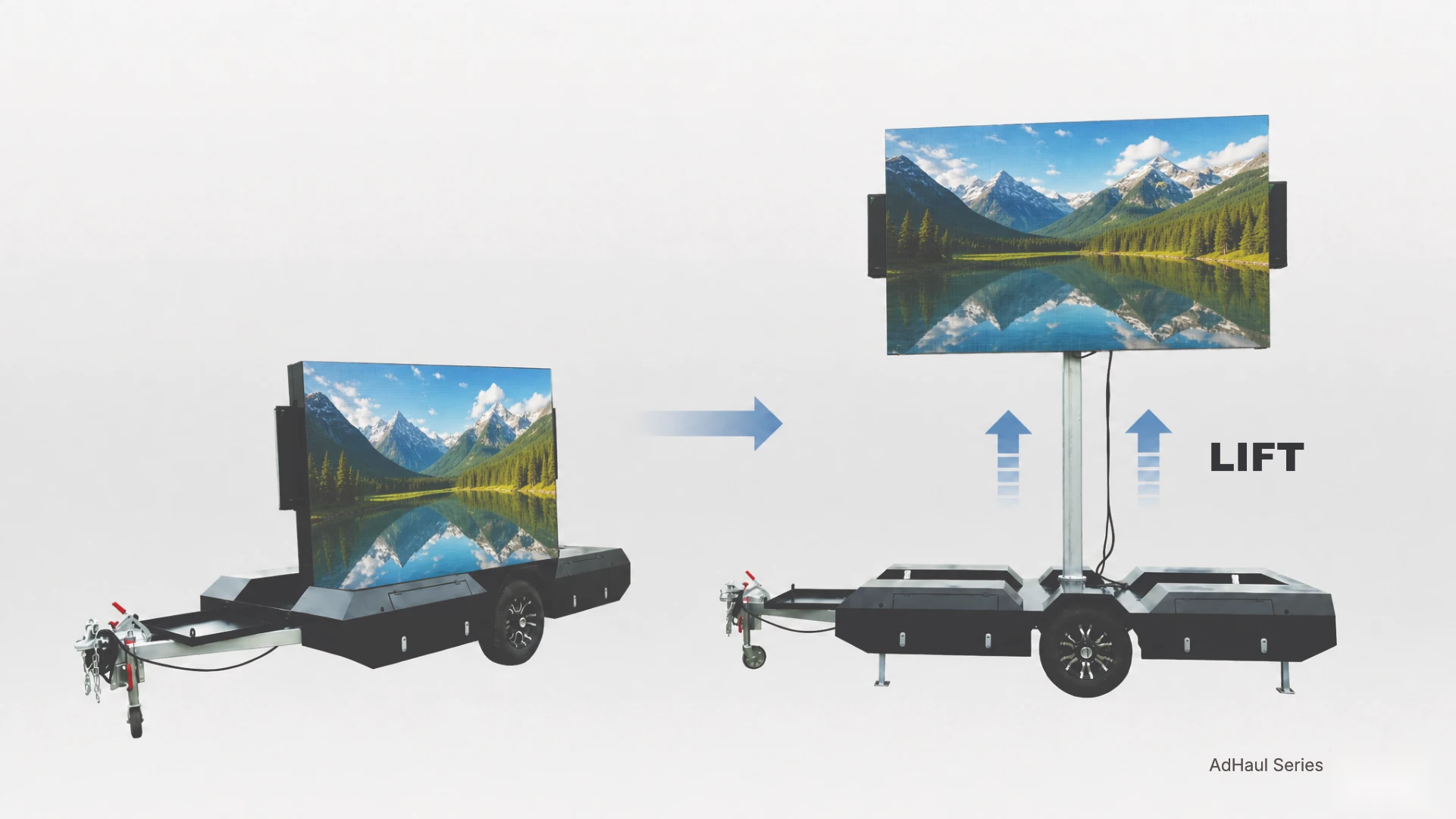

Lifting System: Hydraulic lift stroke: 1300 mm

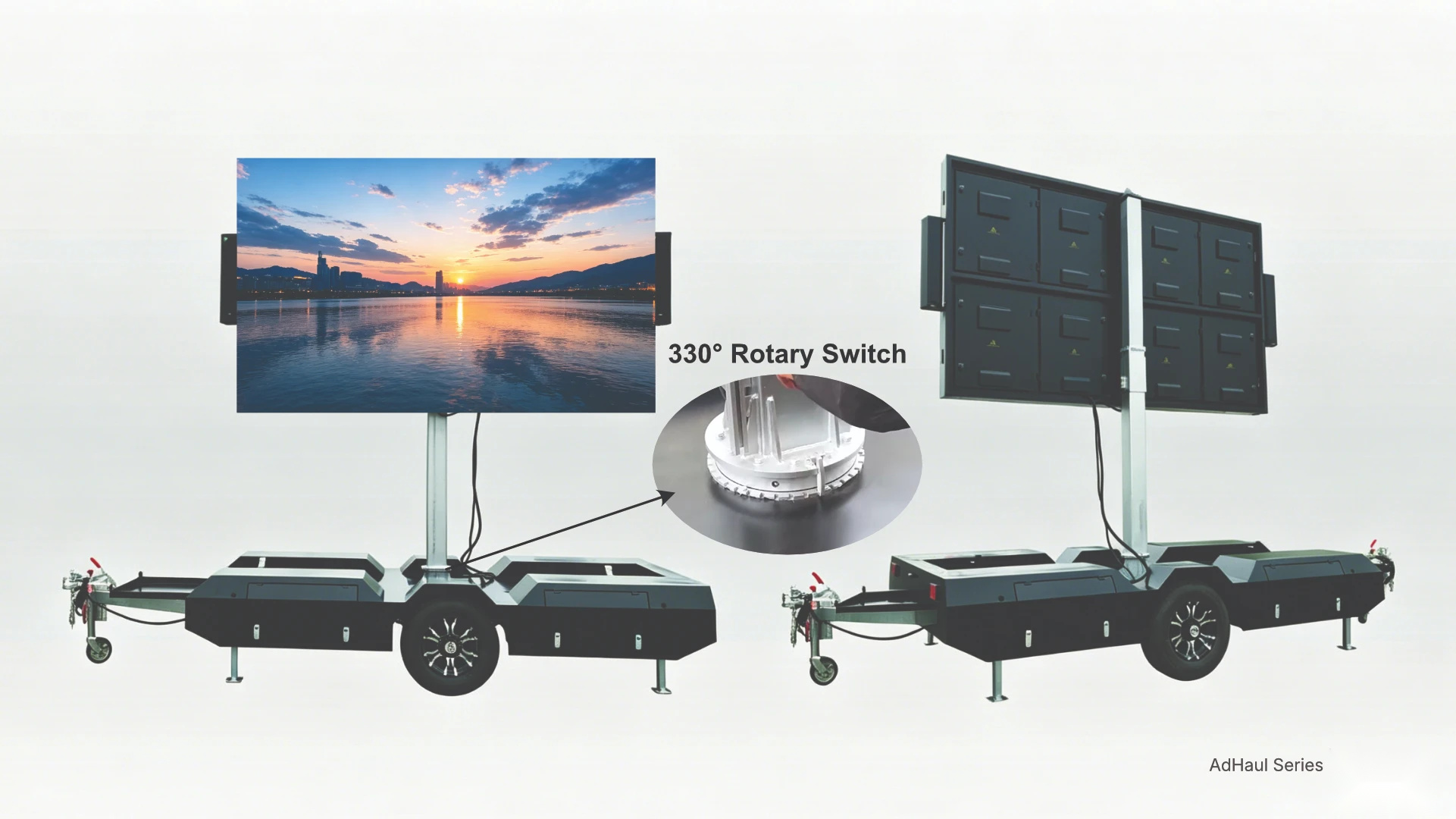

Rotation Angle: Manual screen rotation: 330°
Folding System: LED screen folding and flip-over; stroke: 960 mm

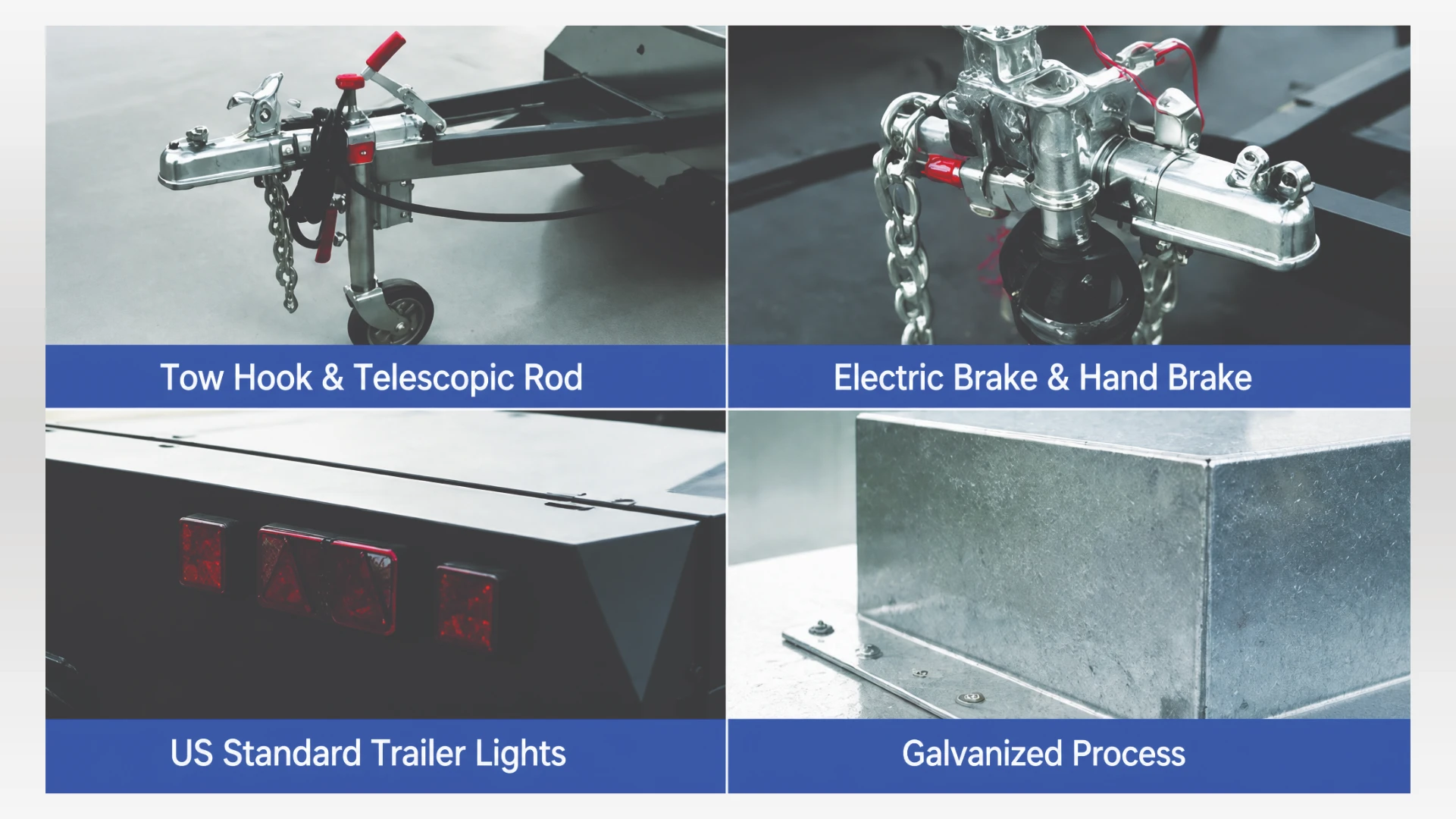

Braking System: Overrun brake / electric brake / hand brake
Power Supply: Generator power / external power supply: 220 V, 28 A
Multimedia System: Multimedia playback system; supports 4G, USB drive playback and mainstream video formats
Product Features: An integrated system with support, hydraulic lifting and rotation functions; suitable for busy streets, rallies, outdoor events and other high-traffic venues
Packaging: Vehicle shipped uncrated in a container
P4 mmView configuration
Pixel Pitch: P4
Vehicle Dimensions: 5595×1900×2085mm
Screen Dimensions: 3840×2240mm
Module Dimensions (W × H): 250×250mm
Panel Dimensions (W×H×D): 500×500×85mm, 500×1000×85mm
Gross Vehicle Weight: 1750 kg
Lifting System: Hydraulic lift stroke: 1300 mm
Rotation Angle: Manual screen rotation: 330°
Folding System: LED screen folding and flip-over; stroke: 960 mm
Braking System: Overrun brake / electric brake / hand brake
Power Supply: Generator power / external power supply: 220 V, 28 A
Multimedia System: Multimedia playback system; supports 4G, USB drive playback and mainstream video formats
Product Features: An integrated system with support, hydraulic lifting and rotation functions; suitable for busy streets, rallies, outdoor events and other high-traffic venues
Packaging: Vehicle shipped uncrated in a container
P5 mmView configuration
Pixel Pitch: P5
Vehicle Dimensions: 5595×1900×2085mm
Screen Dimensions: 3840×2240mm
Module Dimensions (W × H): 250×250mm
Panel Dimensions (W×H×D): 500×500×85mm, 500×1000×85mm
Gross Vehicle Weight: 1750 kg
Lifting System: Hydraulic lift stroke: 1300 mm
Rotation Angle: Manual screen rotation: 330°
Folding System: LED screen folding and flip-over; stroke: 960 mm
Braking System: Overrun brake / electric brake / hand brake
Power Supply: Generator power / external power supply: 220 V, 28 A
Multimedia System: Multimedia playback system; supports 4G, USB drive playback and mainstream video formats
Product Features: An integrated system with support, hydraulic lifting and rotation functions; suitable for busy streets, rallies, outdoor events and other high-traffic venues
Packaging: Vehicle shipped uncrated in a container
Specifications
| Vehicle Dimensions | 5595×1900×2085mm |
|---|---|
| Screen Dimensions | 3840×2240mm |
| Pixel Pitch | P3: P3; P4: P4; P5: P5 |
| Module Dimensions (W × H) | 250×250mm |
| Panel Dimensions (W×H×D) | 500×500×85mm, 500×1000×85mm |
| Gross Vehicle Weight | 1750 kg |
| Lifting System | Hydraulic lift stroke: 1300 mm |
| Rotation Angle | Manual screen rotation: 330° |
| Folding System | LED screen folding and flip-over; stroke: 960 mm |
| Braking System | Overrun brake / electric brake / hand brake |
| Power Supply | Generator power / external power supply: 220 V, 28 A |
| Multimedia System | Multimedia playback system; supports 4G, USB drive playback and mainstream video formats |
| Product Features | An integrated system with support, hydraulic lifting and rotation functions; suitable for busy streets, rallies, outdoor events and other high-traffic venues |
| Packaging | Vehicle shipped uncrated in a container |
Product details

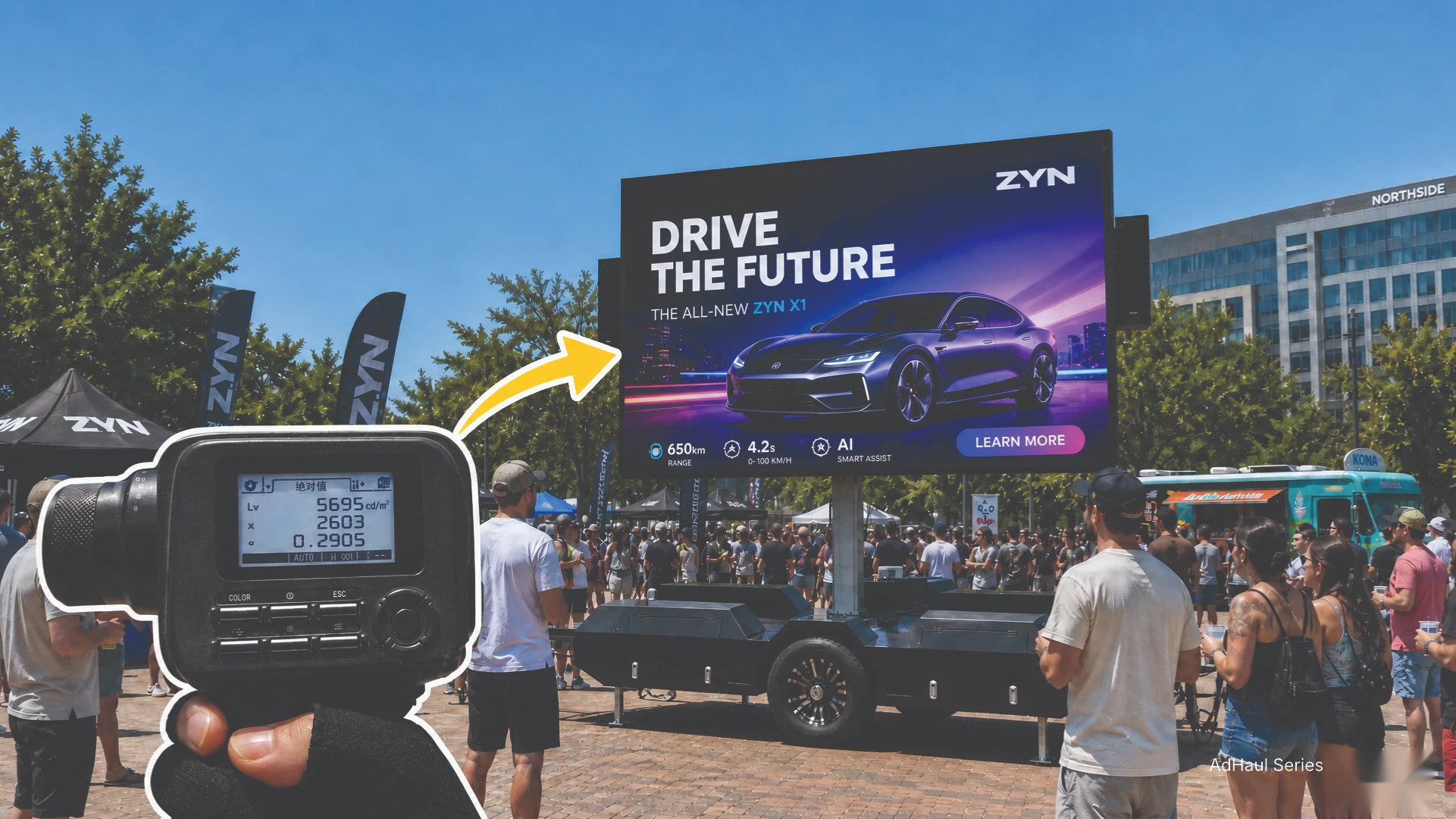

Supplier illustrations show product features and possible configurations. Brightness, protection ratings and optional assemblies depend on the selected version; use the specifications and confirmed quotation for your order.
